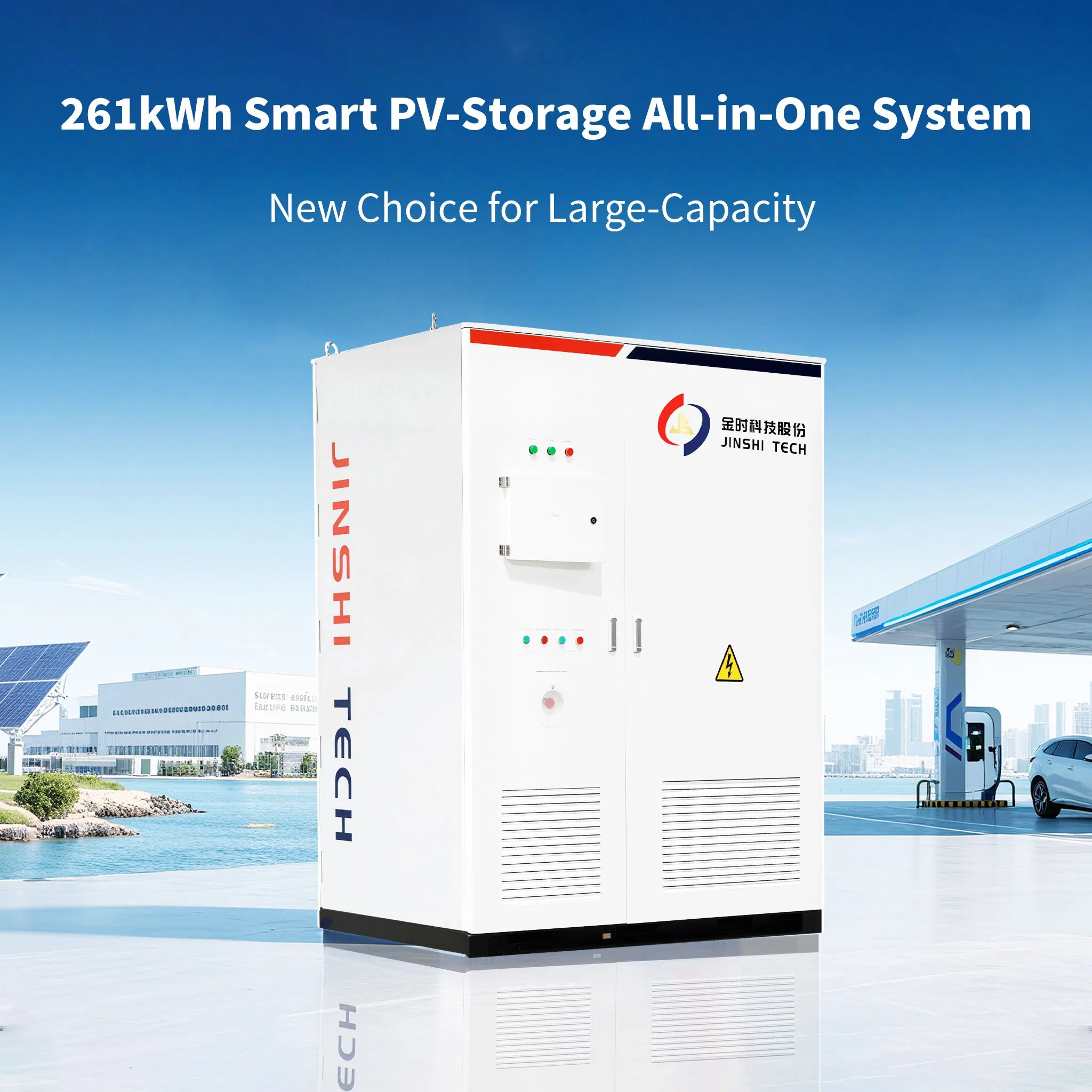

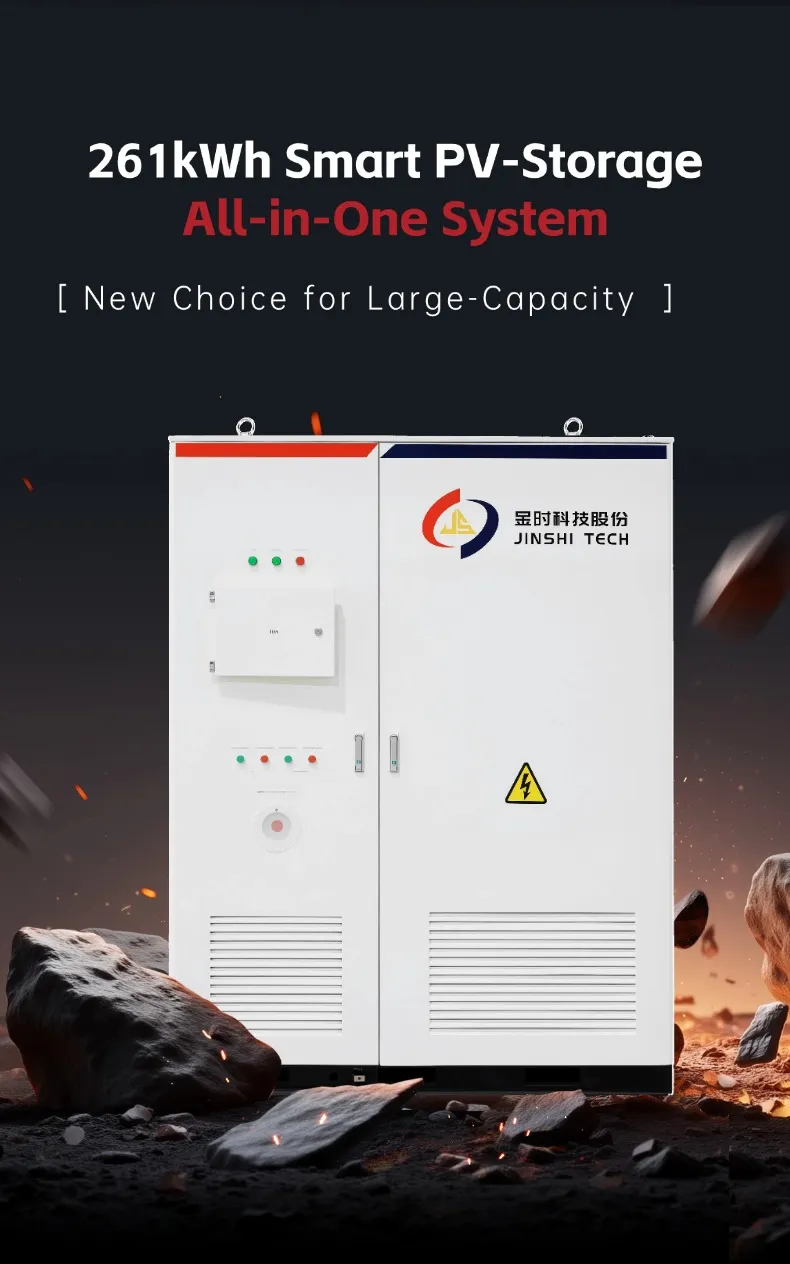

OEM ODM Customized Integrated and off Grid Hybrid Solar Cell Outdoor Cabinet Energy Storage System Solution

Customization:	Available
Nominal Voltage:	832V
Warranty:	2 Year

Send Inquiry

Product Description

Basic Information

Model NO.

Smart PV-ESS All-in-One Unit-a-A

Nominal Capacity

314ah

Cycle Life

6000

Rated Power

125kw

Overload Capacity

110% Long-Term

Max PV Power

125kw

MPPT Voltage Range

438-900V

Battery Type

3.2V/314ah/LFP

Rated Voltage

832V

Battery Capacity

261kwh

Voltage Range

728-936V

Max Charge/Discharge

0.5p

Cooling System

Intelligent Liquid Cooling

Weight

3000kg

Protection Level

IP54

Fire Protection

Perfluorohexane/Aerosol (Optional)

HS Code

8537109090

Production Capacity

500pieces/Year

Packaging & Delivery

Package Size

170.00cm * 130.00cm * 225.00cm

Gross Weight

3000.000kg

Transport Package

Standard Packaging or Customized

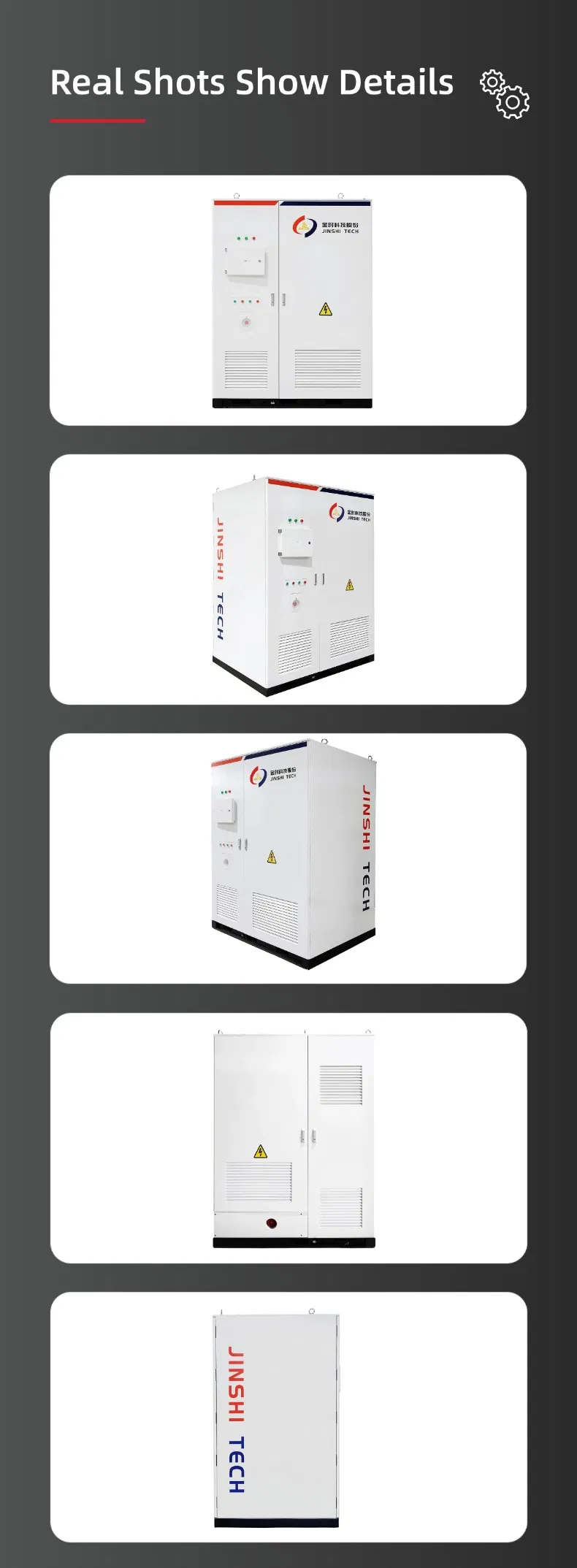

Product Gallery & Details

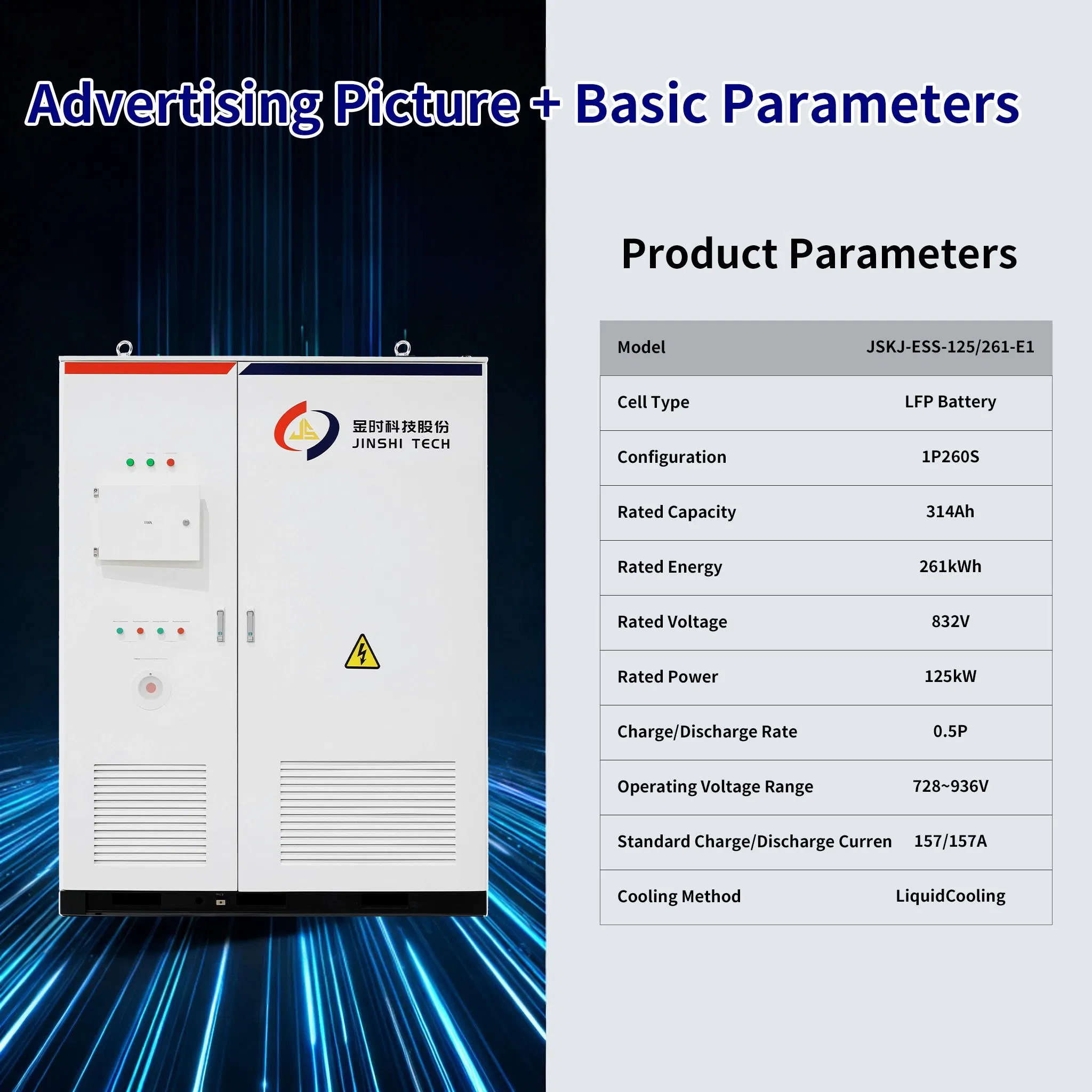

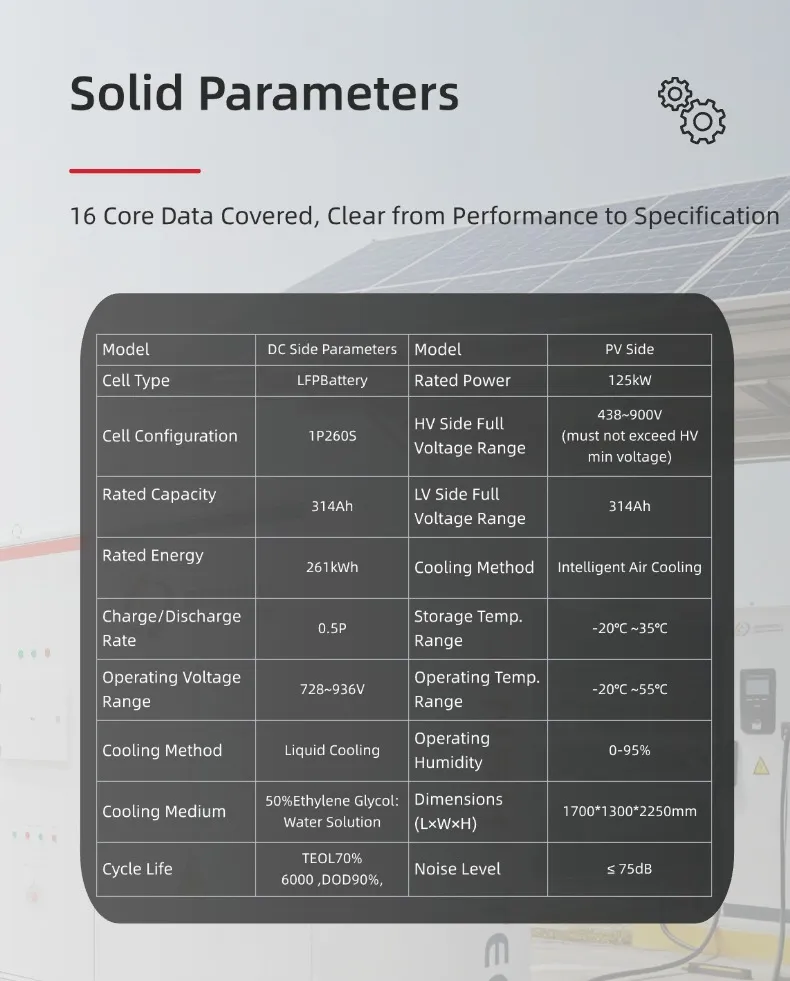

Product Parameters
Cell Type	LFP Battery
Configuration	1P260S
Rated Capacity	314Ah
Rated Energy	261kWh
Rated Voltage	832V
Rated Power	125kW
Charge/Discharge Rate	0.5P
Operating Voltage Range	728~936V
Standard Charge/Discharge Current	157/157A
Cooling Method	Liquid Cooling
Maximum Efficiency	99%

Frequently Asked Questions

What is the cycle life of the battery?

The system features a high-performance LFP battery with a cycle life of approximately 6000 cycles, ensuring long-term reliability.

What type of cooling system is used?

This unit utilizes an Intelligent Liquid Cooling system to maintain optimal operating temperatures and enhance efficiency.

Can this system be used outdoors?

Yes, the unit is designed with an IP54 protection level, making it suitable for outdoor cabinet installations.

What safety features are included for fire protection?

The system comes with optional Perfluorohexane or Aerosol fire protection systems to ensure maximum safety.

What is the energy efficiency of this ESS unit?

The system is highly efficient, with a maximum efficiency rating of up to 99%.

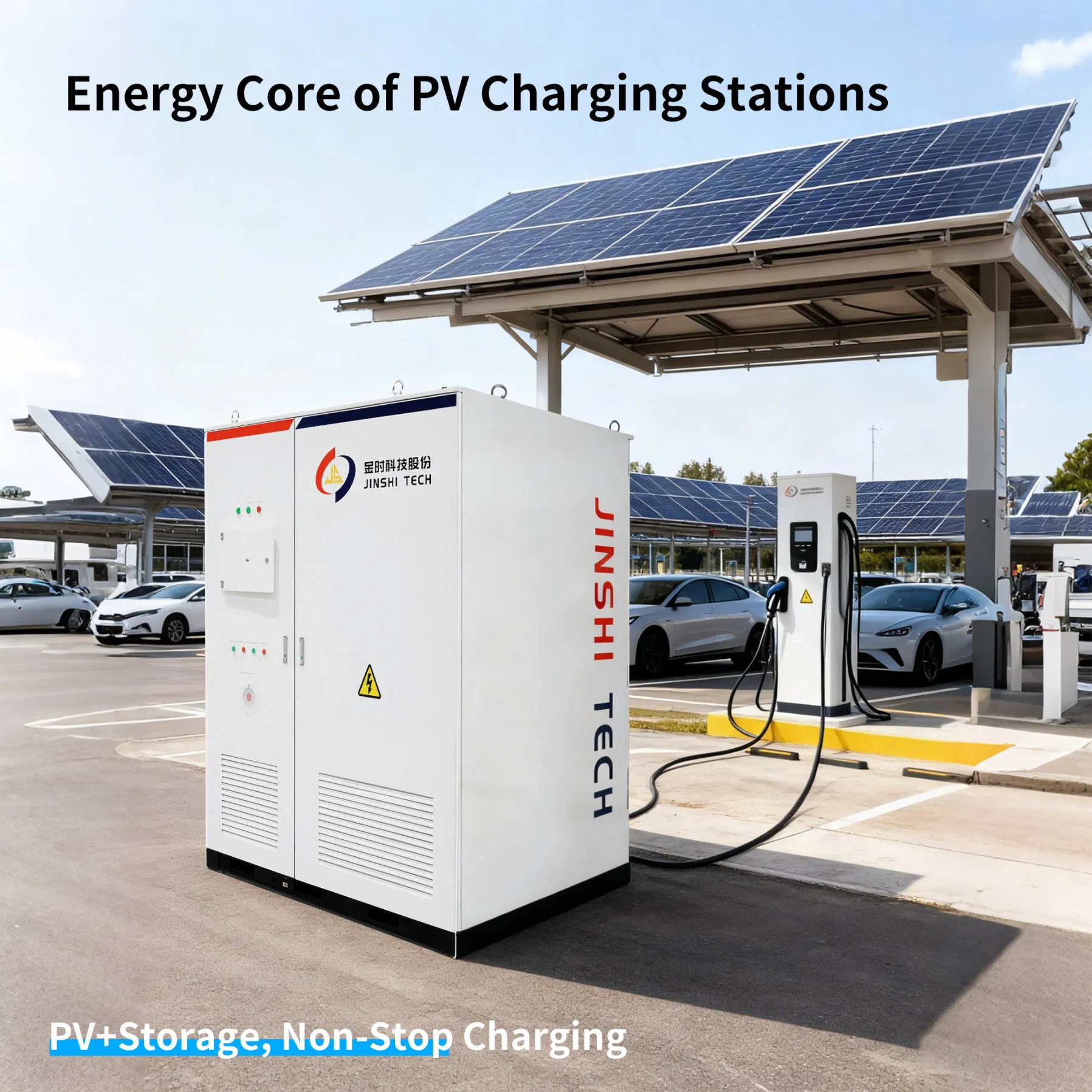

Is the unit compatible with solar PV systems?

Absolutely, it supports a maximum photovoltaic power of 125kw with an MPPT operating voltage range of 438-900V.
