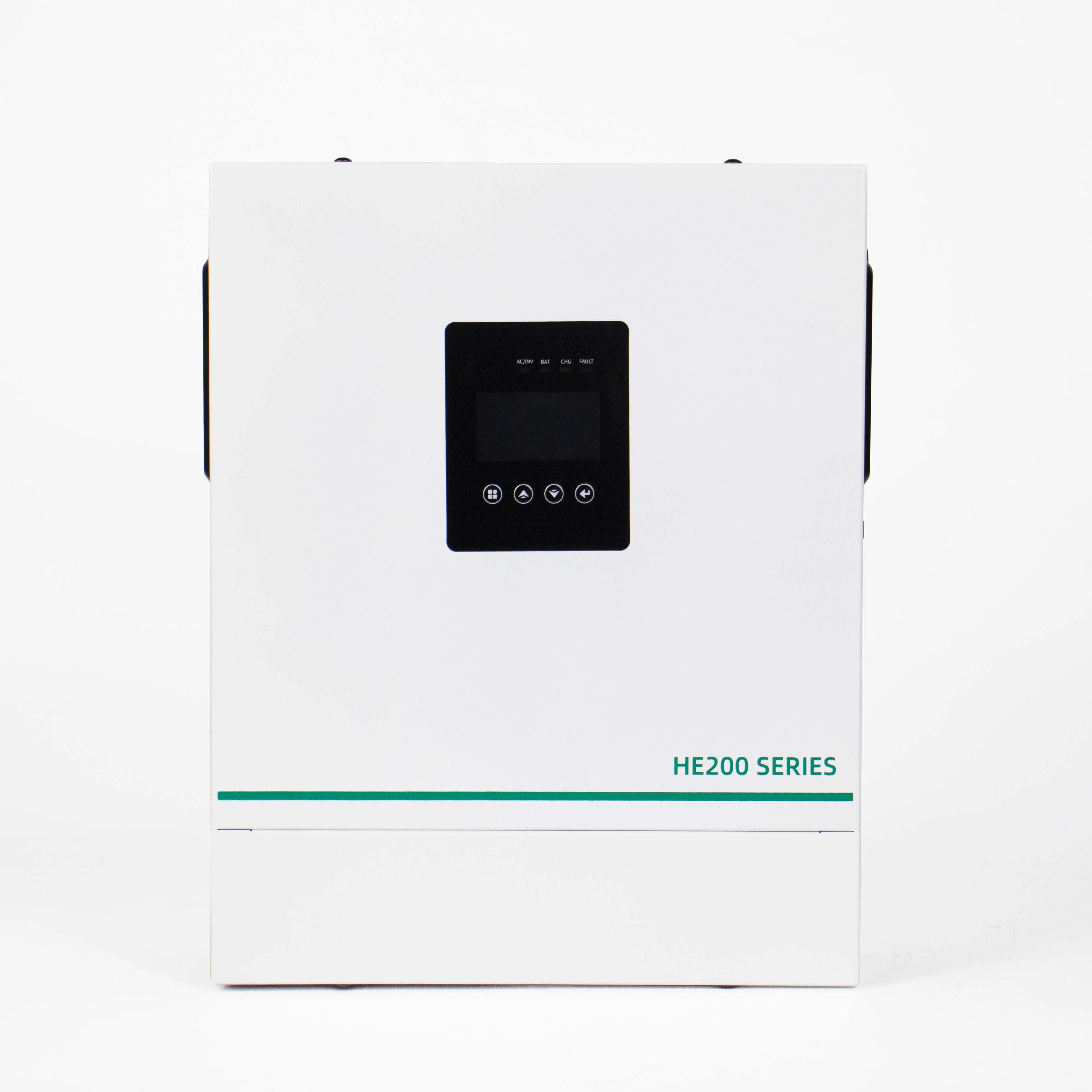

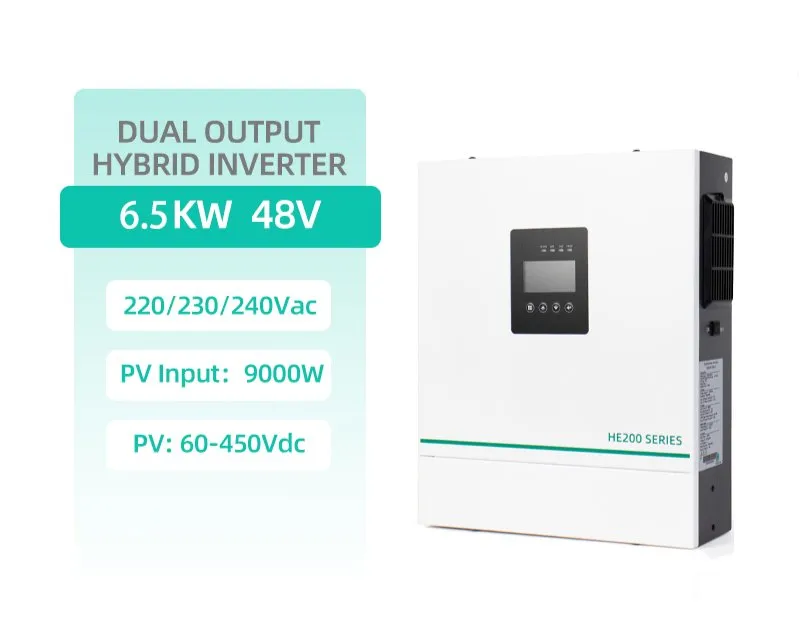

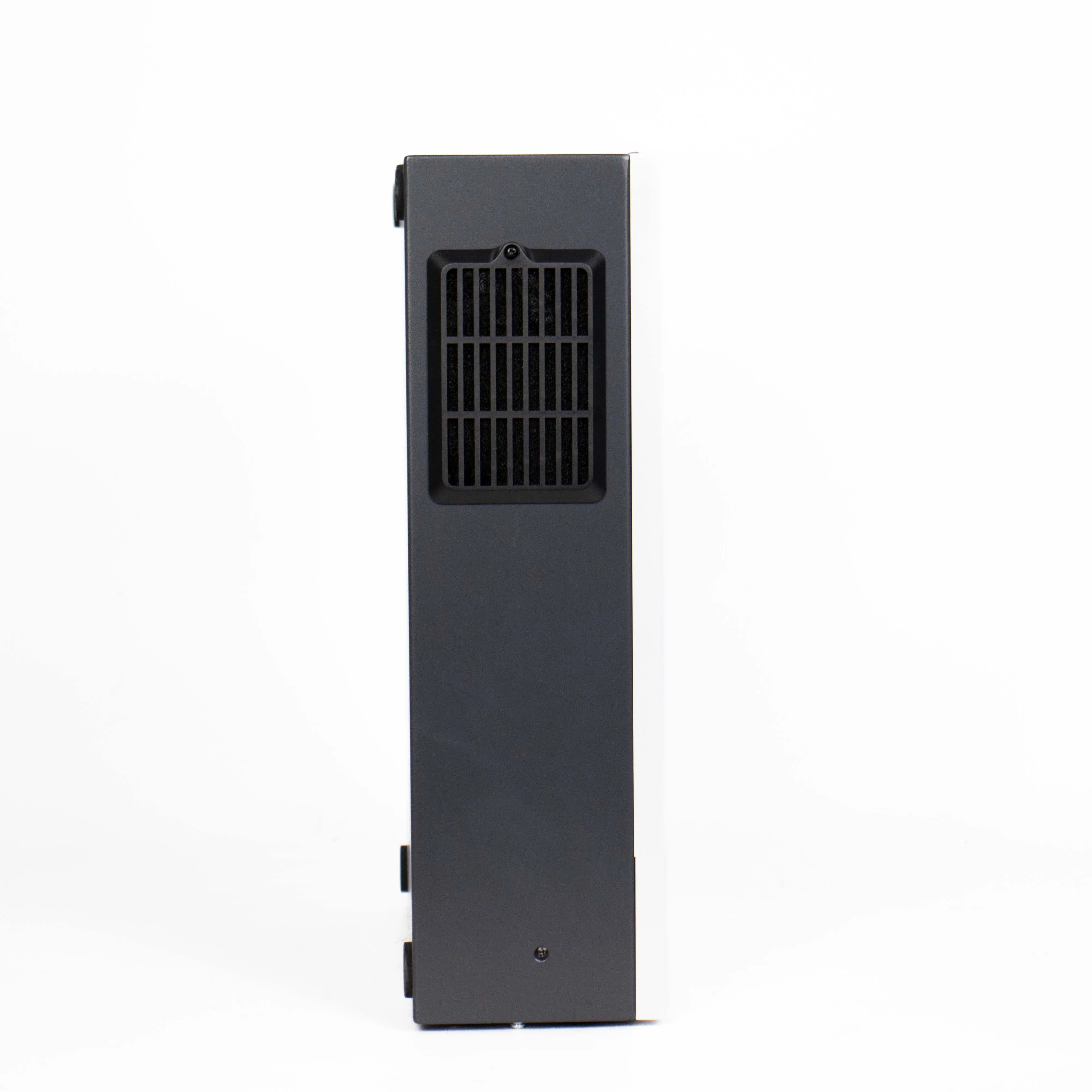

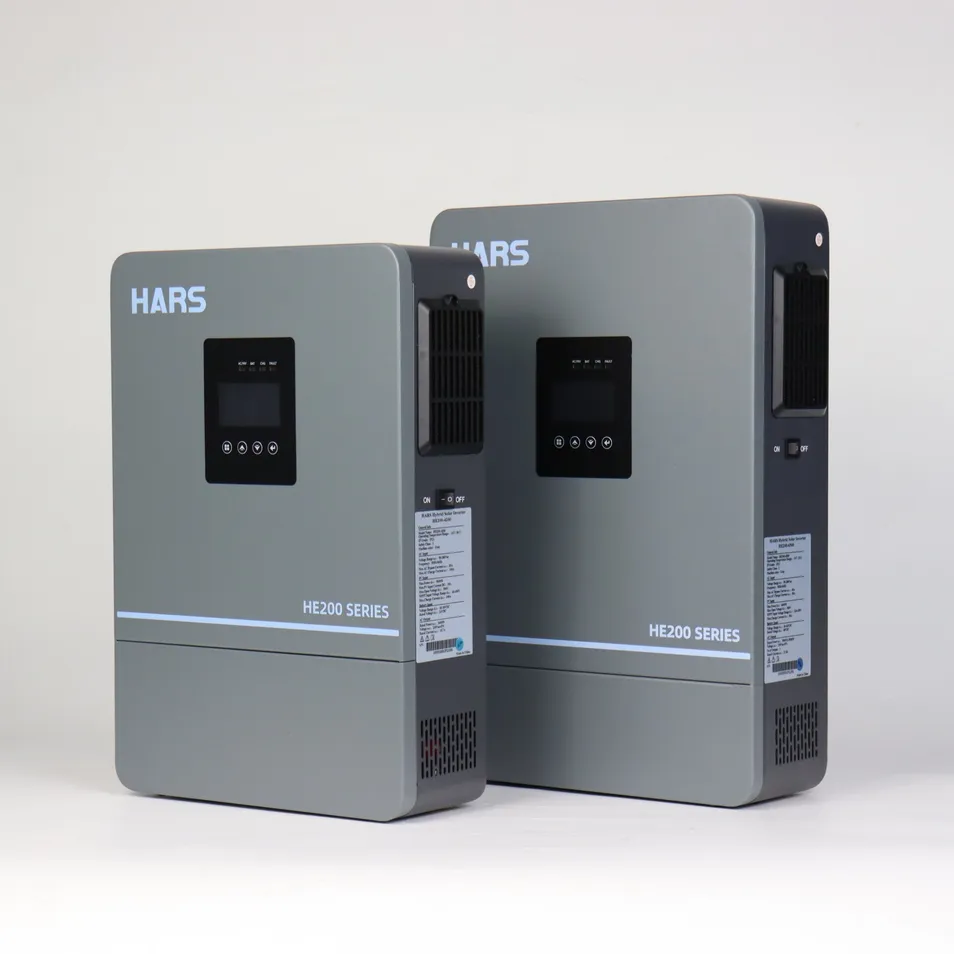

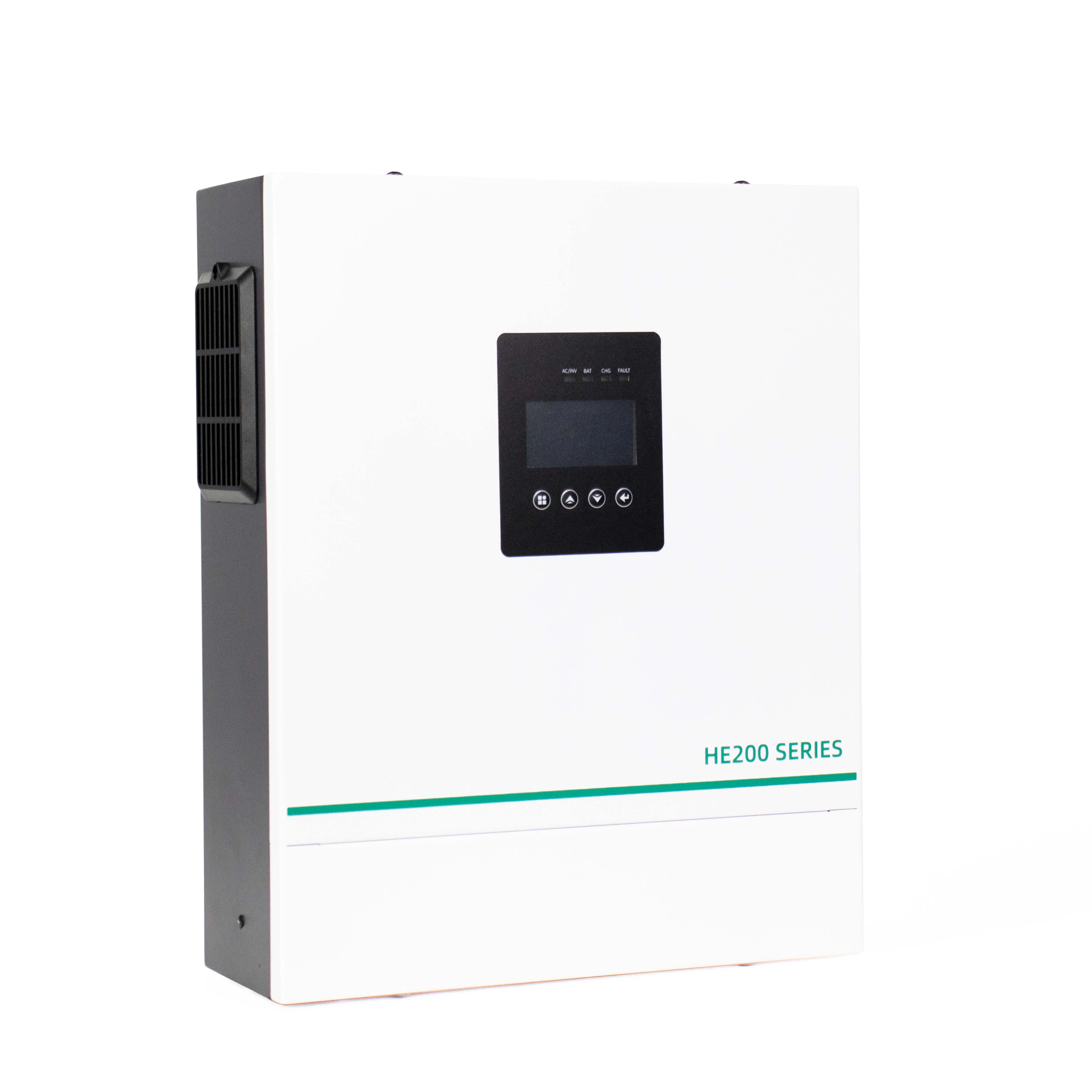

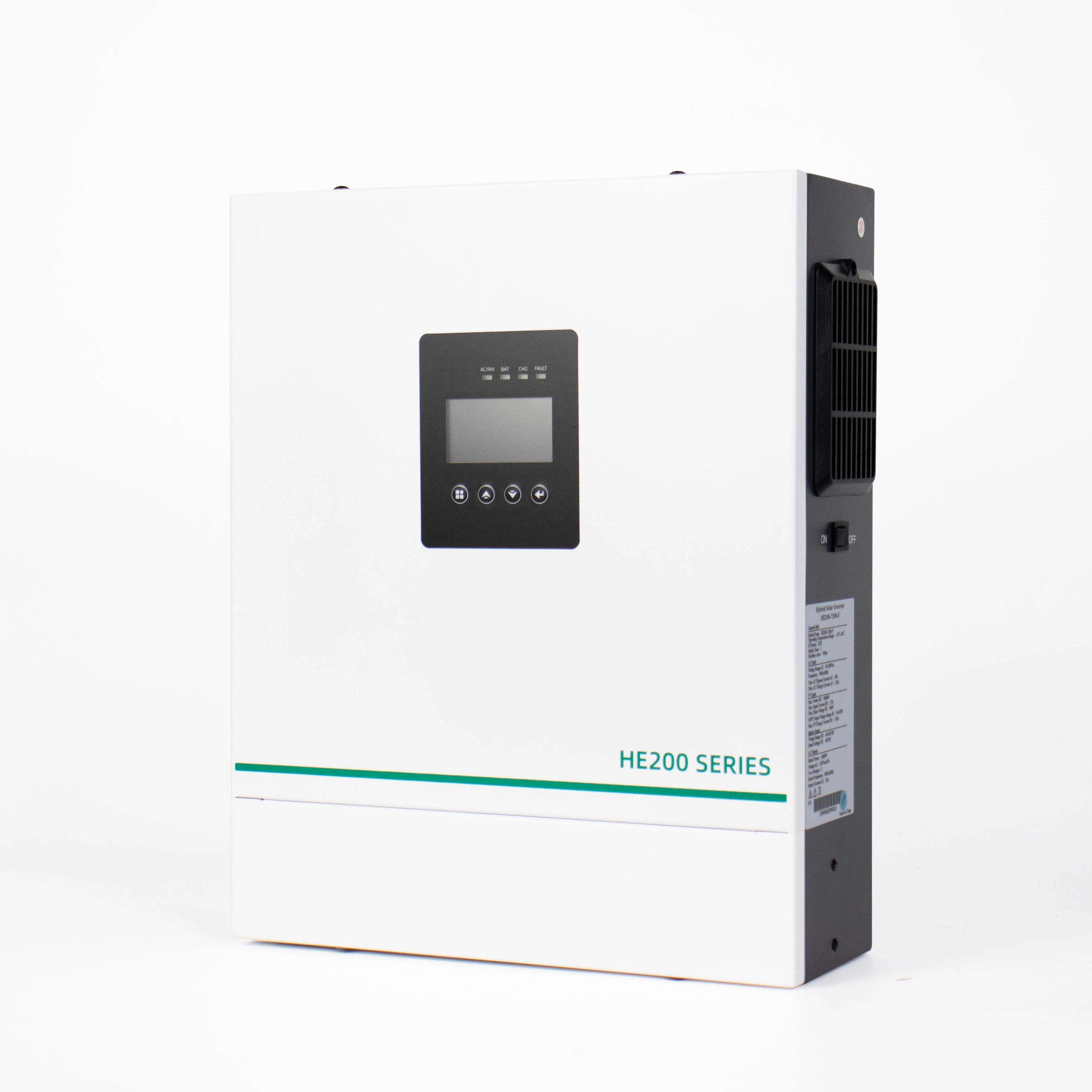

HE200 is a multifunctional hybrid solar inverter that outputs single-phase pure sine wave. It adopts a portable size and supports uninterruptible power supply switching. It features high-precision settings for battery charging voltage and current, multiple power input and output priority settings, and adjustable output AC voltage and frequency.

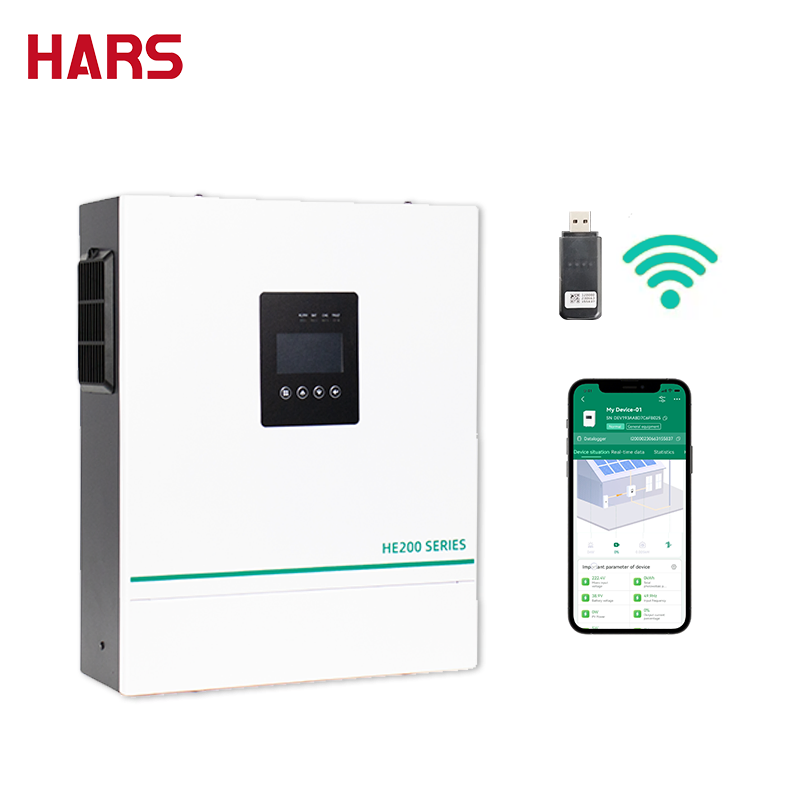

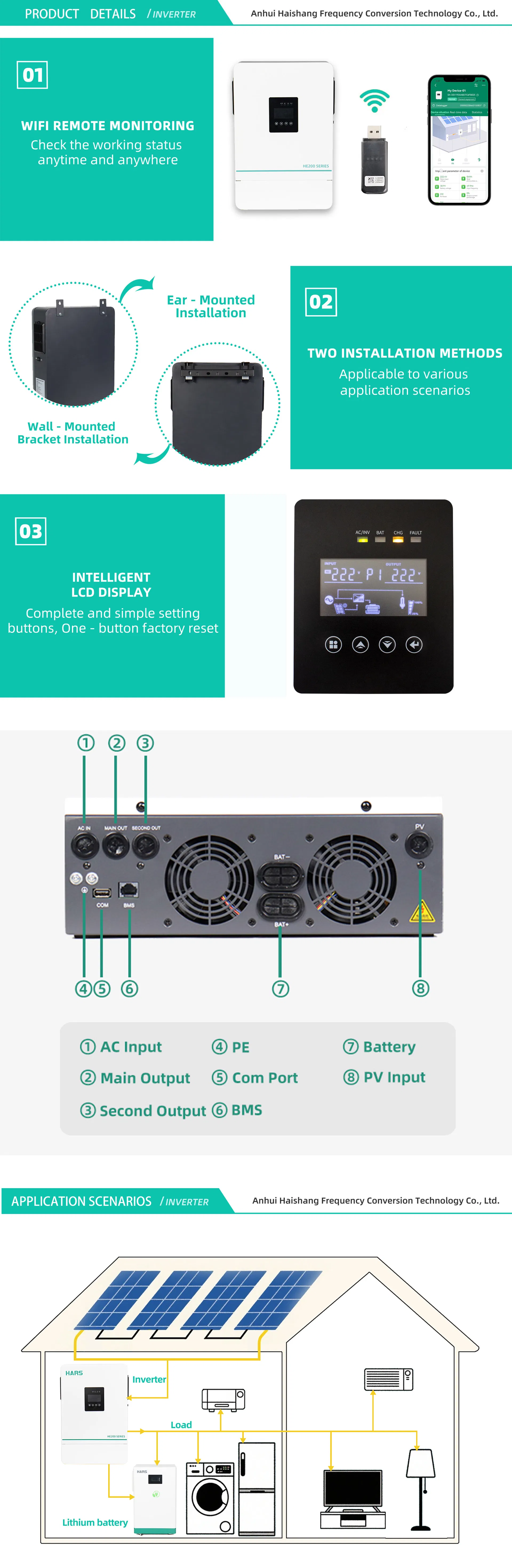

It is designed to be suitable for various power grid environments and includes a mobile phone APP for real-time online data monitoring.
| MODEL: HE200-7200-F | |
|---|---|
| Inverter Output | |
| Rated Output Power | 6500W |
| Rated Output Voltage | 230Vac±5% (single phase) |
| Rated Output Current | 27A |
| Output Waveform | Pure Sine Wave |
| Battery Details | |
| Battery Type | Lead acid/Gel/lithium battery |
| Rated Battery Voltage | 48V |
| Max PV Charging Current | 120A |
| PV Input | |
| Max Input Power | 9000W |
| Max Open Circuit Voltage | 500Vdc |
| Input Voltage Range | 60~450V |
| General Parameters | |
| Dimensions | 395*332.4*116.2(mm) |
| Net Weight | 8.7kg |
| Protection Level | IP21 |

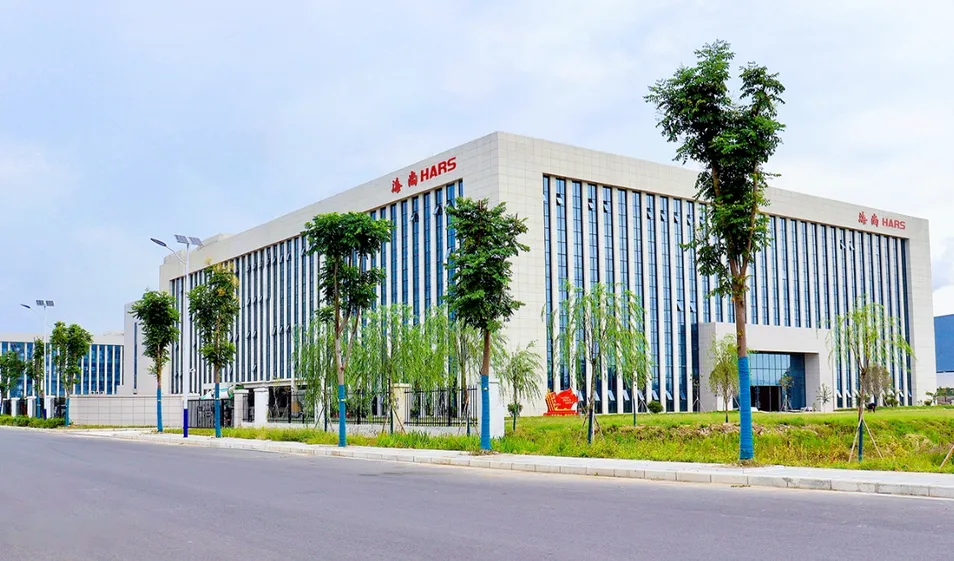

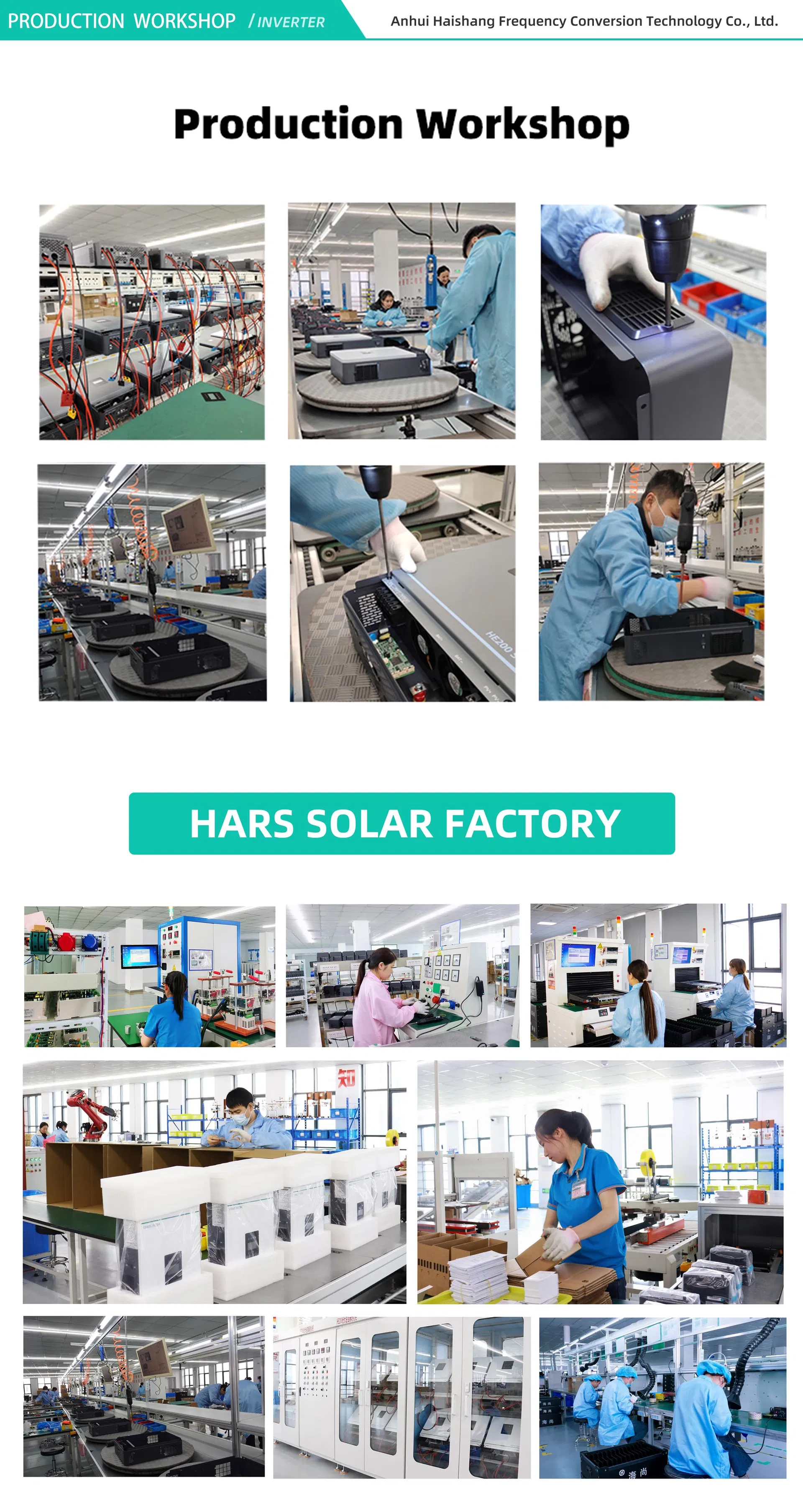

We are a high-tech enterprise integrating R&D, production, sales and technical services. Our automated production proportion reaches 80%, ensuring sufficient inventory and stable delivery times. With a construction area of over 50,000 square meters across multiple technical centers, we provide comprehensive ODM and OEM services with strong technical support.
