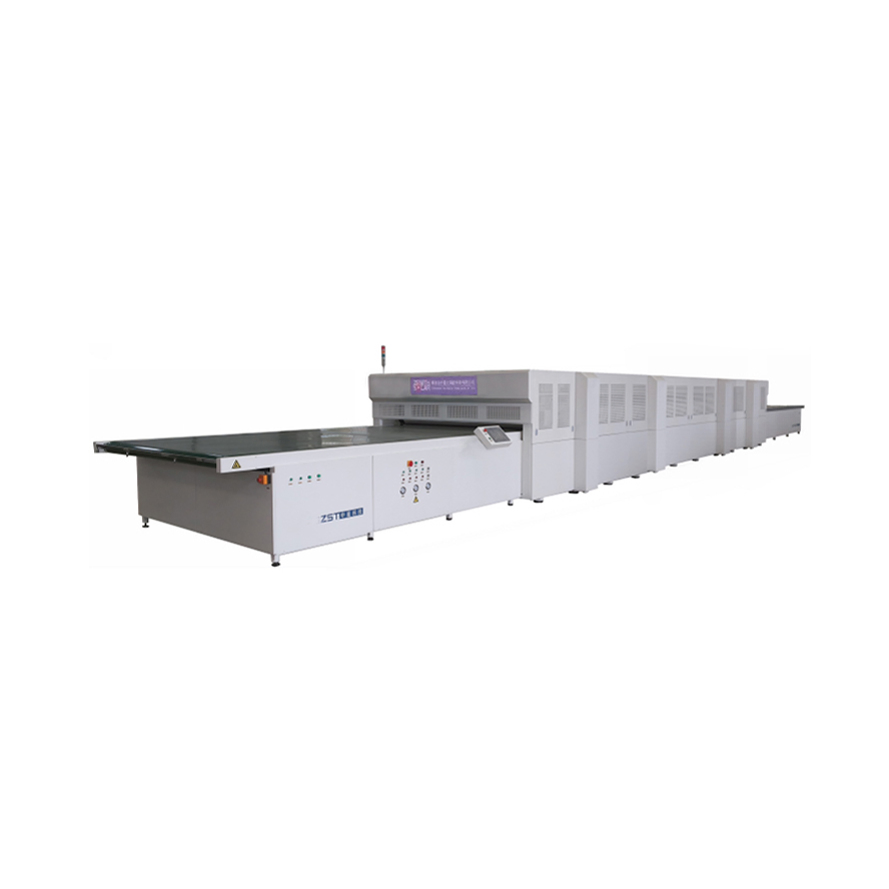

Lamination Machine in PV Module Assembly Line Solar Panel Vacuum Laminator
Lamination Machine in PV Module Assembly Line Solar Panel Vacuum Laminator
Lamination Machine in PV Module Assembly Line Solar Panel Vacuum Laminator
Lamination Machine in PV Module Assembly Line Solar Panel Vacuum Laminator
Lamination Machine in PV Module Assembly Line Solar Panel Vacuum Laminator
1 / 5
Lamination Machine in PV Module Assembly Line Solar Panel Vacuum Laminator
Lamination Machine in PV Module Assembly Line Solar Panel Vacuum Laminator
Lamination Machine in PV Module Assembly Line Solar Panel Vacuum Laminator
Lamination Machine in PV Module Assembly Line Solar Panel Vacuum Laminator
Lamination Machine in PV Module Assembly Line Solar Panel Vacuum Laminator

Lamination Machine in PV Module Assembly Line Solar Panel Vacuum Laminator

Customization: Available
After-sales Service: Life Time
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
ZST-AYZ-27-60D
Automation
Automation
Transmission Type
Flexible
Production Line
Comprehensive
Certification
CE, ISO
Manufacturing
Intelligent Manufacturing
Rhythm
Flow Production Line
HS Code
848640
Capacity
100 Set/Sets Per Year

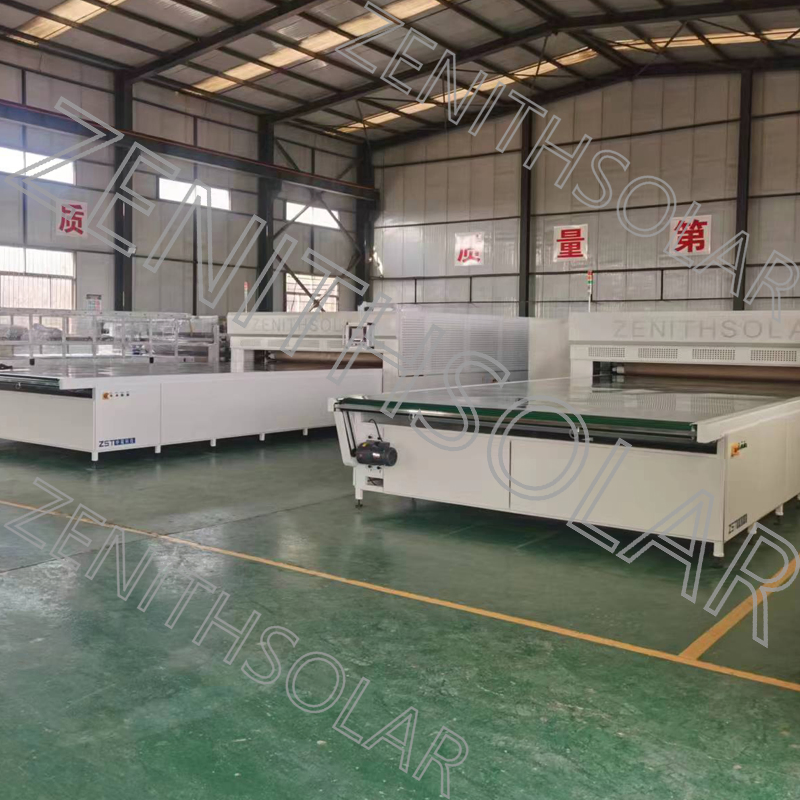

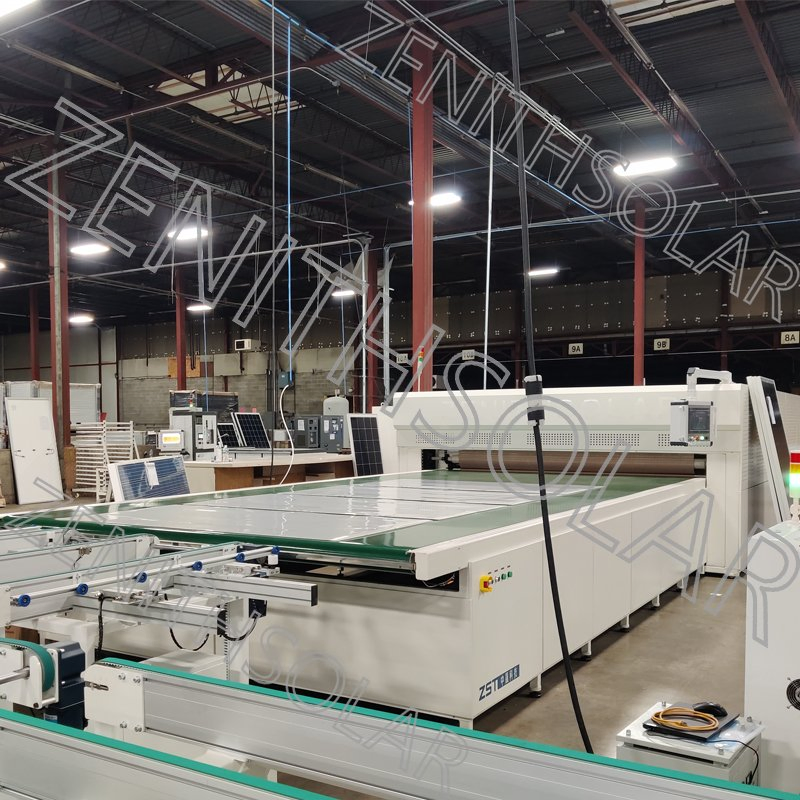

Photo on Site
Lamination Machine Site Photo
Product Parameters
Power AC380V/50HZ/3Phases/5Lines Capacity 50-150(1-3shift)MW/year
Noise at Work <65dB Vacuum Rate (604+302)m³/H
Normal power 80KW Max.Power 140KW
Laminated cavity height 30mm Lamination Area 2700*6000mm*2
Temperature range 30ºC~180ºC Temperature Uniformity ≤±2ºC
Working Temperature 100ºC~160ºC Temperature Accuracy ±1ºC
Max. setting temperature 180ºC Heating Platform Per square meter of non-flatness ≤ 300μm
Dimensions 27400*3720*1850mm Weight 46.6T
Our Advantages
★
Lower noise: Using Germany imported vacuum pump, it can reduce the noise to 65dB, providing a more comfortable environment.
★
Free smoke: The pump is smokeless with a unique design, eliminating the need for an exhausting system.
★
Energy saving: Approximately 30% energy saving compared with other brands.
★
CE certificate: All machines in the PV line have passed CE certification.
Packaging & Shipping
Packaging
Shipping
Solar Panel Production Line

We can supply the customized complete production line. The layout and performance can be adjusted according to different customer requirements.

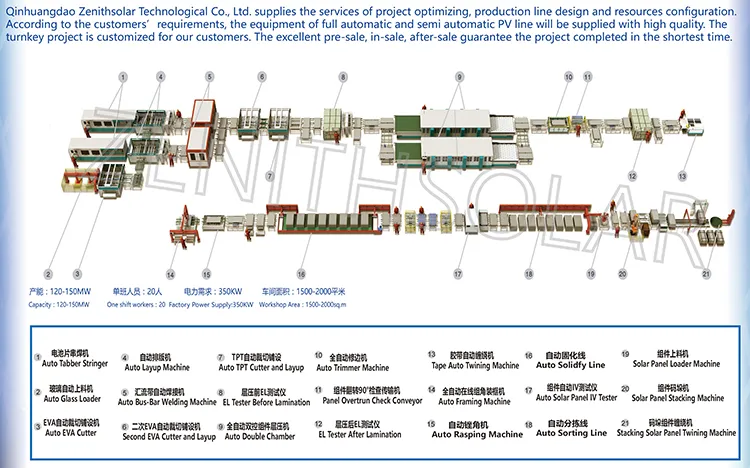

Production Line Layout
Certifications & Quality
Quality Control
Certification 1
Certification 2
Certification 3
Certification 4
Frequently Asked Questions
What is the annual production capacity of this line?
The production line offers a capacity of 50-150 MW per year, depending on the number of shifts (1-3 shifts).
How does the machine achieve energy savings?
Through optimized design and high-efficiency components, this machine achieves approximately 30% energy savings compared to other standard brands.
What is the noise level during operation?
By utilizing a high-quality vacuum pump imported from Germany, the operational noise is kept below 65dB for a better working environment.
Is the production line customizable?
Yes, we provide customized complete production lines where engineers can adjust the layout and performance based on specific customer needs.
What certifications do these machines hold?
All machinery in our PV production line has passed CE and ISO certifications, ensuring compliance with international safety and quality standards.
What is the temperature accuracy of the lamination process?
The system maintains a temperature accuracy of ±1ºC with a uniformity of ≤±2ºC across the working range of 100ºC to 160ºC.
