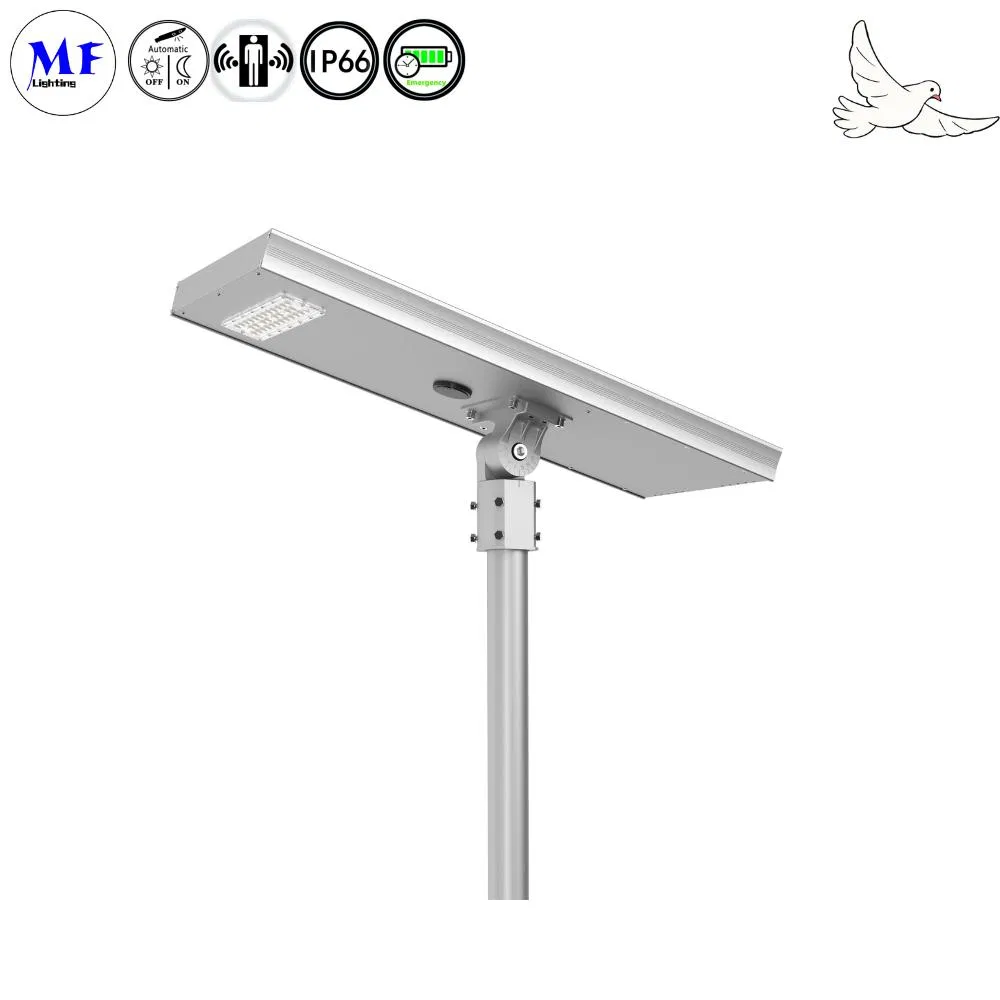

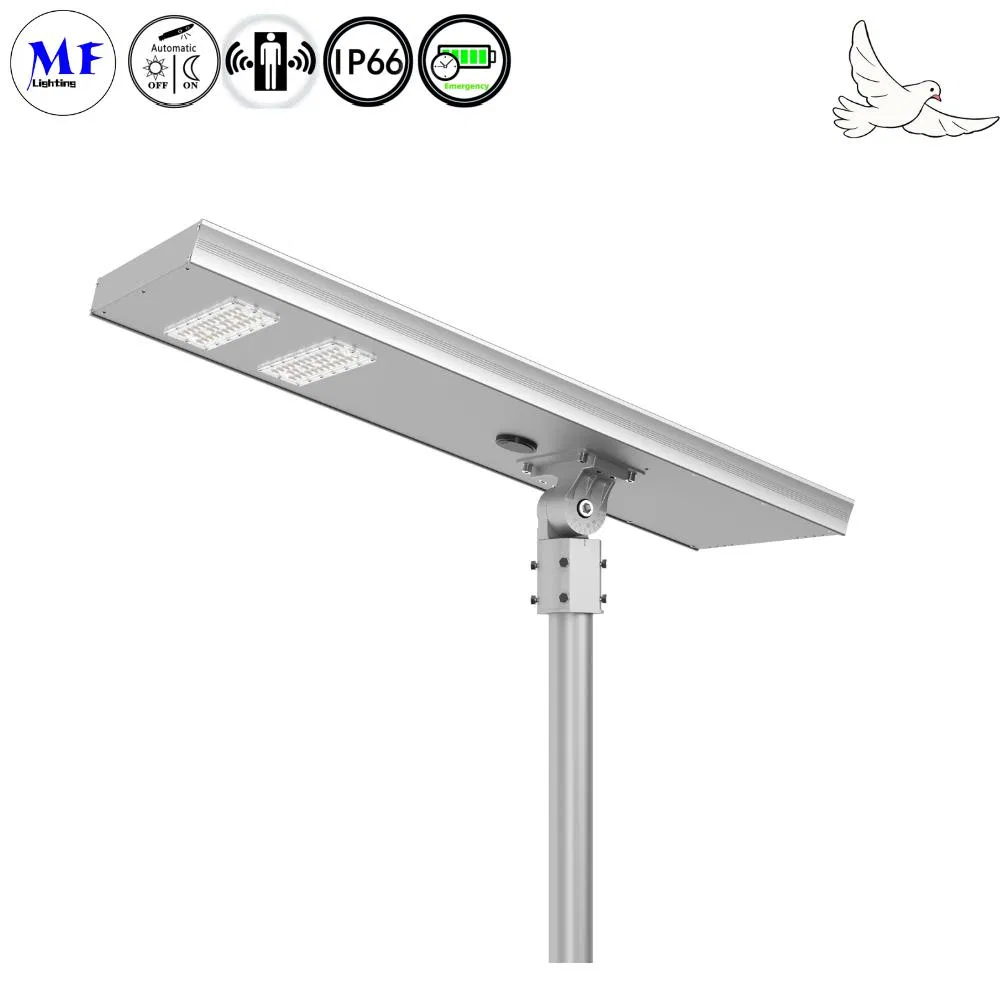

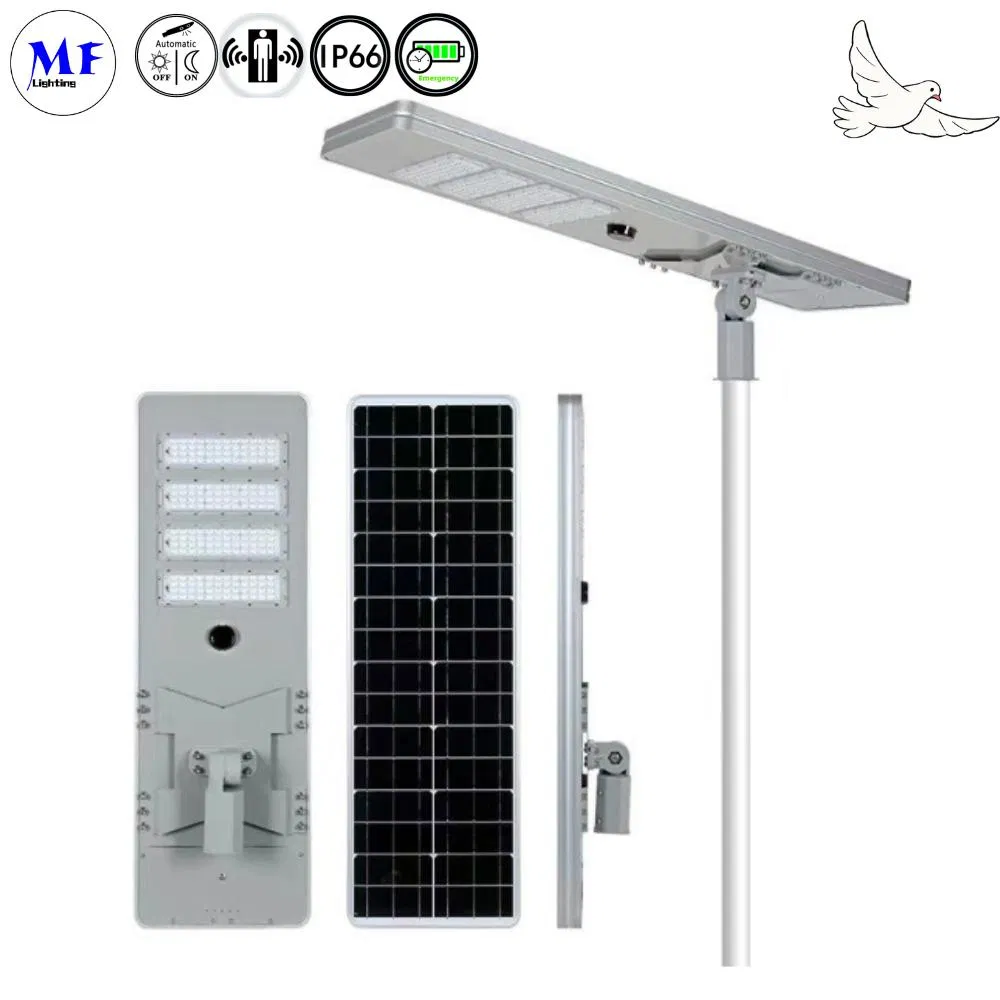

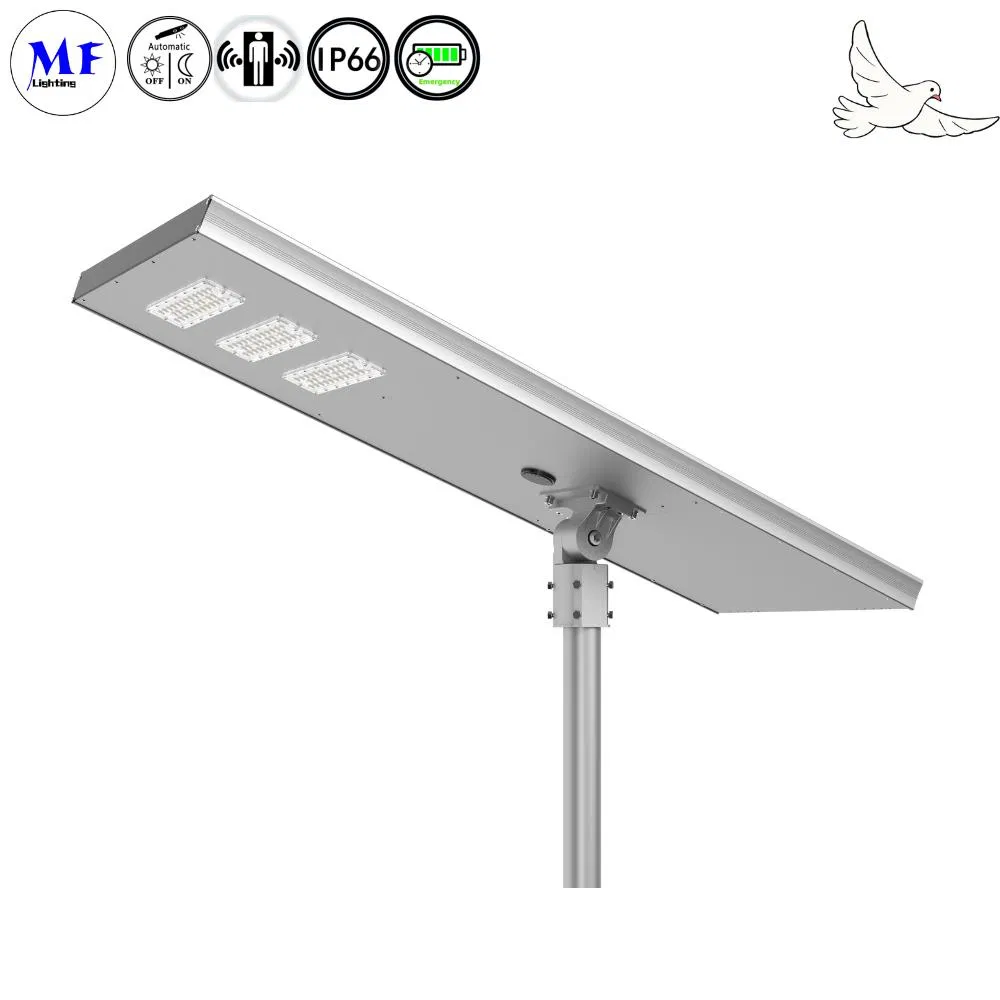

Profession Typical IoT Networking Smart Control System 200lm/W 50W Outdoor IP66 LED Light Waterproof Solar Garden Lamp All in One Solar Street Light with Sensor

Basic Info.

Model NO.MF-SP5-P50W

MaterialAluminum

Power20W-120W

IP RatingIP66

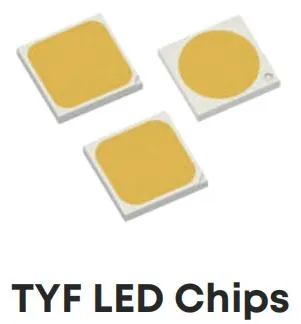

LED ChipsOS-RAM / 5050

BatteryLiFePO4 32700

Lumen Efficiency210lm/W

Charging Time6-7 Hours

CertificationCE, RoHS, FCC, SAA

ControllerMPPT Smart Control

Product Description

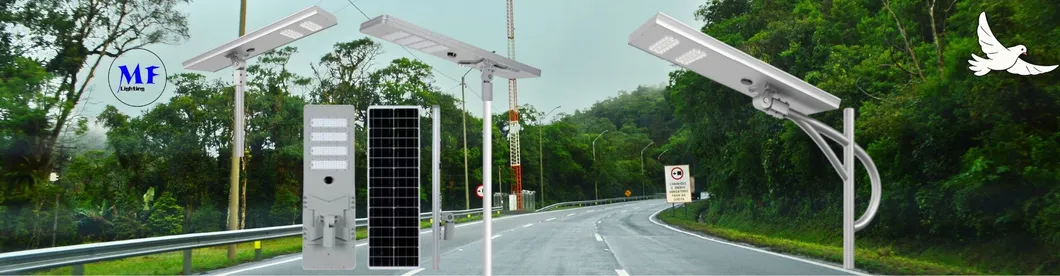

Profession Typical IOT Networking Smart Control System 200lm/w 50W Outdoor IP66 LED Light Waterproof Solar Garden Lamp All in One Solar Street Light with Sensor

⭐

200+ Patent Certificates

💰

$1,000,000+ Annual Energy Saving

🌍

10,000+ Projects Successfully Installed

- Power range: from 40W to 120W;
- External power switch, optional external charging interface;
- Built-in/external grid complementary power supply;
- The controller uses IP67 waterproof connectors for easy assembly and disassembly.

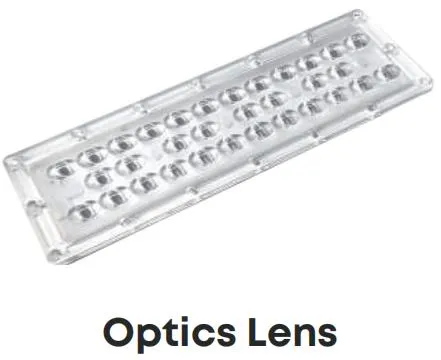

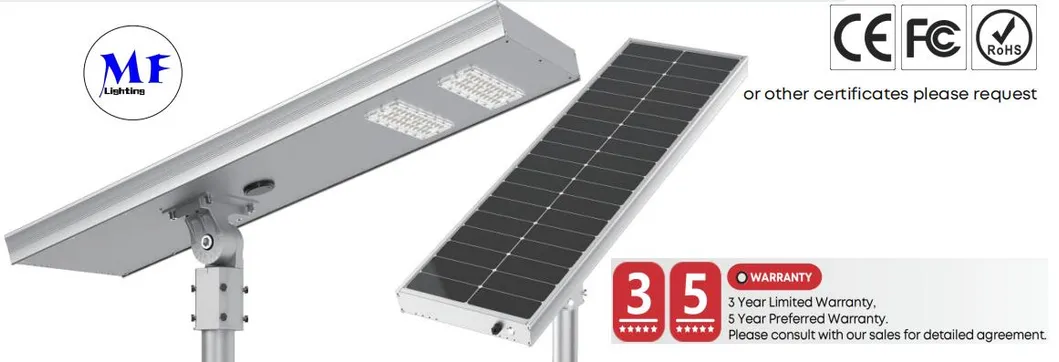

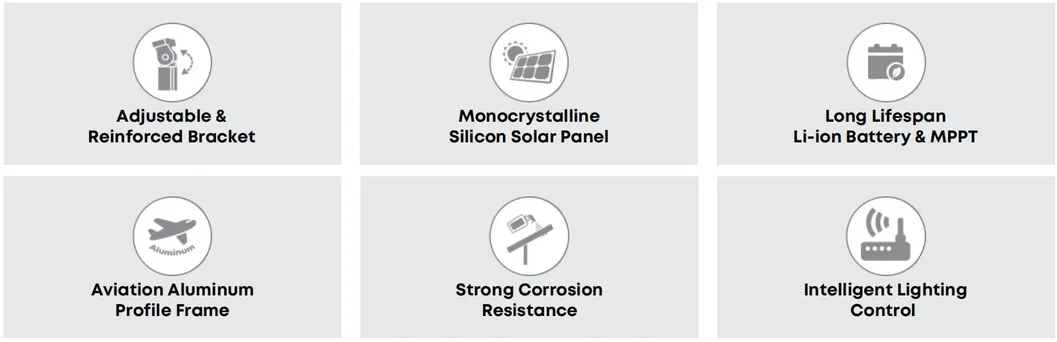

Key Components

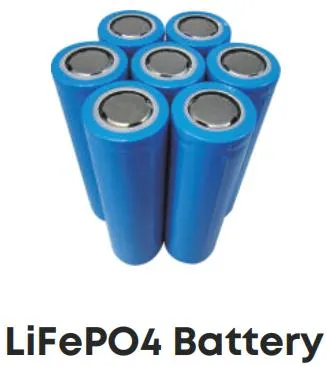

The light fixture includes a high-capacity LifePO4 battery pack, offering over 10 years of maintenance-free use. All street lights use the MPPT solar controller, boosting charging efficiency by 30% compared to PWM.

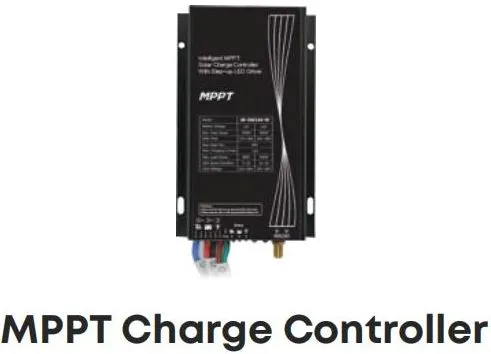

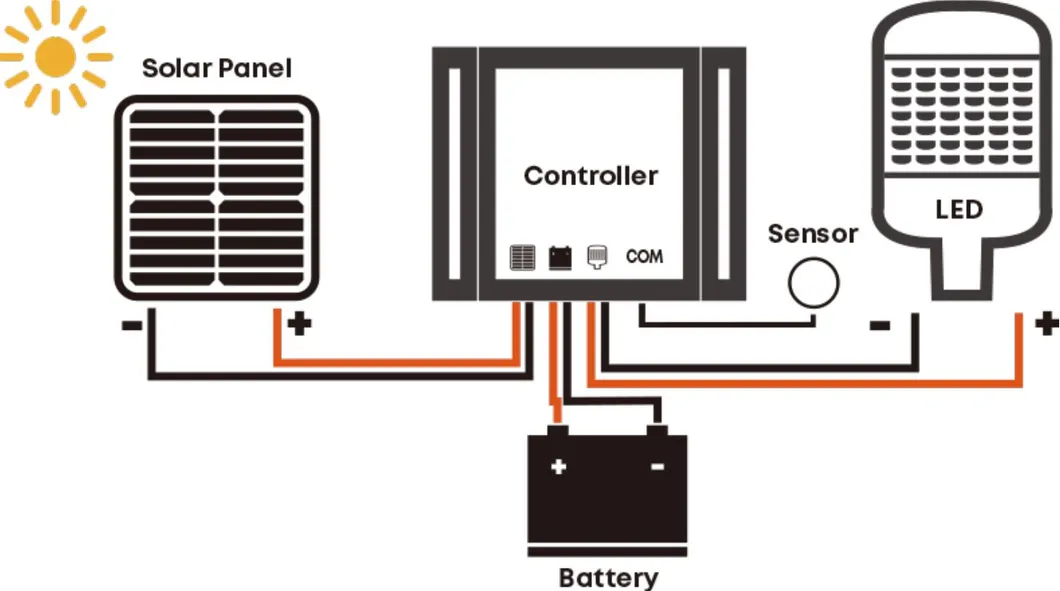

Advantages of Controller

1) Moving Track MPPT maximum power tracking technology (>20% efficiency improvement);
2) UltraGreen power control with low static power consumption;
3) 10 time-periods programmable load power/time control;
4) Multiple protection functions: battery/PV reverse connection, short circuit protection;
5) Aluminum metal housing, IP67 waterproof rating.

Specifications

Electrical Data
Model	P30W	P40W	P50W	P60W	P80W	P100W
Luminous Flux	6300lm	8000lm	10500lm	12600lm	16000lm	21000lm
Solar Panel	18V 50W	18V 60W	18V 70W	18V 80W	18V 100W	36V 120W
Li-ion Battery	230.4WH	370.2WH	384WH	460.8WH	614.4WH	768WH
Run Time	7.1Hrs	7.1Hrs	7.2Hrs	7.2Hrs	6.9Hrs	7.2Hrs

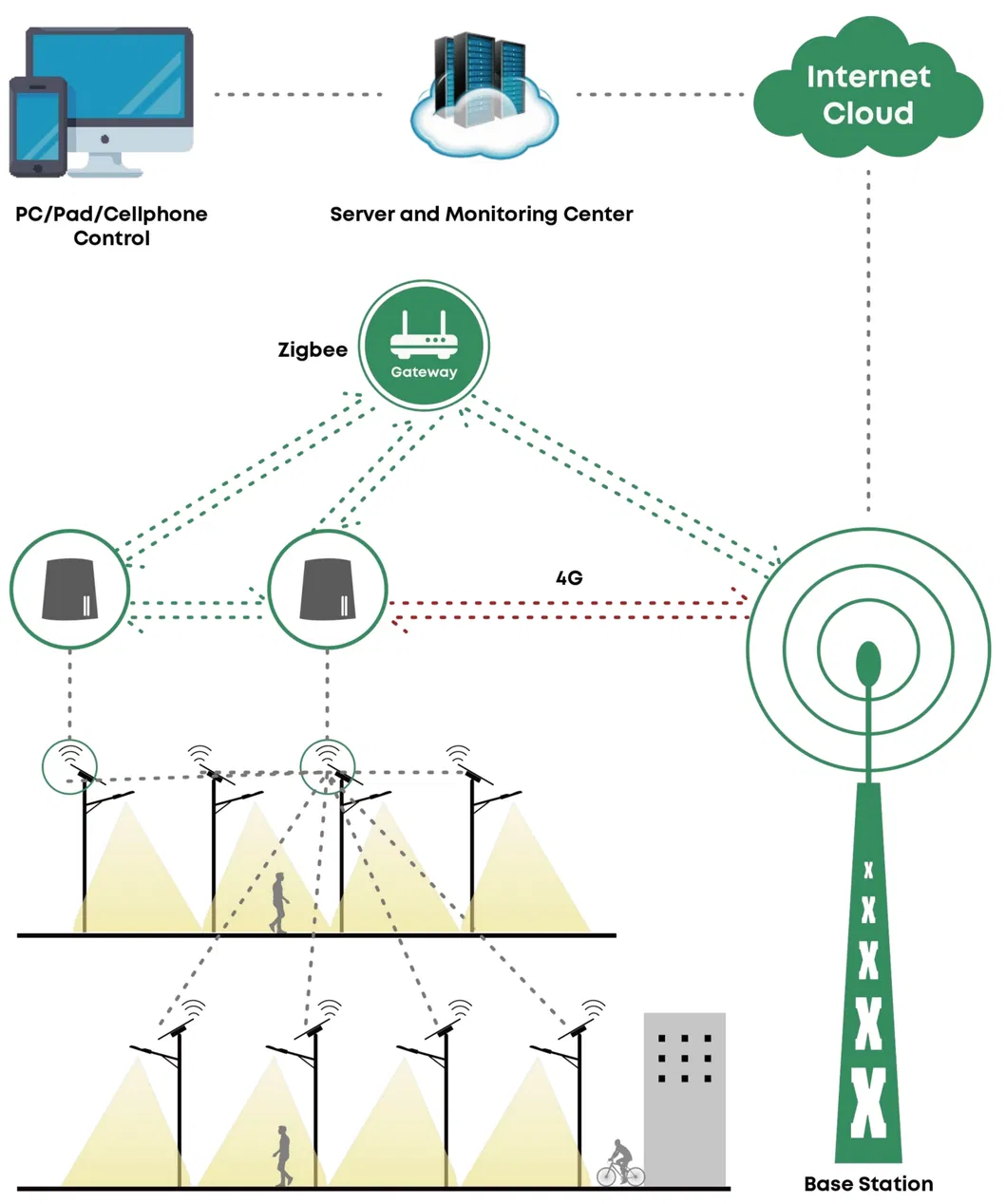

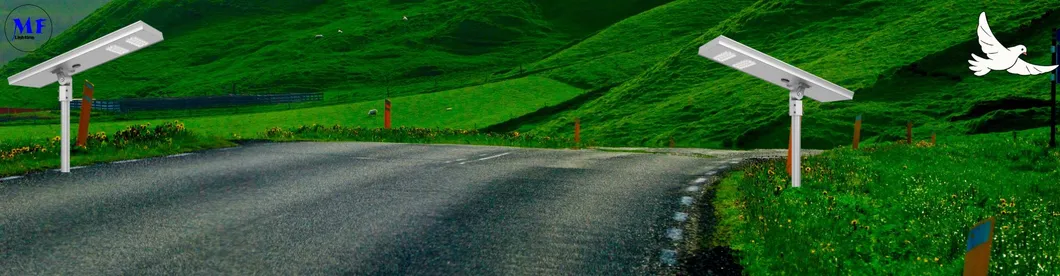

IoT Networking Smart Control

Wireless network: NB-IoT, GPRS, LTE cellular networks used without cabling.

Fault management: Automatic fault reporting and historical query.

Energy management: Online monitoring of energy consumption.

Intelligent monitoring: Remote control through PC web and mobile APP.

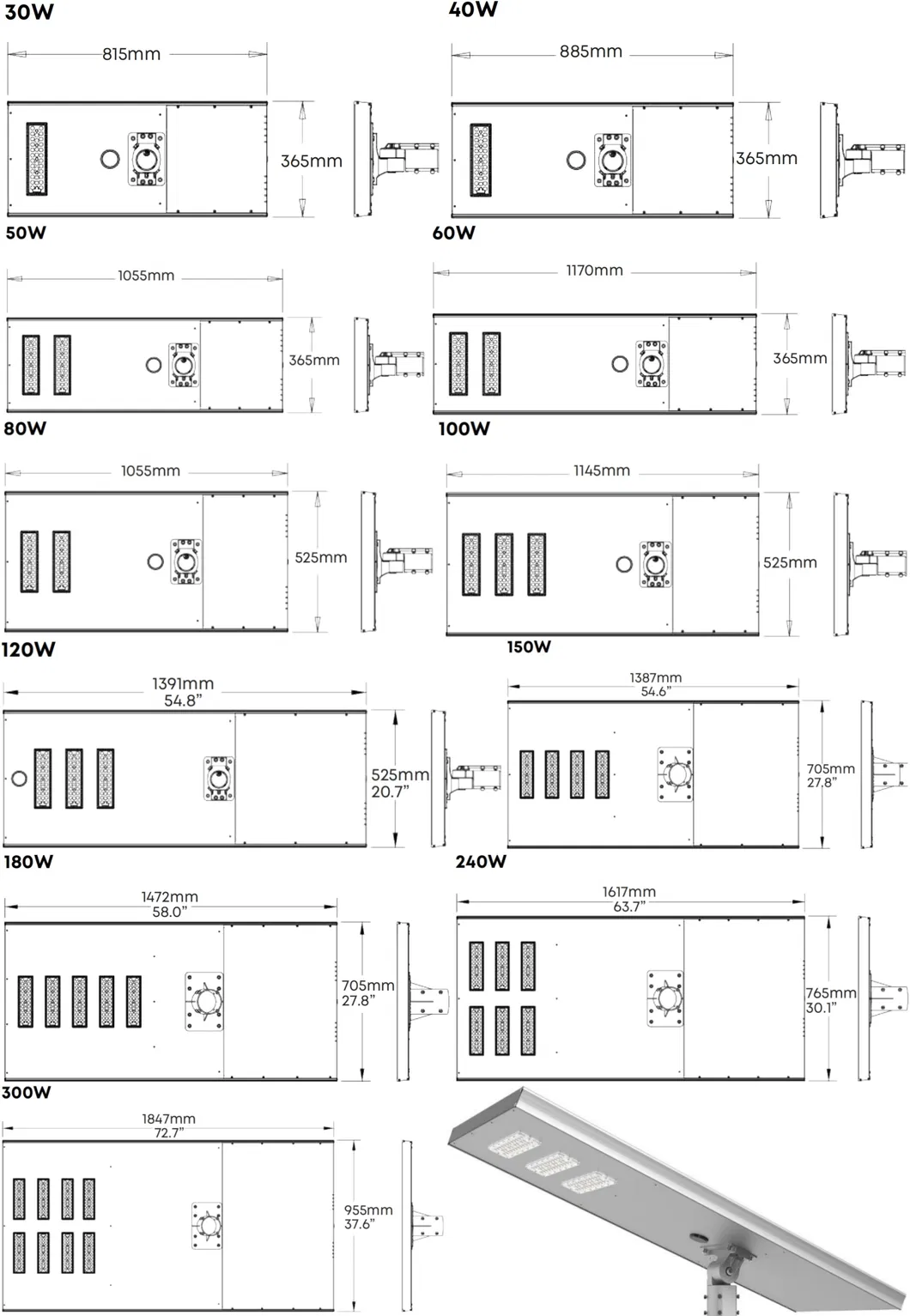

Dimension & Applications

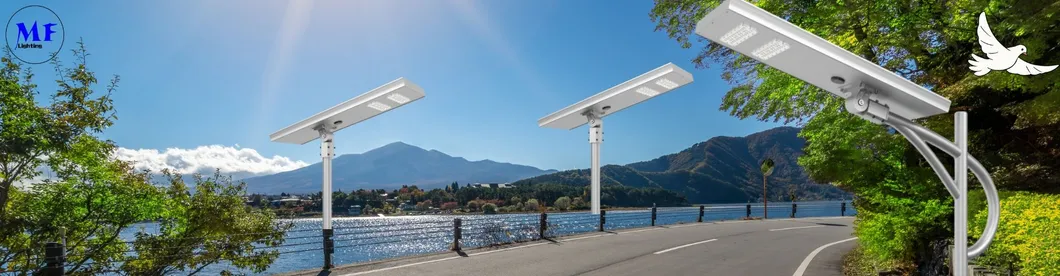

Typical Applications:

Road & street lighting
Residential area lighting
Garden, parks & perimeter lighting
Parking lot & Commercial park lighting
Railway & Riverside jogging tracks

Company Profile

We are a leading LED lighting manufacturer with our own factory, specializing in the design, production, and distribution of high-quality LED lighting products. Our team is dedicated to providing customers with innovative LED technology and reliable services for residential and commercial solutions.

Customer Feedback

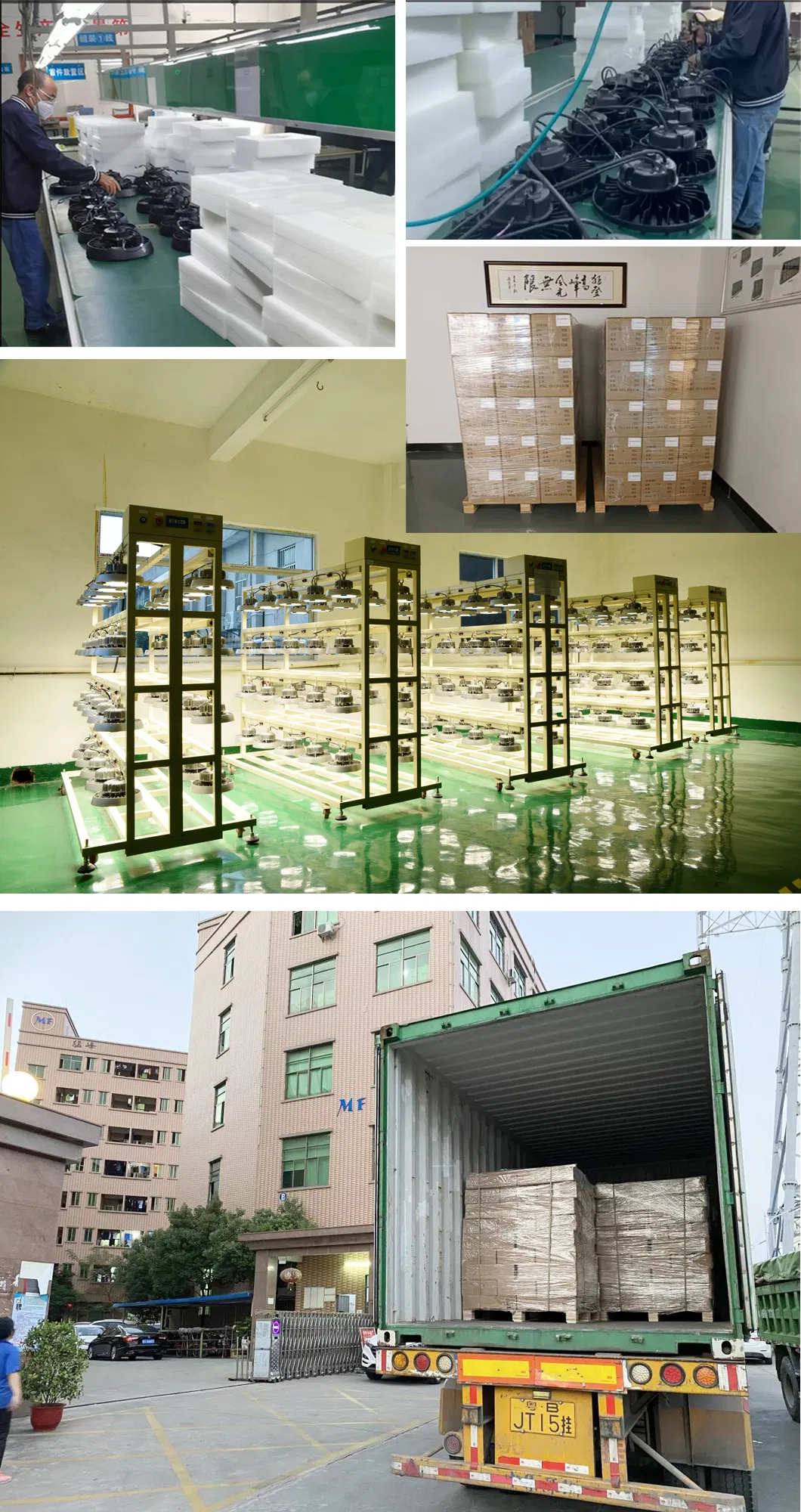

We welcome customers to visit our state-of-the-art manufacturing facilities to see our production processes firsthand. Our products and services are highly favored by international clients.

FAQ

Q1: What lighting products do you offer? A1: We provide high-quality floodlights, high bay lights, explosion-proof lights, tri-proof lights, solar street lights, and more.

Q2: Do you support OEM/ODM services? A2: Yes, we can print your logo on the products and customize designs based on your requirements.

Q3: How do you handle product warranty? A3: During the guarantee period, we send new lights for small quantity faults or discuss repair/recall solutions for batch issues.

Q4: Can I order a sample for testing? A4: Yes, sample orders are welcome to check quality. Mixed samples are also acceptable.

Q5: What is the typical lead time? A5: Usually 7 days for samples/small orders and 15 working days for bulk orders, depending on the quantity.

Q6: How should the solar batteries be stored? A6: For long-term storage, fully charge then discharge for 2-3 hours every 3 months to prevent damage.
