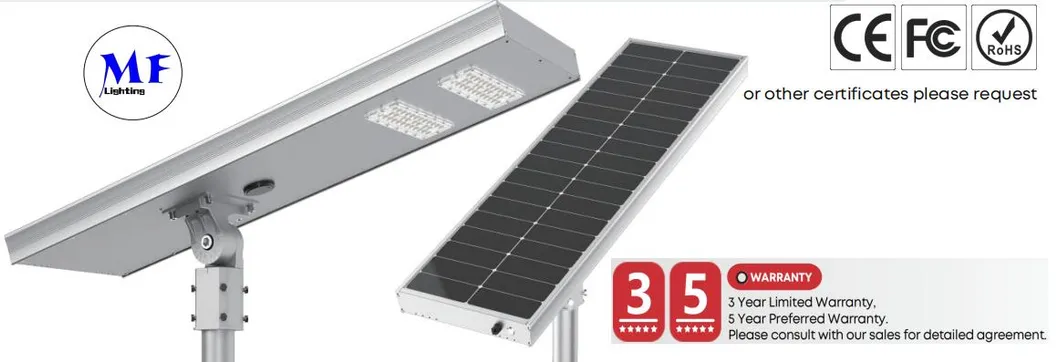

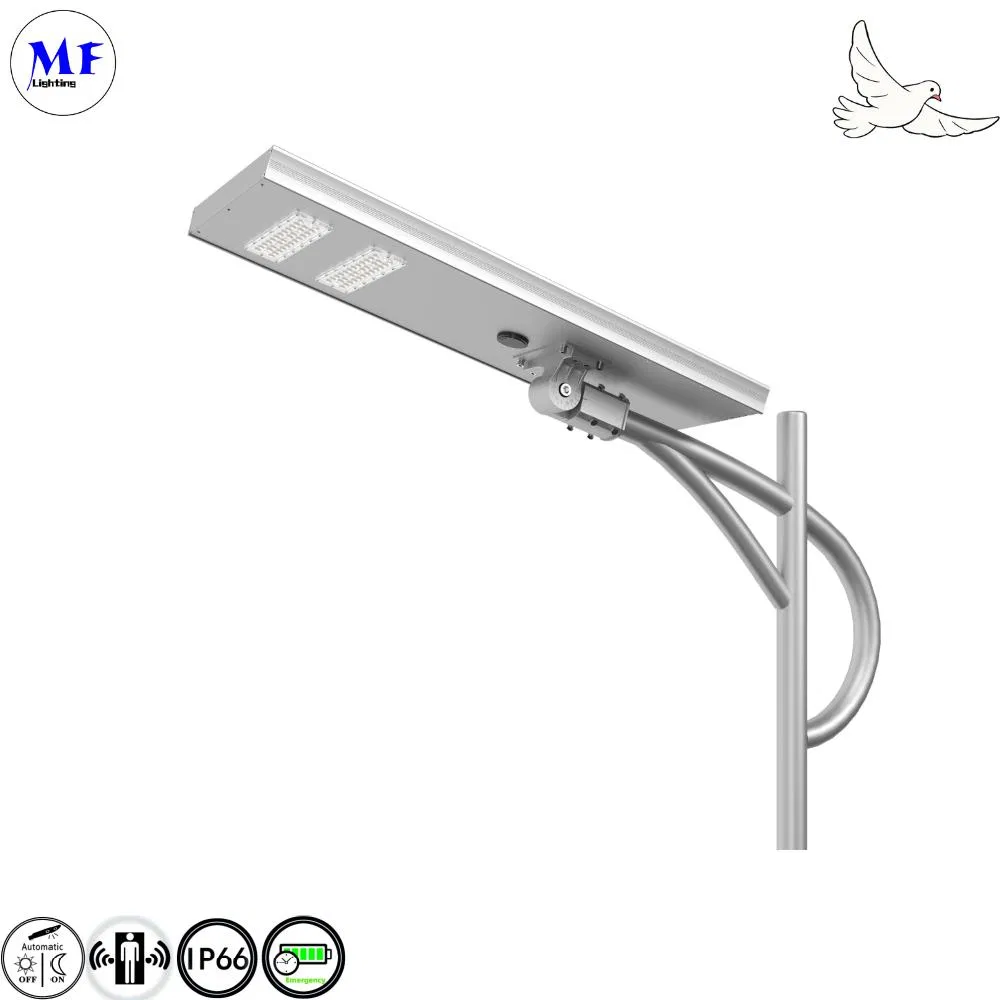

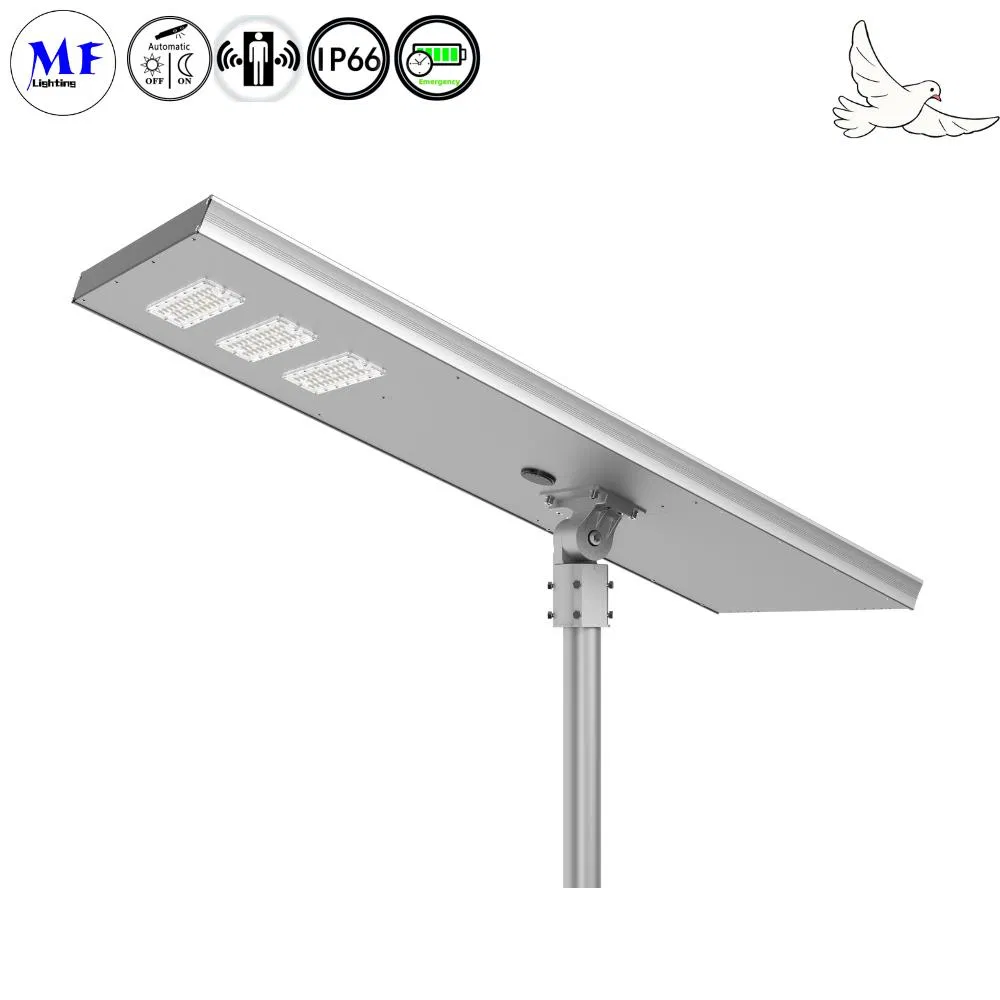

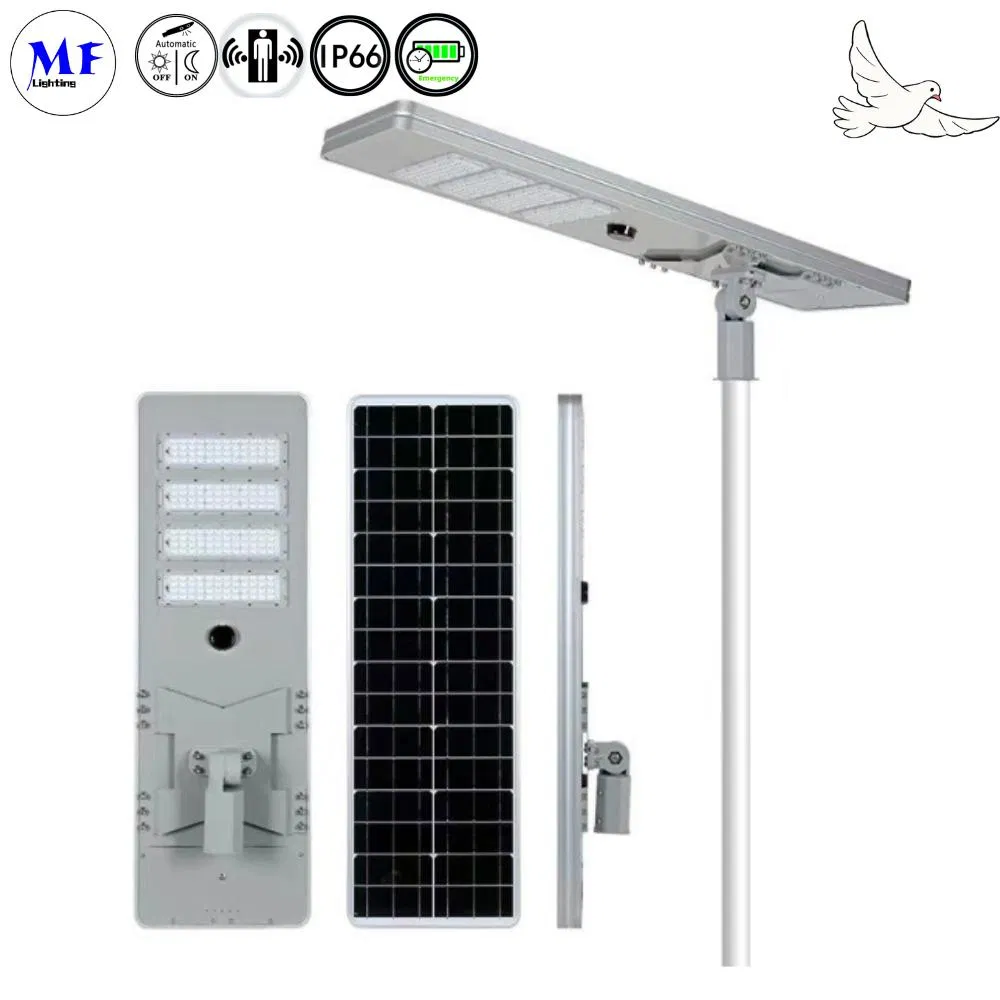

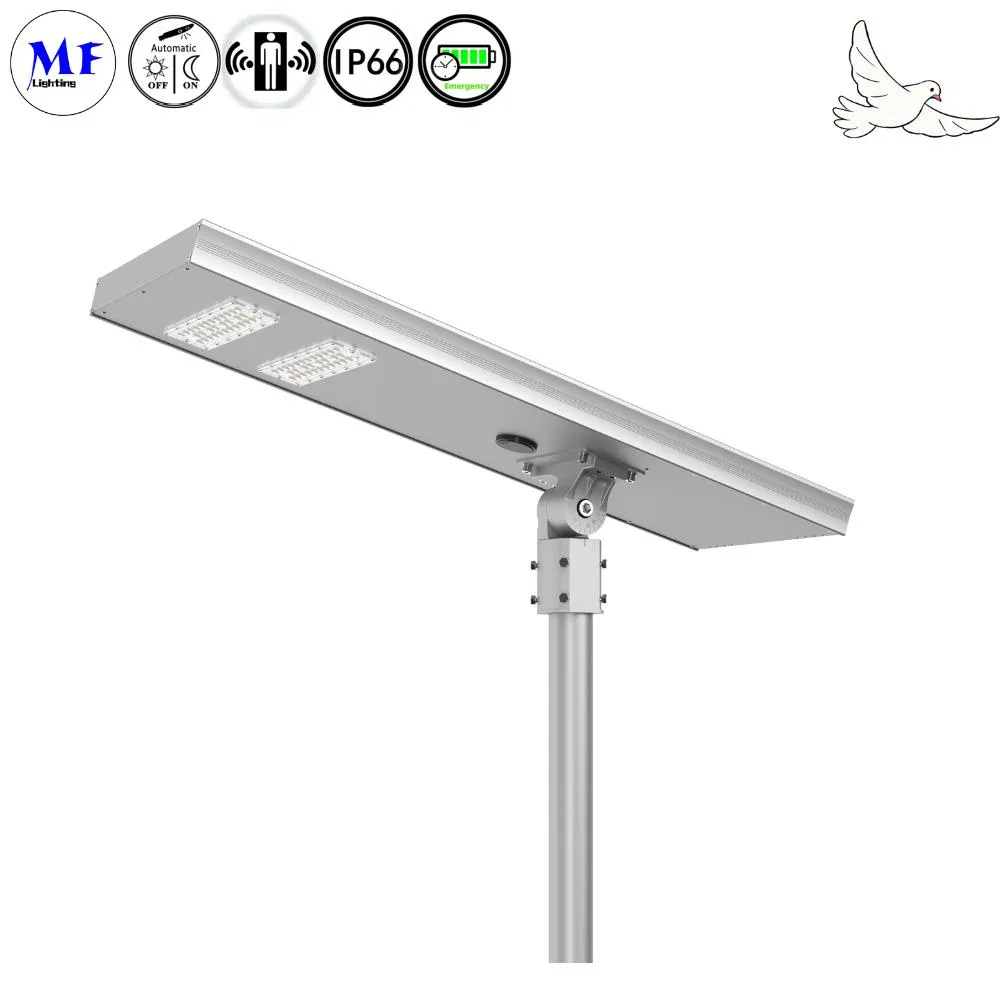

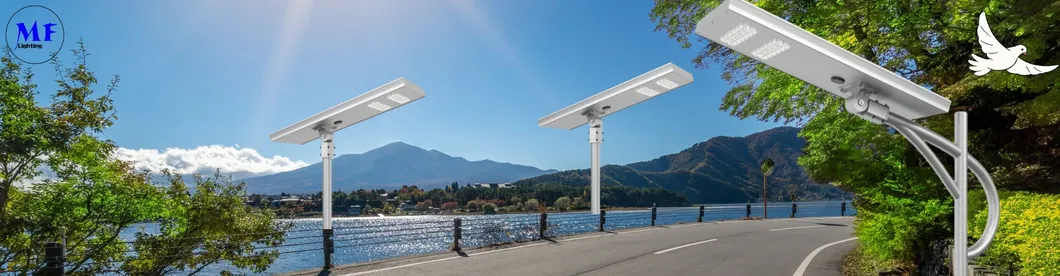

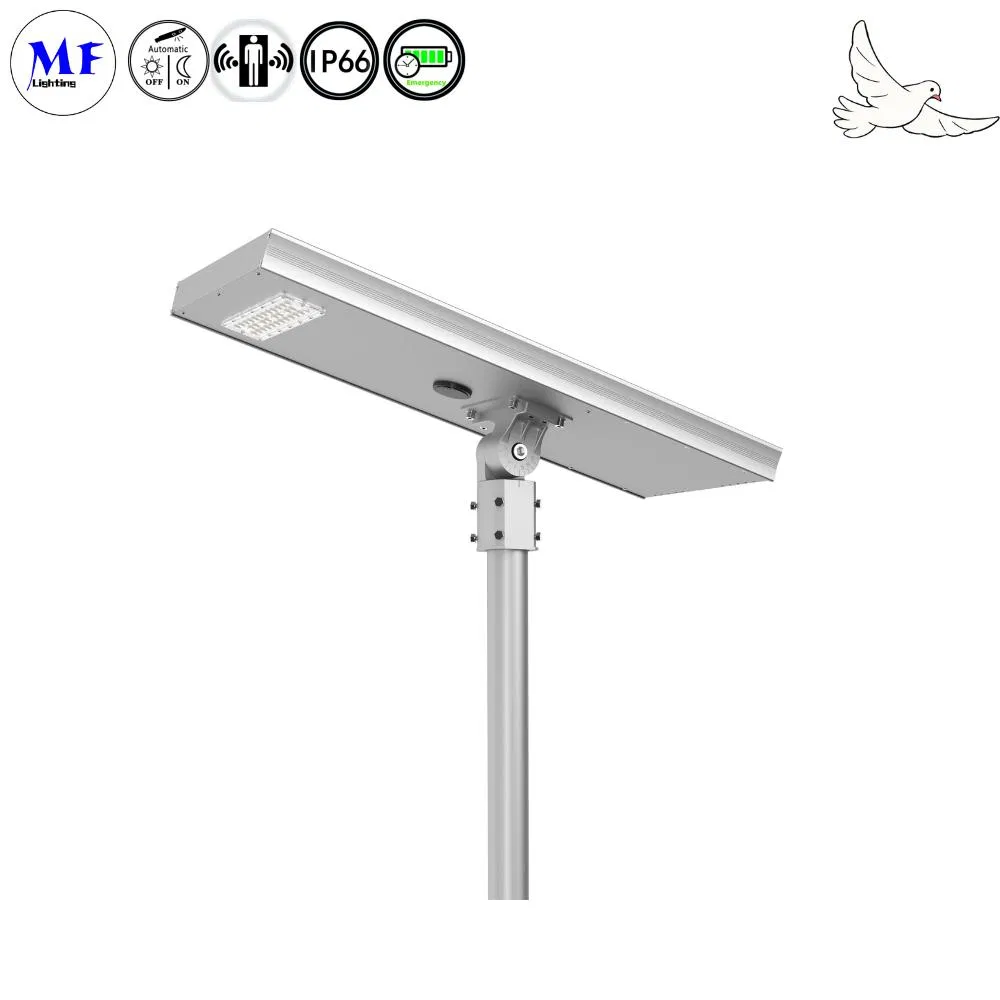

Smart IOT Networking Control System - 200lm/W High Efficiency Solar Street Light

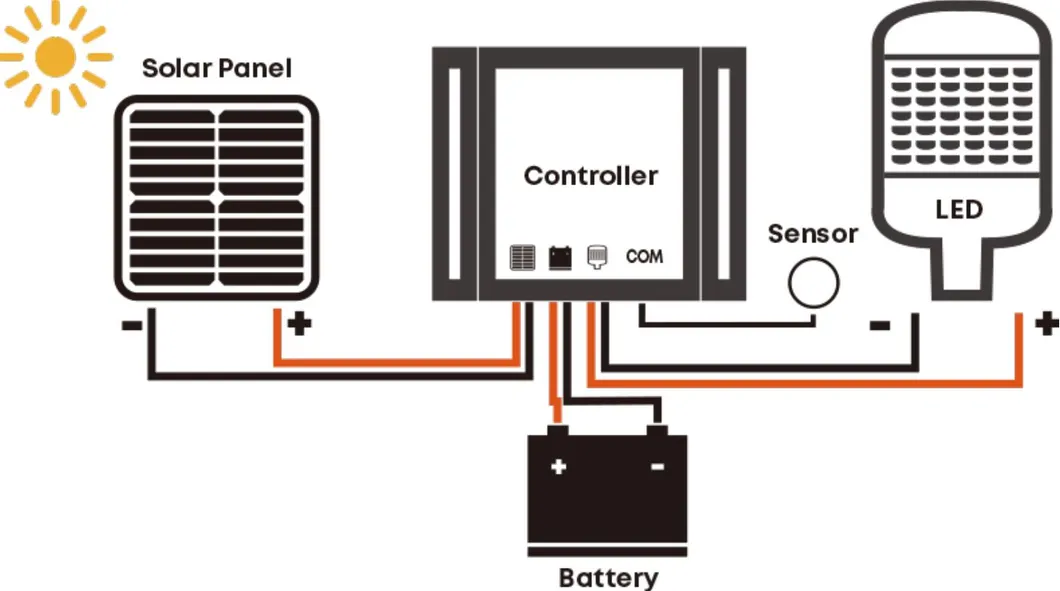

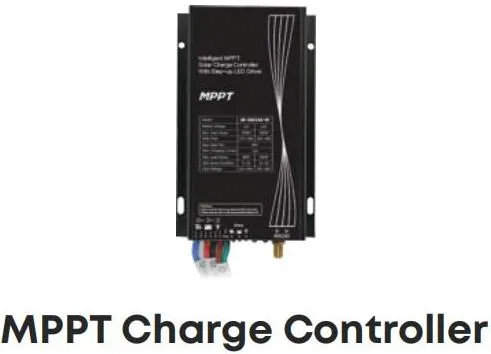

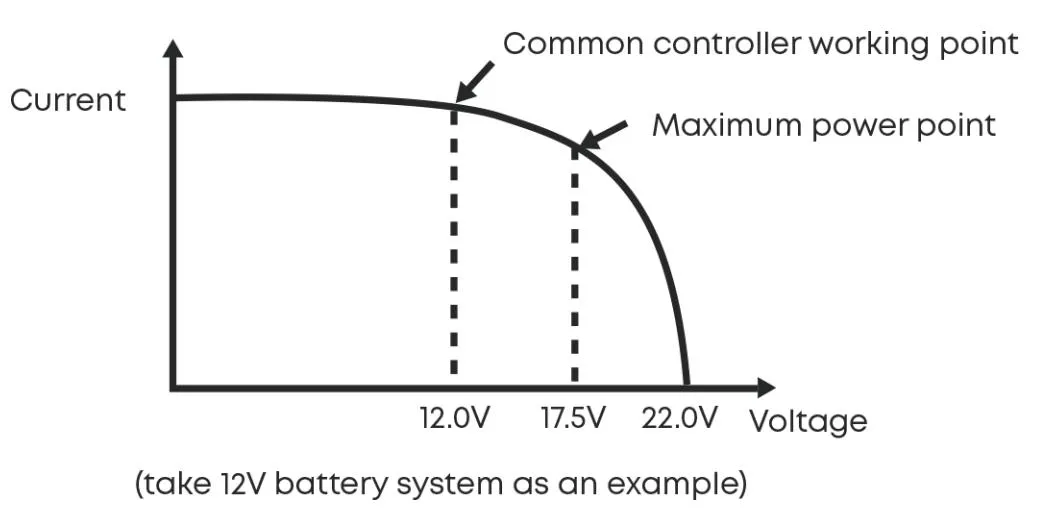

The light fixture includes a high-capacity LifePO4 battery pack, offering over 10 years of maintenance-free use. Lighting programs can be modified to save energy and extend working time. All street lights utilize the MPPT solar controller, boosting efficiency by 30%.
| Electrical & Photometric Data | ||||||
|---|---|---|---|---|---|---|
| Model | P30W | P40W | P50W | P60W | P80W | P100W |
| Luminous Flux | 6300lm | 8000lm | 10500lm | 12600lm | 16000lm | 21000lm |
| Solar Panel | 18V 50W | 18V 60W | 18V 70W | 18V 80W | 18V 100W | 36V 120W |
| Battery (LiFePO4) | 230.4WH | 370.2WH | 384WH | 460.8WH | 614.4WH | 768WH |
| Efficacy | 200 - 210 lm/w | |||||
| CCT | 3000K, 4000K, 5000K, 5700K, 6500K | |||||
| IP Rating | IP65 / IP66 | |||||
| Working Temp | -10°C to 50°C (Operation) / -20°C to 45°C (Storage) | |||||

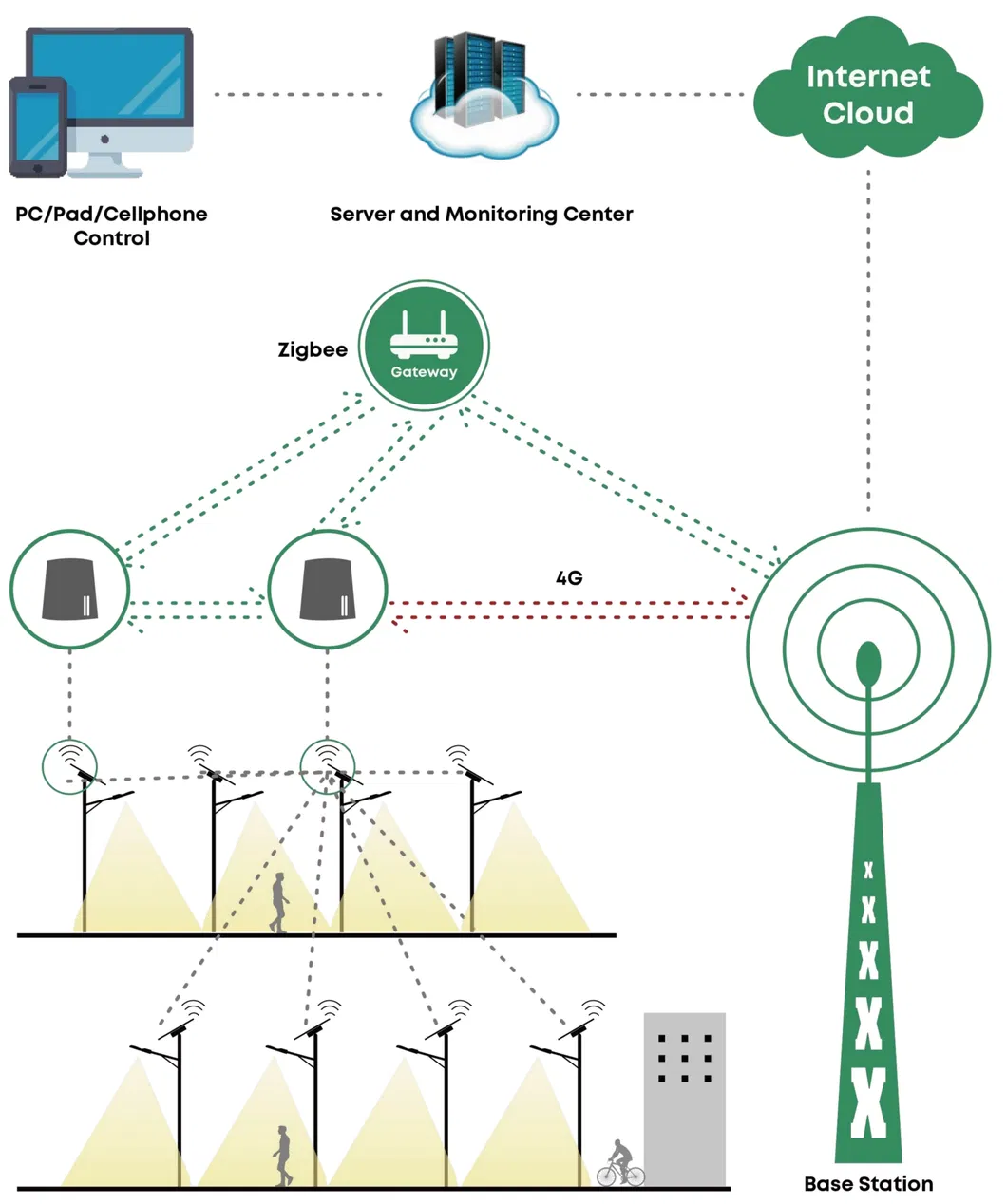

Wireless Network: Uses NB-IoT, GPRS, LTE cellular networks from device to cloud without cabling.
Fault Management: Automatic reporting of fault information with troubleshooting via platform.
Energy Management: Online monitoring and energy-saving policy configuration.

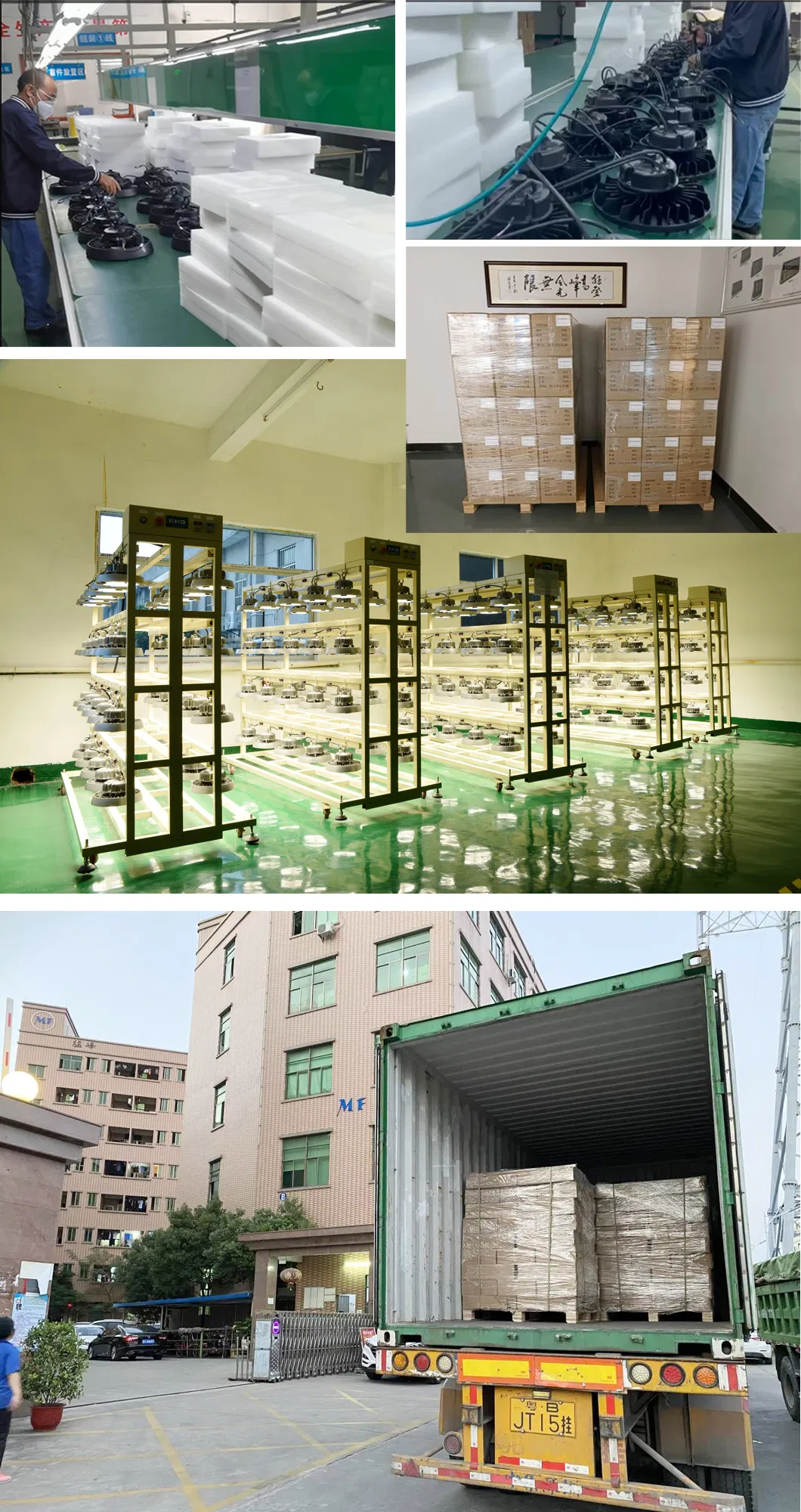

We are a leading LED lighting manufacturer with our own state-of-the-art factory. Specializing in the design, production, and distribution of high-quality LED lighting products, we have established a reputation for excellence and innovation in technology. Our team of skilled professionals is dedicated to providing customers with the best products and services, ensuring high satisfaction for both residential and commercial projects.
