| Model NO. | HTAC-50/100-OD | Certification | ISO, CE, TUV/Un38.3/En50549 |
|---|---|---|---|
| Application | Home, Industrial, Commercial | System Type | Off Grid Hybrid Solar System |
| Output Voltage | 380V/400/415/480VAC 50/60Hz 3phase | Battery Type | Lead Acid, Lithium Ion, LiFePO4 Battery |
| Cell Capacity | 280ah/314ah | Cycle Life | ≥6000 Cycles |
| Protection Level | IP54/IP65 | Nominal Capacity | 100kwh/200kwh/215kwh/229kwh Option |

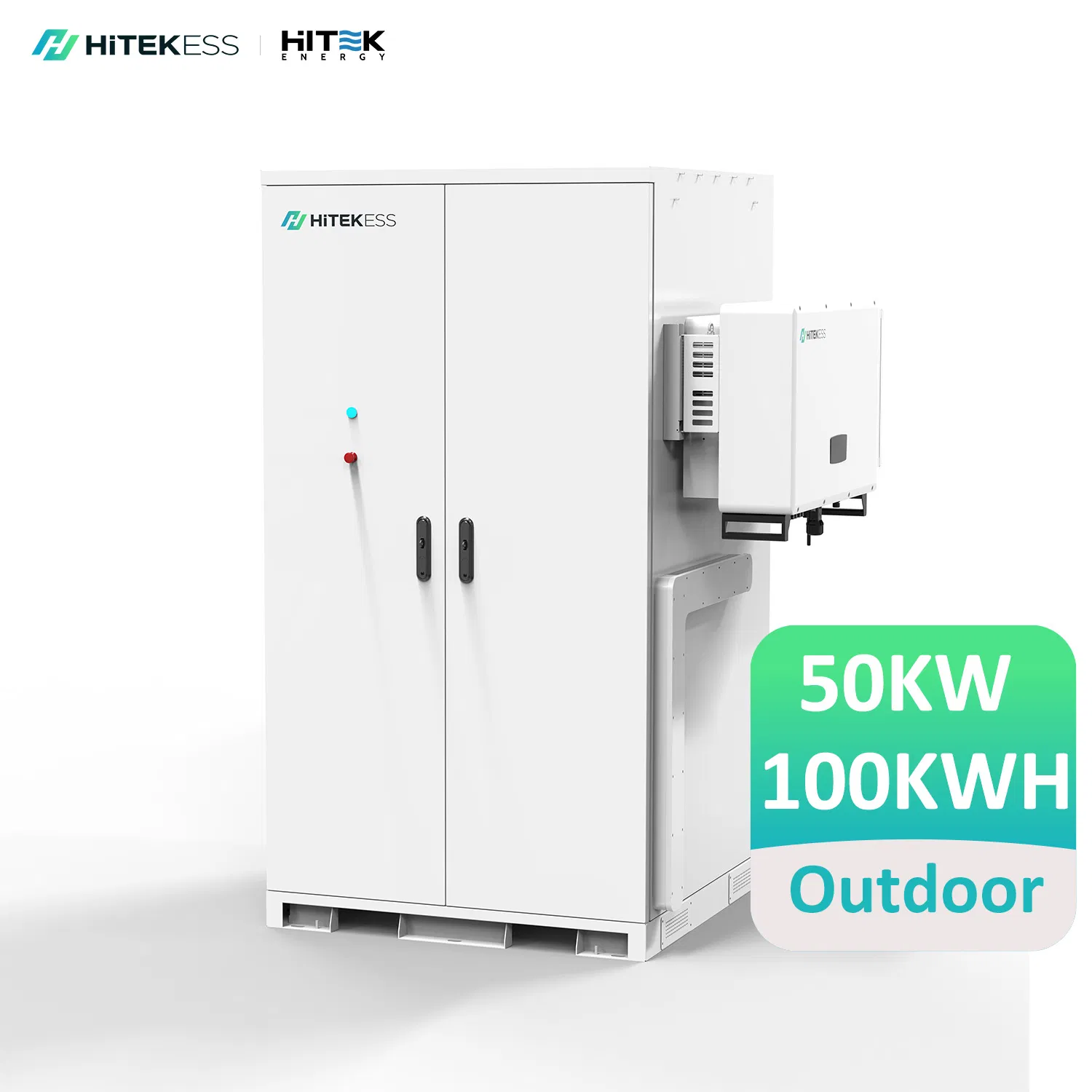

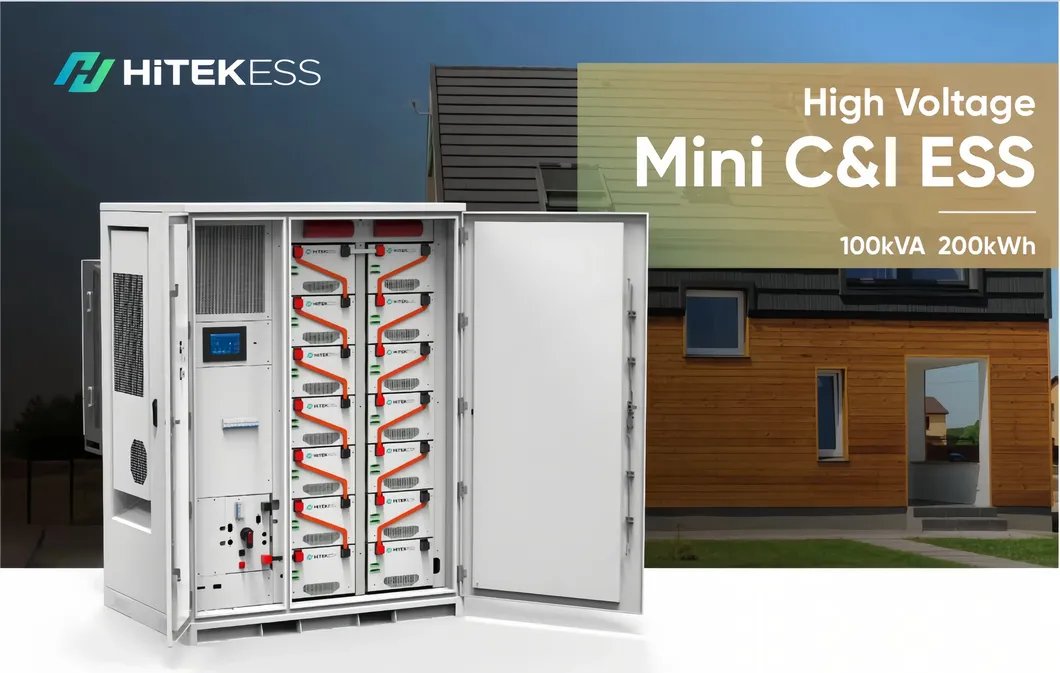

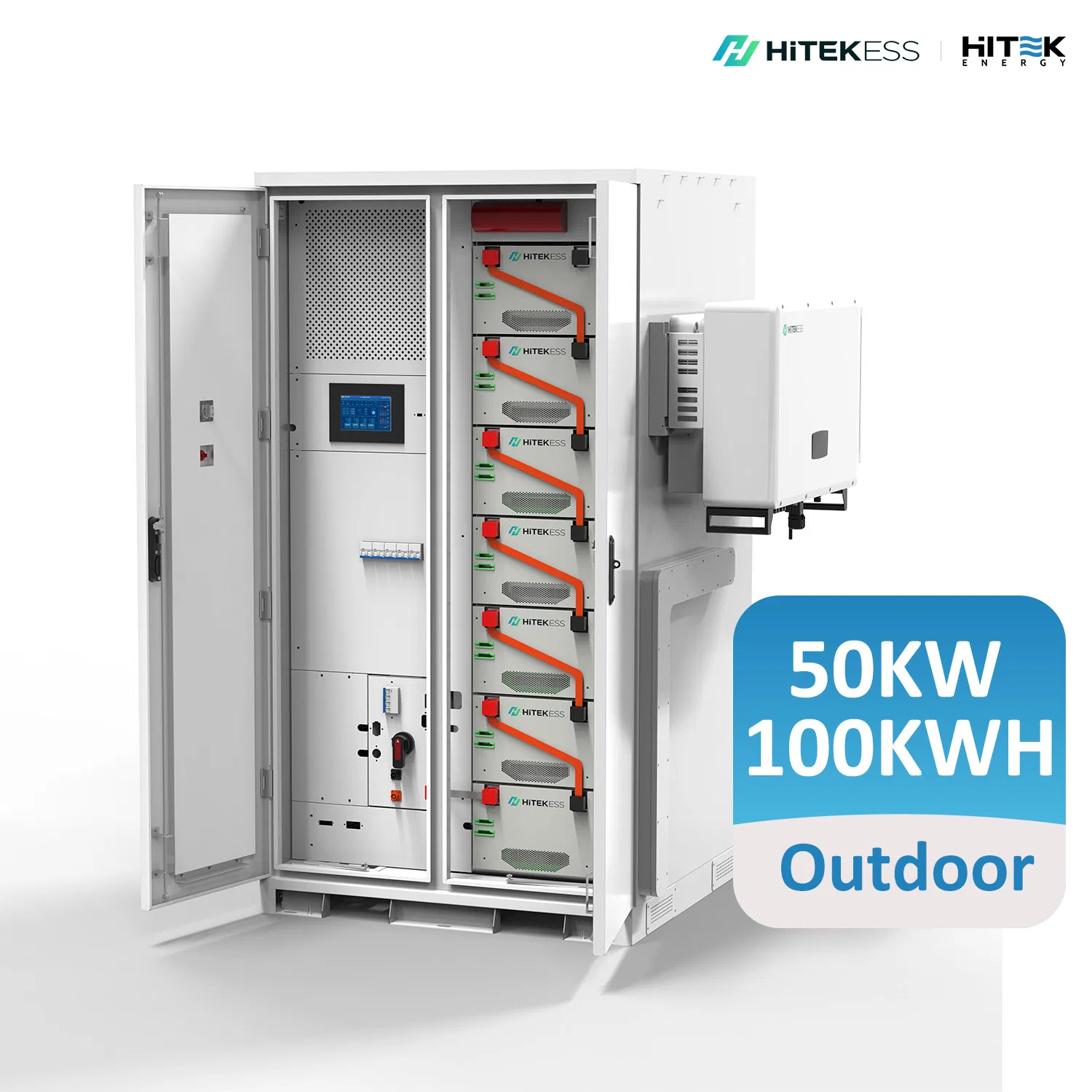

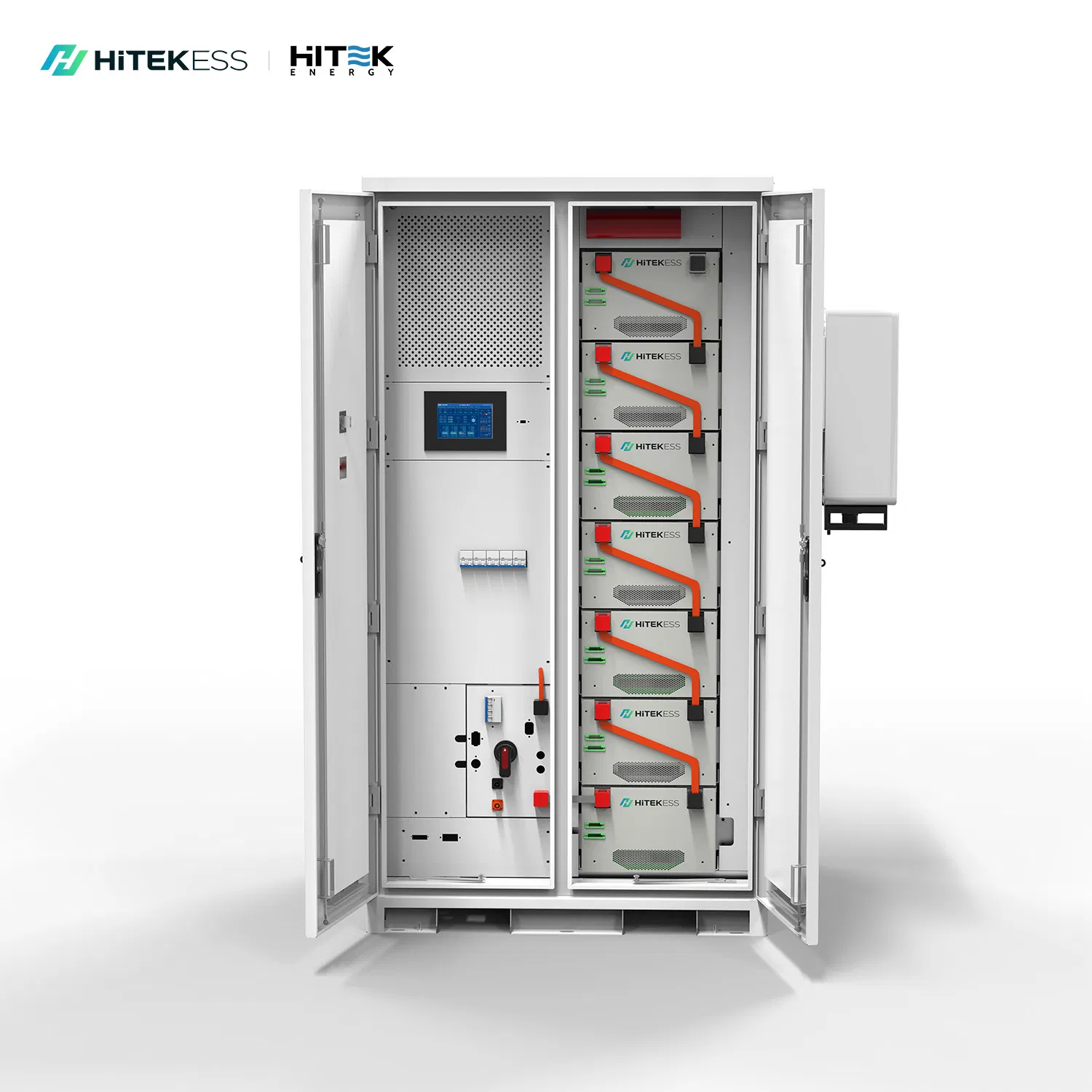

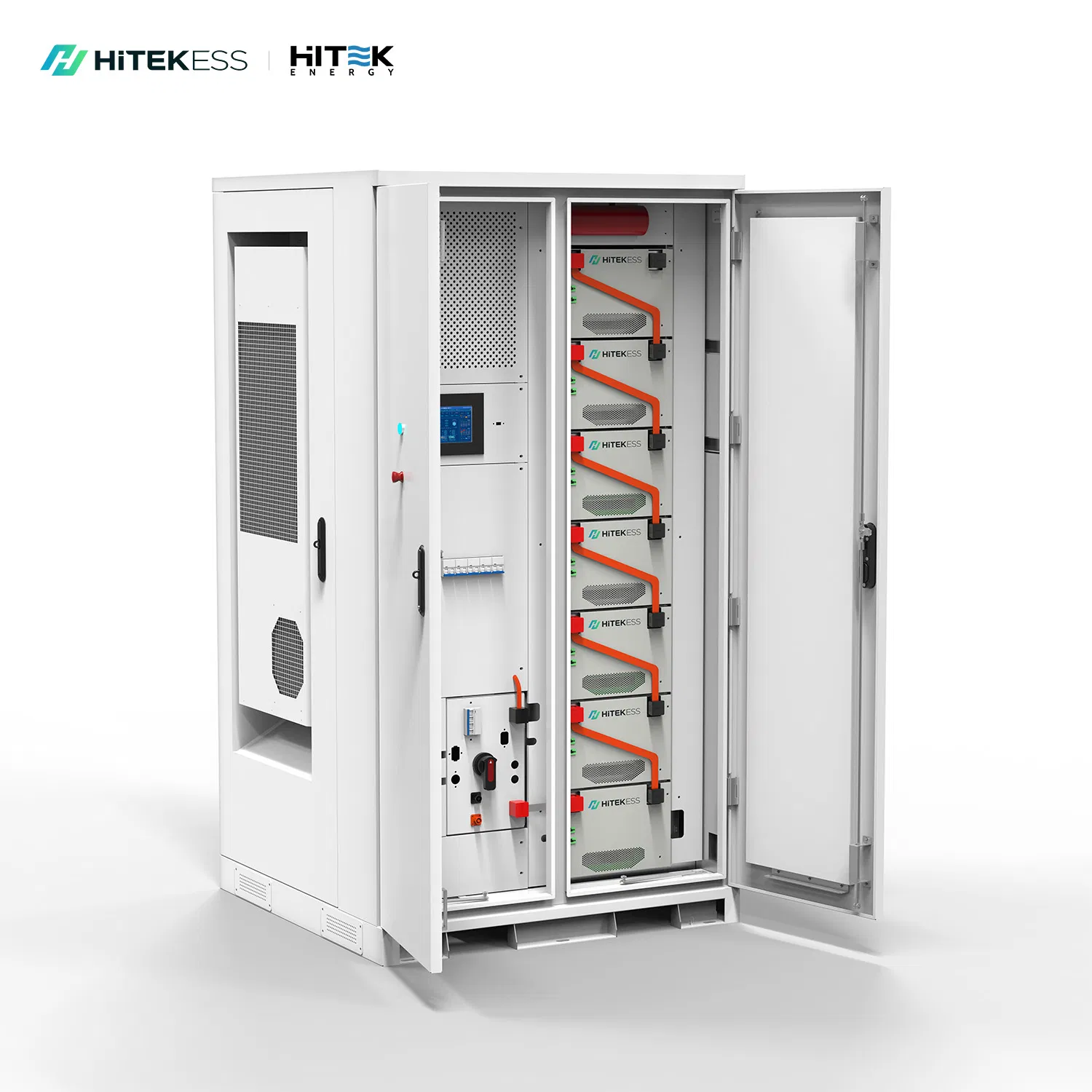

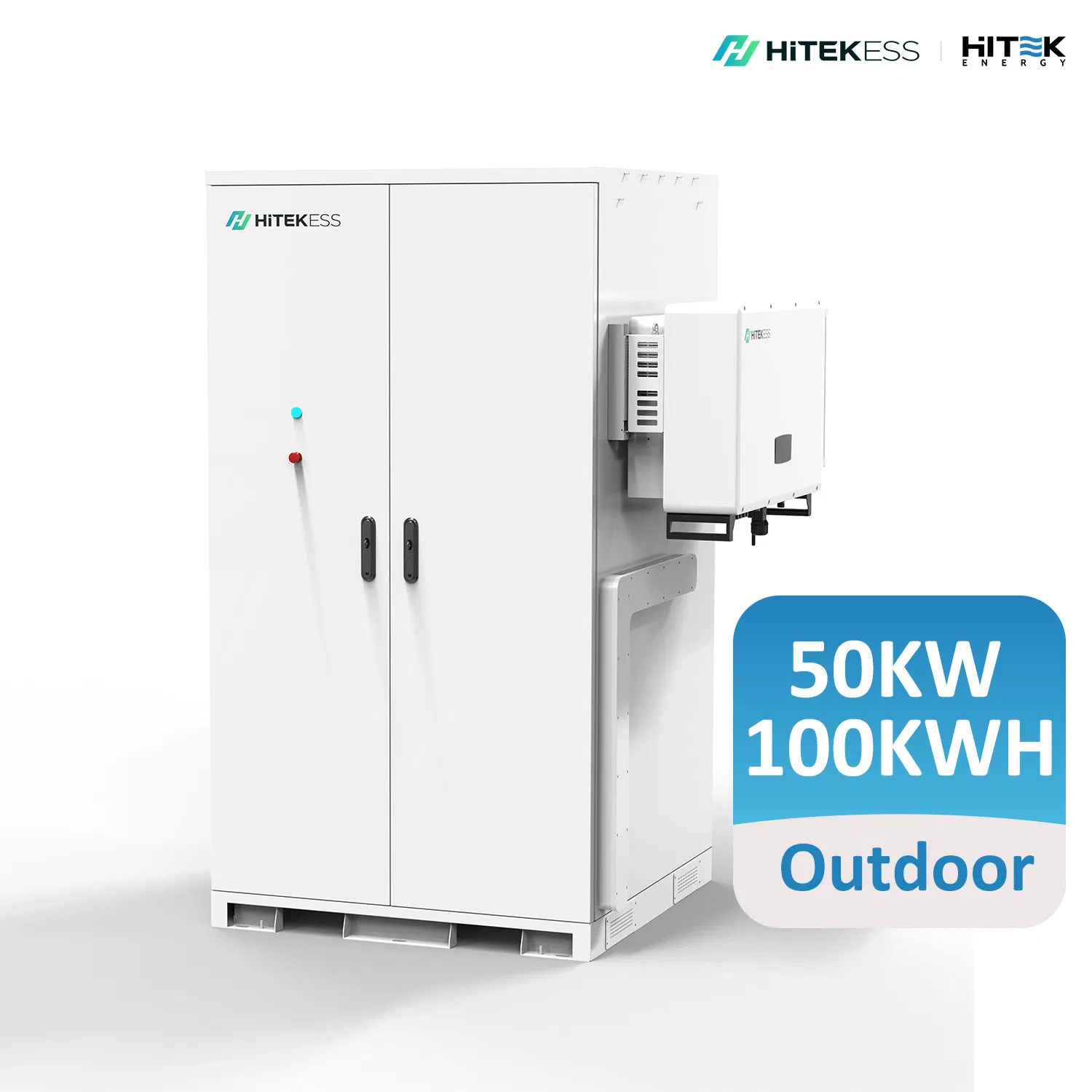

High Voltage 50kW/100kWh, 100kW/200kWh, 100kW/229kWh ESS Outdoor Cabinet Solution for fast installation. This all-in-one system includes an inverter, lithium battery trays, racks, BMS, Microgrid Controller, HVAC, fire suppression, islanding switch, and an outdoor-rated enclosure.
Safe Technology & Multi-level Protection, Easy & Flexible to Scale and Powerful Performance. The modular design allows for easy capacity expansion to meet growing energy needs.
| Model | HTAC-50/100-OD | HTAC-100/200-OD | HTAC-100/215-OD | HTAC-100/229-OD |
|---|---|---|---|---|
| System Parameter | 50kW/100kWh | 100kW/200kWh | 100kW/215kWh | 100kW/229kWh |
| Battery Capacity | 100kWh | 200kWh | 215kWh | 229kWh |
| Rated Voltage | 358.4V | 716.8V | 768V | 409.6V |
| Max PV Power | 100kW | 200kW | 200kW | 200kW |
| Dimensions (W*D*H) | 850*1100*2060mm | 1500*1100*2060mm | 1570*1350*2100mm | 1570*1350*2100mm |
| Approx. Weight | 1300kgs | 1900kgs | 2300kgs | 2300kgs |

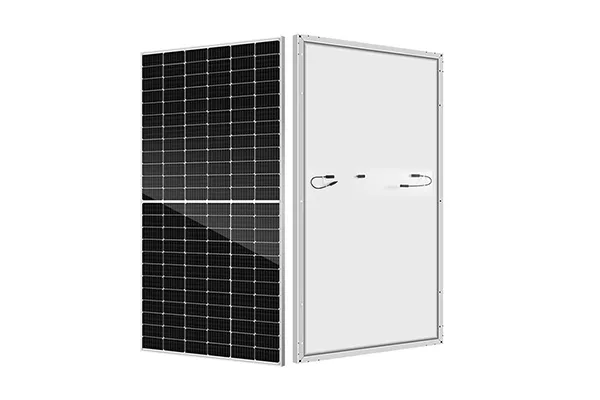

TOPCon Bifacial Mono Solar Panel
Peak Power: 600Wp | High Efficiency

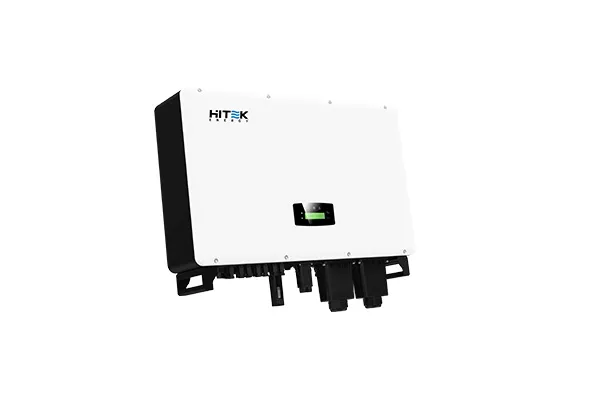

All-in-one Hybrid Solar Inverter
Smart Monitoring | Time-of-use Optimization

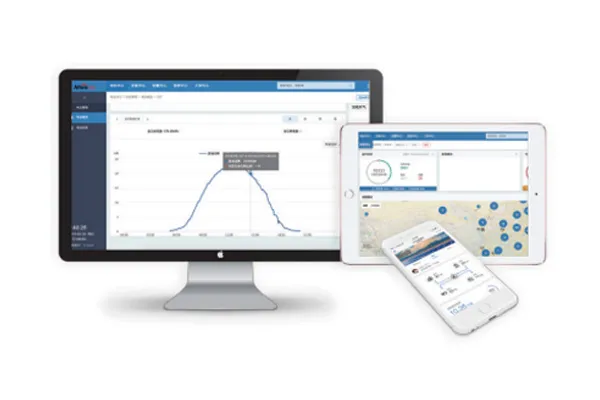

Online Monitoring System
Real-time data | Remote lifecycle management

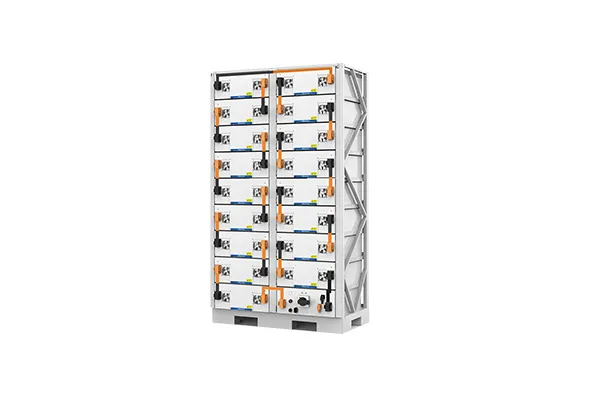

Solar Battery Pack
LiFePO4 | 6000+ Cycles | Deep Cycle

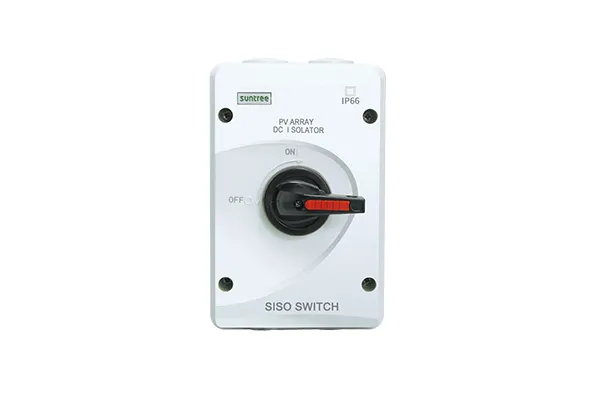

DC & AC Disconnect Switch
Rated 1000VDC | MC4 Connection

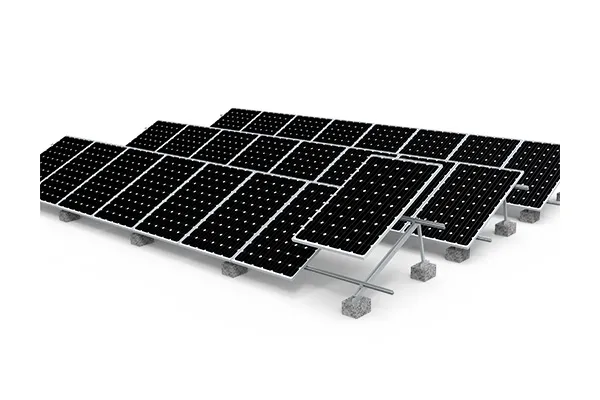

PV Mounting System
AI6005 & SUS304 | Weather Resistant
The system uses high-quality LiFePO4 batteries with a cycle life of ≥6000 cycles at up to 90% Depth of Discharge (DOD).
Yes, the cabinet is designed with IP54/IP65 protection levels and includes built-in HVAC and fire suppression systems for safe outdoor operation.
Absolutely. The system features a modular design with flexible parallel functions, allowing for easy capacity expansion as energy requirements grow.
The system supports online monitoring via WiFi, LAN, or GPRS, providing real-time data access and remote firmware upgrades.

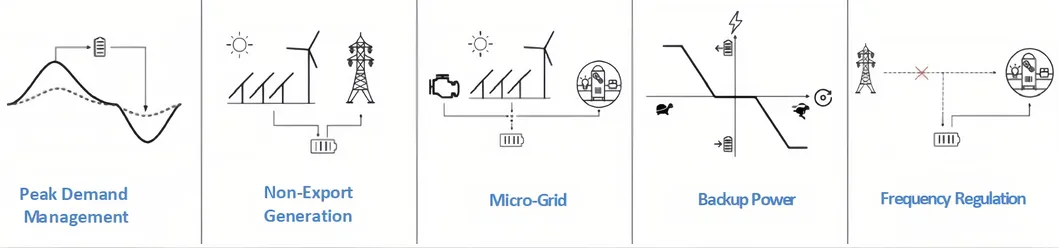

It is ideal for Industrial, Commercial, and large-scale Residential applications, specifically for peak shaving, outage resilience, and microgrid management.
Yes, the units are equipped with advanced fire protection systems, including options for Aerosols, perfluorohexanone, or heptafluoropropane suppression.
