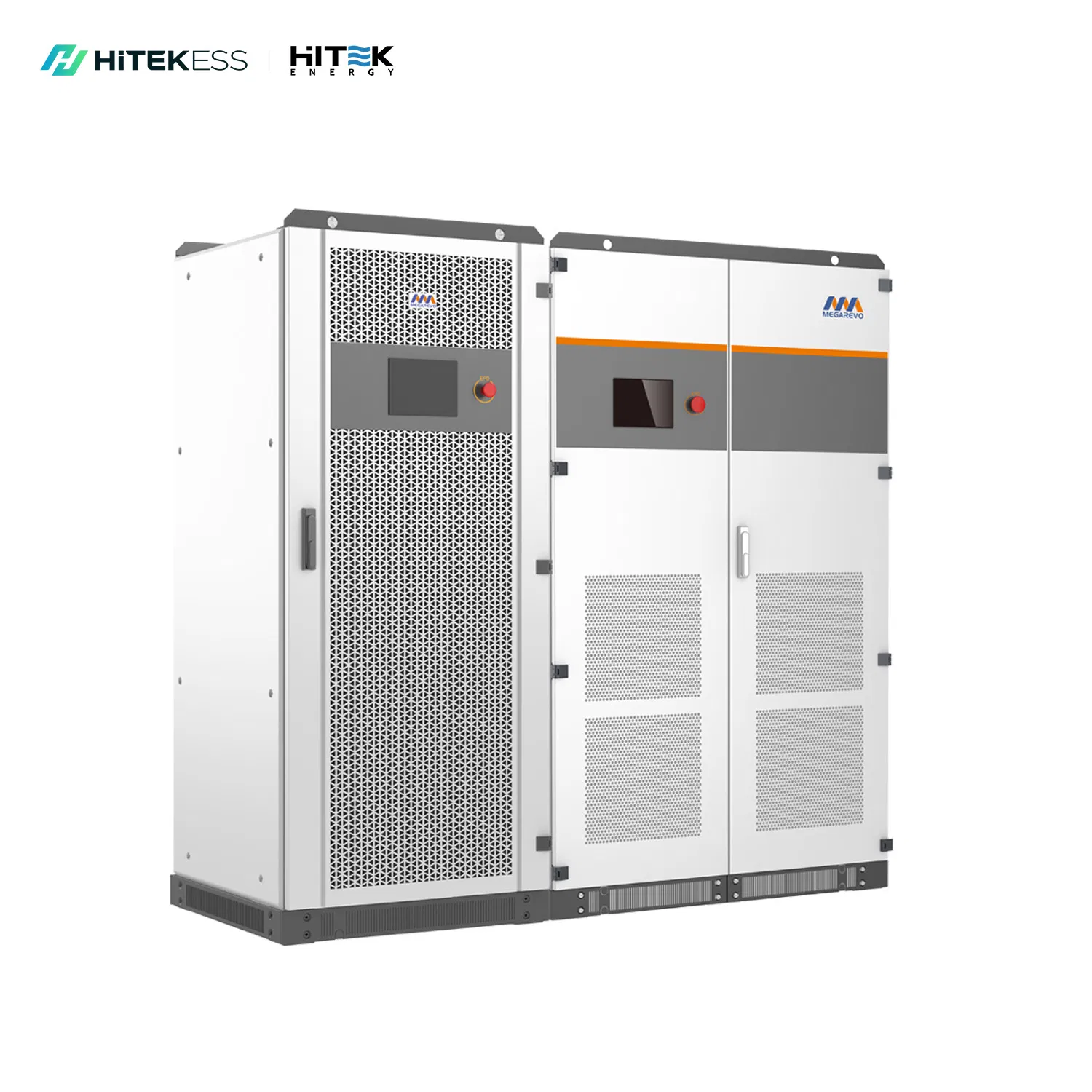

Hitek Solar Hybrid Energy System 500kw 1000kw Residential Solar System Commerical Home Solar Power System with Lithium Battery Solar Power System

Customization:	Available
After-sales Service:	Available
Warranty:	5 Years

📊

Product Overview

Model NO.

HT500KW-HY

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

30KW-500KW

Product Name

500kw 1mwh Battery Energy Storage System

System Type

Hybrid Solar System

Output Voltage

380V/400/415VAC 50Hz 3phase

Battery Type

LiFePO4 Battery

Online Monitoring

WiFi/LAN/GPRS

📝

Product Description

The hybrid solar system is a renewable energy solution that is grid-tied and includes advanced battery storage. The system uses high-efficiency solar panels to produce energy during the day, while the integrated batteries store excess energy for use at night or during peak demand periods. This dual capability allows for both on-grid and off-grid performance, ensuring power availability even during grid failures.

⚙️

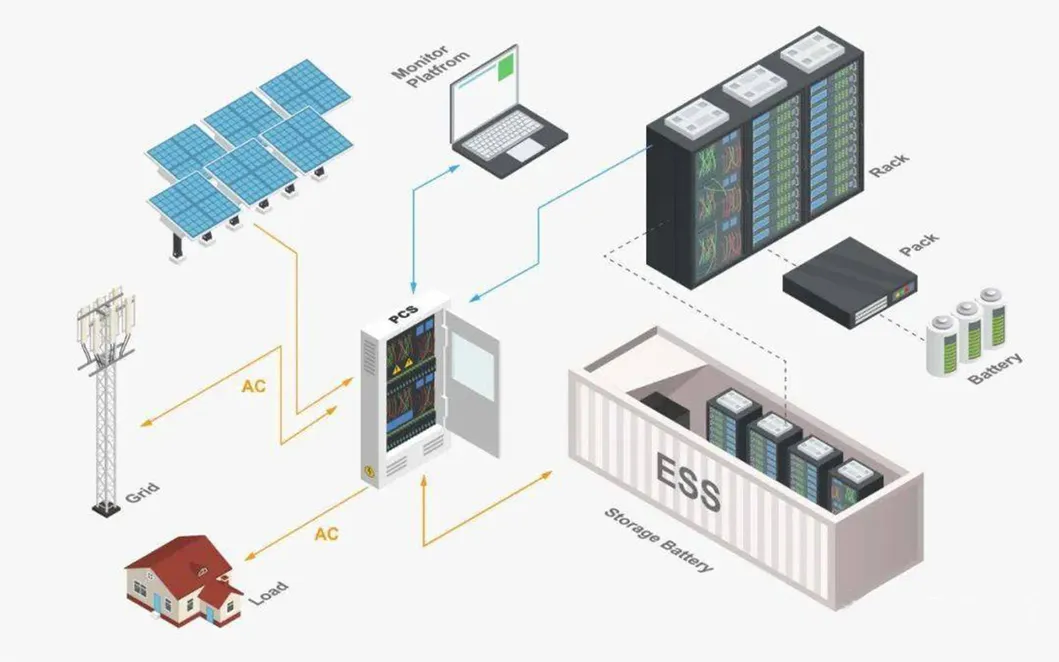

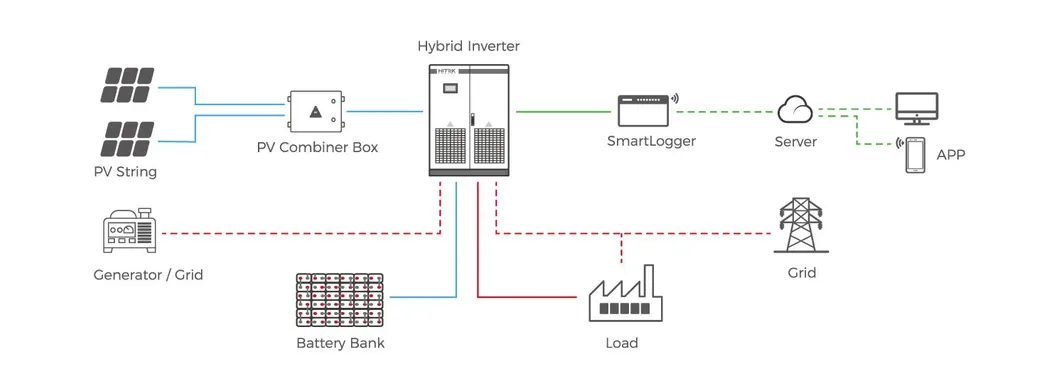

How It Works

📋

Configuration Details

Parameter	HT30KW-HY	HT50KW-HY	HT100KW-HY	HT250KW-HY	HT500KW-HY
AC Rated Power	30KW	50KW	100KW	250KW	500KW
Solar Panel Qty	68 PCS	102 PCS	204 PCS	510 PCS	1020 PCS
Total Solar Power	38.08KW	57.1KW	114.24KW	285.6KW	571.2KW
Battery Capacity	40.96KWH	100.352KWH	200.704KWH	473.088KWH	946.176KWH
Grid Voltage	380/400VAC, 50/60HZ

🛠️

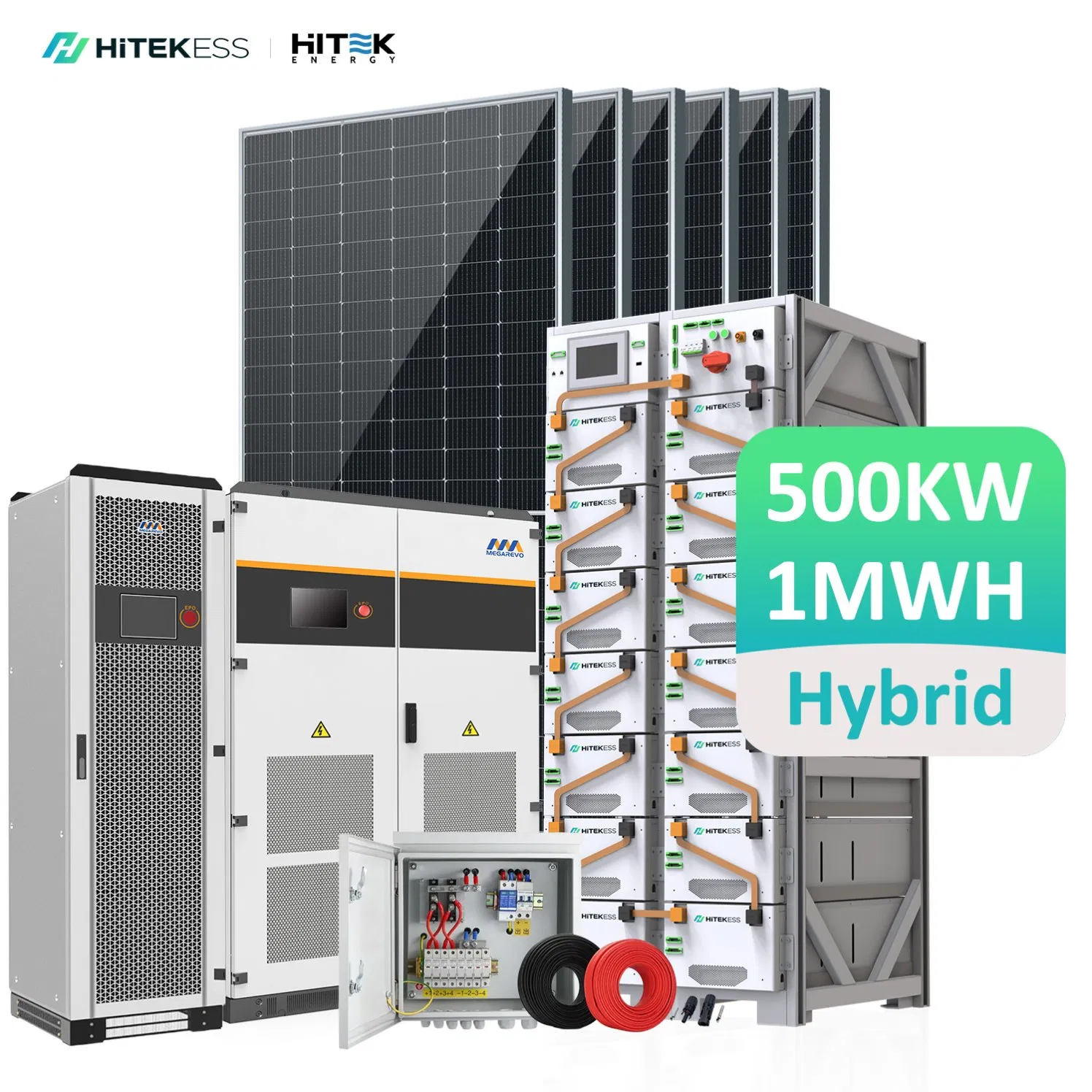

System Components

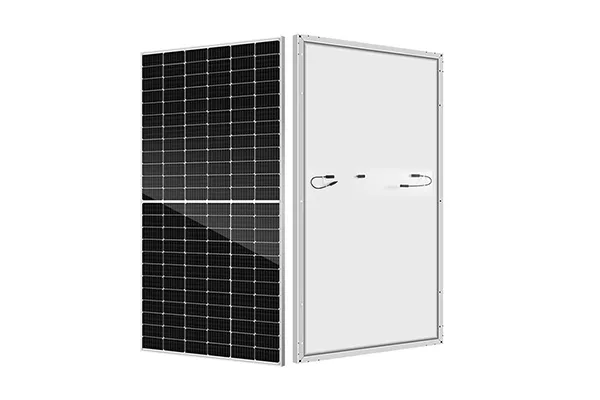

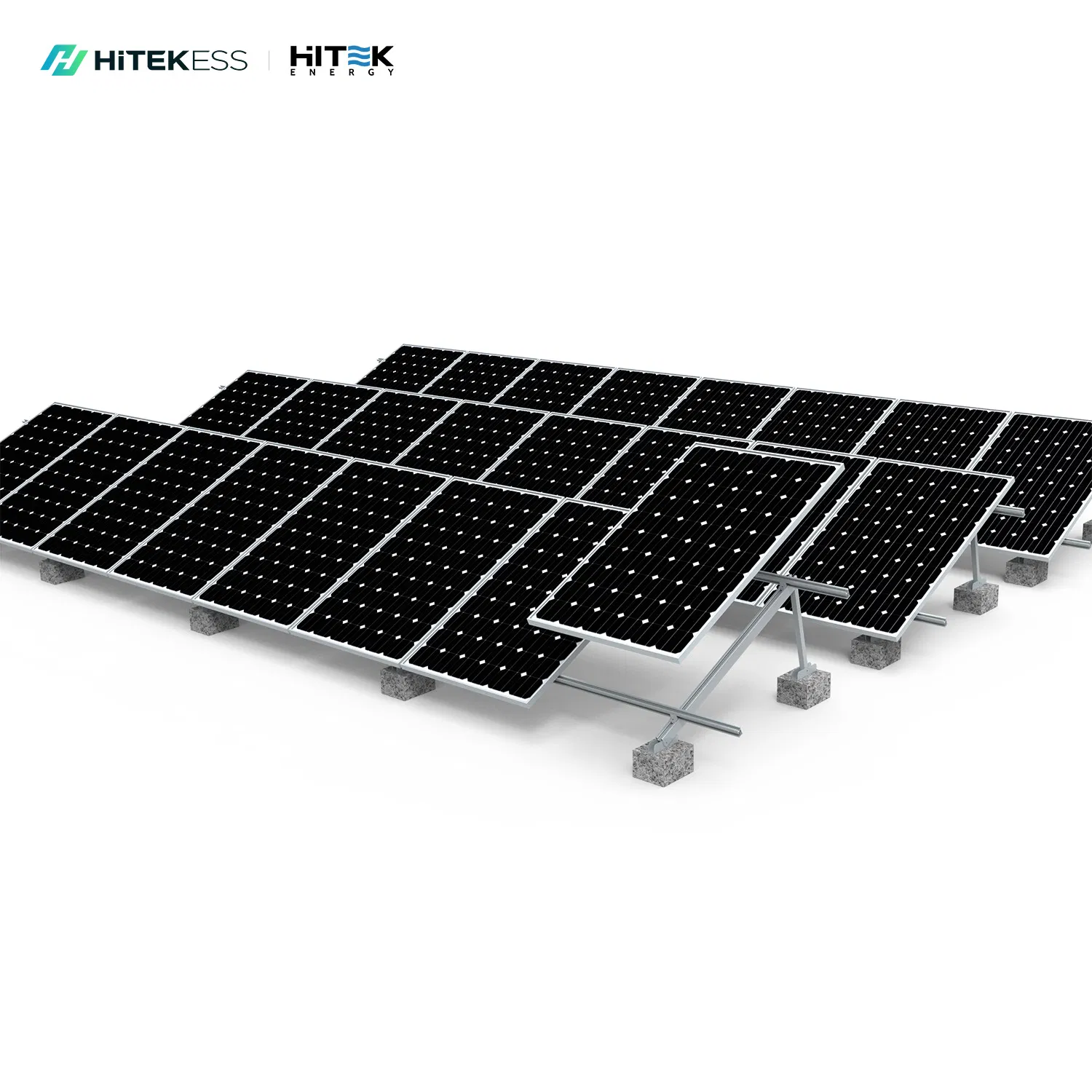

Mono Solar Panel

Model: HT560M-72
Peak Power: 560Wp
Open Circuit Voltage: 49.84V
Dimensions: 2279*1134*35mm
Weight: 28.0±3% kg

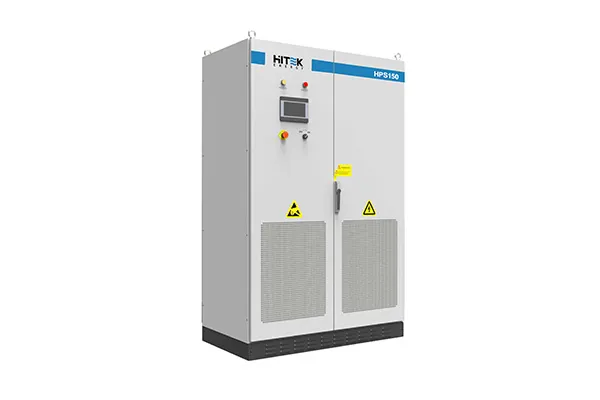

All-in-one Solar Hybrid Inverter

Programmable working mode
Touchscreen LCD Interface
Seamless Power Transfer
Scalable Design (Parallel up to 4 units)

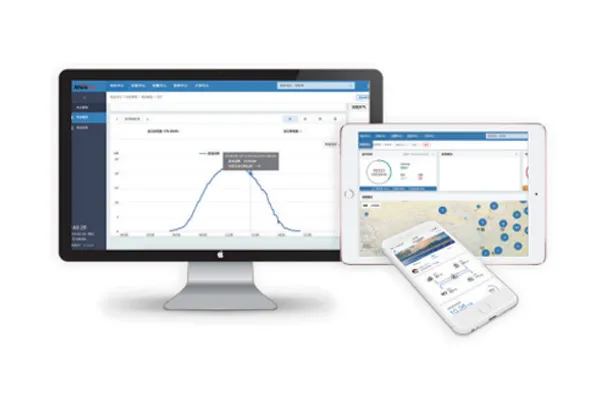

Online Monitoring System

Real-time performance tracking
One-click installation and registration
Safe operation with traceable logs
Lifetime data storage for reliability

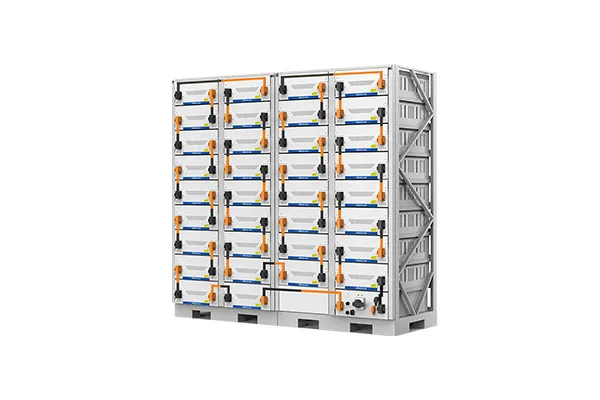

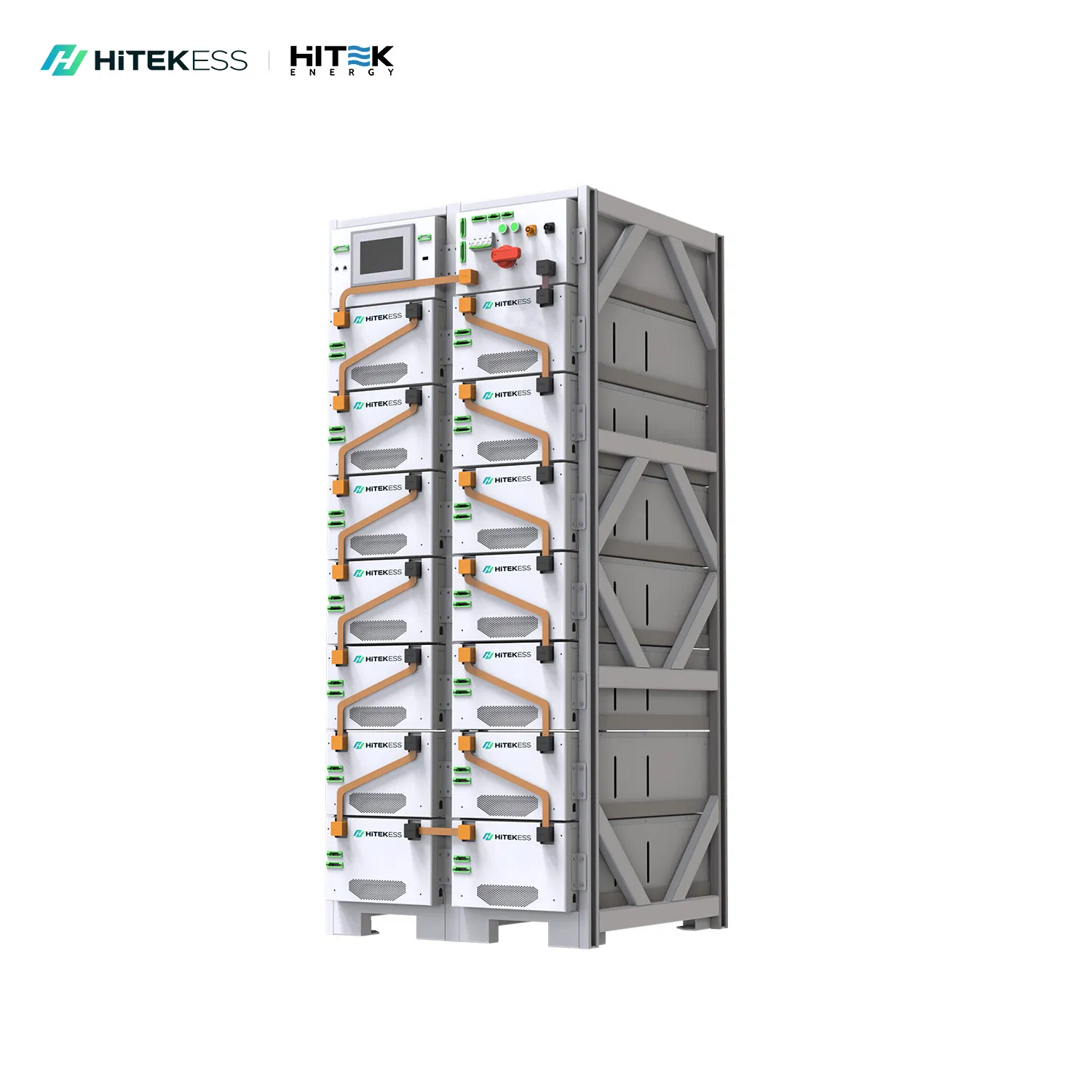

Solar Battery Packs

Deep Cycle LiFePO4 Lithium Ion
Rack mounted for easy maintenance
Over 6000 cycles, up to 90% DOD
Wide ambient temperature suitability

🛡️

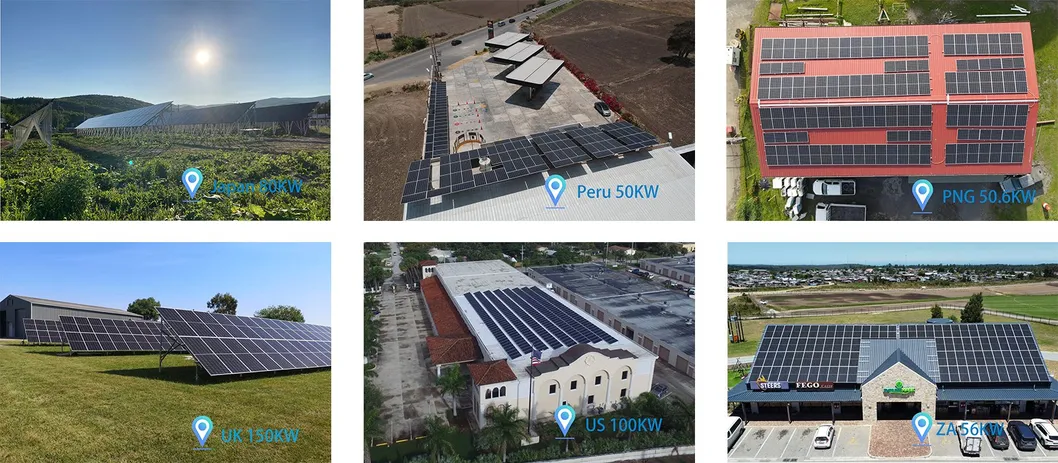

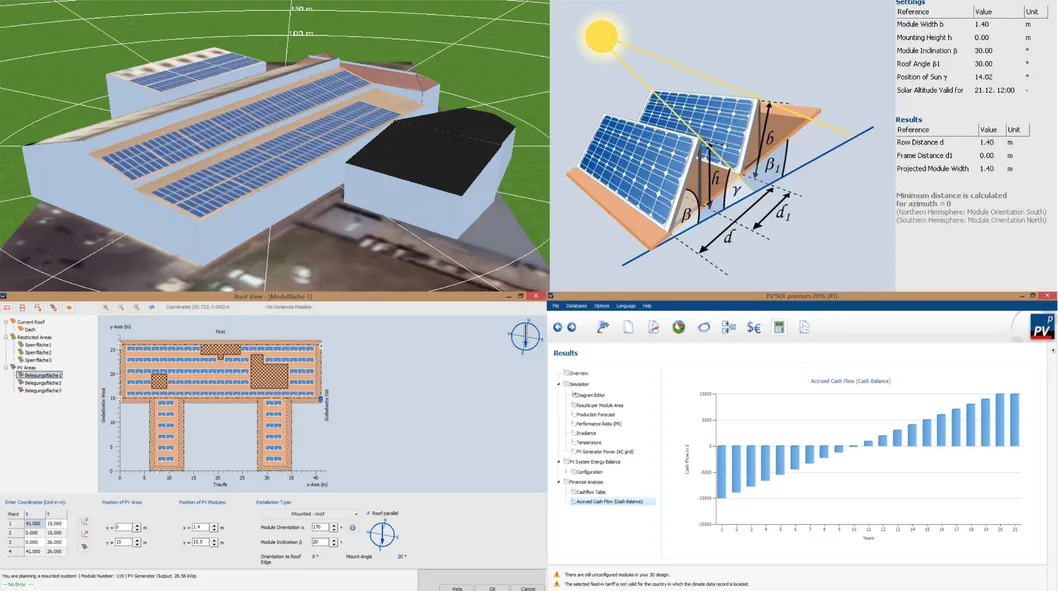

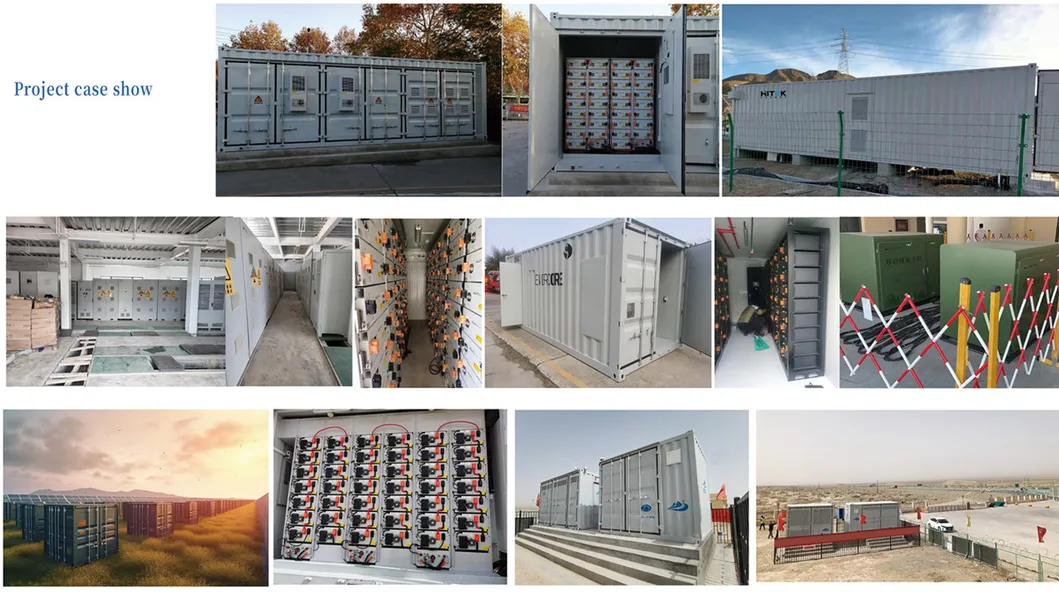

Technical Support & Cases

🏢

About Our Solutions

We are dedicated to providing sustainable and renewable energy solutions to strengthen homes, businesses, and factories. We provide tailored solar energy solutions for backup, residential, and commercial needs, catering to your unique power requirements. Our top priority is using only reliable, approved equipment to help you save on electric bills while ensuring long-term partnership value.

Let's work together for a better, brighter, and greener future.

❓

Frequently Asked Questions

What are the main benefits of a hybrid solar system?

A hybrid system combines grid-tied benefits with battery backup. It reduces electricity bills by using solar energy first and provides security during power outages by using stored battery power.

How long do the lithium batteries last?

The LiFePO4 lithium batteries in our systems are designed for high performance with over 6000 cycles at 90% depth of discharge, typically lasting 10-15 years depending on usage.

Can the system be expanded in the future?

Yes, our hybrid inverters feature a scalable design that allows units to be connected in parallel (up to 4 units) to increase the total power output as your needs grow.

Is remote monitoring included?

Yes, the system supports online monitoring via WiFi, LAN, or GPRS. You can track energy production, battery status, and system health through a computer or smartphone.

What type of technical support do you provide?

We provide complete professional technical guidance, including system design, installation instructions, and remote troubleshooting to ensure your system operates at peak efficiency.

What happens if it's cloudy for several days?

The system can still draw power from the utility grid if solar production and battery storage are insufficient, ensuring you never run out of electricity.
