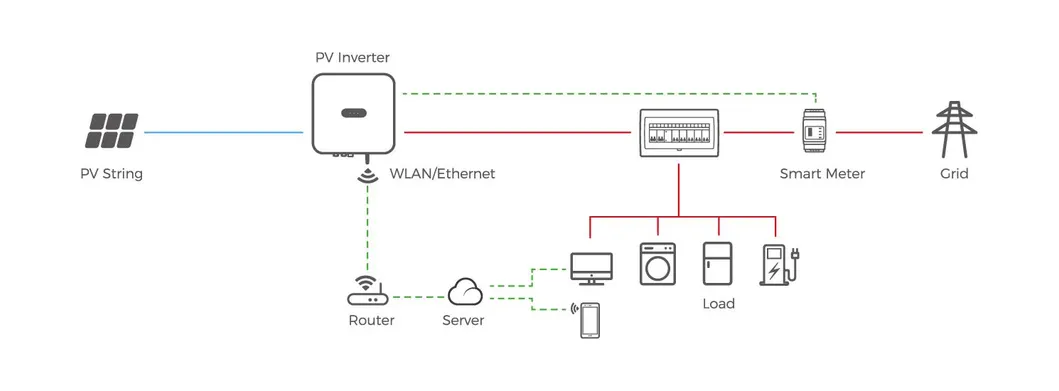

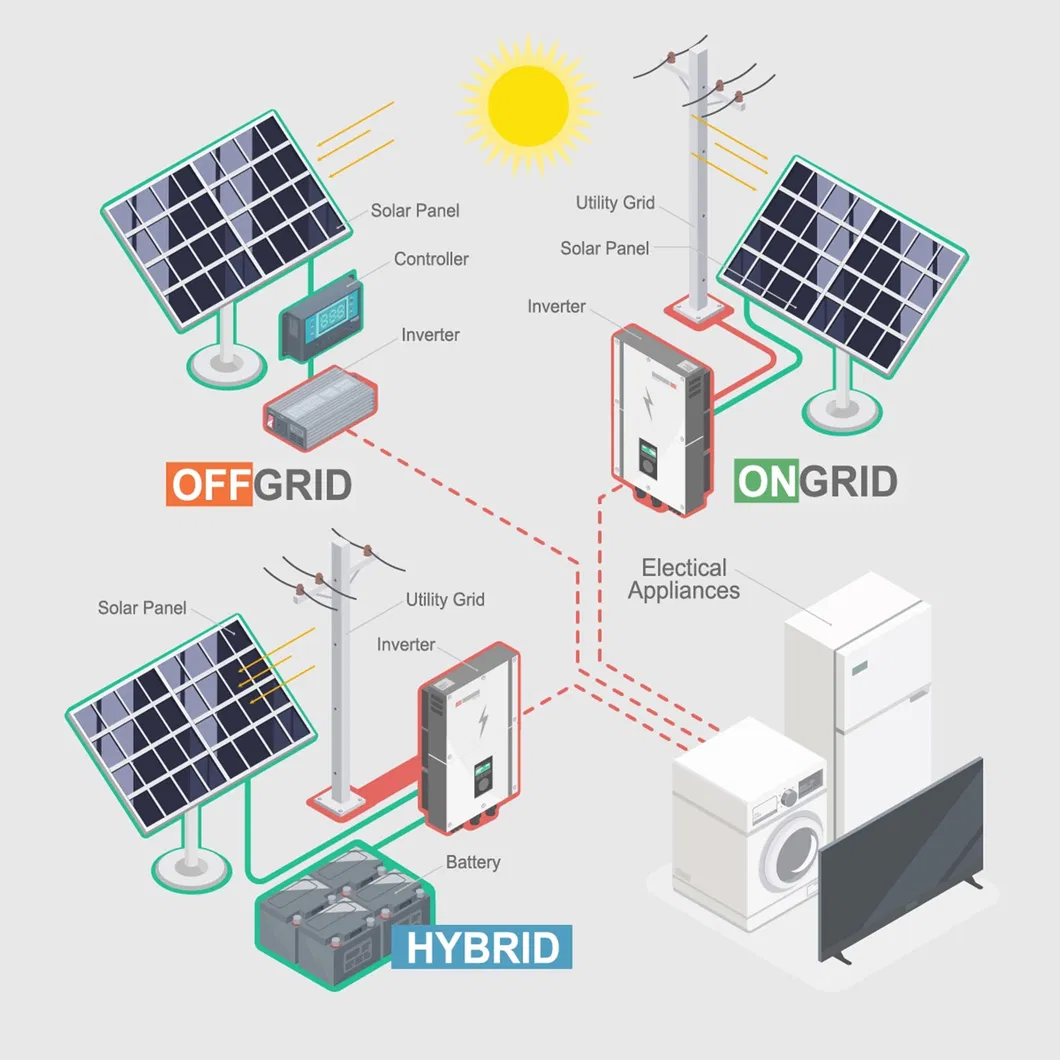

The Grid-Tied solar system is widely used for home and business for there is no need for batteries, so the whole system is relatively cheap. When the solar power is sufficient for loads to use you usually can save your bills, even the excess solar electricity will simply be exported to the grid, you will get paid a feed-in-tariff.

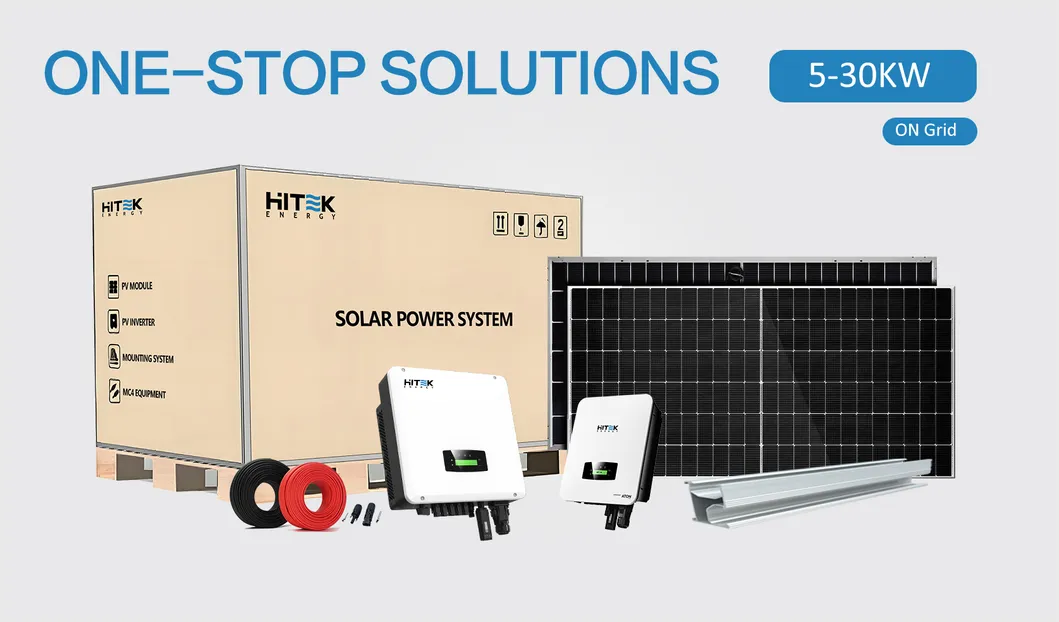

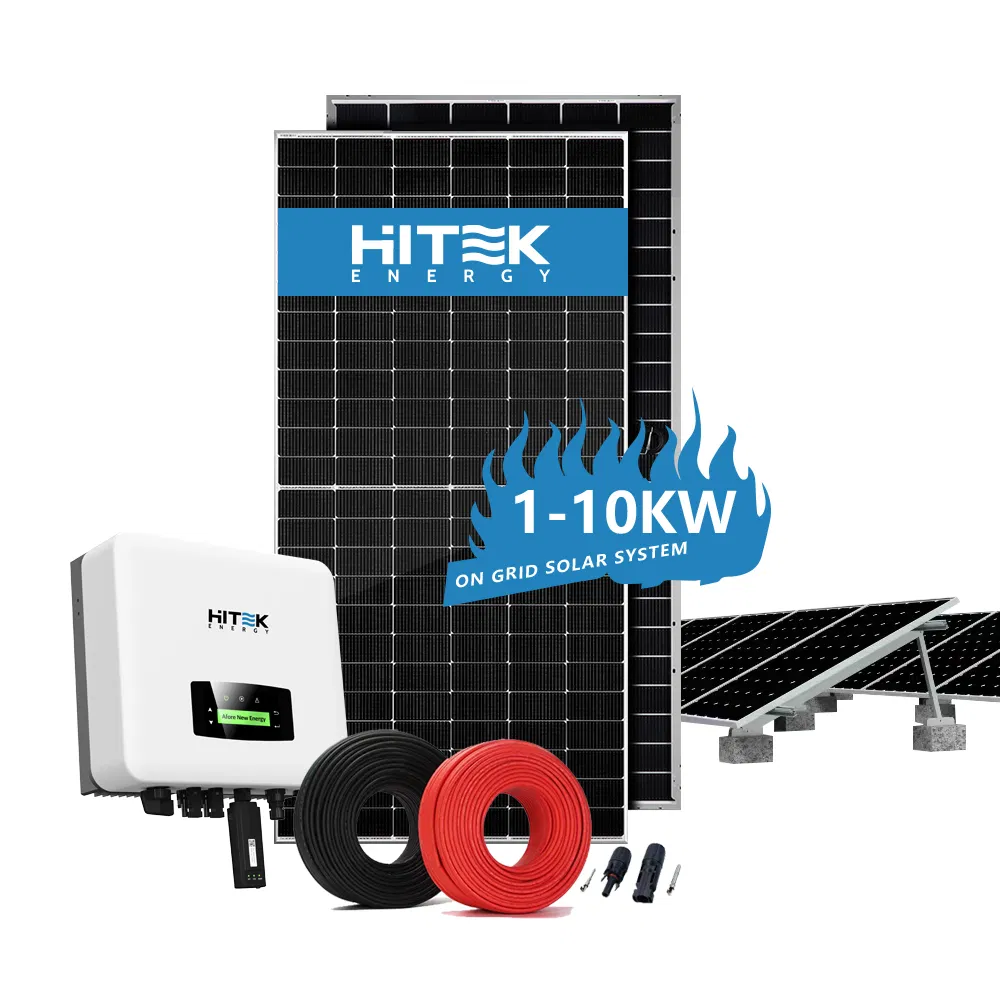

| Residential On Grid Solar System Configuration (Three Phase 5-30KW) | ||||
|---|---|---|---|---|
| Components | HT5KW-ON | HT10KW-ON | HT20KW-ON | HT30KW-ON |
| 560W Solar Panel | 9 Pieces | 18 Pieces | 36 Pieces | 54 Pieces |
| DC Isolation Switch | 1 Piece | 1 Piece | 2 Pieces | 3 Pieces |
| Grid Tied Inverter | 5KW | 10KW | 20KW | 30KW |
| DC Cable 4mm2 | 100 Meters | 200 Meters | 200 Meters | 400 Meters |
| MC4 Connector | 4 Pairs | 8 Pairs | 8 Pairs | 12 Pairs |

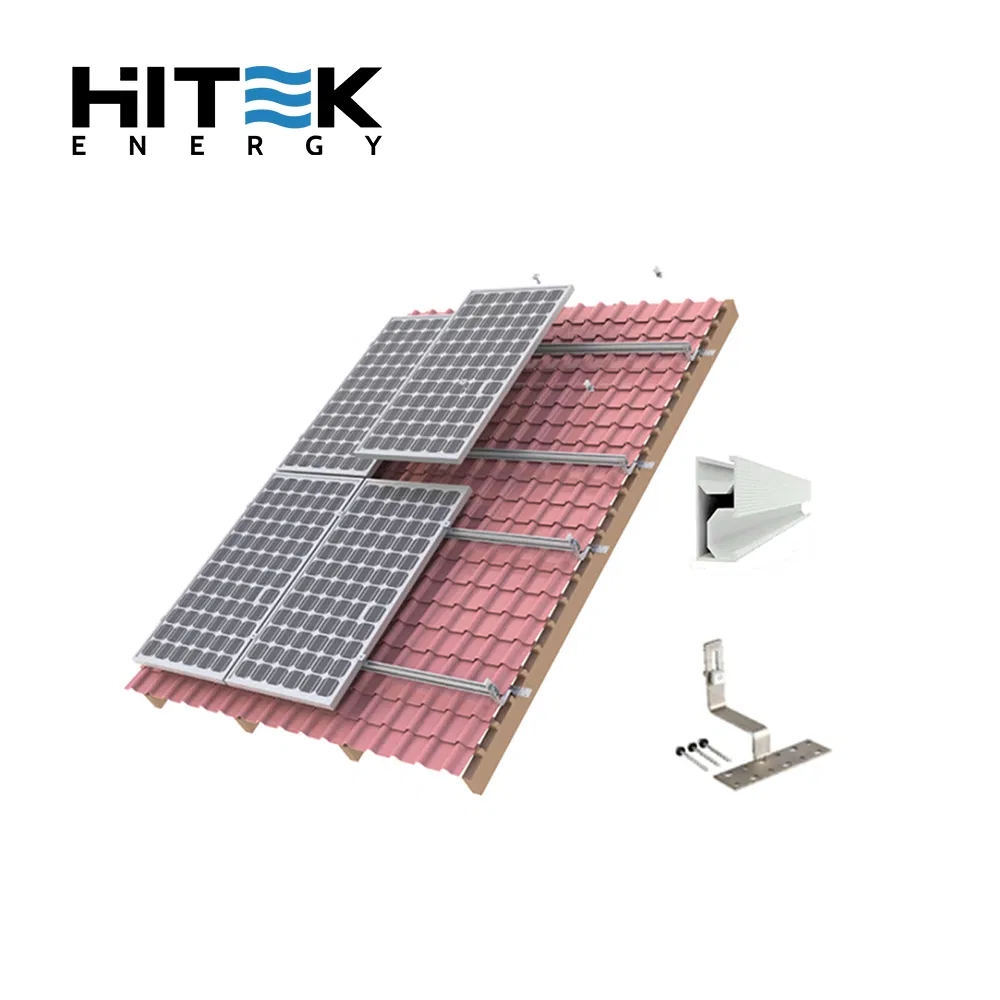

| Mounting System | Customized Product Based On Installation Roof/Ground | |||

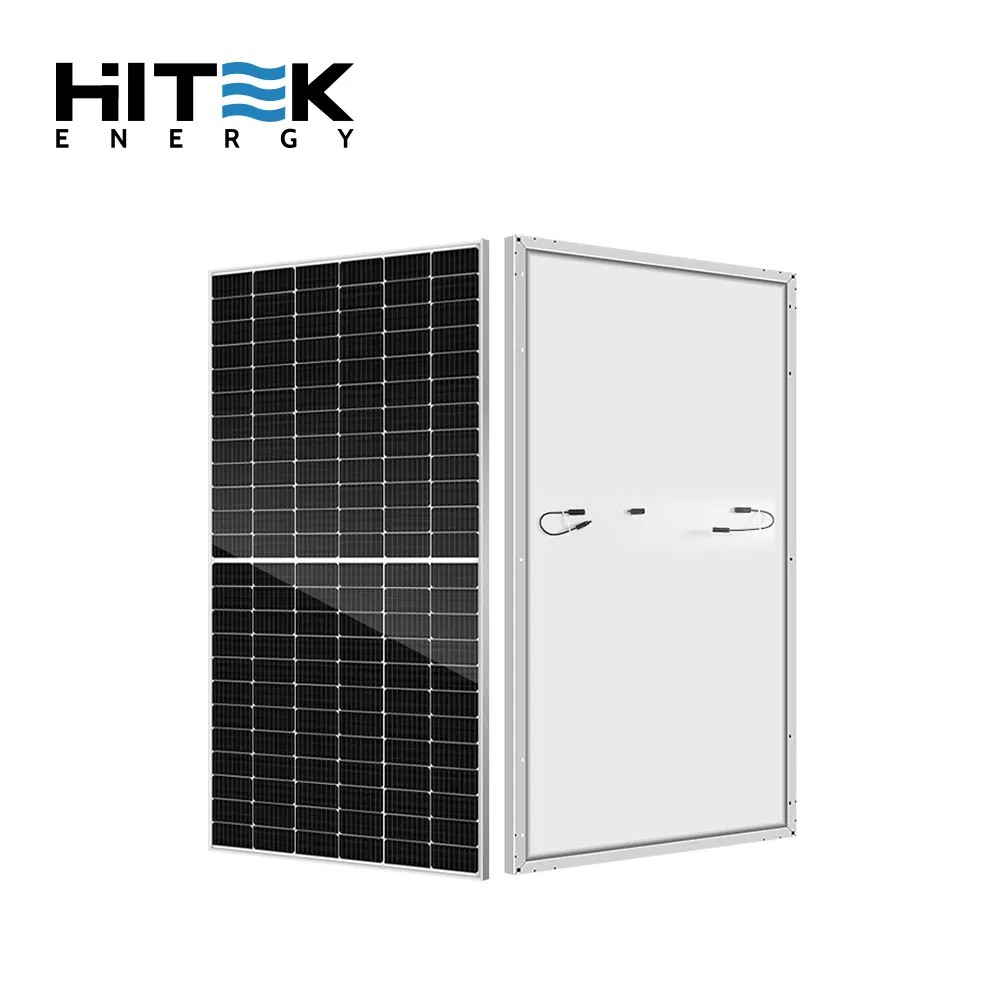

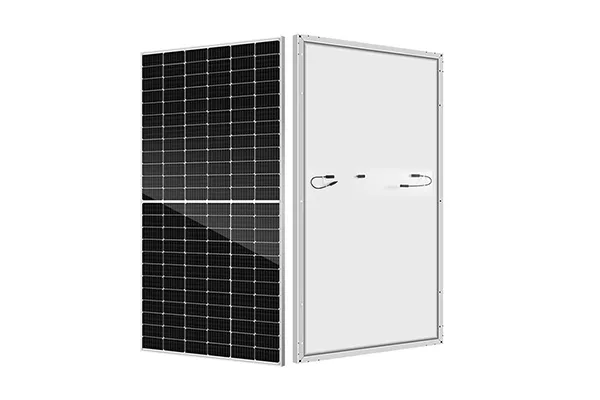

Model: HT560M-72
Peak Power Watts: 560Wp
Open Circuit voltage (Voc/v): 49.84v
Dimensions: 2279*1134*35mm
Weight: 28±3%kg

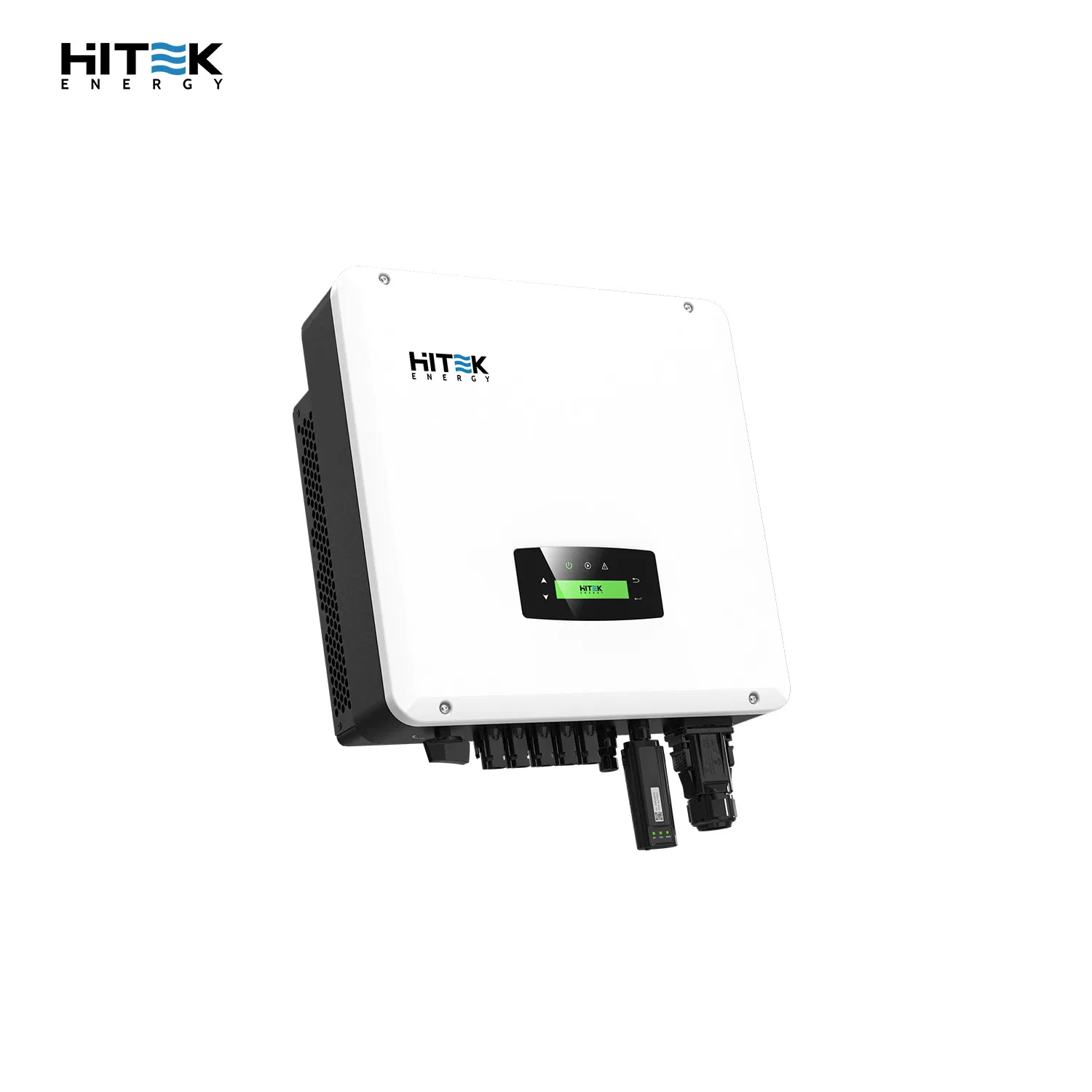

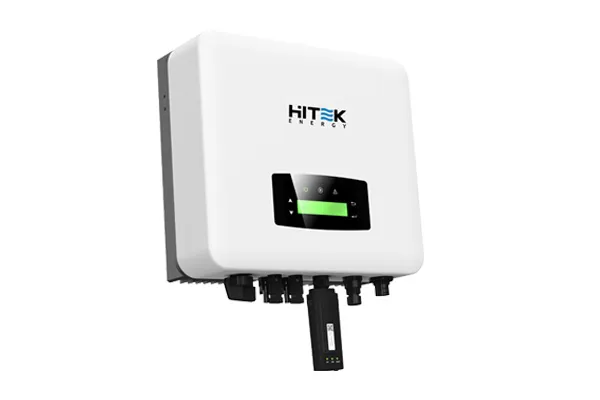

Max.efficiency 98.75%. Upto 10MPPTs.
Wide voltage range and low startup voltage.
Remote firmware upgrade with simple operation.
Overvoltage load reduction and leakage current suppression technology.
Supports one-click installation and registration.

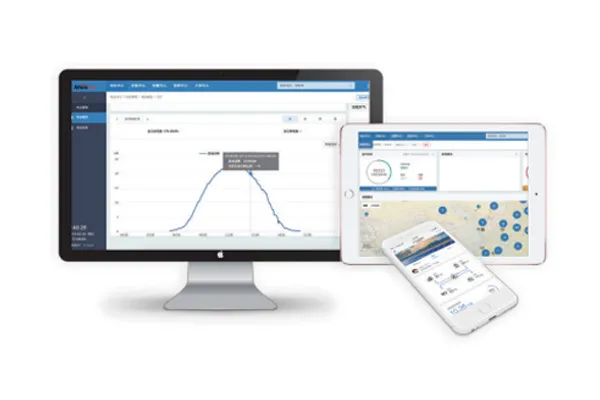

Safe operation, traceable logs.
Support lifecycle data storage to ensure data security and reliability.

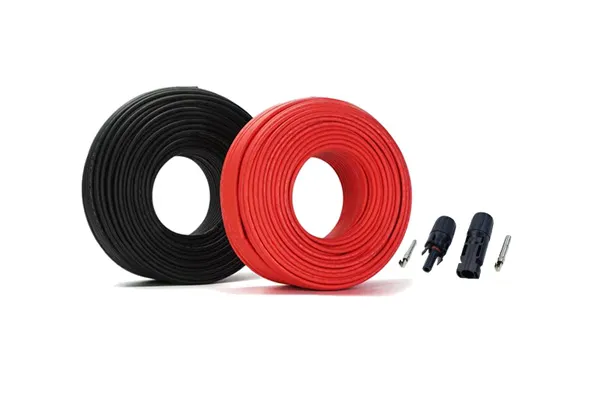

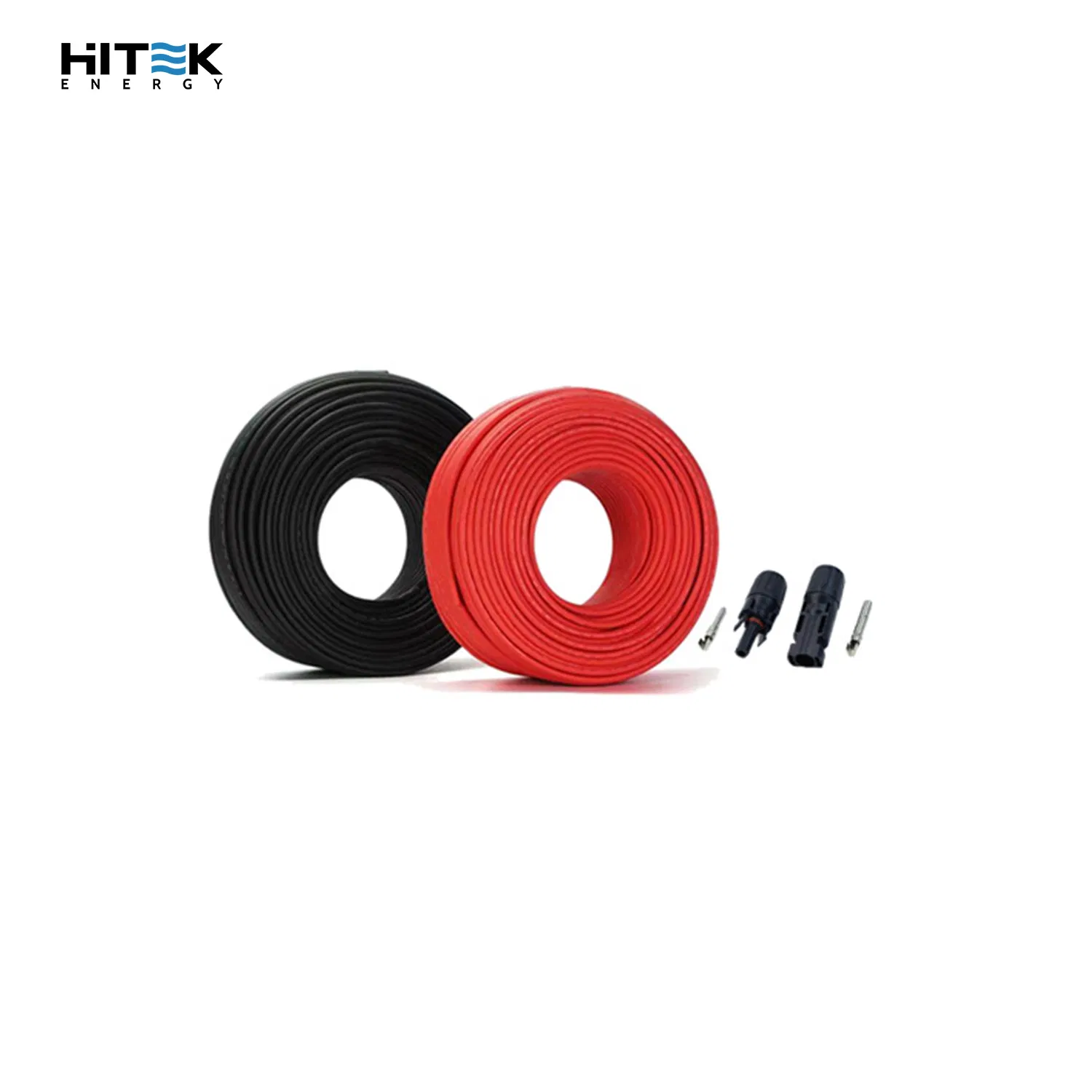

Cross Section: 4mm2, 6mm2 Optional.
Rated Voltage: 1000vDc (TUV).
Rated Current: 55A, 70A.
Lifetime: ≤25 Years.
Founded in 2018, as a superior photovoltaic manufacturer, we are dedicated to providing sustainable and renewable energy solutions to strengthen homes, businesses, and factories.
We provide tailored solar energy solutions for backup, residential, and commercial needs, catering to your unique power requirements. Your satisfaction is our top priority. We use ONLY Reliable Approved Equipment.
