Hitek All in One off Grid 50kw 100kw 150kw 200kw 250kw 500kw Bess Solar Battery Energy Storage System 1MW Hybrid Solar System with Distributed Battery Cabinet
Hitek All in One off Grid 50kw 100kw 150kw 200kw 250kw 500kw Bess Solar Battery Energy Storage System 1MW Hybrid Solar System with Distributed Battery Cabinet
Hitek All in One off Grid 50kw 100kw 150kw 200kw 250kw 500kw Bess Solar Battery Energy Storage System 1MW Hybrid Solar System with Distributed Battery Cabinet
Hitek All in One off Grid 50kw 100kw 150kw 200kw 250kw 500kw Bess Solar Battery Energy Storage System 1MW Hybrid Solar System with Distributed Battery Cabinet
Hitek All in One off Grid 50kw 100kw 150kw 200kw 250kw 500kw Bess Solar Battery Energy Storage System 1MW Hybrid Solar System with Distributed Battery Cabinet
1 / 5
Hitek All in One off Grid 50kw 100kw 150kw 200kw 250kw 500kw Bess Solar Battery Energy Storage System 1MW Hybrid Solar System with Distributed Battery Cabinet
Hitek All in One off Grid 50kw 100kw 150kw 200kw 250kw 500kw Bess Solar Battery Energy Storage System 1MW Hybrid Solar System with Distributed Battery Cabinet
Hitek All in One off Grid 50kw 100kw 150kw 200kw 250kw 500kw Bess Solar Battery Energy Storage System 1MW Hybrid Solar System with Distributed Battery Cabinet
Hitek All in One off Grid 50kw 100kw 150kw 200kw 250kw 500kw Bess Solar Battery Energy Storage System 1MW Hybrid Solar System with Distributed Battery Cabinet
Hitek All in One off Grid 50kw 100kw 150kw 200kw 250kw 500kw Bess Solar Battery Energy Storage System 1MW Hybrid Solar System with Distributed Battery Cabinet

Hitek All in One off Grid 50kw 100kw 150kw 200kw 250kw 500kw Bess Solar Battery Energy Storage System 1MW Hybrid Solar System with Distributed Battery Cabinet

Customization: Available
After-sales Service: Available
Warranty: 10 Years
Send Inquiry

Product Description

1

Overview & Basic Info

Model NO.HT-100/200-OC
ConditionNew
CertificationISO, CE, TUV/Un38.3/En50549
ApplicationHome, Industrial, Commercial
Specification30KW/54KWH-500KW/1000KWH
Product NameAll in One ESS Outdoor Distributed Cabinet
Output Voltage380V/400V/415V/480VAC/220V 3phase
Battery Capacity100-1000kwh Storage Battery
Battery TypeLiFePO4 Battery
Cycle Life8000 Times and up
Online MonitoringWiFi/LAN/GPRS
SupportUPS/Black Start/Diesel Generator
2

Product Description

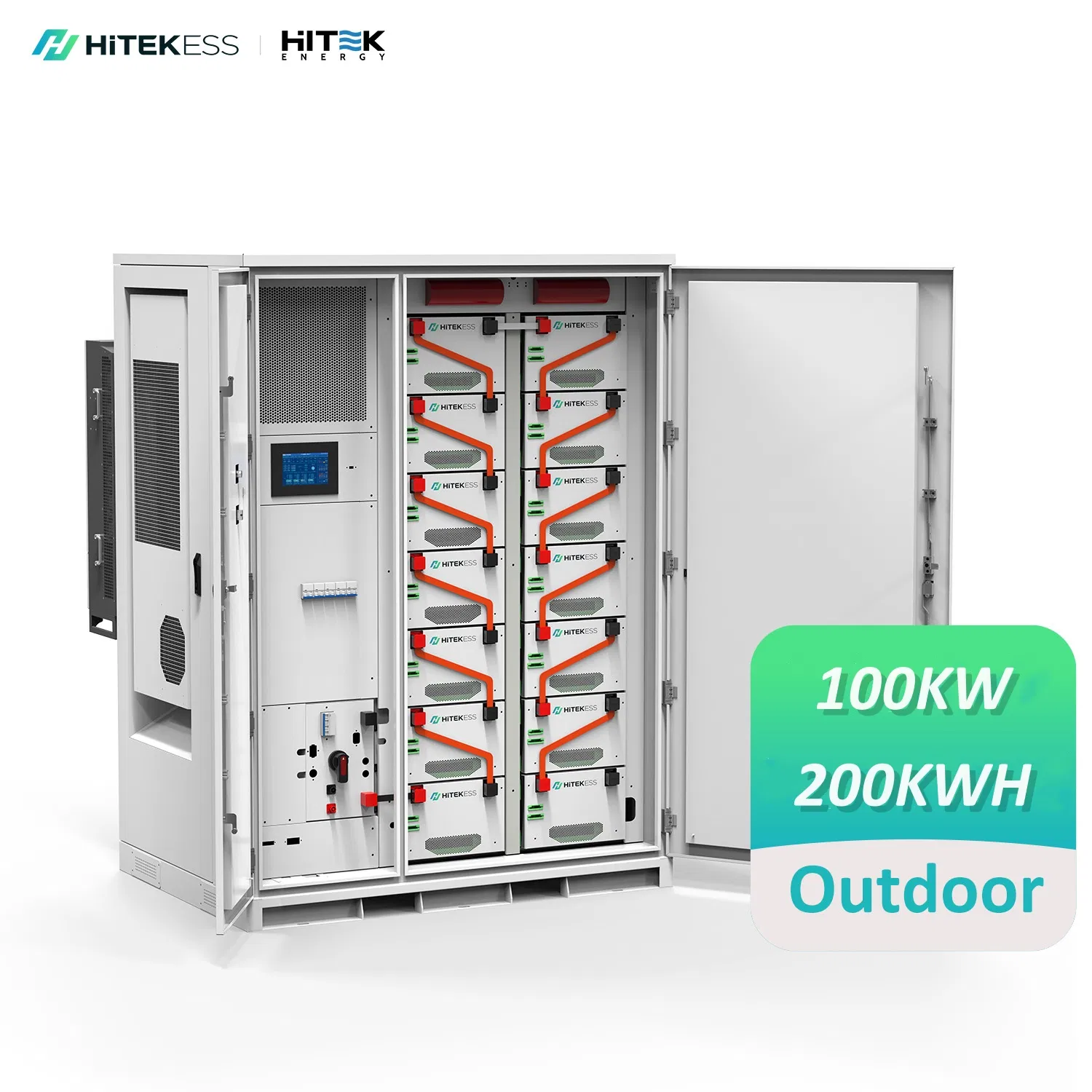

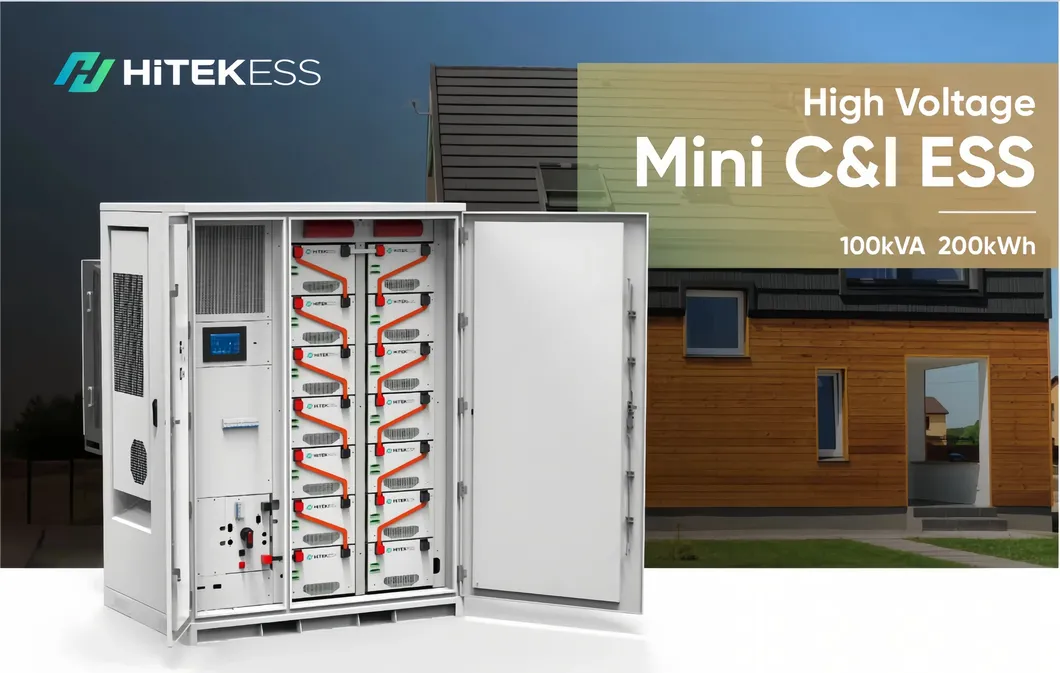

Energy Storage System Cabinet
High Voltage 50kW/100kWh, 100kW/200kWh, and 100kW/229kWh ESS Outdoor Cabinet Solution designed for fast installation. This all-in-one system includes the inverter, lithium battery trays, racks, BMS, Microgrid Controller, HVAC, fire suppression, islanding switch, and an outdoor-rated enclosure.
Our ESS Cabinet features safe technology with multi-level protection. The modular design is easy and flexible to scale, providing powerful performance for various industrial needs.
Warranty Info
3

System Application Scenarios

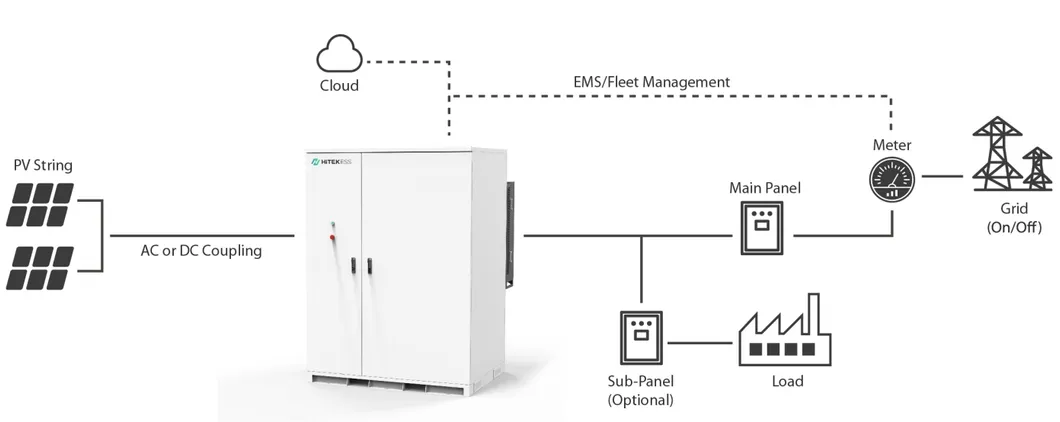

Working Mechanism Application Scenarios
Peak Shaving Control Optimize demand charge management through load control and tracking of equipment operating status.
Non-Export Generation Ensure private energy generation without exporting to the utility grid.
Energy Island System Establish self-contained microgrids with autonomous control and protection.
Outage Resilience Provide emergency backup battery support during sudden grid outages.
4

Technical Configuration

Model HTAC-50/100-OD HTAC-100/200-OD HTAC-100/215-OD HTAC-100/229-OD
System Parameter 50kW/100kWh 100kW/200kWh 100kW/215kWh 100kW/229kWh
Battery Type Lithium Iron Phosphate Battery (LFP)
Rated Voltage 358.4V 716.8V 768V 409.6V
Max. PV Power 100kW 200kW 200kW 200kW
AC Output 380/400V, 3P+N+PE, 50/60Hz
Protection IP54/IP65
Dimensions (mm) 850*1100*2060 1500*1100*2060 1570*1350*2100 1570*1350*2100
5

System Components & Manufacturing

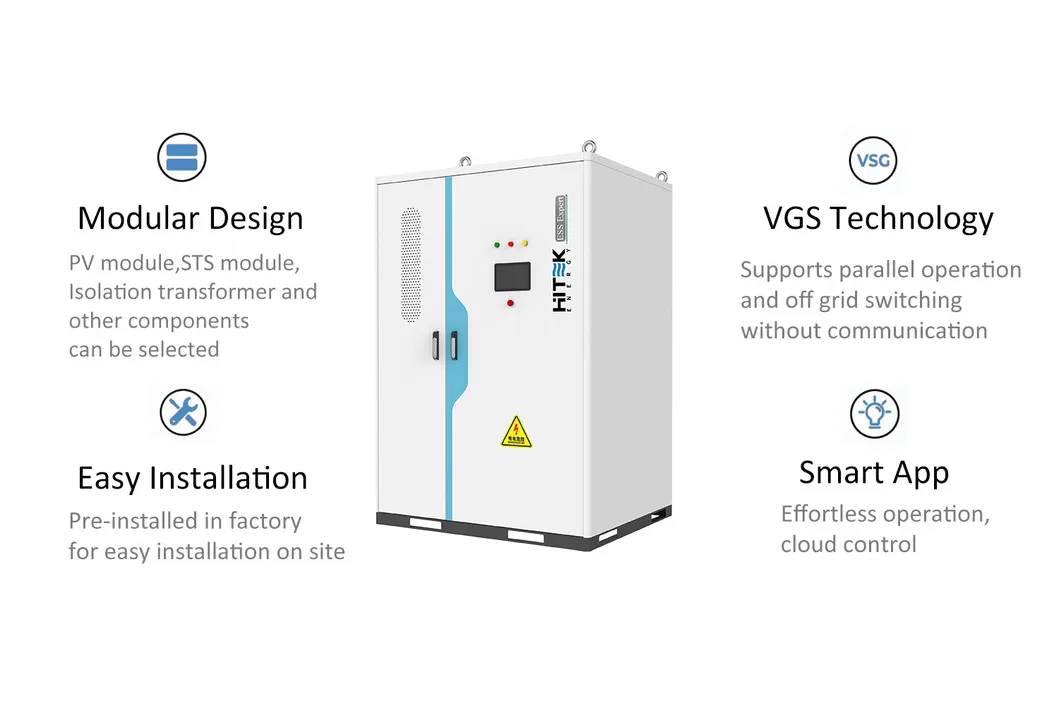

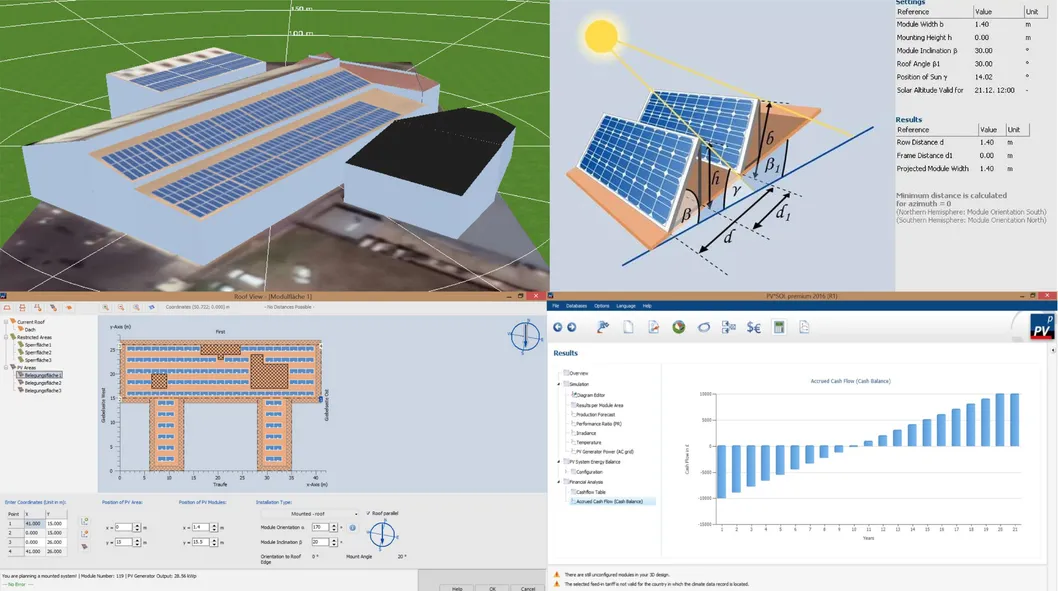

System Components Technical Support

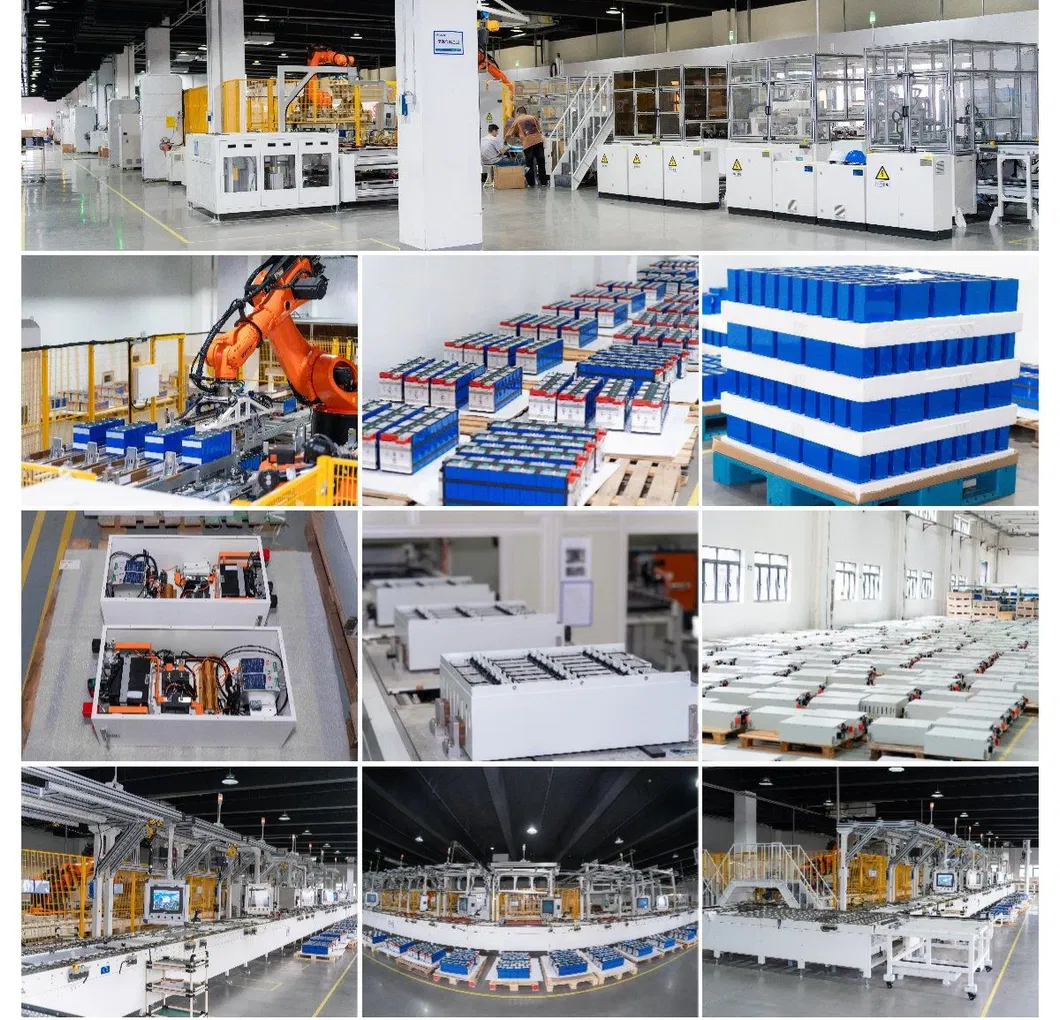

Factory View 1
Factory View 2
6

Project Cases

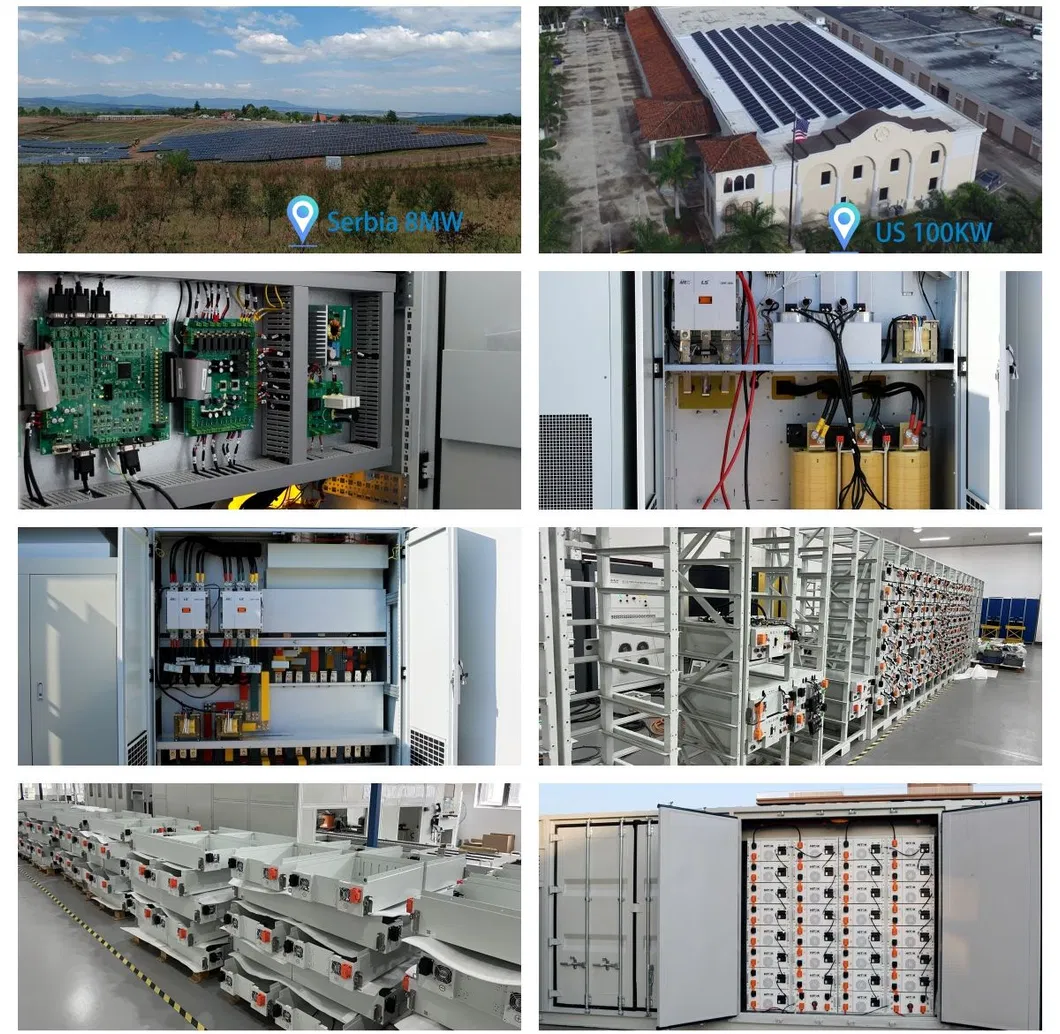

Project Case 1

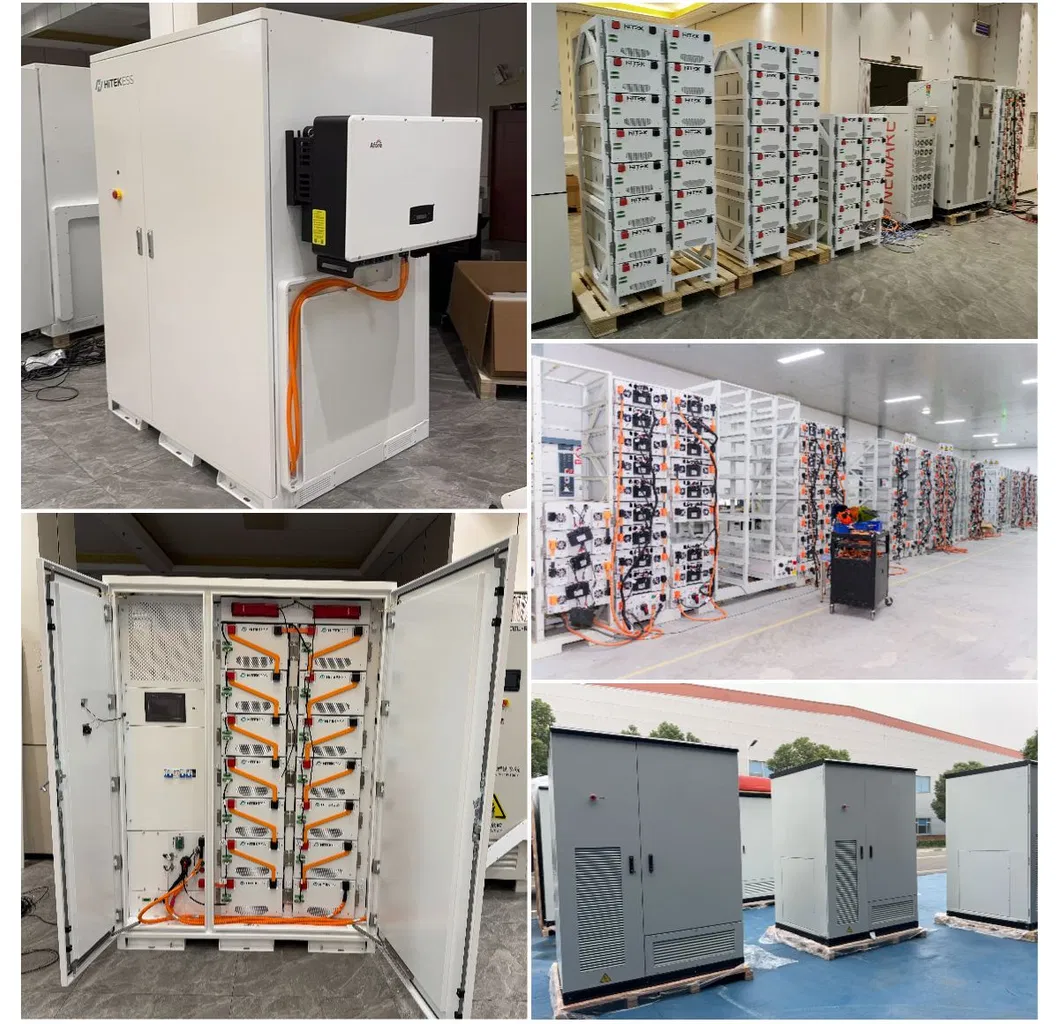

Project Case 2

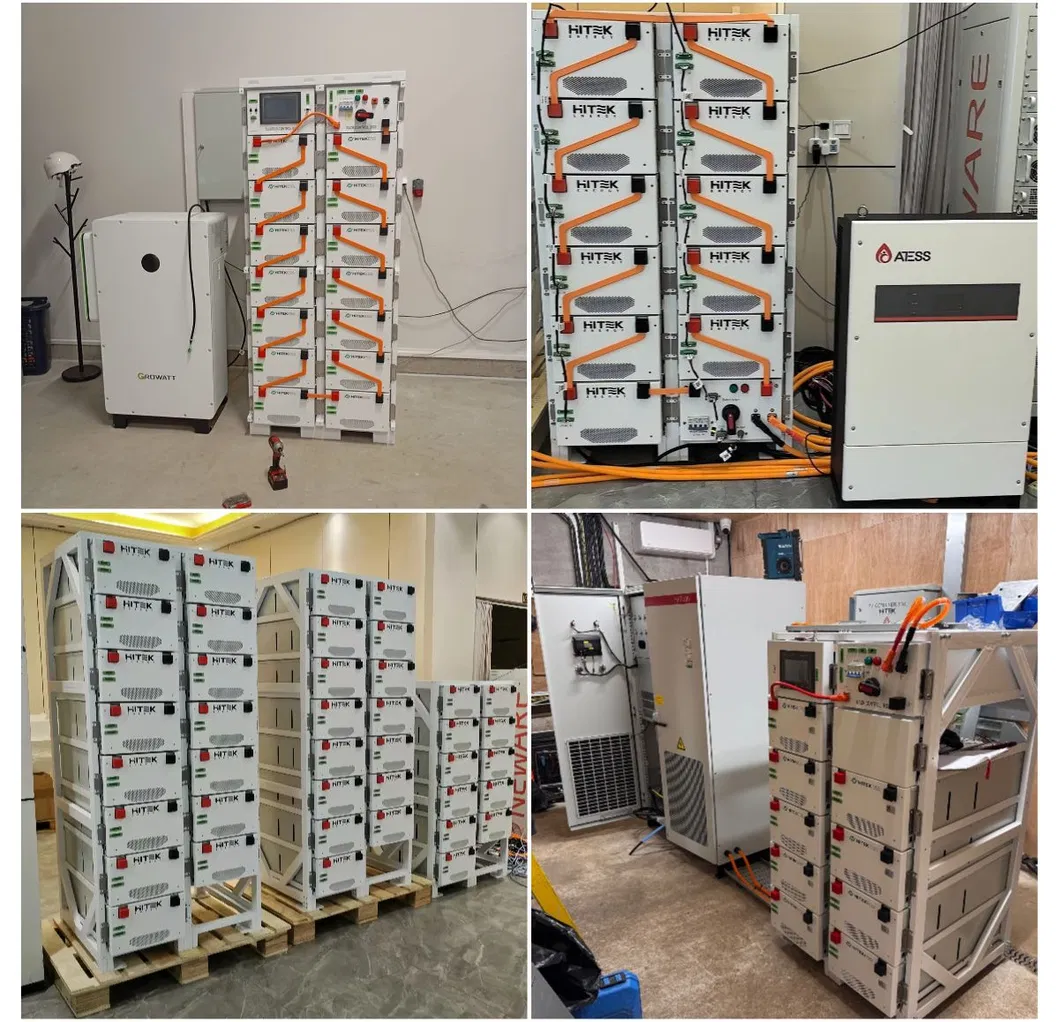

Project Case 3
7

Why Choose Our Solutions

Founded in 2018, we are a superior photovoltaic manufacturer dedicated to providing sustainable and renewable energy solutions for homes, businesses, and factories. Our goal is to provide tailored solar energy solutions for backup and commercial needs, catering to unique power requirements with reliable, approved equipment.

Let's work together for a better, brighter, and greener future.

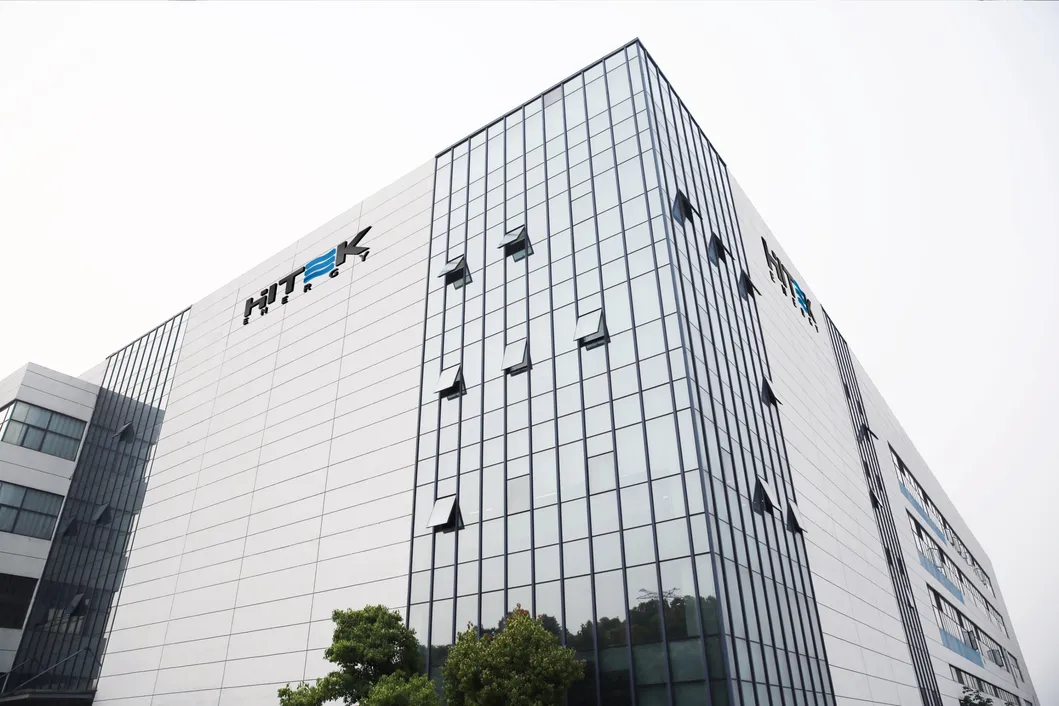

Team and Facility
Advantages
?

Frequently Asked Questions

What is the lifespan of the lithium batteries?
The system uses high-quality LiFePO4 batteries with a cycle life of 8,000 times or more, ensuring long-term reliability for industrial use.
Can this system be installed outdoors?
Yes, the cabinet is specifically designed for outdoor environments with IP54/IP65 protection ratings and built-in HVAC for temperature control.
Does the system support off-grid operation?
Absolutely. It supports UPS mode, Black Start capabilities, and can integrate with Diesel Generators (DG) for complete energy independence.
How is the system monitored?
The system supports multiple online monitoring interfaces, including WiFi, LAN, and GPRS, allowing for real-time tracking via RS485 or Ethernet.
Is the fire suppression system included?
Yes, the all-in-one cabinet includes integrated fire protection systems using Aerosols, perfluorohexanone, or heptafluoropropane for maximum safety.
Can the capacity be expanded later?
Yes, the modular design allows for flexible scaling to meet growing energy storage requirements.
