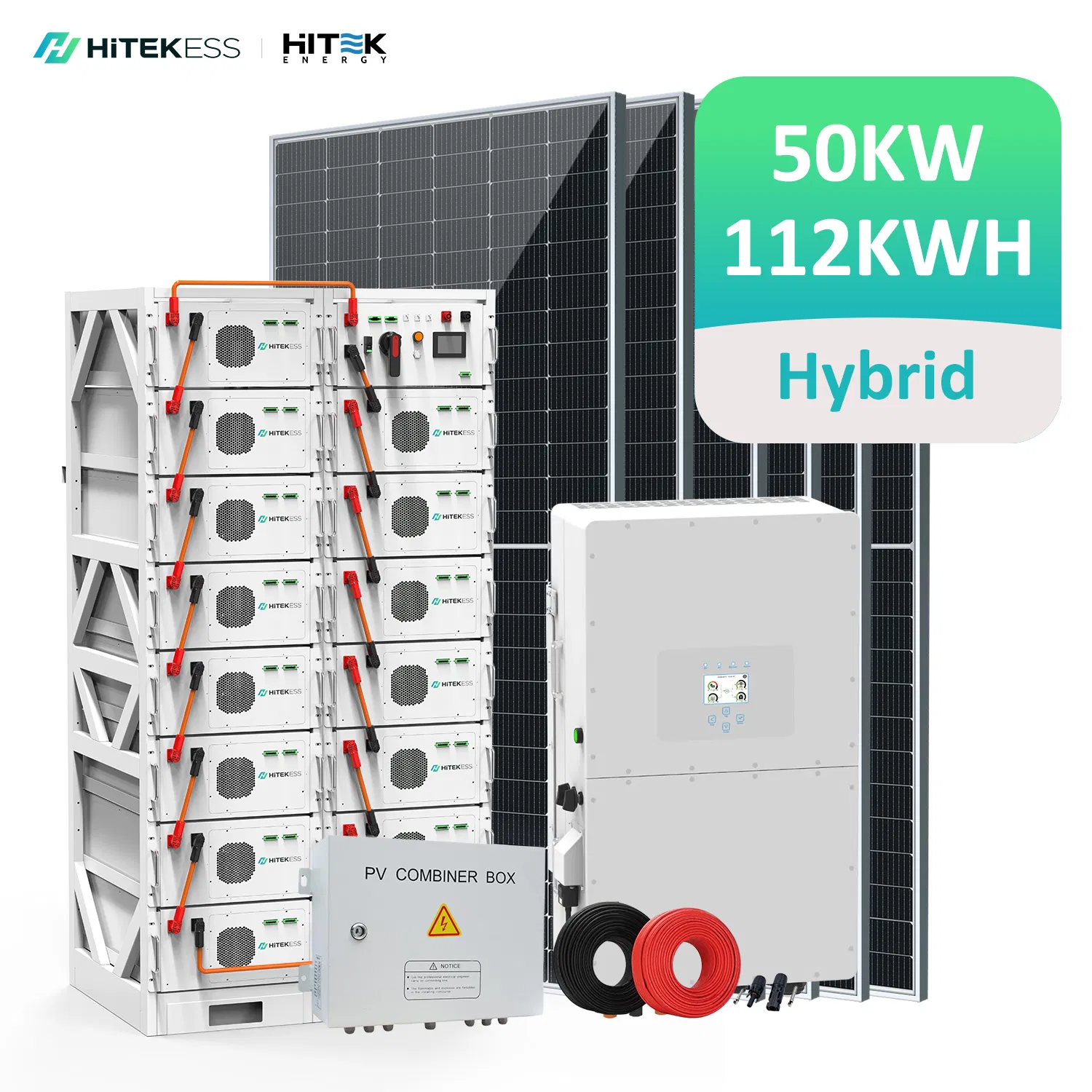

100kwh 50kw High Voltage Solar Solutions for Residential Use

1 / 5

100kwh 50kw High Voltage Solar Solutions for Residential Use

Customization:	Available
After-sales Service:	Available
Warranty:	5 Years

Send Inquiry

Product Description

Basic Information

Model NO.

HT50KW-HY

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Solar System Type

Off Grid Hybrid System

Battery Type

Lead Acid, Lithium Ion, LiFePO4

Output Voltage

380V/400/415VAC 3Phase

Monitoring

WiFi/LAN/GPRS

Product Description

Residential Energy Storage Solution

Our residential solar energy storage solution includes a battery system, battery storage inverter, and PV components. These energy storage systems are designed to support your energy revolution, whether for an apartment, house, outdoor camp, or emergency power needs.

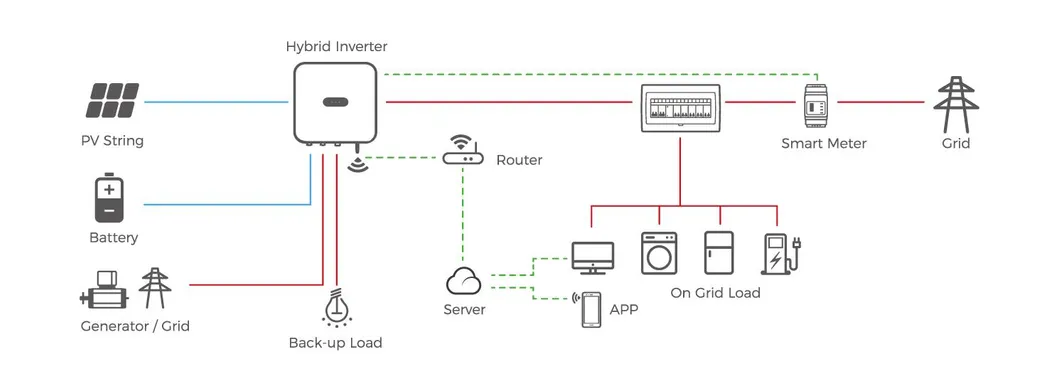

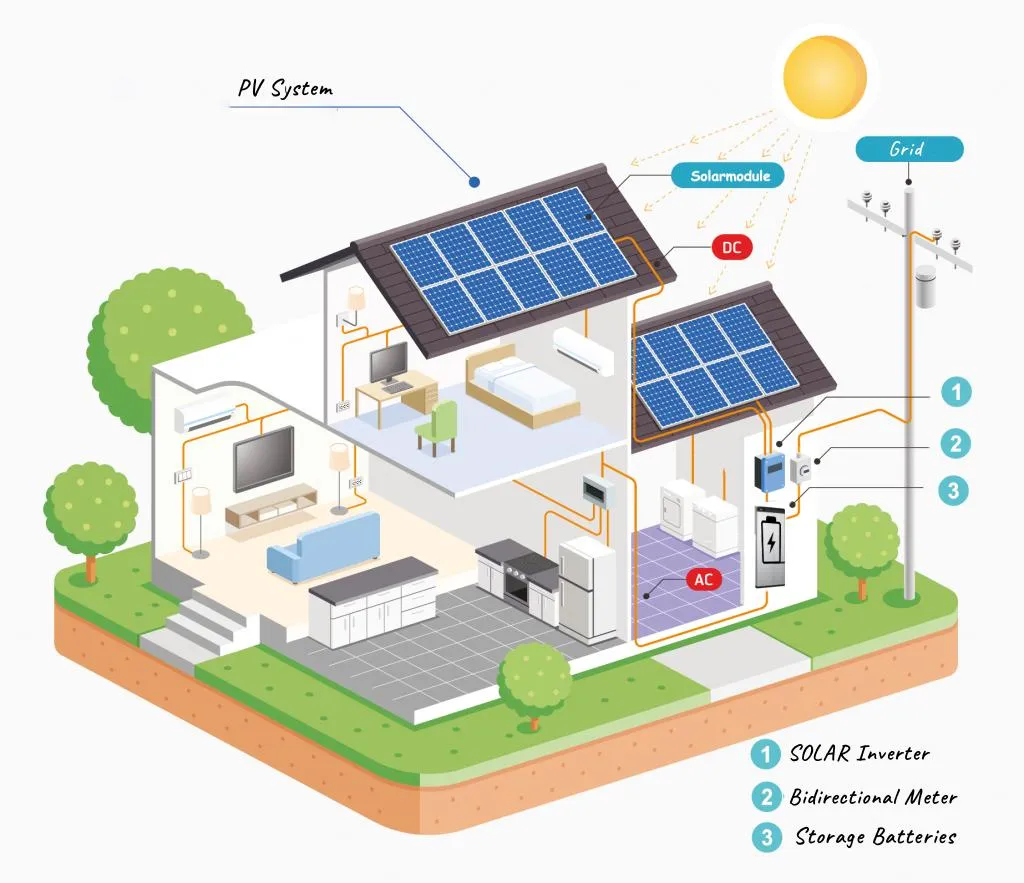

How It Works:

Configuration Details

Model	HT10KW-HY	HT12KW-HY	HT15KW-HY
Mono Panel 560W	18 PCS	24 PCS	27 PCS
Hybrid Inverter	10KVA 1PC	12KVA 1PC	15KVA 1PC
LiFePO4 Battery	12.8KWH	15.36KWH	17.92KWH

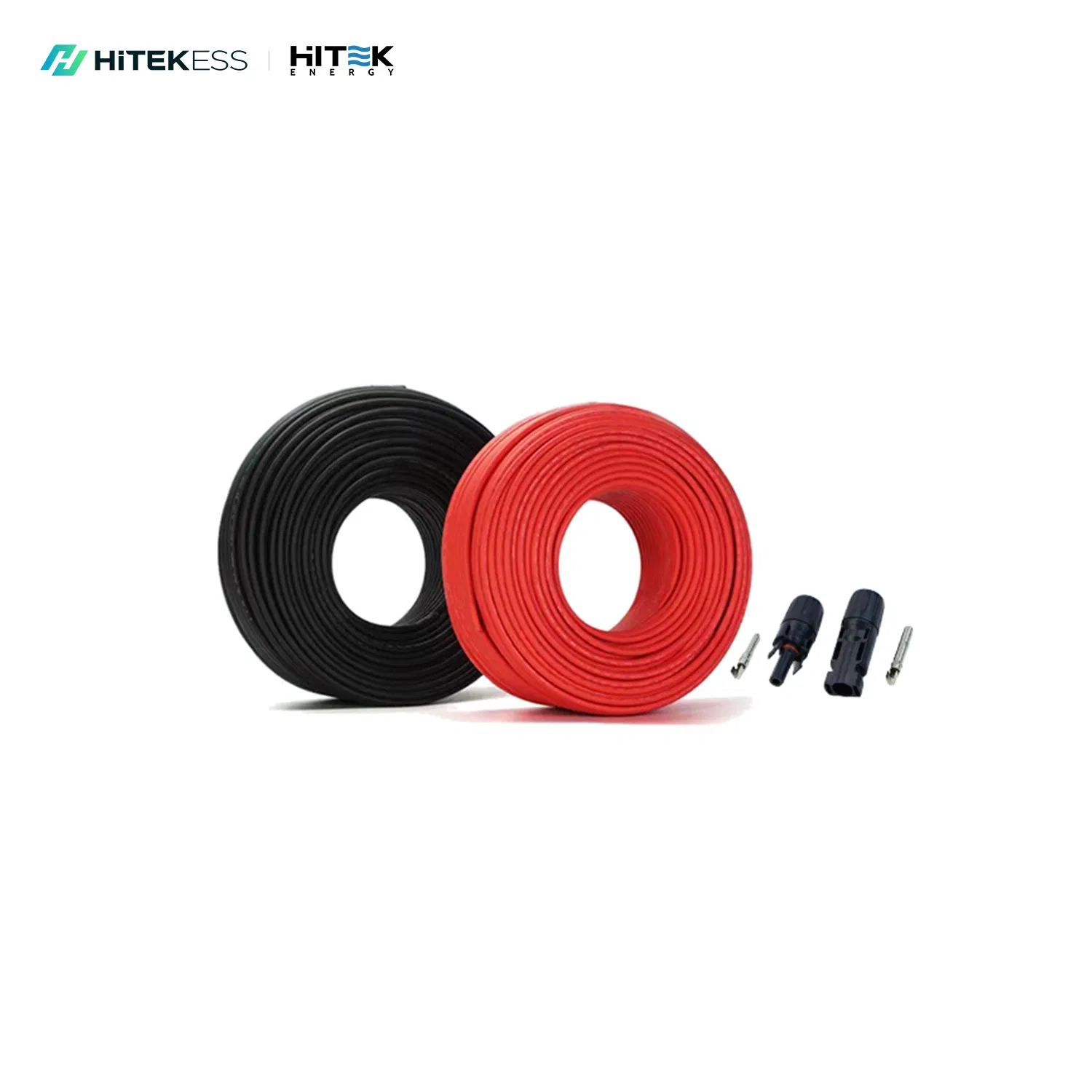

DC Cable 4mm2	300 Meters	400 Meters	500 Meters

Model	HT20KW-HY	HT25KW-HY	HT30KW-HY
Mono Panel 560W	34 PCS	45 PCS	51 PCS
Hybrid Inverter	20KVA 1PC	25KVA 1PC	30KVA 1PC
LiFePO4 Battery	25.6KWH	30.72KWH	35.84KWH
DC Cable 4mm2	600 Meters	700 Meters	800 Meters

System Components

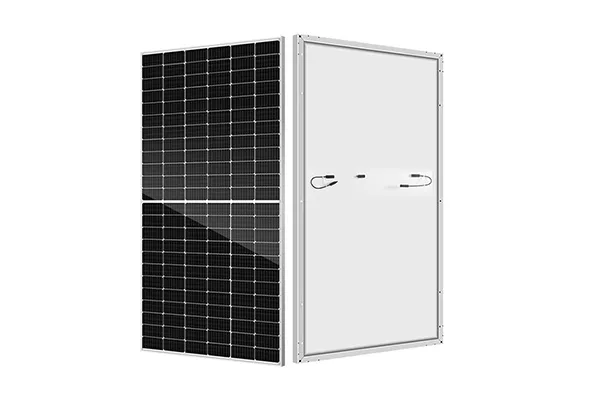

Mono Solar Panel

Model: HT560M-72 | Power: 560Wp
Voc: 49.84V | Isc: 14.14A
Vmp: 41.08V | Imp: 13.64A
Dimensions: 2279*1134*35mm

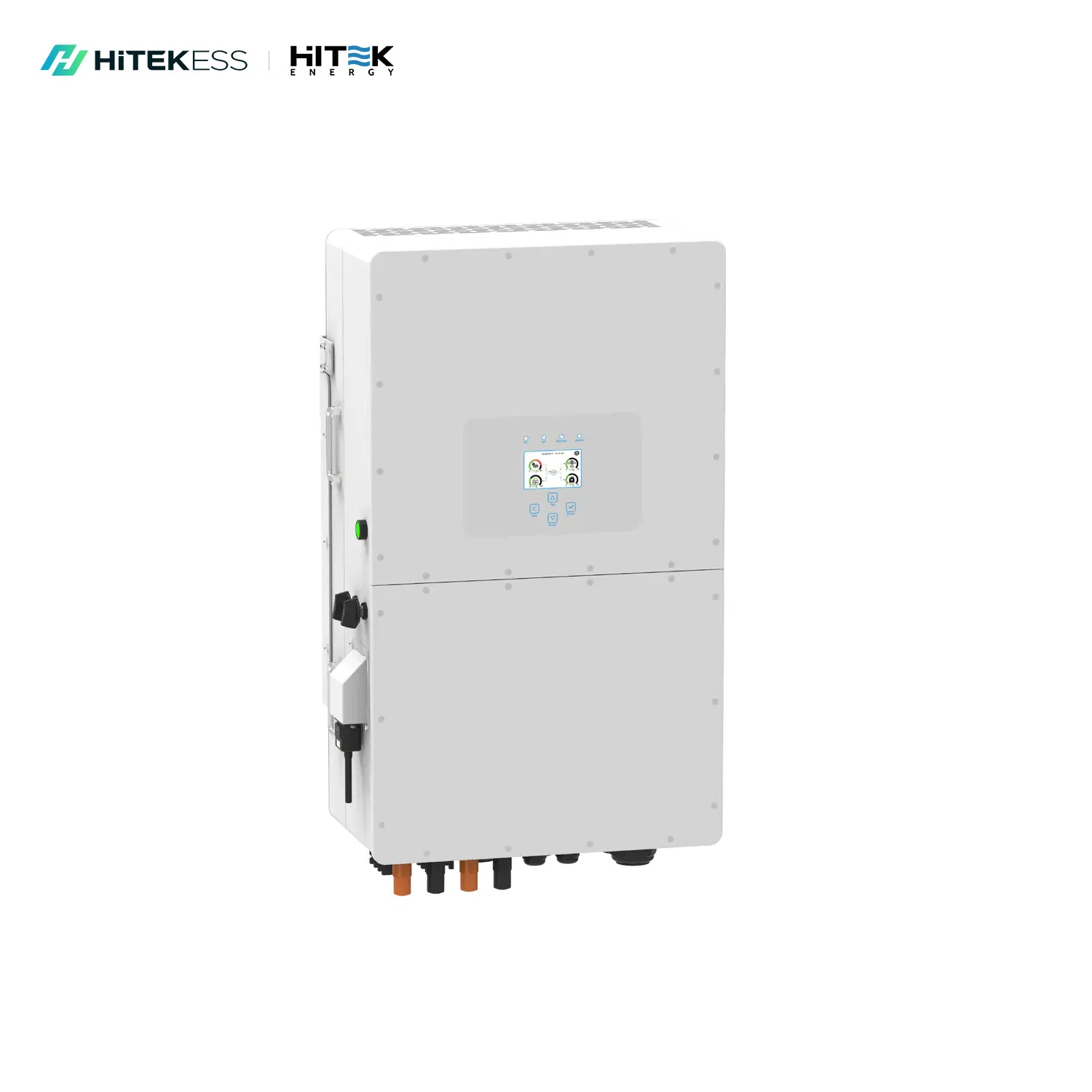

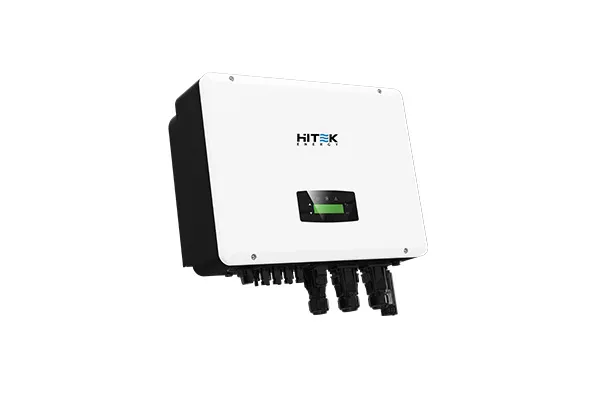

Hybrid Solar Inverter

Increases energy independence for home and commercial users. Includes smart monitoring, remote firmware upgrades, and built-in anti-feed-in functions.

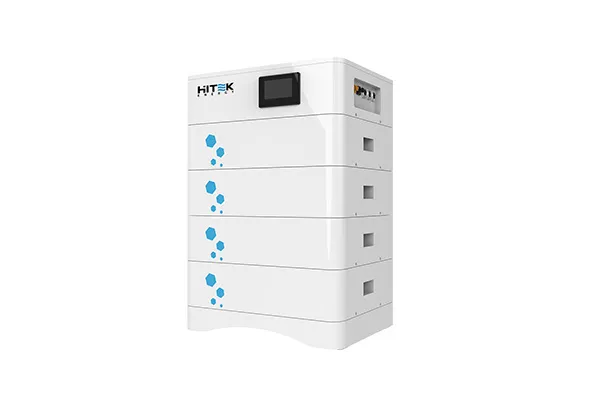

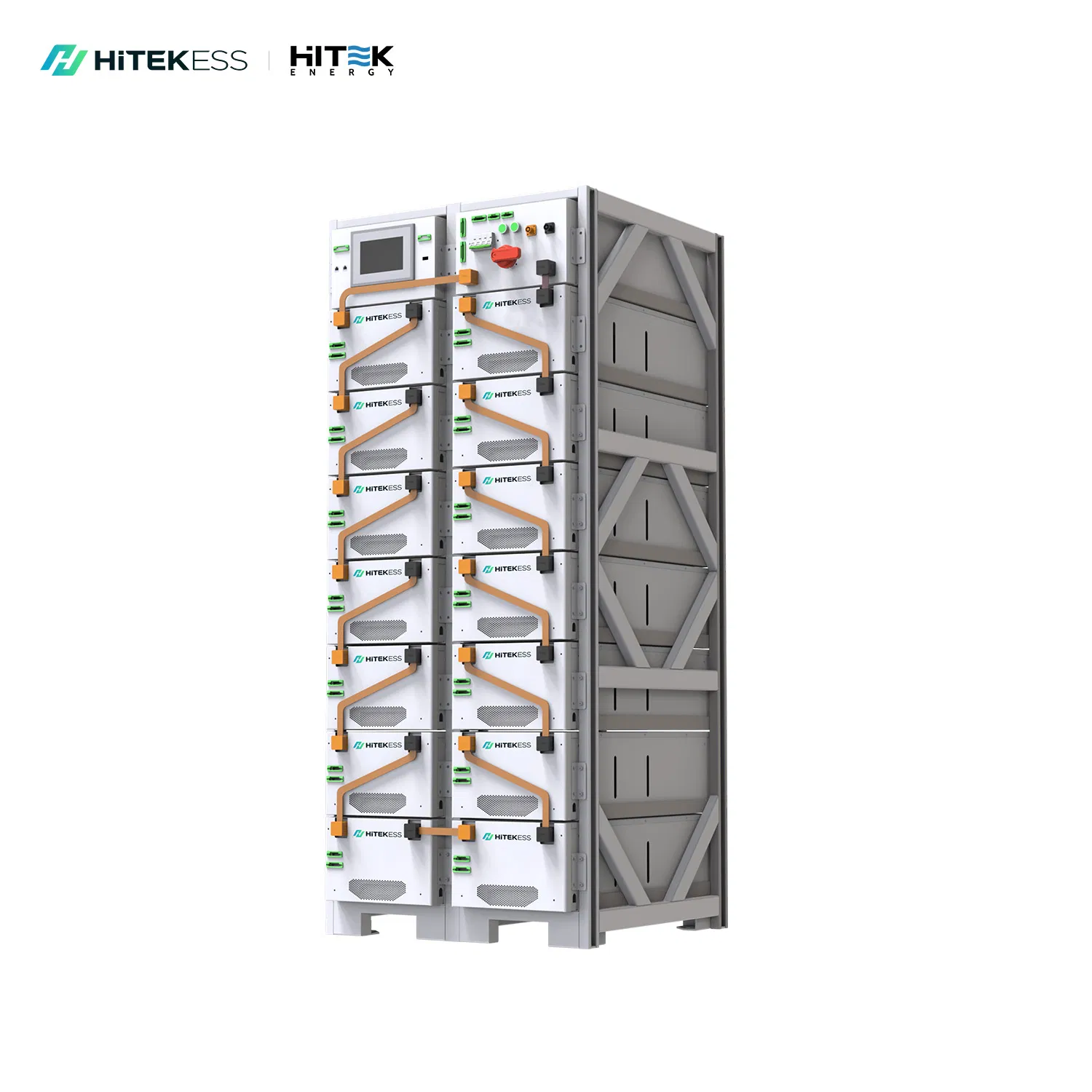

Solar Battery Bank

Stackable Lithium Battery with deep cycle long lifespan. High discharge performance, maintenance-free, and up to 90% DOD.

Packaging & Shipping

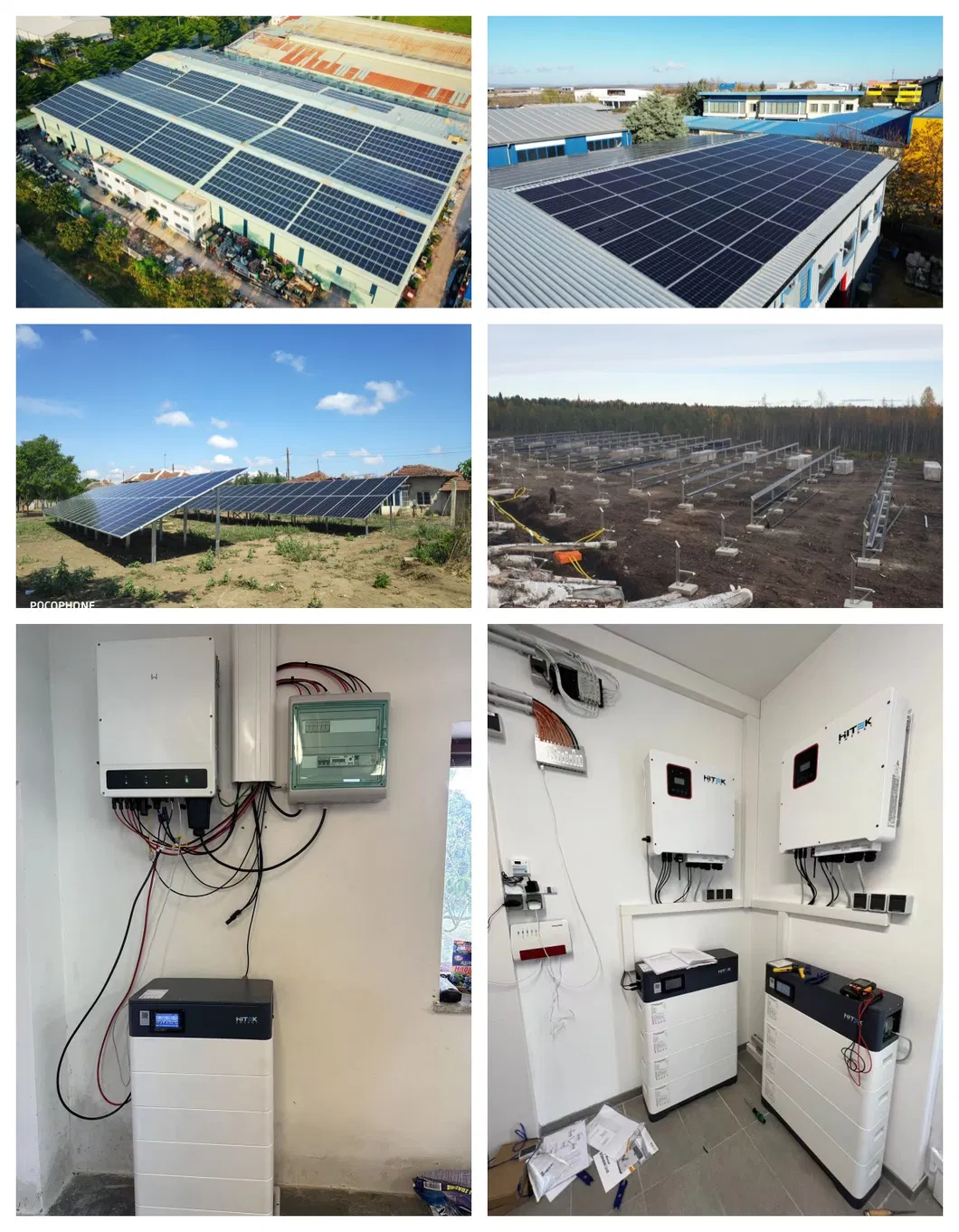

Project Cases

Our Advantages

Frequently Asked Questions

What is a hybrid solar system?

A hybrid solar system combines solar panels with a battery storage system and is connected to the utility grid. It allows you to store excess energy for use at night or during power outages while still having the grid as a backup.

What is the lifespan of the LiFePO4 batteries?

Our lithium batteries are designed for more than 6,000 cycles at 90% Depth of Discharge (DOD), ensuring a long lifespan of over 10-15 years depending on usage.

Can I monitor my system remotely?

Yes, the system supports WiFi, LAN, and GPRS monitoring. You can track real-time energy production and consumption through our online monitoring platform or mobile app.

Does the system work during a power outage?

Yes, the hybrid inverter features an emergency power supply function that automatically switches to battery power when the grid goes down.

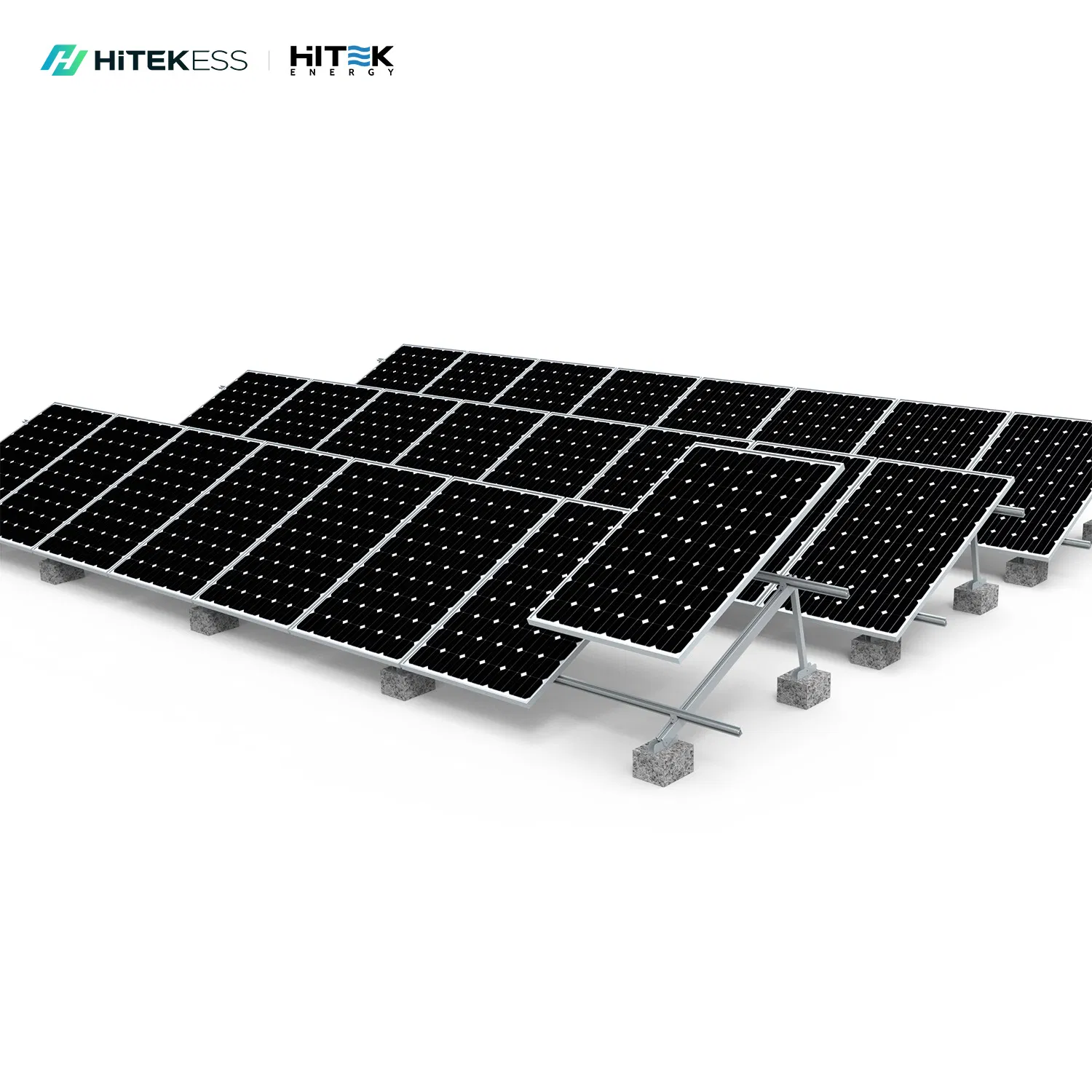

Is the mounting system included?

Yes, we provide customized roof or ground mounting kits based on your specific installation requirements, along with necessary solar installation tools.

Are the solar panels resistant to extreme weather?

Our high-efficiency monocrystalline solar panels are built with tempered glass and durable aluminum frames to withstand heavy snow loads and high wind pressures.
