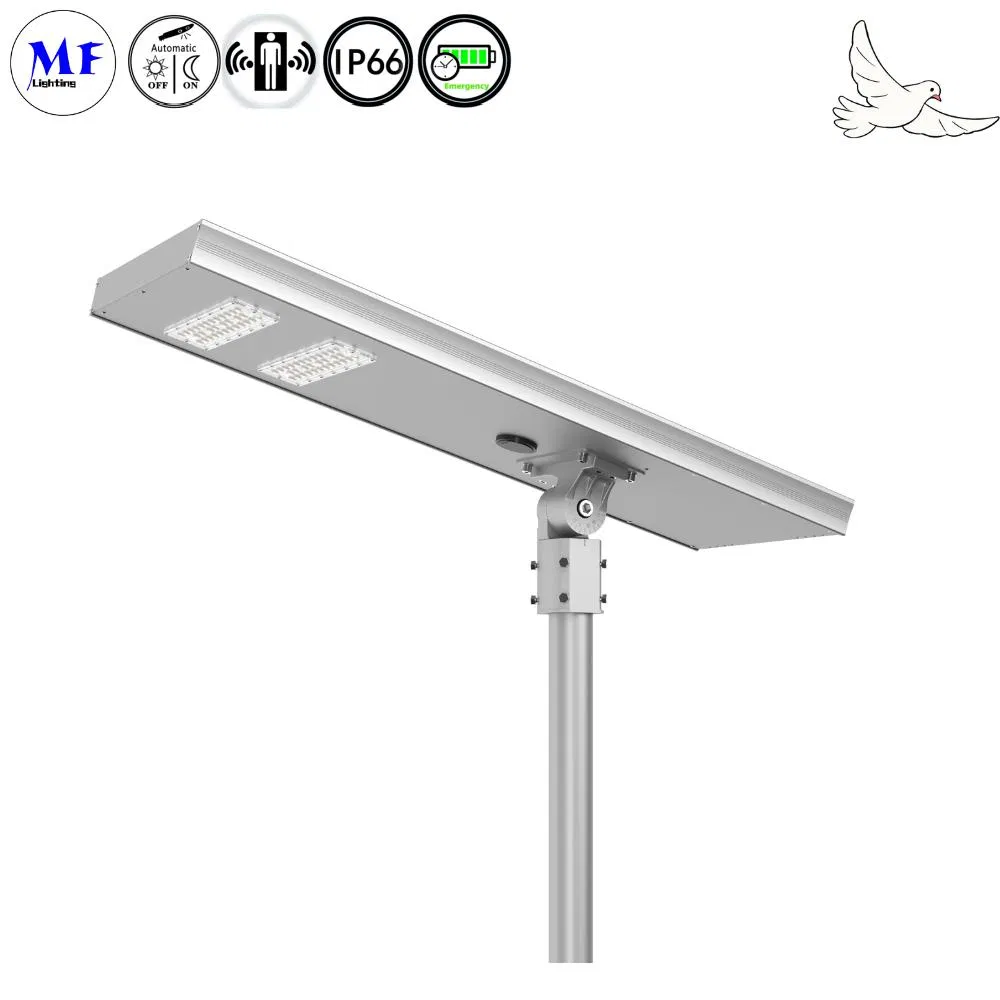

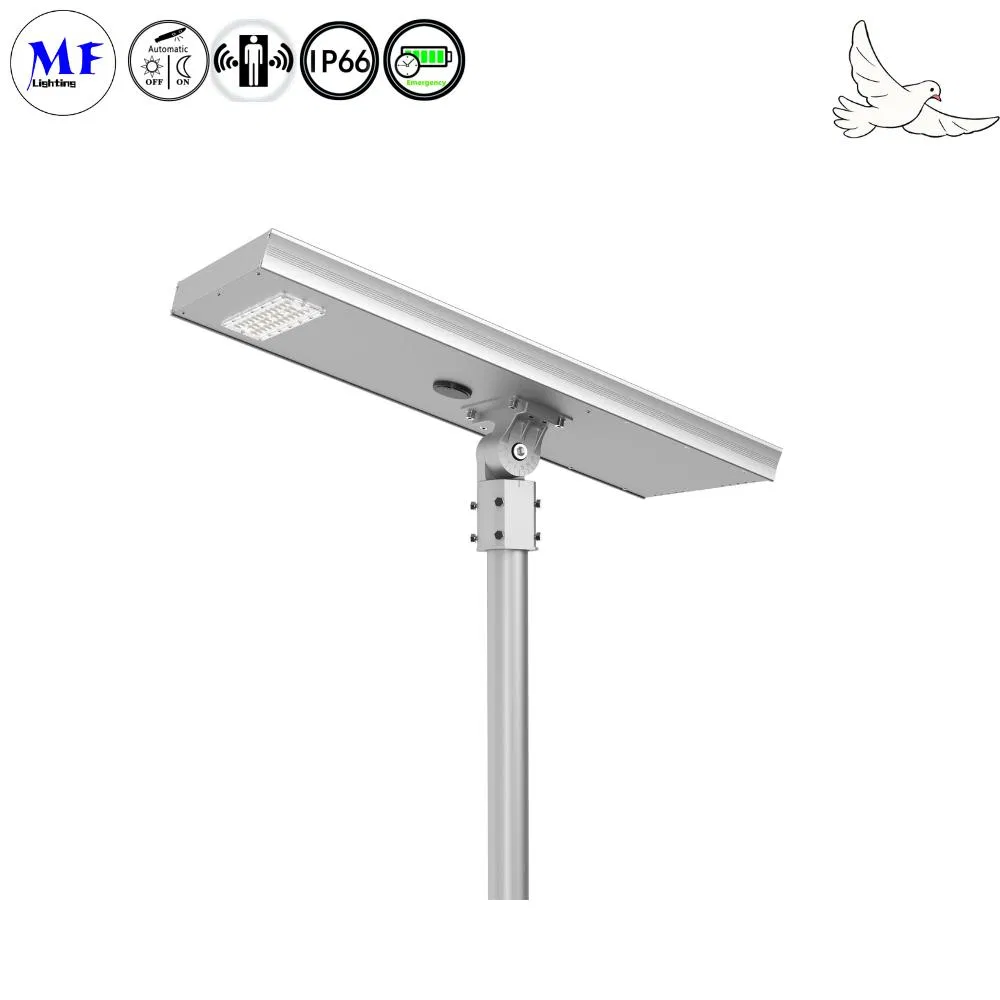

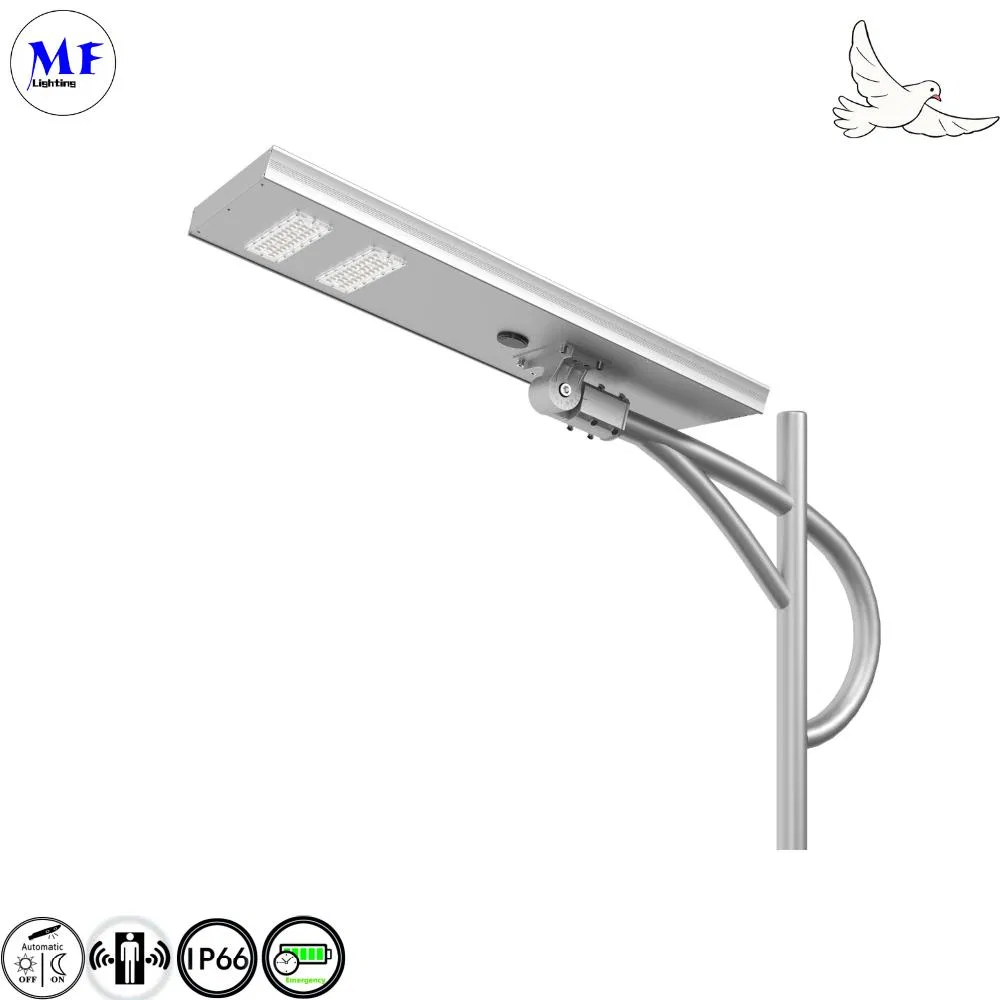

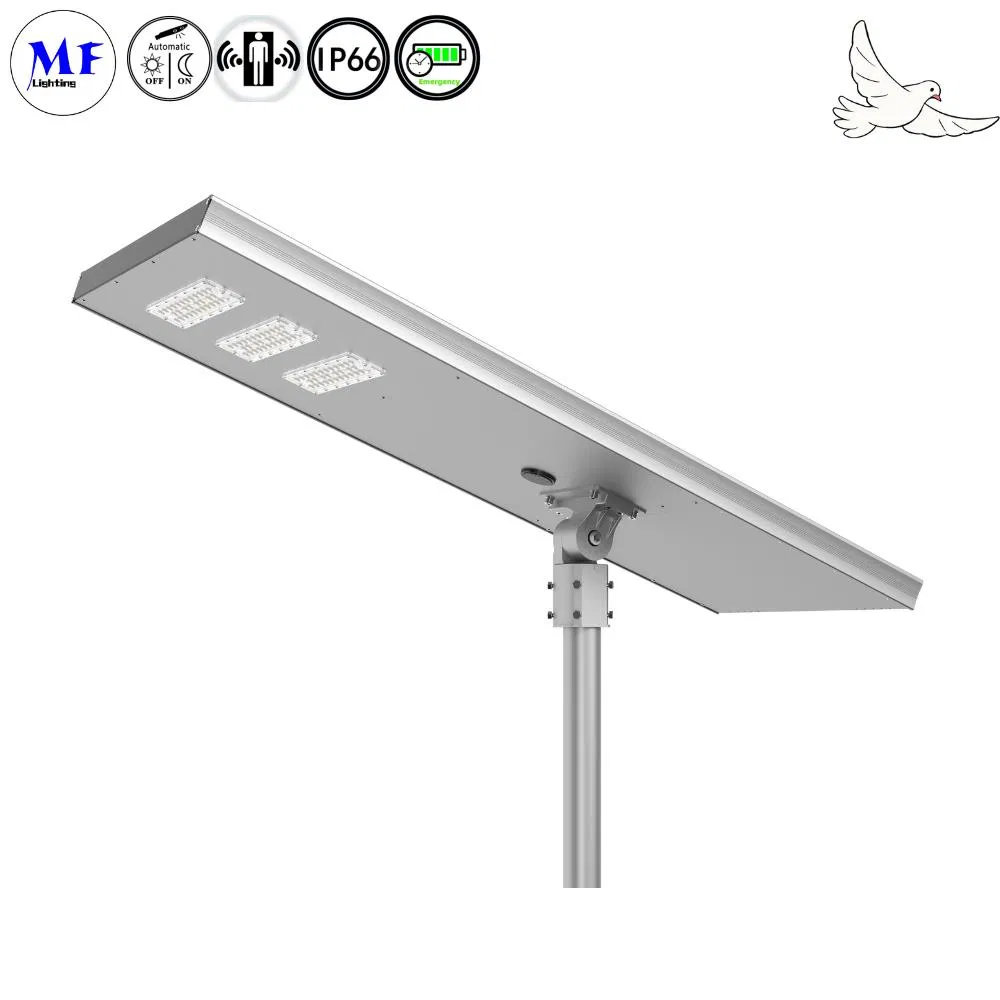

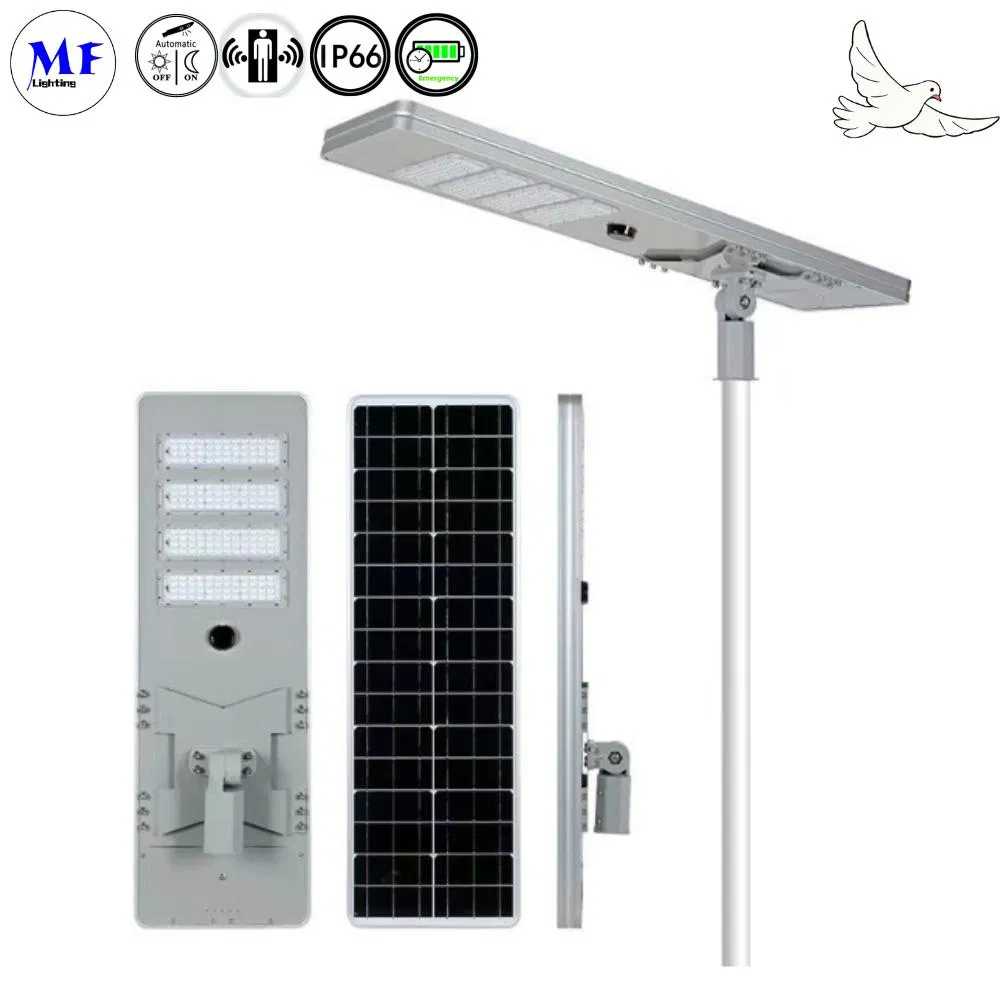

High End Typical IoT Networking Smart Control System 200lm/W 40W Outdoor IP66 LED Light Waterproof Solar Garden Lamp All in One Solar Street Light with Sensor

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
MF-SP5-P40W
Material
Aluminum
Power
20W - 120W
Application
Square, Highway, Garden, Parking Lot
IP Rating
IP66
LED Chips
OS-RAM / 5050
Battery
LiFePO4 32700
Lumen Eff.
210lm/W
Warranty
2-3 Years
Charging Time
6h

Product Description

High-End IoT Networking Smart Solar Street Light

This system features a high-efficiency 200lm/w performance, specifically designed for outdoor IP66 waterproof environments. The integrated sensor ensures optimal energy management for garden and street applications.

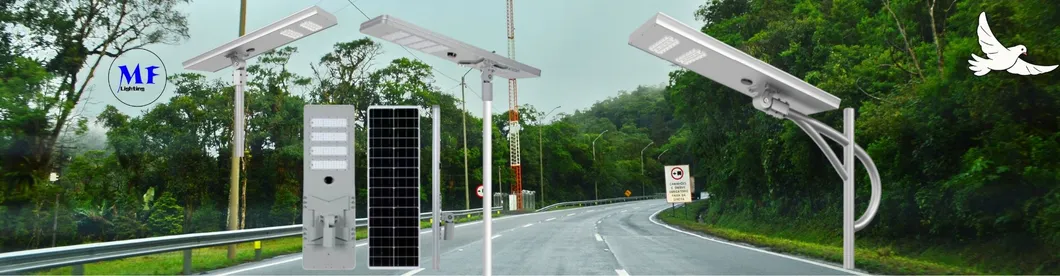

Solar Street Light
  • Power range from 40W to 120W
  • MPPT solar controller boosting charging efficiency by 30%

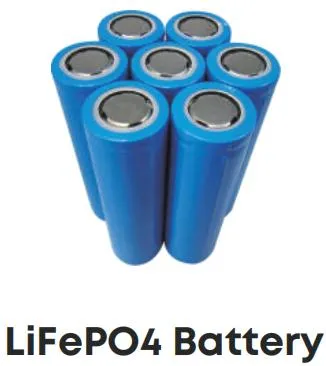

  • High-capacity LiFePO4 battery pack (10+ years maintenance-free)
  • Aerospace aluminum profile frame for strong corrosion resistance
  • Multiple lens patterns (Type II/III/IV/V) for diverse project needs

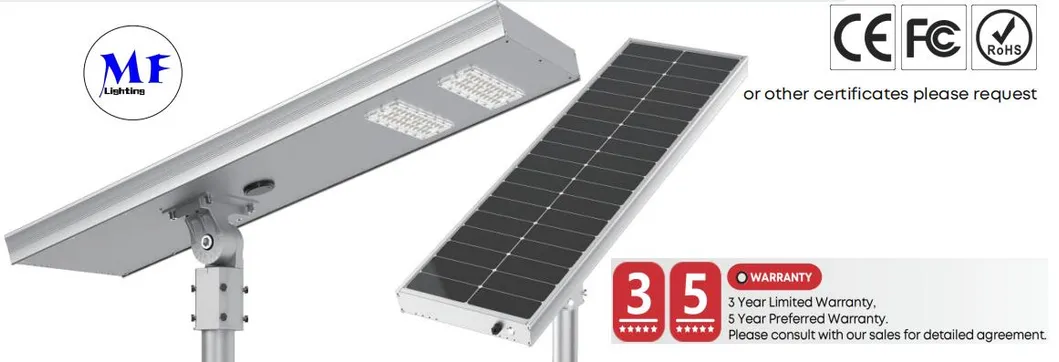

Component 1 Component 2

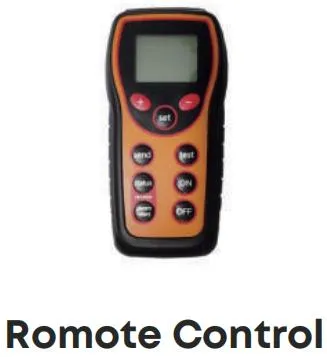

Detail 1 Detail 2 Detail 3

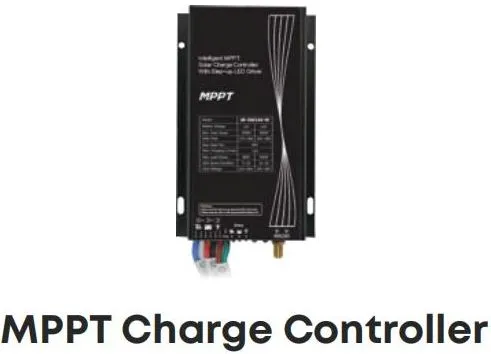

Advanced Controller Technology

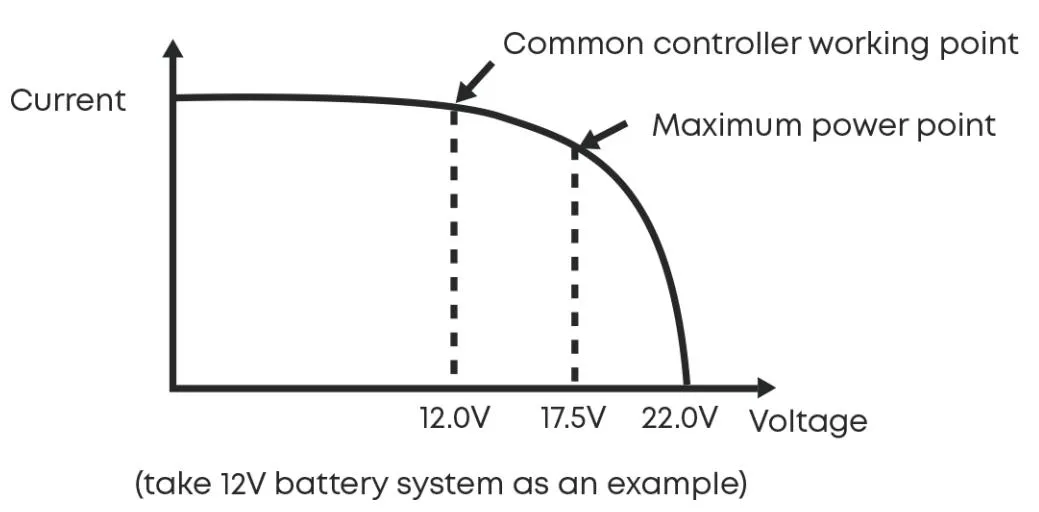

  • Moving Track MPPT technology improves efficiency by >20%
  • UltraGreen power control for extremely low standby consumption
  • 10 programmable time-periods for load power control
  • Automatic load adjustment based on real-time battery levels
  • IP67 waterproof rating for harsh outdoor environments
  • Extensible IoT remote communication monitoring
Controller

Technical Specifications

Model MF-SP5-P40W MF-SP5-P60W MF-SP5-P80W MF-SP5-P100W
Luminous Flux 8000lm 12600lm 16000lm 21000lm
Solar Panel 18V 60W 18V 80W 18V 100W 36V 120W
Battery Capacity 370.2WH 460.8WH 614.4WH 768WH
Efficacy 210lm/w 210lm/w 200lm/w 210lm/w
Product Size (mm) 885*365*55 1170*365*55 1055*525*55 1145*525*55

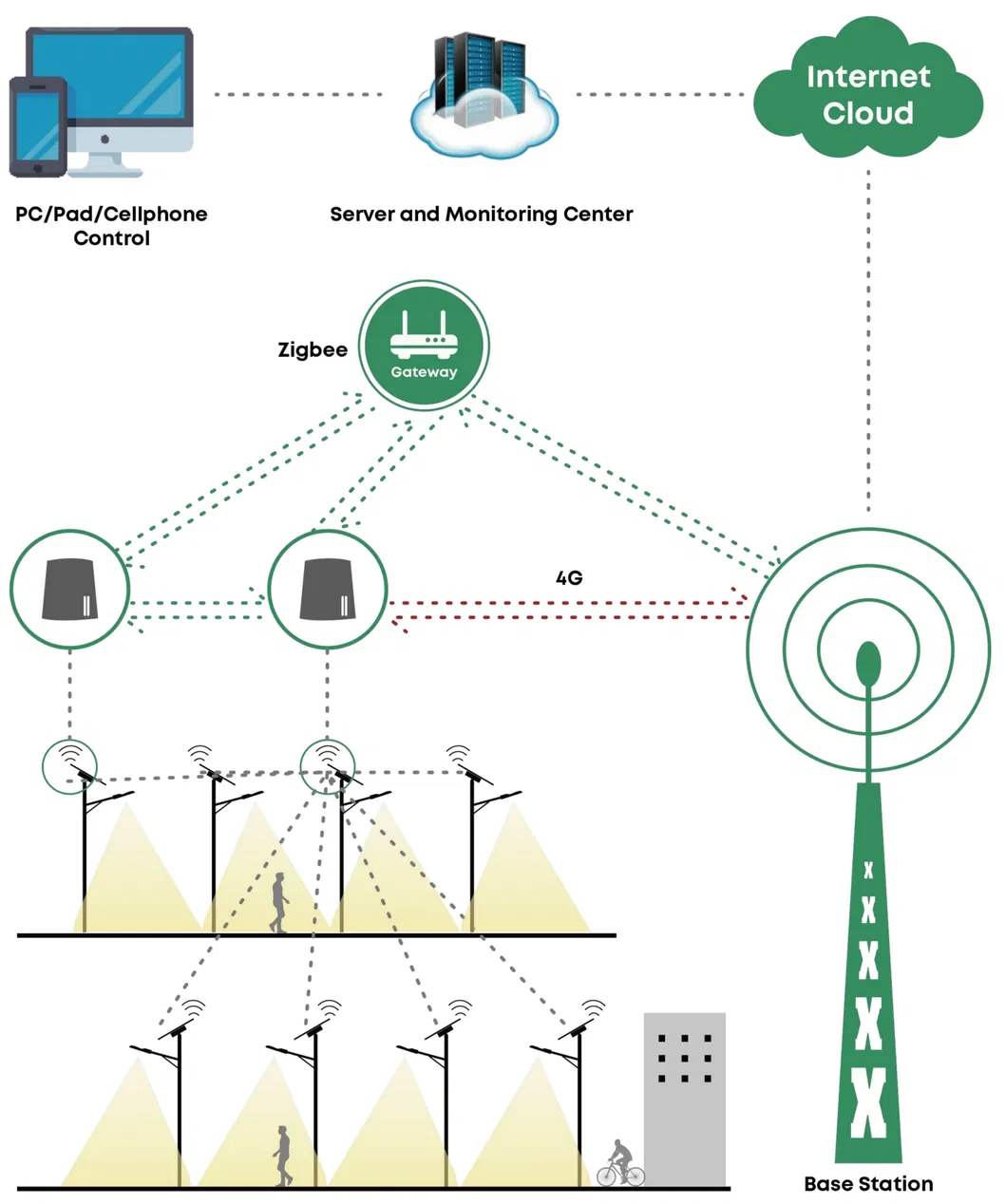

System Data

Dimensions & Applications

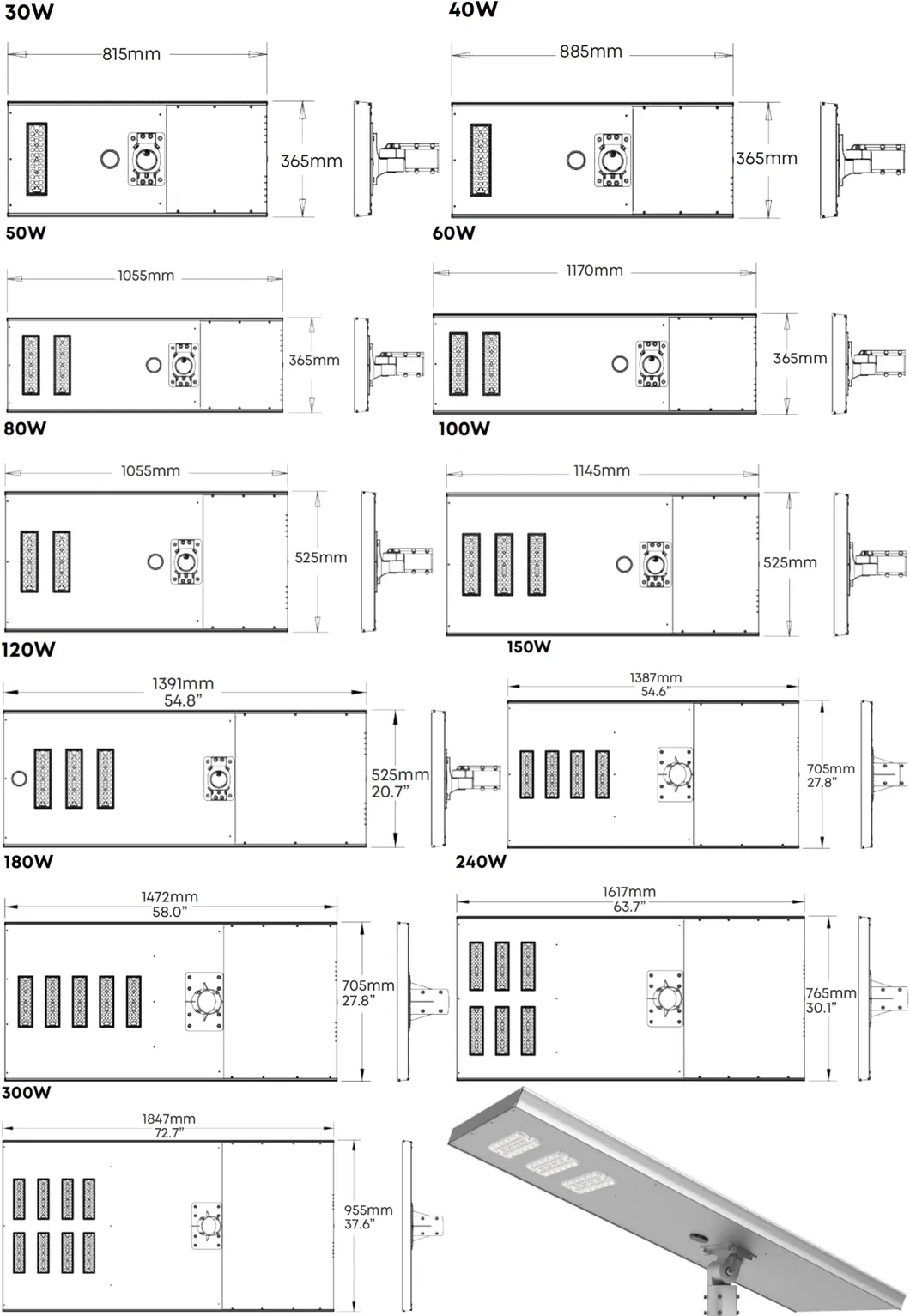

Dimensions

Primary Application Fields:

  • Road & Street Lighting
  • Residential Areas & Parks
  • Parking Lots & Industrial Zones
  • Railway & Stations
  • Riverside & Jogging Tracks

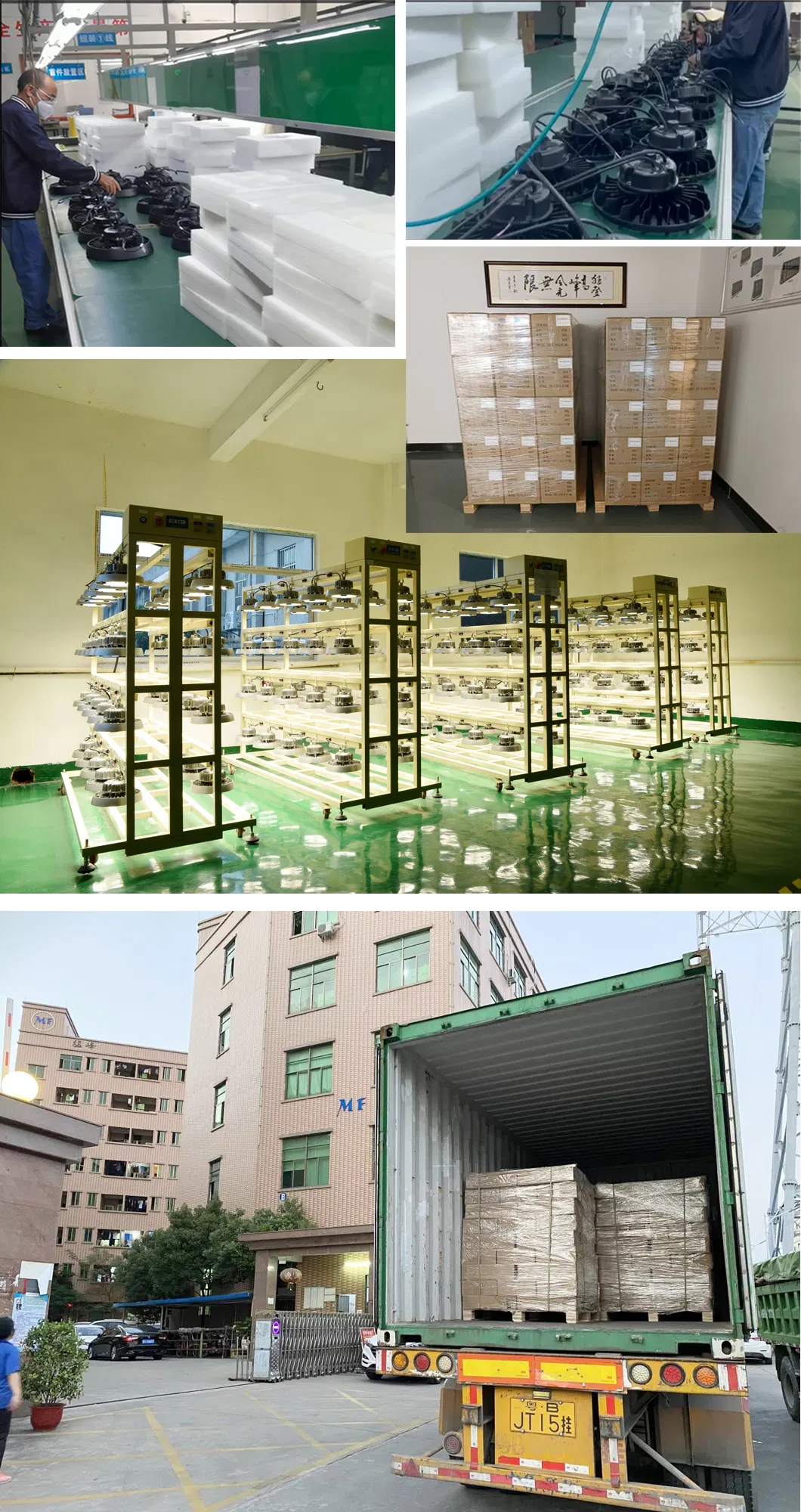

Application View

About Our Service

Our manufacturing facility specializes in the design and production of high-quality LED lighting products. With years of experience and state-of-the-art facilities, we provide innovative energy-saving solutions for commercial and residential projects worldwide. We welcome customers to visit our factory to witness our production processes firsthand.

Factory Overview

Frequently Asked Questions

Q1: What types of lighting products do you provide?
We offer high-quality solar street lights, floodlights, high bay lights, and tri-proof lights, all backed by reliable warranties and after-sales service.
Q2: Do you support customized logo printing?
Yes, we provide full ODM and OEM services. We can print your logo on the products after confirming the design based on samples.
Q3: How do you handle product faults under warranty?
During the guarantee period, we send replacement lights for small quantities. For batch issues, we repair and resend or provide a tailored solution.
Q4: Can I order a sample for testing?
Yes, we welcome sample orders to test and verify quality. Single or mixed samples are both acceptable.
Q5: What is the typical lead time for orders?
Generally, it takes 7 days for samples/small orders and approximately 15 working days for bulk orders, depending on the quantity.
Q6: How should the solar batteries be stored long-term?
For long-term storage, fully charge the battery and then discharge it for 2-3 hours. This process should be repeated every 3 months.
