Germany Green Solar Roofing Material Clean Energy Electric Bill Saving BIPV Metal Solar Roof Tiles

Basic Specifications

Application

Photovoltaic Venues, Greenhouse, Sun-shading Device, Curtain Wall, Roof

Cell Size

166*83mm(2*13)

Panel Dimensions

1340*420mm

Glass Type

Tempered Glass/3.2mm+Backplane

Panel Efficiency

19.4%

Tile Weight

6.5kg/PCS

Connector

Mc4

Power Generation

0.08kwh/Hour/Tile

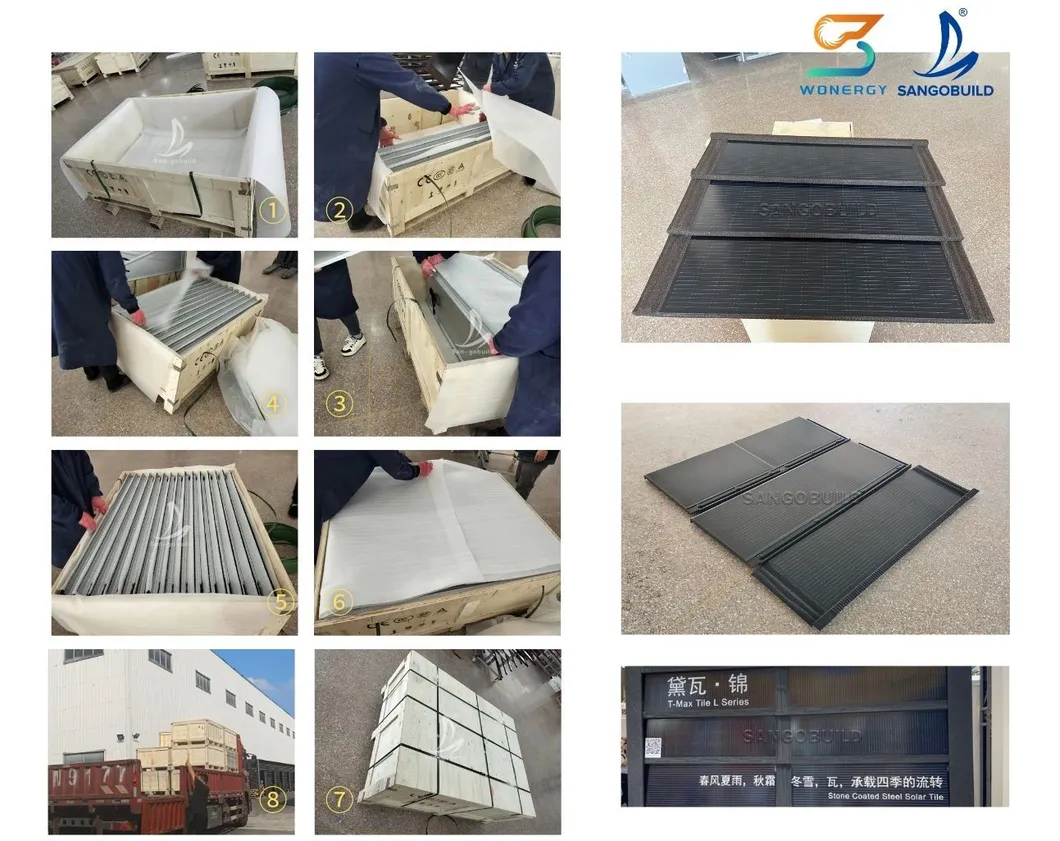

Package

Solid Wooden Box

Origin

China

HS Code

85414300

Product Description

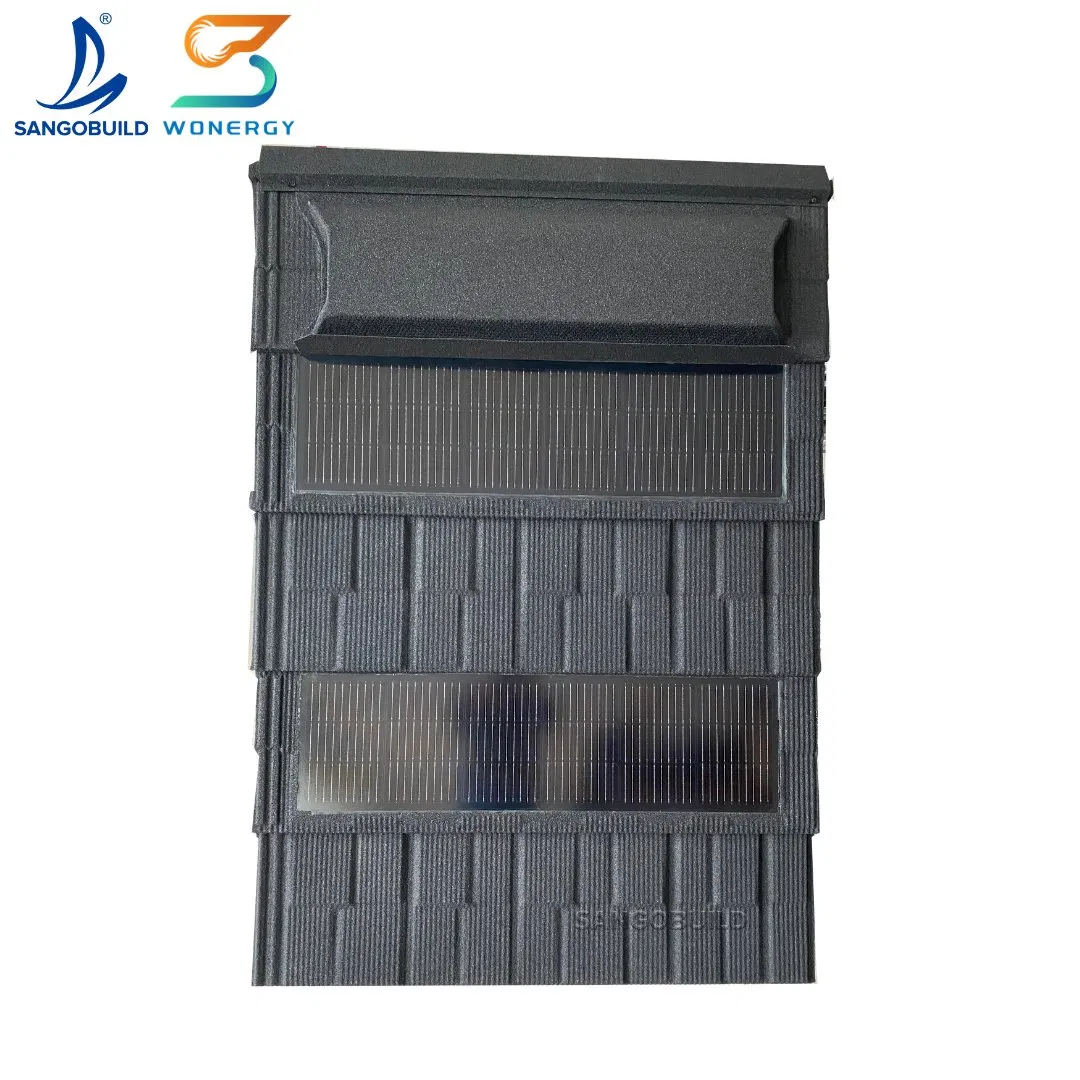

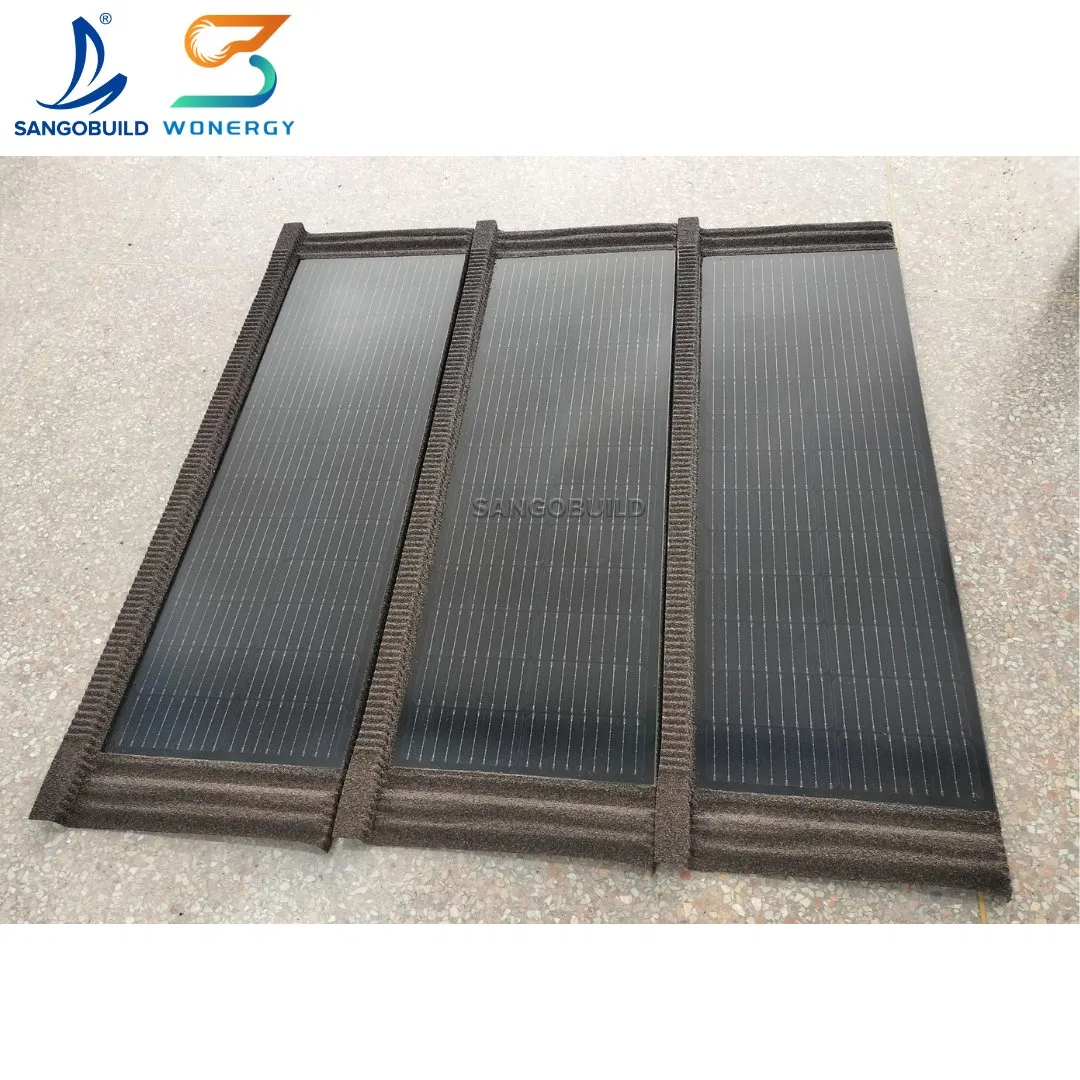

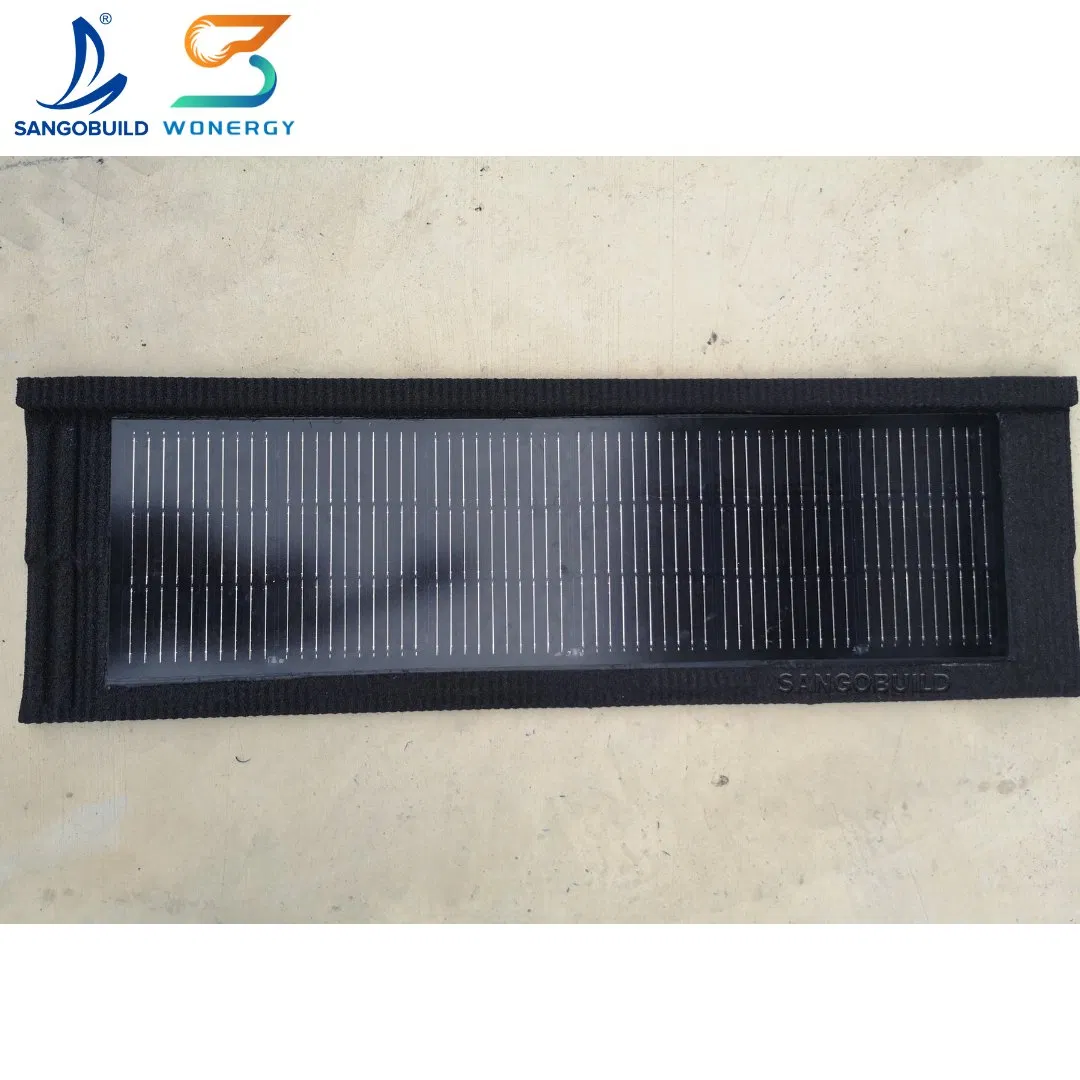

STONE COATED METAL SOLAR ROOF TILES (80W/PCS for BLACK panel only)

Seamless Integration: Our solar tiles are designed to seamlessly blend with traditional stone tiles (Shingle and Shake designs), ensuring a harmonious aesthetic appeal. Upgrade your existing roof without compromising its original charm. Embedded module design with stone coated metal bottom support creates a lightweight roof that generates electricity.

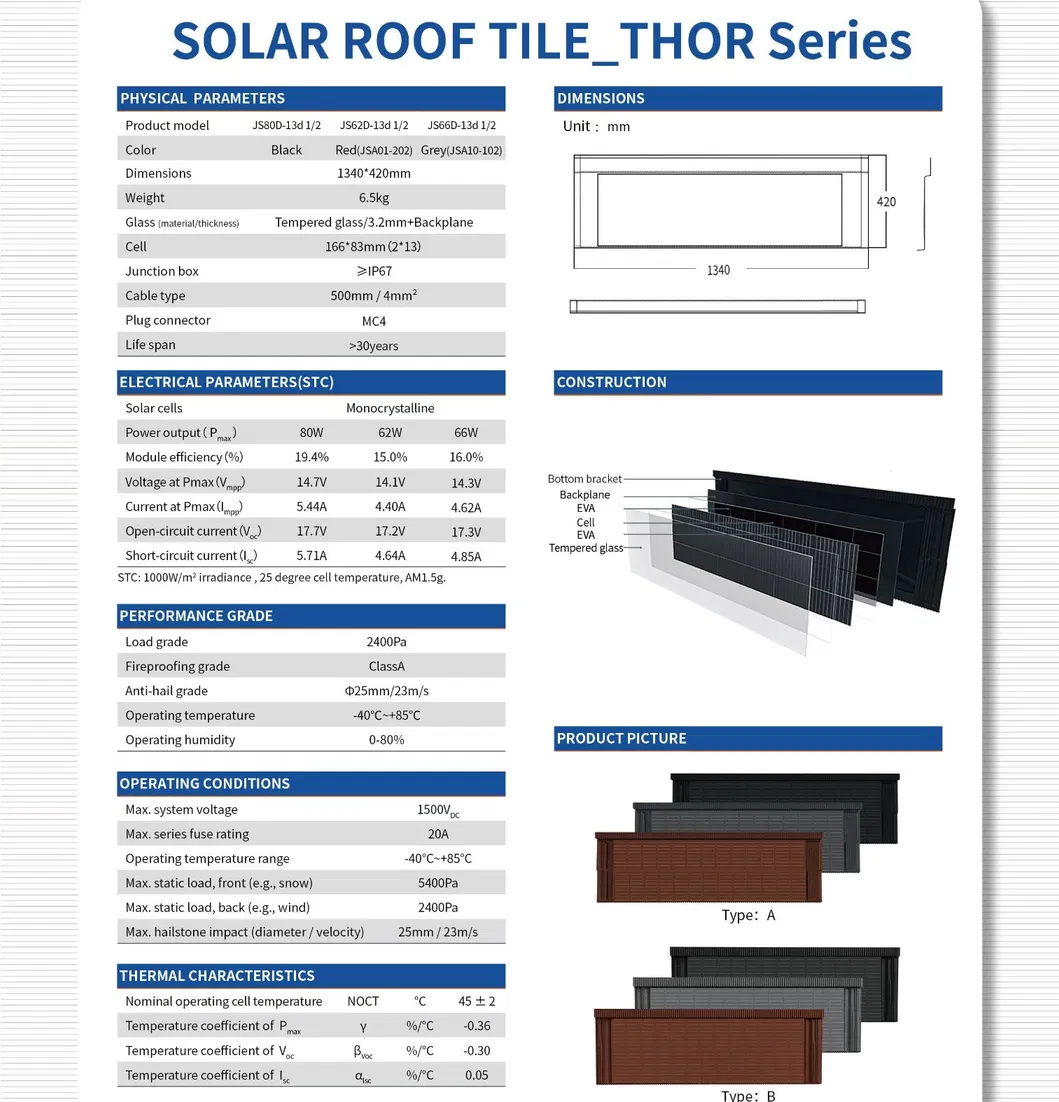

Physical Parameters Overview
Model	JS80D-13d1/2 (Black)	Cell Size	16683mm(213)
Tile Size	1340*420mm	Junction Box	≥IP67
Tile Weight	6.5kg	Cable	500mm /4mm2
Glass	3.2mm (Tempered)	Connector	MC4

Electrical Performance Parameters (At STC)
Cell Type	Monocrystalline	Current At Pmax (Vmpp)	5.44A
Max Power	80W/PC (Black panel)	Open-circuit (O.C.) Current	17.7V
Module Efficiency	19.4%	Short-circuit (S.C.) Current	5.71A
Voltage At Pmax (Vmpp)	14.7V	STC: 1000W/m2, 25°C, AM1.5g

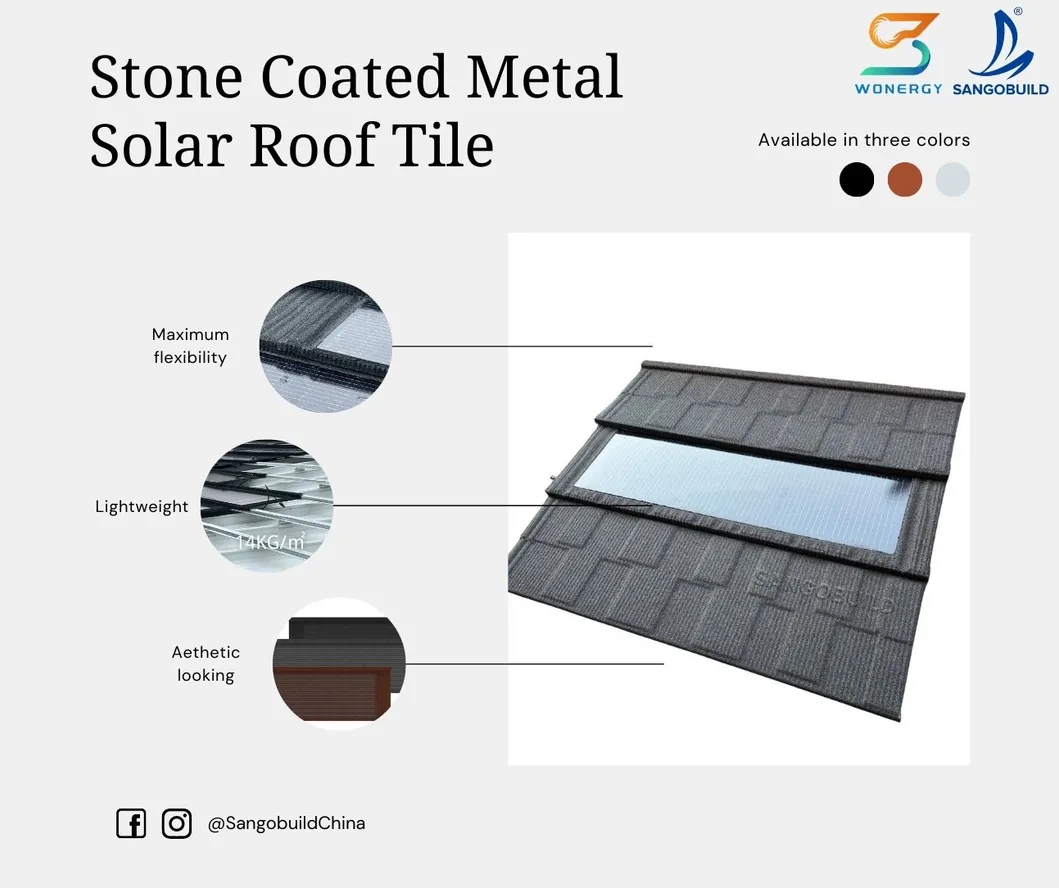

BIPV Features

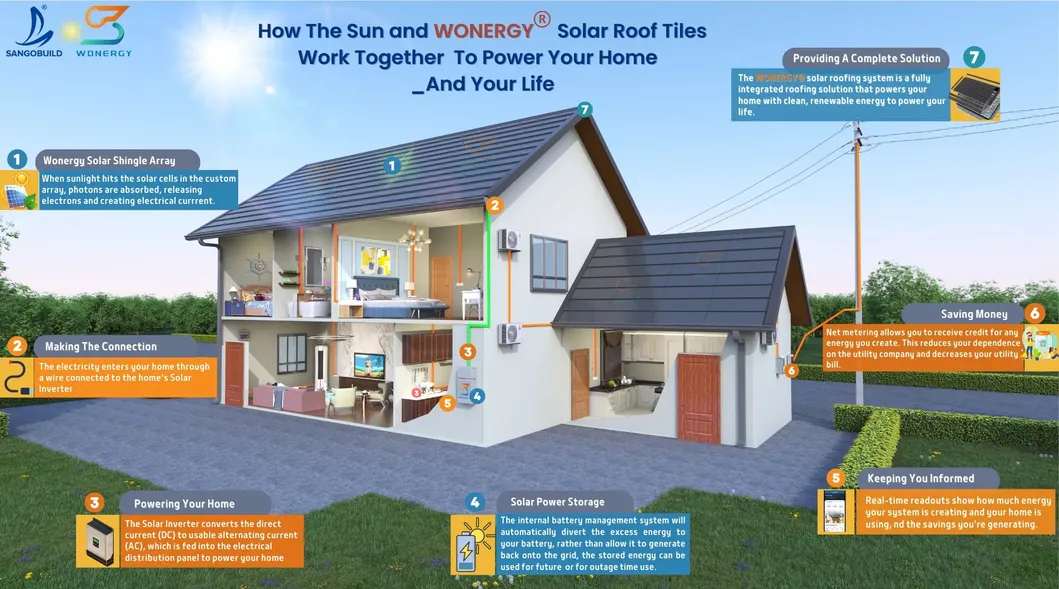

Building-Integrated Photovoltaics (BIPV)

BIPV are dual-purpose construction materials that produce clean electricity and double as the exterior climate screen of a structure. They replace fundamental architectural elements.

Maximum flexibility: Modular system fits many types of roofs.
Lightweight: 14kgs per square meter, reducing structural load.
Aesthetic looking: Tiles blend seamlessly and are almost indistinguishable from regular tiles.

BAPV & BIPV Comparison

BAPV (Building applied photovoltaics)	BIPV (Building integrated photovoltaics)
Original Roof Frame + Metal Mounting Base	Building Integrated photovoltaic
Low aesthetics	Innovative design of PV and traditional materials
Low security	Modular installation
Uncustomizable product appearance	Replace traditional building material

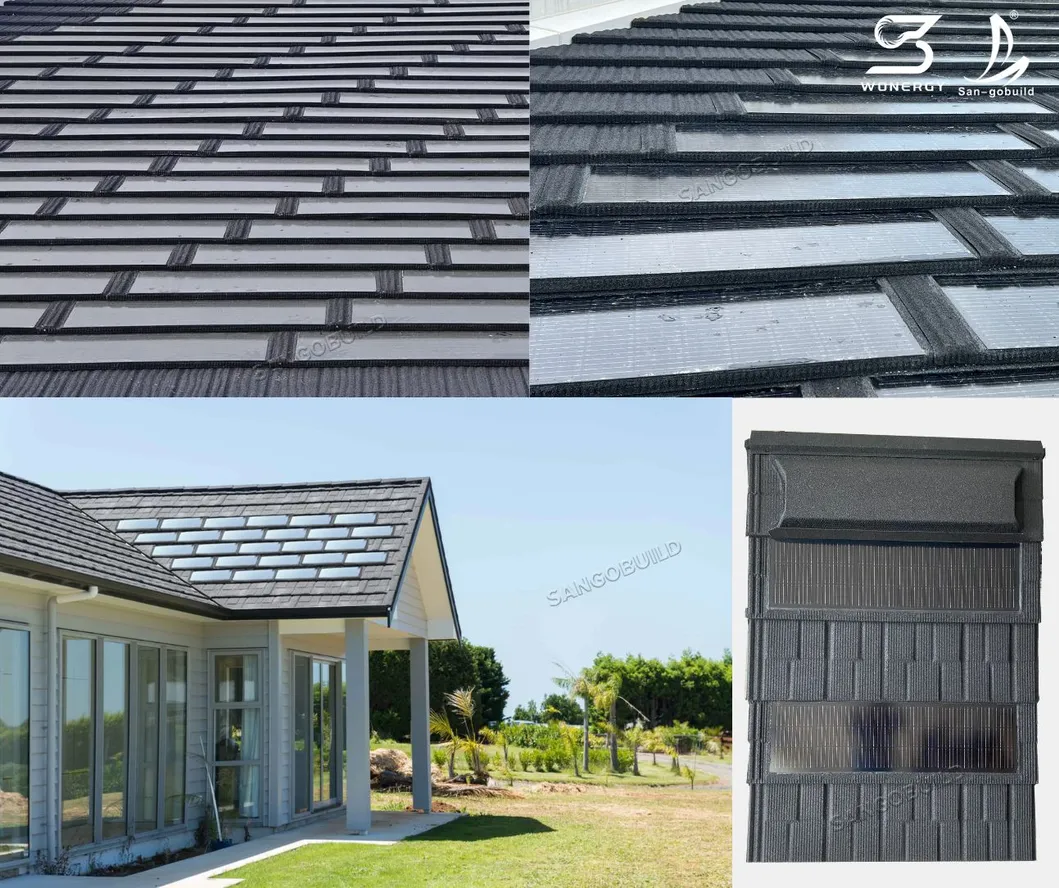

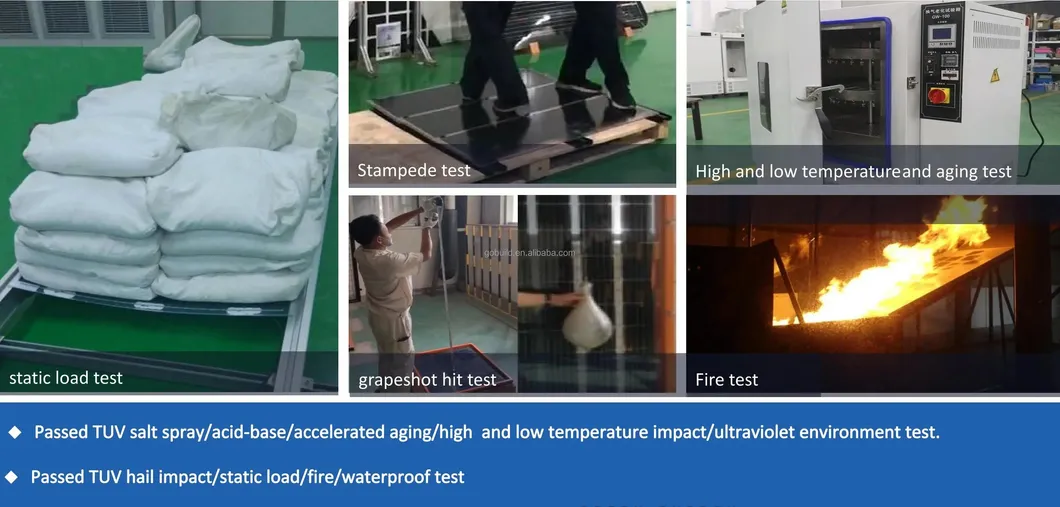

Global Projects & Certifications

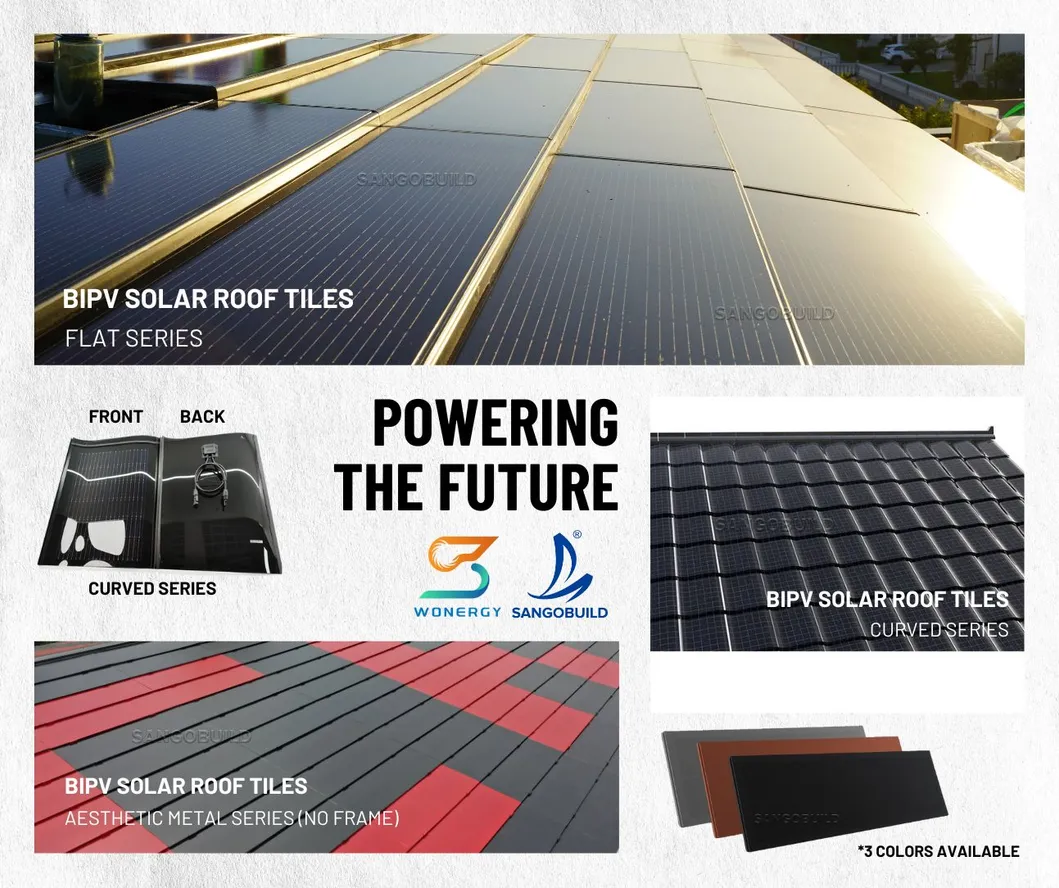

Other Product Series

Frequently Asked Questions

1. Why are solar roof tiles more expensive than traditional options?

Our solar tiles use aerospace-grade polymer composites and monocrystalline silicon cells with double-sided tempered glass. This creates a highly durable structure with 30-year power warranties and a 60-year plus life span, offering superior long-term value.

2. Why is the storage system pricing higher than some market alternatives?

We utilize Lithium iron phosphate batteries. Compared to lead-acid, these offer longer life spans, no maintenance, extreme safety, and better efficiency. We provide at least a 5-year warranty to protect the investor's value over time.

3. Why should battery capacity be higher than the solar system's max power?

To ensure battery longevity, we do not recommend 100% depth of discharge. Having a higher capacity ensures the system operates within optimal safety margins, extending the overall lifetime of the roofing investment.

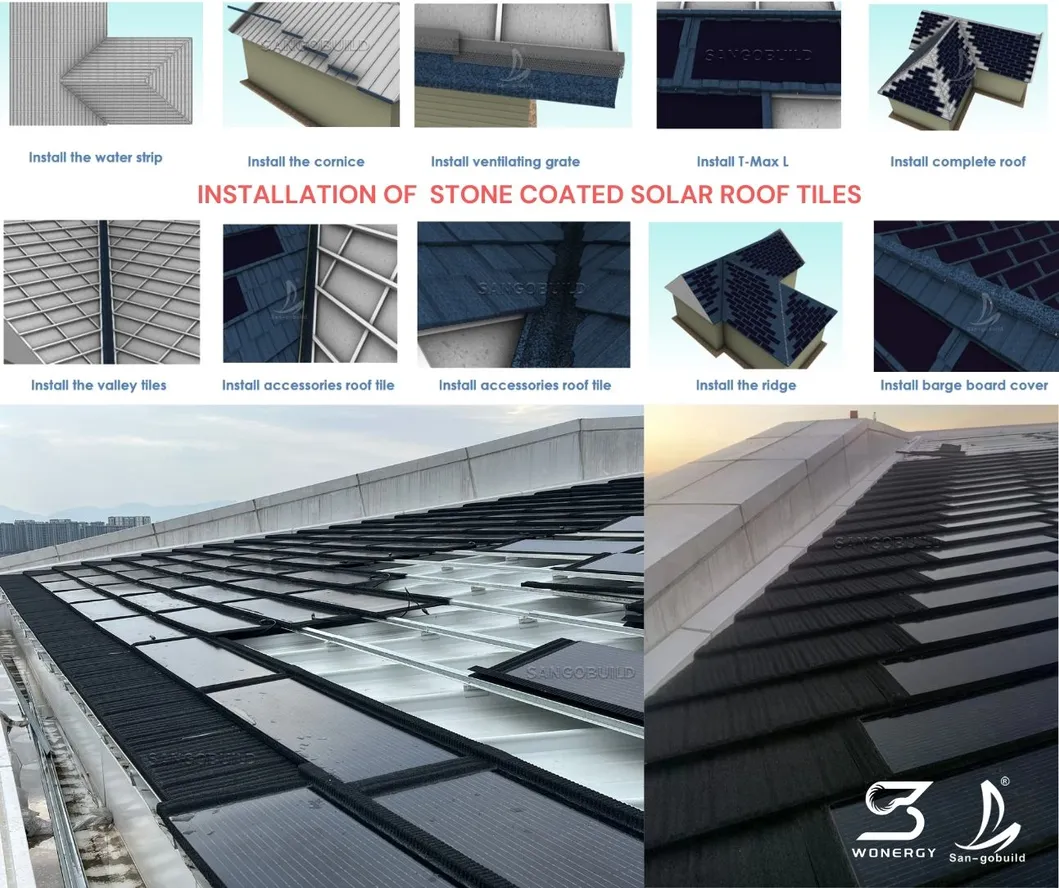

4. Can I install solar roof tiles directly on my existing roof?

No. Existing roofing (metal, asphalt, or clay) must be removed. You must install horizontal fixing battens and vertical counter battens first, then secure the BIPV solar roof tiles onto the fixed structural framework.

5. What is the efficiency and power output of these tiles?

The black panel tiles feature a module efficiency of approximately 19.4% with a max power output of 80W per piece. On average, they generate roughly 0.08kwh per hour per tile under standard test conditions.

6. Are these tiles resistant to harsh weather conditions?

Yes, the tiles are constructed with 3.2mm tempered glass and aluminum zinc sheets, providing high corrosion resistance and structural integrity suitable for various global climate conditions.
