German Vacuum Pump Laminator Solar PV Module Laminating Machine
1 / 1
German Vacuum Pump Laminator Solar PV Module Laminating Machine

German Vacuum Pump Laminator Solar PV Module Laminating Machine

Customization: Available
Automation: Automation
Production Scope: Parts Production Line
Send Inquiry

Product Description

Basic Specifications

Transmission Type
Flexible
Production Line
Comprehensive Automatic
Certification
CE, ISO
Flexible Production
Intelligent Manufacturing
Rhythm
Flow Production Line
Transport Package
Frame Container
Specification
11800*3200*1800mm
HS Code
848640
Production Capacity
100 Set/Sets Per Year

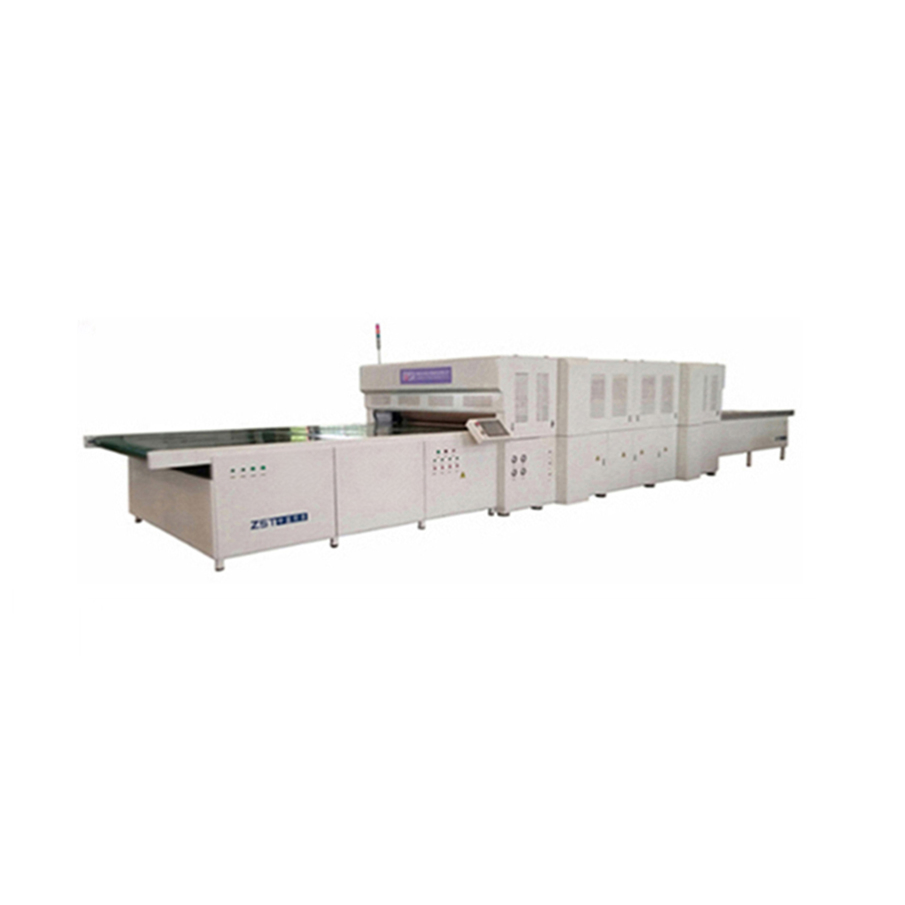

German Vacuum Pump Solar PV Module Laminating Machine

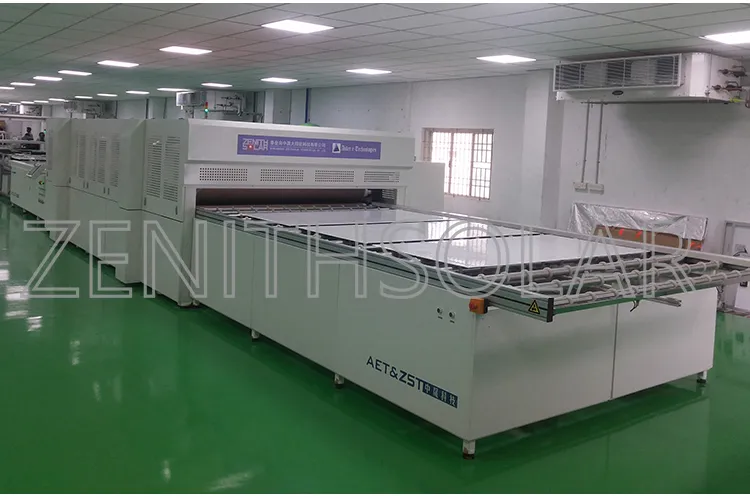

Solar PV Module Laminating Machine 1

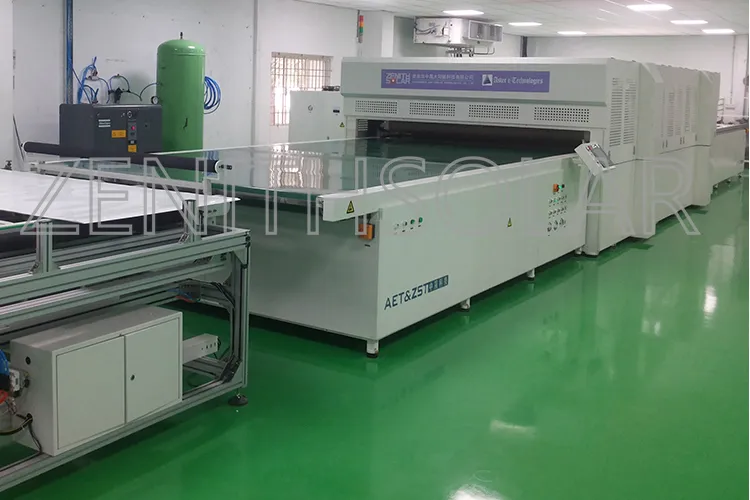

Solar PV Module Laminating Machine 2

Technical Parameters

Power AC380v/50HZ/3phases/5Lines Capacity 10-30(1-3shift)MW/year
Noise at work <65dB Vacuum Rate 200m³/H
Normal Power 15KW Max. Power 52KW
MAX. Setting Temp 180ºC Lamination Area 2200*3600mm
Heating Platform Non-flatness ≤300μm/m² Temp Uniformity ≤±2ºC
Dimension 11800*3200*1800mm Weight 12.8T

Key Characteristics

🏗️

Integrated Design

Patented design where the vacuum pump and oil pump are placed inside the machine to save plant space.

🔇

Lower Noise

Equipped with a German imported vacuum pump, reducing noise levels to below 65dB for a better working environment.

🌬️

Smokeless Operation

Unique smokeless pump design eliminates the need for a complex exhausting system.

⚡

Energy Saving

Optimized system providing approximately 30% energy savings compared to other industry brands.

📜

CE Certified

All PV line machinery has successfully passed CE certification standards.

Product Gallery

Machine Detail 1
Machine Detail 2
Machine Detail 3

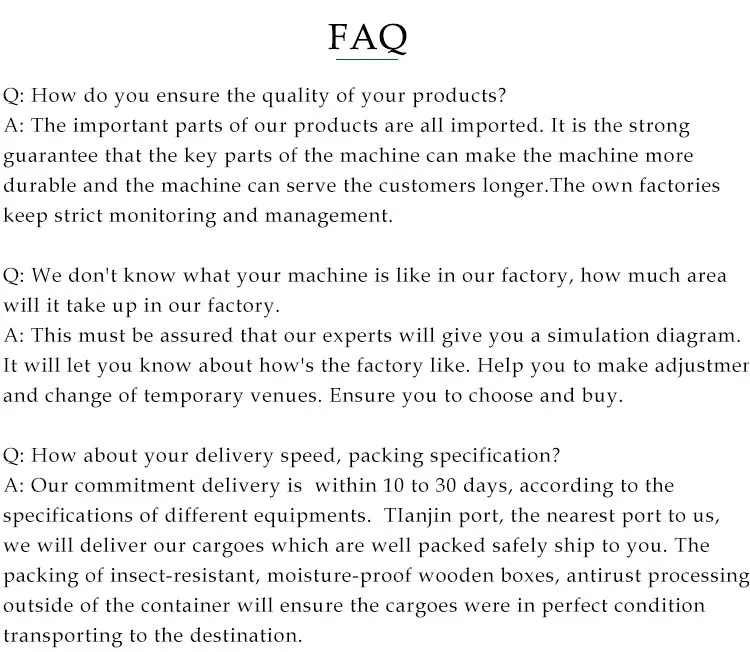

Machine Detail 4

Frequently Asked Questions

What is the effective lamination area of this machine?
The machine provides a large lamination area of 2200*3600mm, suitable for various solar module sizes.
How does the German vacuum pump benefit the production?
The German imported pump ensures high vacuum efficiency (200m³/H) while maintaining low noise levels (<65dB) and a smokeless environment.
Is this machine energy efficient?
Yes, the design is optimized for energy conservation, offering about 30% energy savings compared to standard laminating machines.
What certifications does the equipment hold?
The machine is fully compliant with international standards and holds both CE and ISO certifications.
What are the power requirements for installation?
The machine operates on AC380V, 50HZ, 3-phase, 5-line power supply with a maximum power draw of 52KW.
Does the machine require an external exhaust system?
No, thanks to the unique smokeless design of the integrated pump system, an external exhausting system is not required.
