Basic Specifications
Production ScopeParts Production Line
AutomationAutomation
Transmission TypeFlexible
Production LineComprehensive
CertificationCE, ISO
ManufacturingIntelligent Manufacturing
RhythmFlow Production Line
Transport PackageFrame Container
Specification7700*2620*1350mm
HS Code848640
Capacity100 Set/Year
Negotiate the price according to specific circumstances

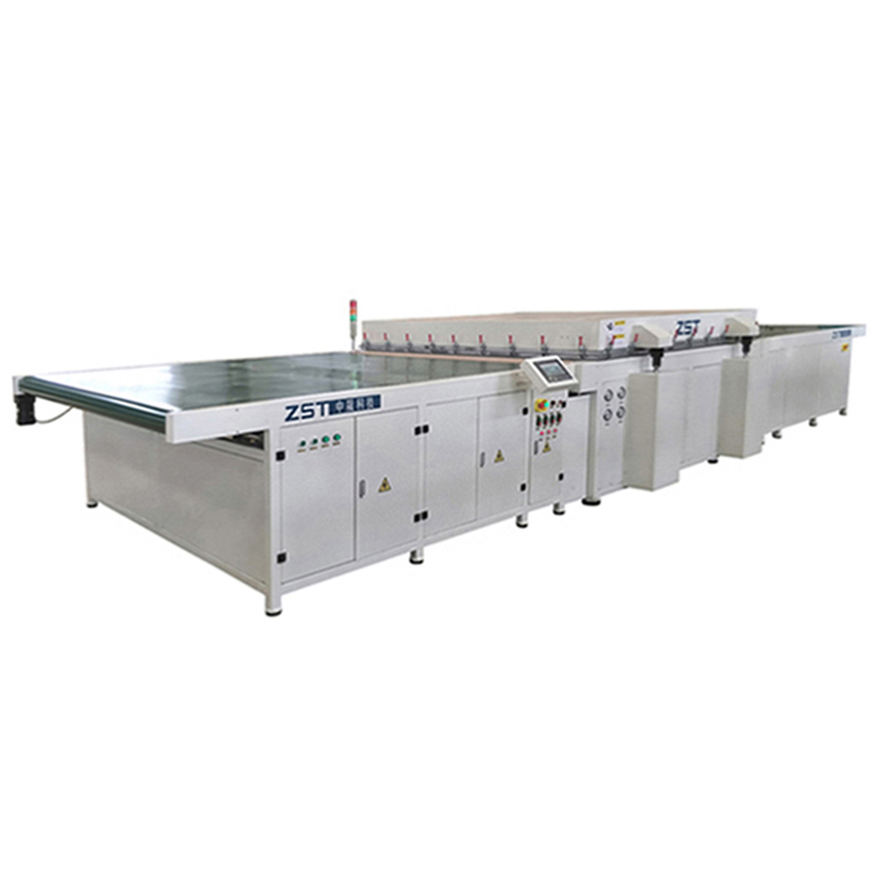

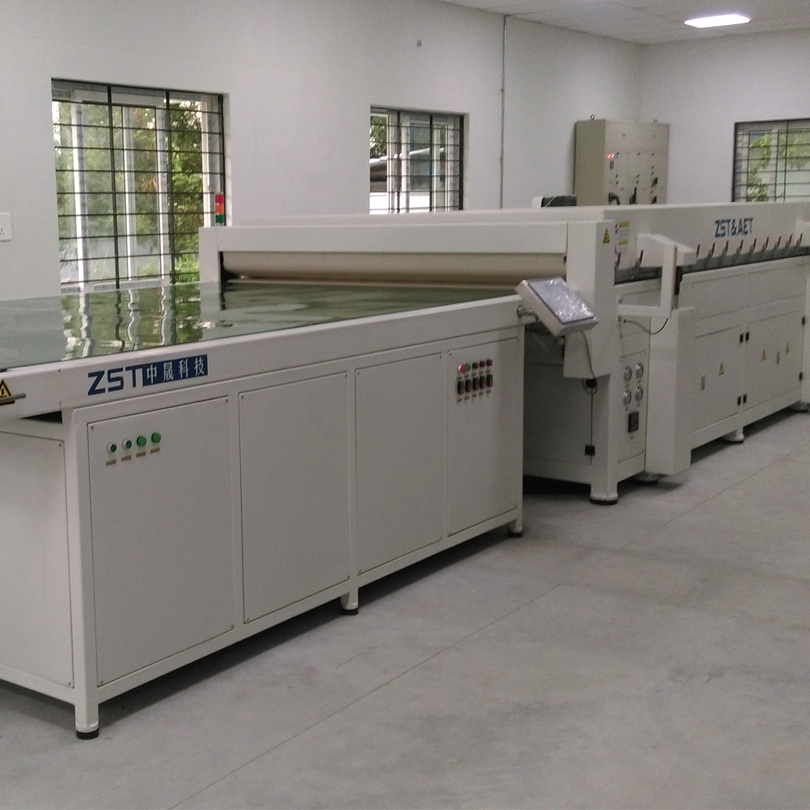

Zst German Vacuum Pump Laminating Machine Solar PV Module Line
Technical Parameters
| Power |
AC380V/50HZ/3Phases/5Lines |
Capacity |
5-15(1-3shift)MW/year |
| Compressed Air Flow |
0.25m³/min |
Vacuum Rate |
100m³/H |
| Normal Power |
10KW |
Max. Power |
34KW |
| Lamination Time |
PVB/EVA: 12-15min |
Lamination Area |
2200*2140mm |
| Working Temp |
100-160ºC |
Temp Uniformity |
≤±2ºC |
| Dimension |
7700*2620*1350mm |
Weight |
7.5T |
Product Characteristics
Integrated Design
The vacuum pump and oil pump are placed inside the laminating machine to save plant space.
Lower Noise
Using Germany imported vacuum pumps, reducing noise to 65dB for a more comfortable environment.
Free Smoke
The unique smokeless pump design eliminates the need for an additional exhausting system.
Energy Saving
Achieves approximately 30% energy savings compared to other standard brands.
Frequently Asked Questions
What is the production capacity of this solar module line?
The system provides a capacity of 5-15 MW per year, depending on the shift configuration (1-3 shifts).
Does the machine require a special exhausting system for smoke?
No, the German imported vacuum pump is designed to be smokeless, saving you the cost and space of an exhausting system.
How much energy can be saved with this equipment?
The Zst laminating machine is engineered for efficiency, offering approximately 30% energy savings compared to competitor models.
What materials are compatible with the lamination process?
The machine is perfectly suited for both PVB and EVA lamination, with a typical cycle time of 12-15 minutes.
Is the machine certified for international standards?
Yes, all machines in this PV line have passed the CE certification and adhere to ISO quality standards.
How does the integrated design benefit the user?
By housing the vacuum and oil pumps internally, the machine significantly reduces its overall footprint, helping you maximize your factory floor space.
