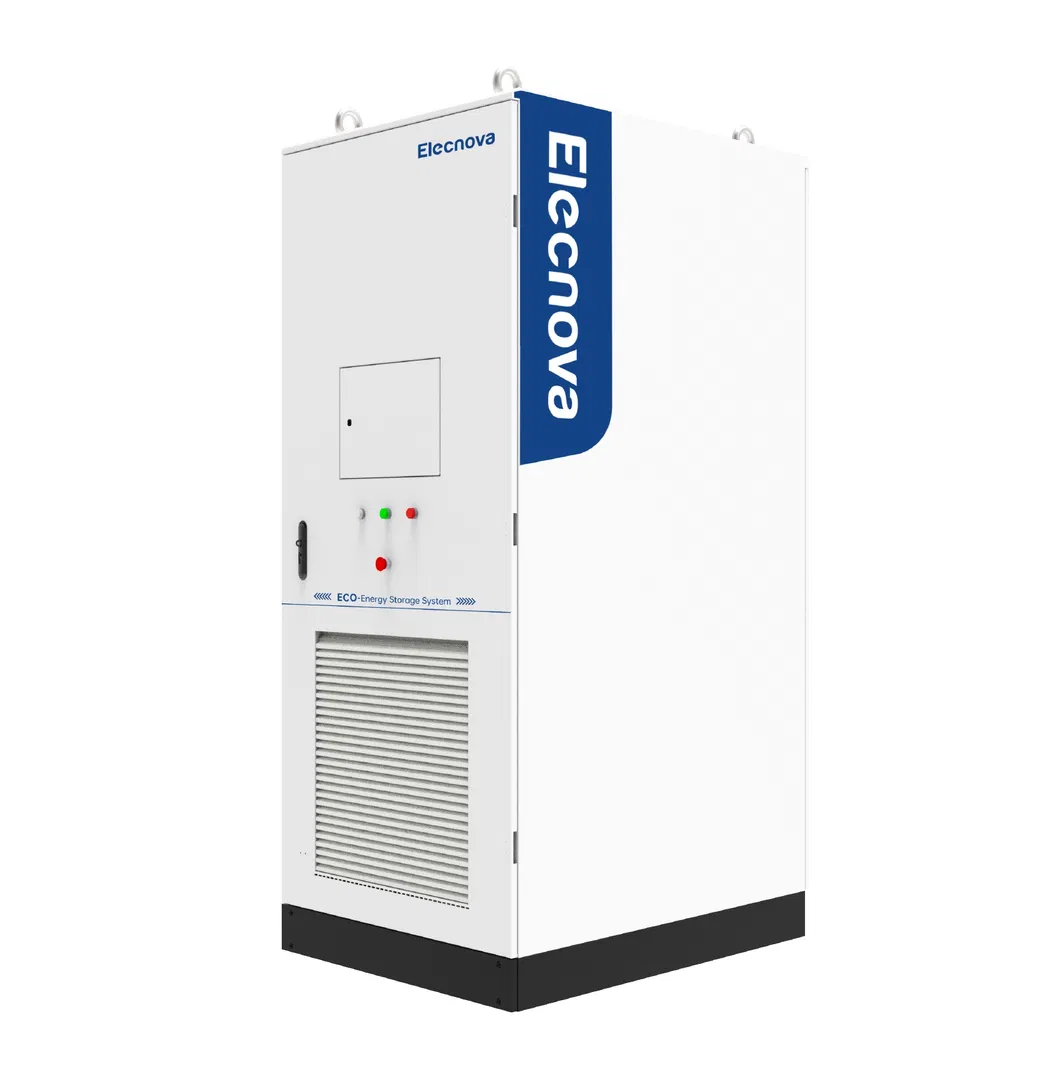

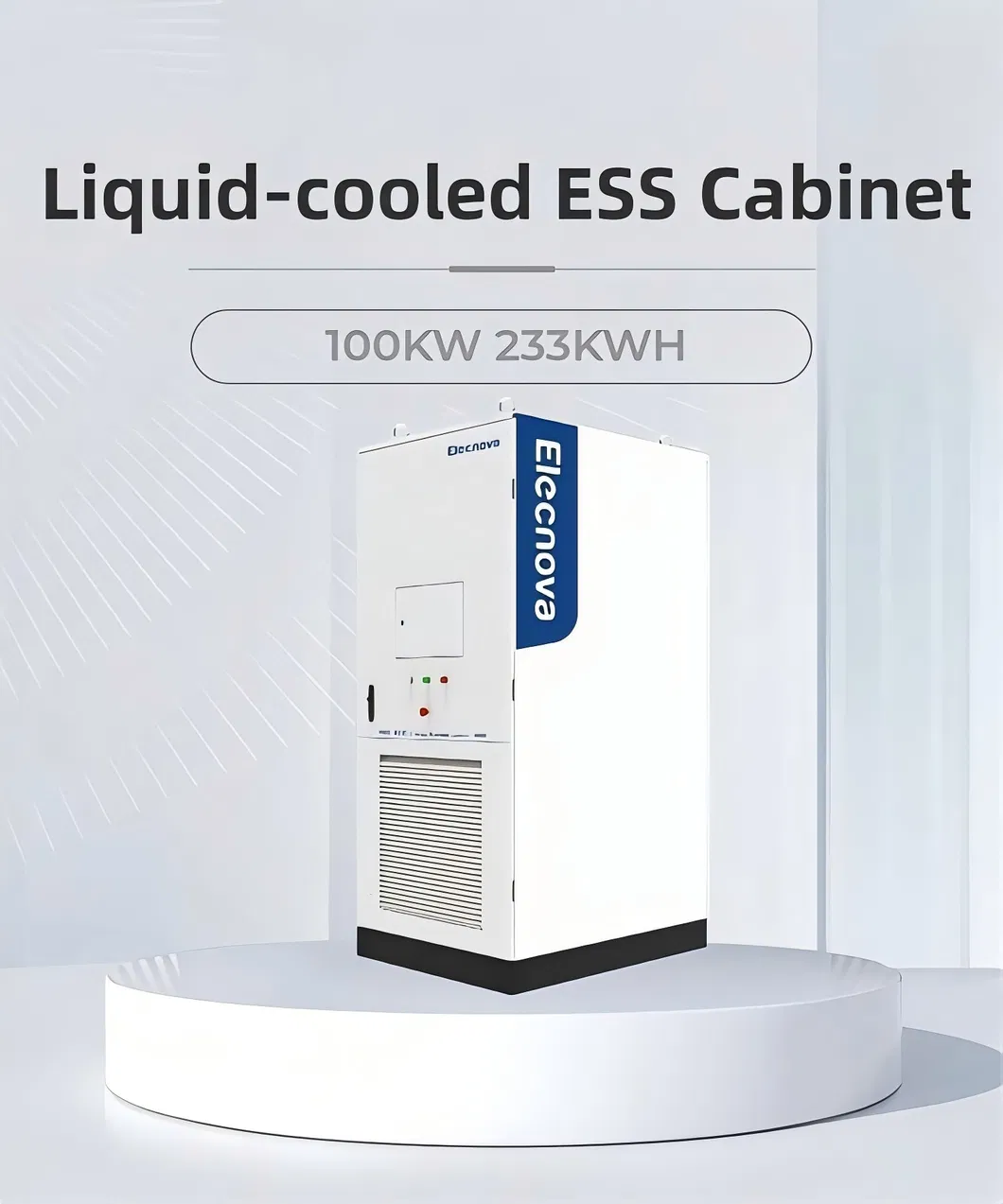

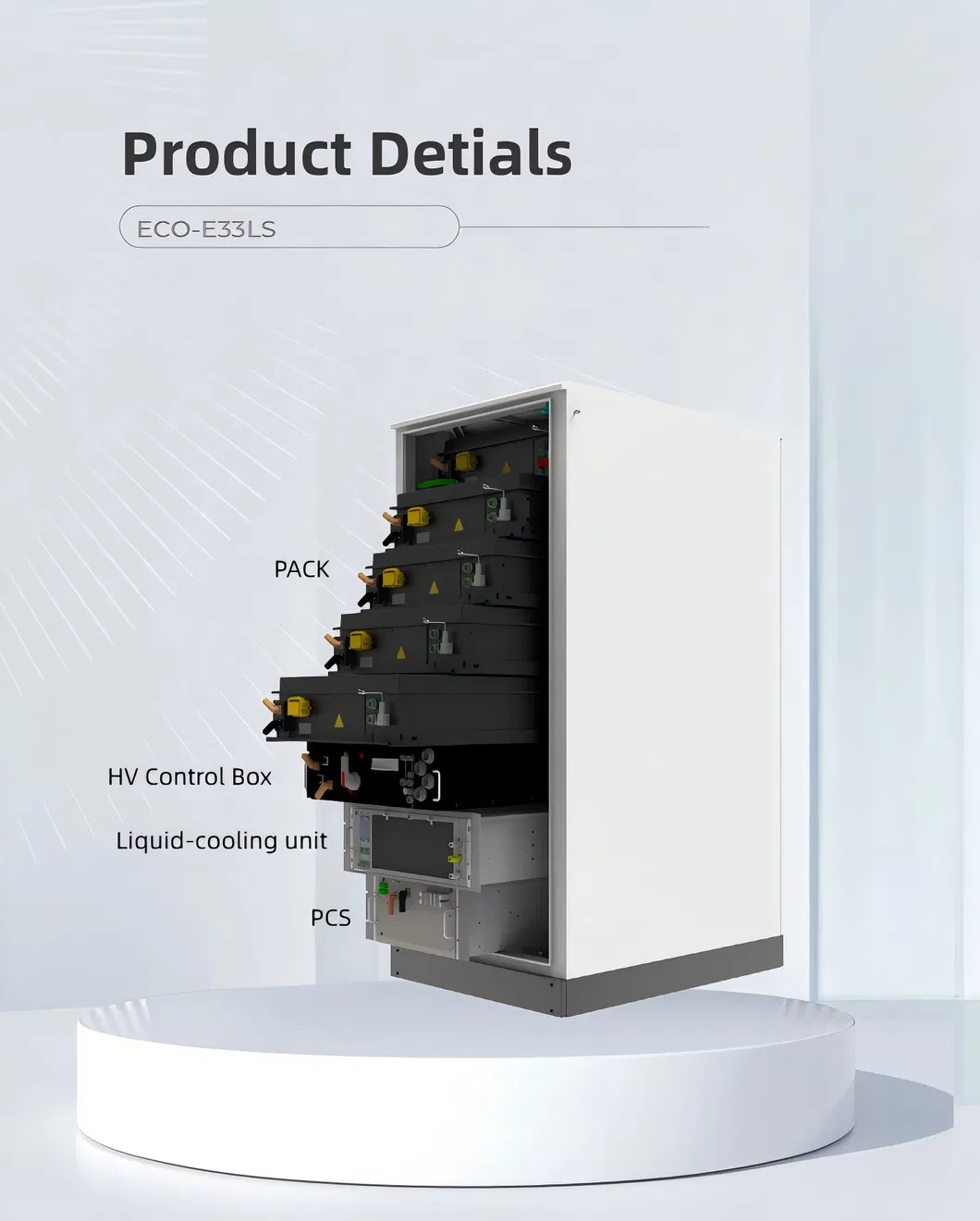

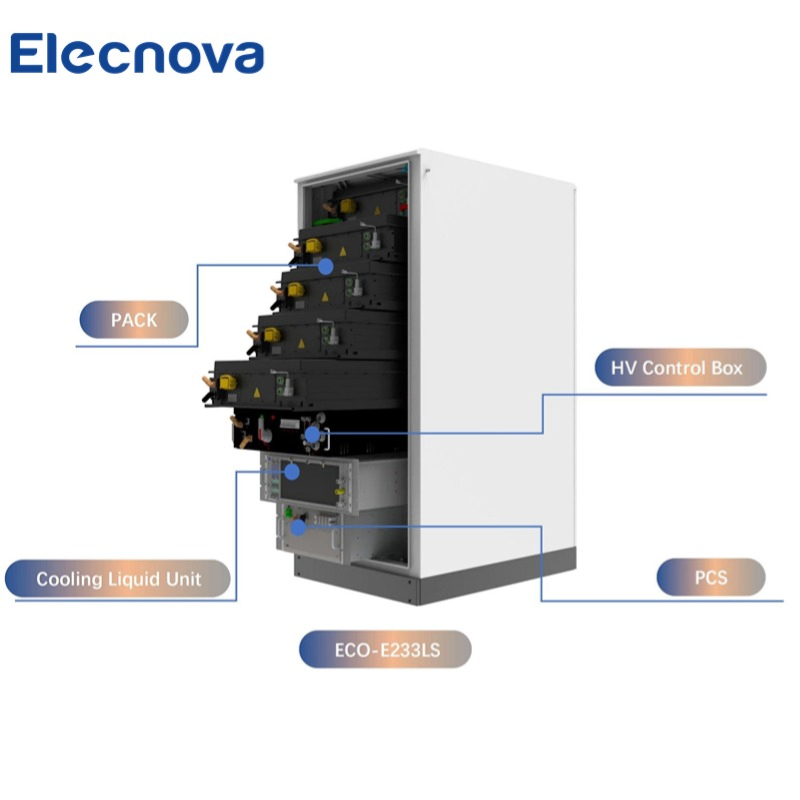

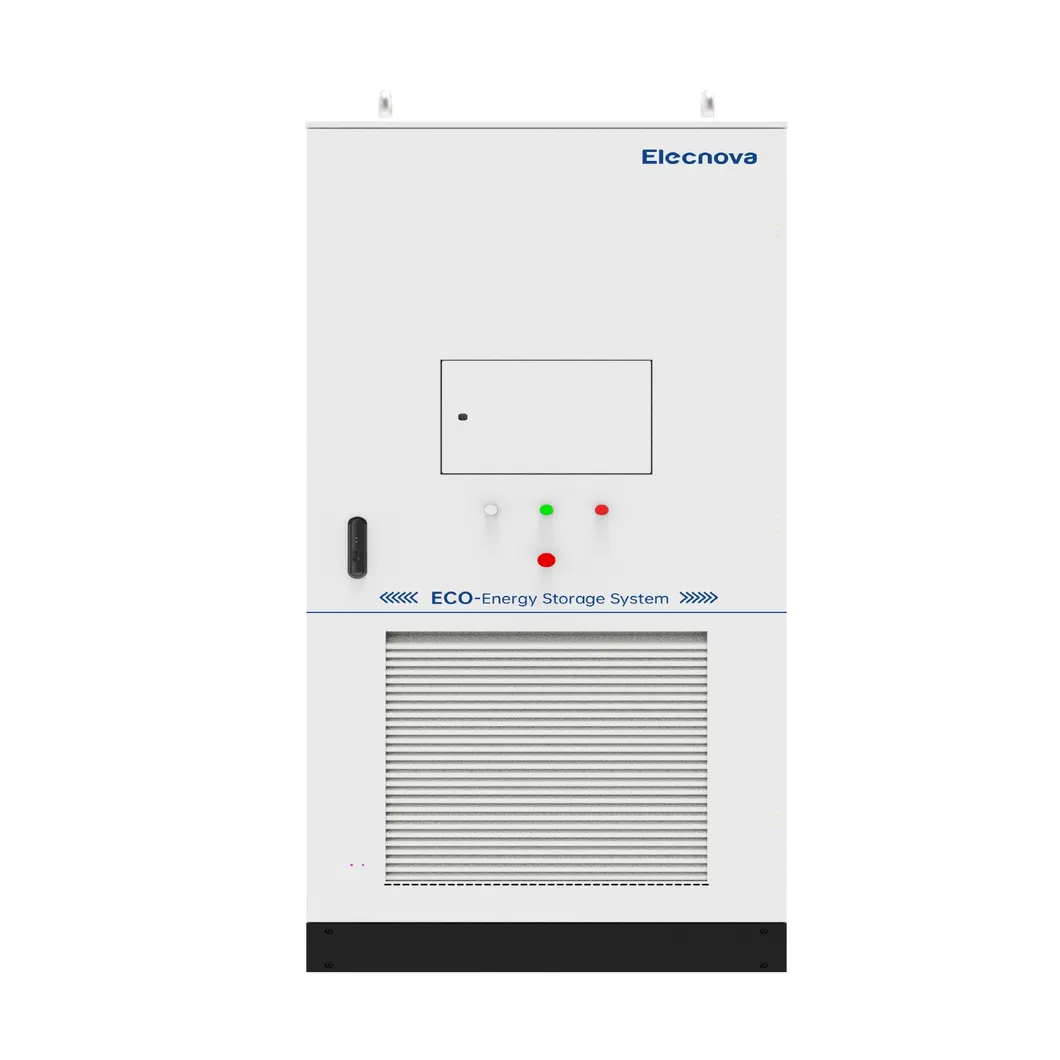

The 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.
Conversion efficiency: 99%. IP65 rating, ms-level on-/off-grid switching.
Active thermal management system. Over 8,000 times cycle life.
SOC Estimation Accuracy Error < 5%. 100ms sampling interval.

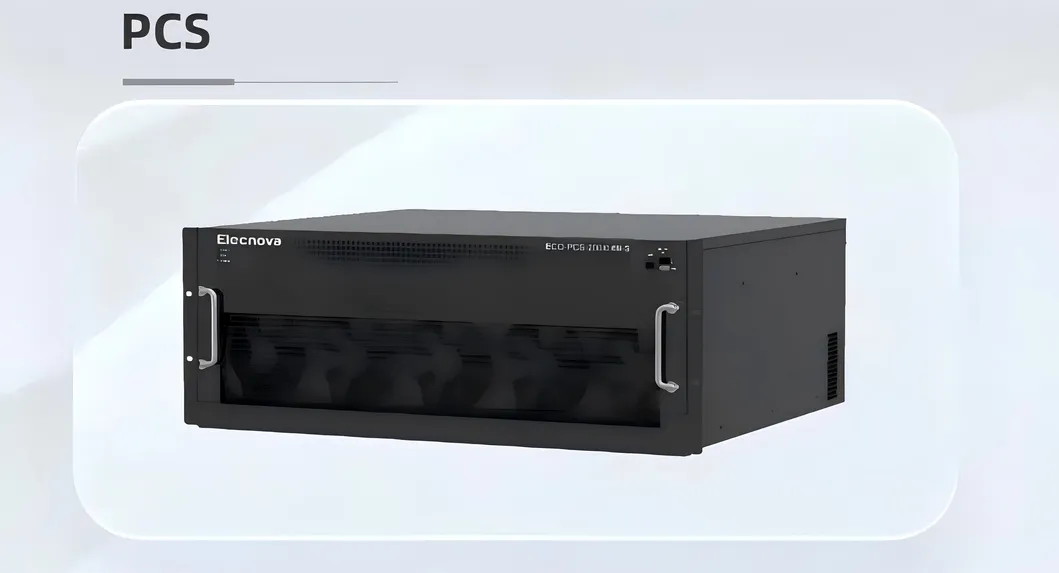

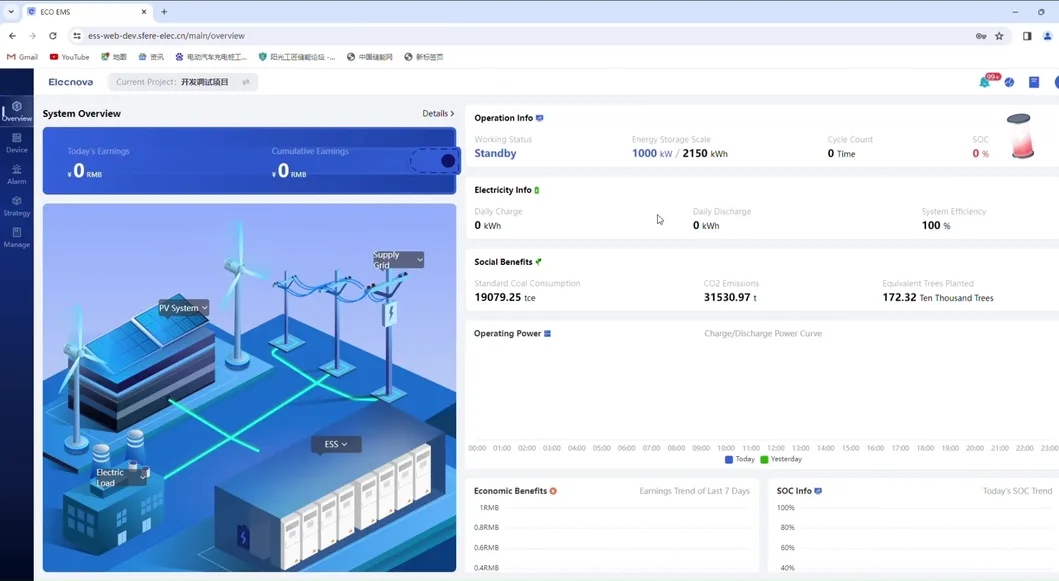

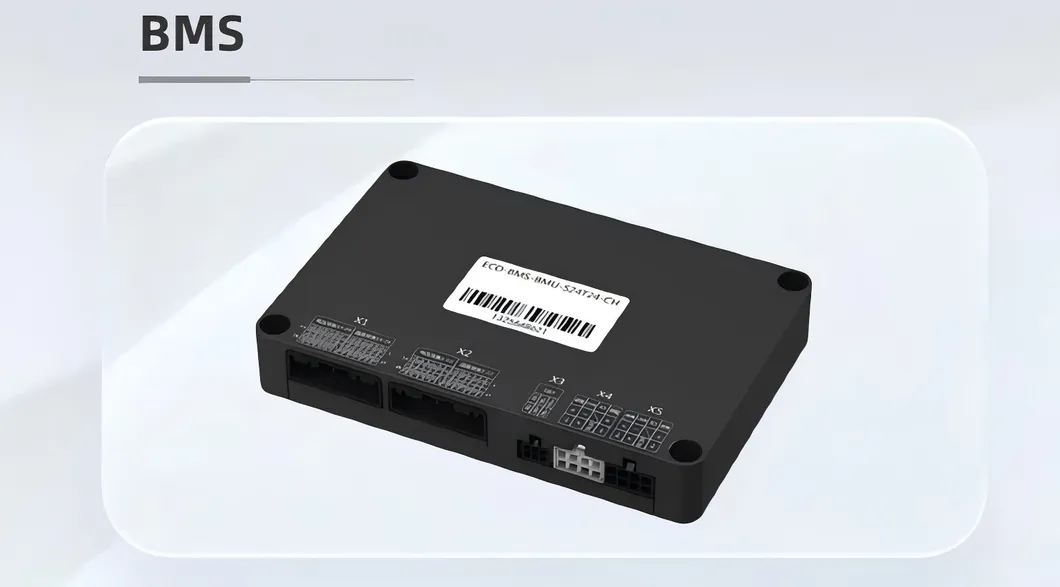

Monitoring of PCS, BMS, and air conditioning to achieve energy arbitrage.
| DC Side Specifications | |
|---|---|

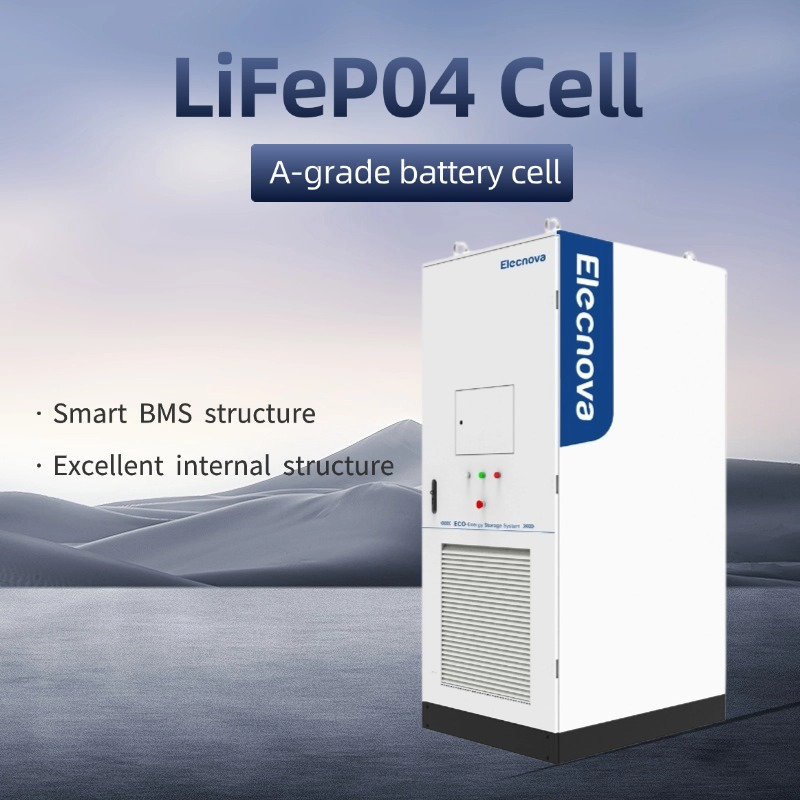

| Cell Type | LFP 280Ah |

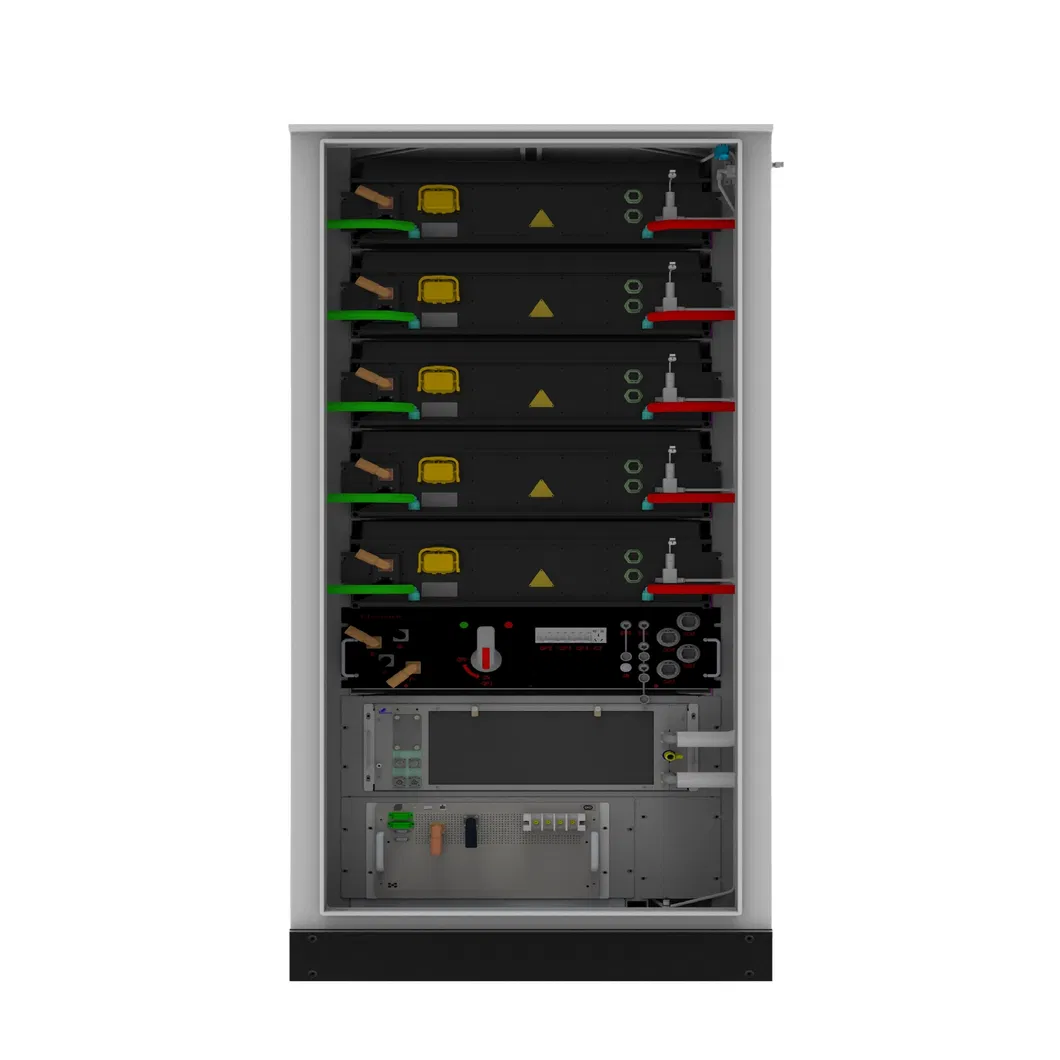

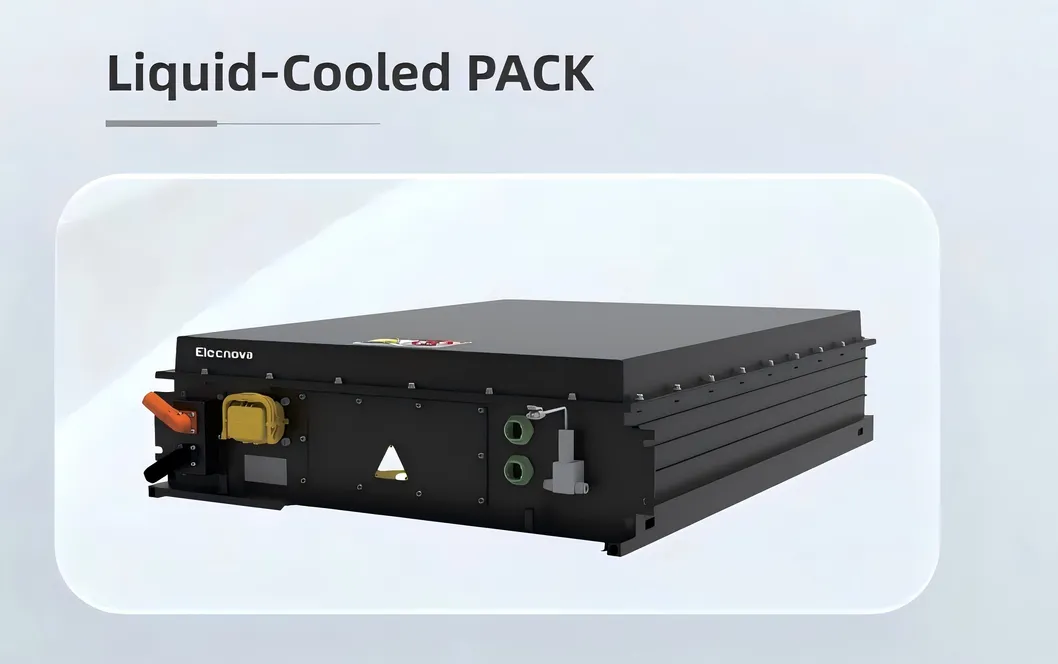

| PACK Capacity | 46.592kWh / 1P52S |
| Battery System | 232.96kWh / 1P260S |
| Voltage Range | 728 ~ 936Vdc |
| AC Side Specifications | |
| Rated Power | 100kW |
| Max Power | 110kW |
| Nominal Voltage | 400Vac / 3P+N+PE |
| General Data | |
| System Efficiency | ≥90% |
| Cycle Life | ≥8,000 times |
| Operating Temp | -25ºC ~ 55ºC |
| Fire Safety | Aerosol / NOVEC1230 |
| Weight | 2,570kg |

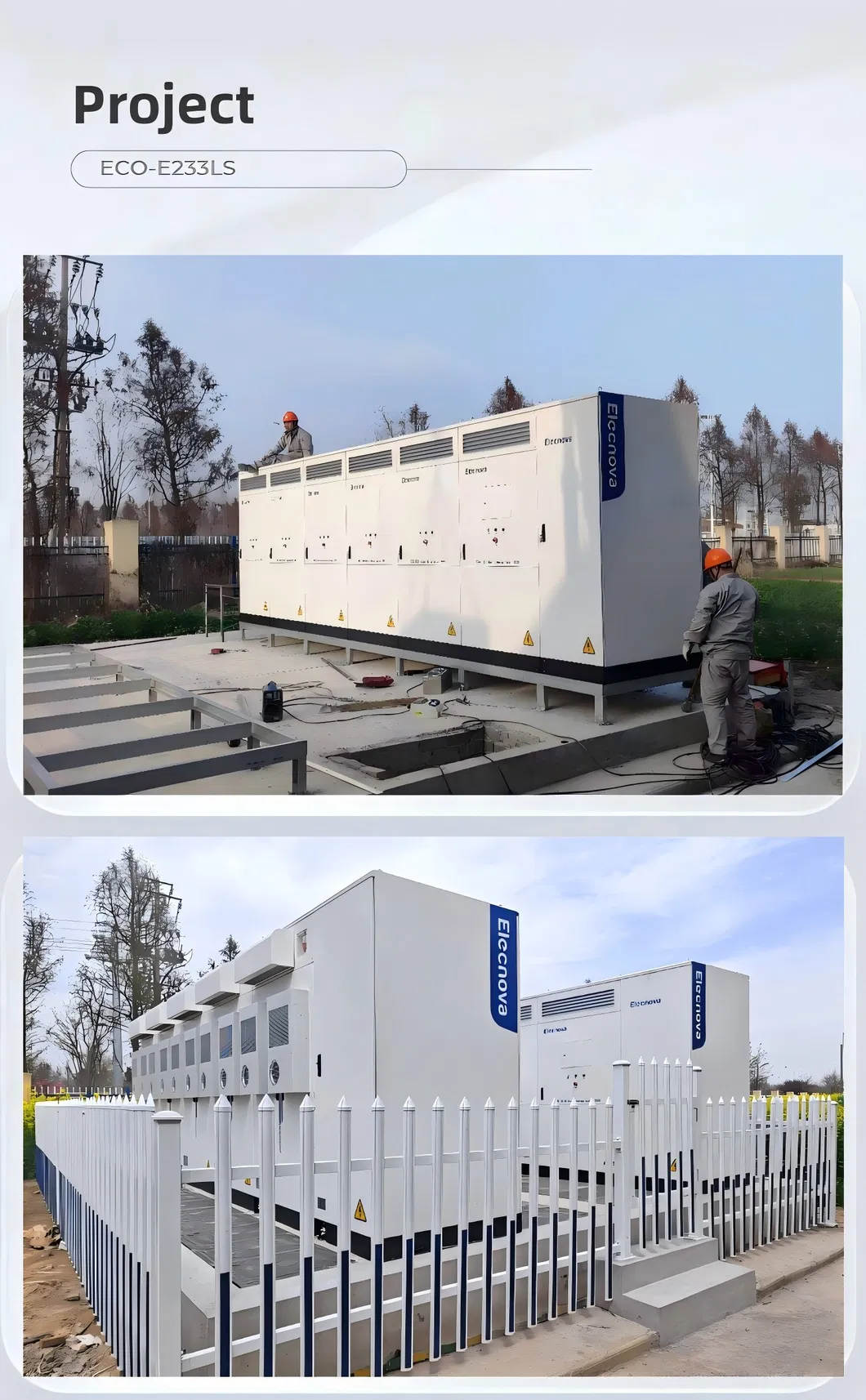

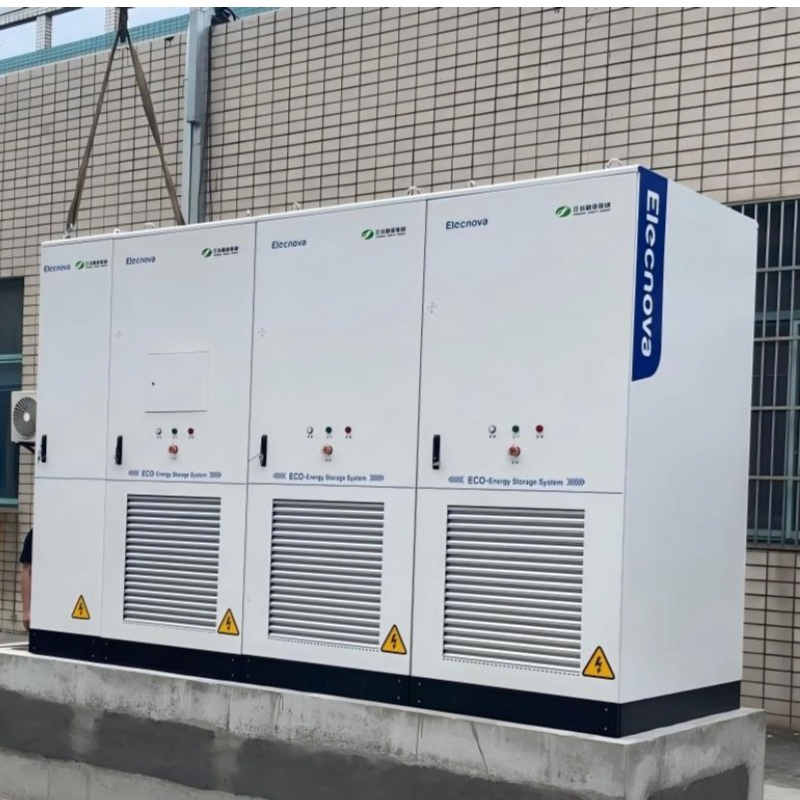

Our energy storage solutions are successfully deployed in projects such as the 2.4MWh grid-connected facility. These systems are characterized by high efficiency, stability, and safety for various scenarios including C&I ESS, microgrid, and PV-plus ESS.

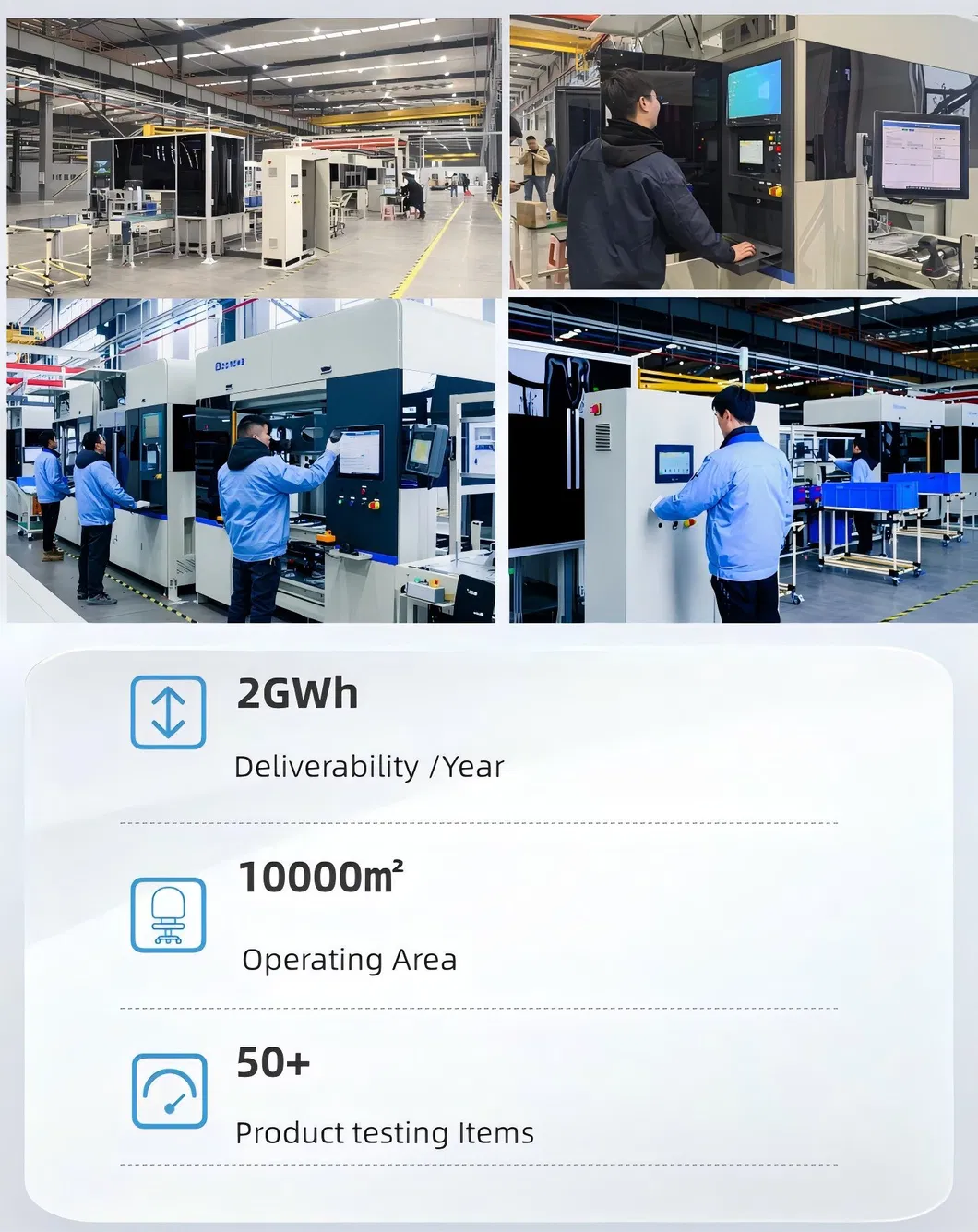

We are a technology-based enterprise focused on overall solutions for energy storage systems. Our capabilities include full system integration of PACK, PCS, and BMS to meet diversified energy requirements in power generation, grid, and user-side applications.
