| Model NO. | EDJ 50/6-5.5-8.6-2 | Max. Head | 110m-150m |
|---|---|---|---|
| Max. Capacity | >400 L/min | Driving Type | Motor |
| Impeller Number | Single-Stage Pump | Working Pressure | High Pressure Pump |
| Position of Pump Shaft | Horizontal Pump | Transport Package | Wooden Case Packaging |

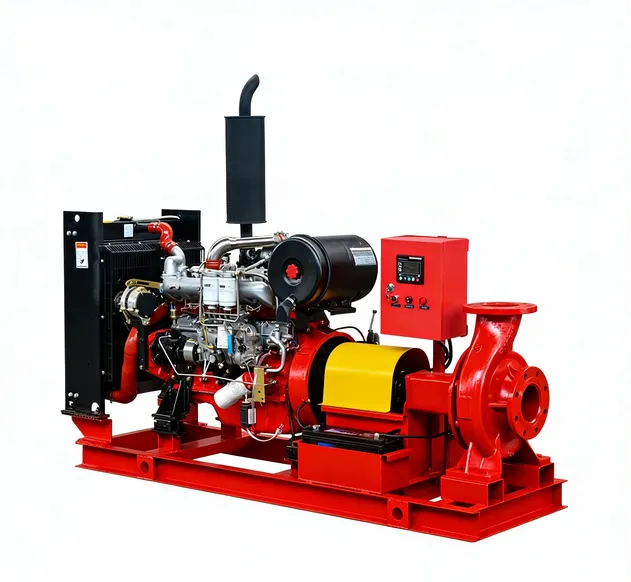

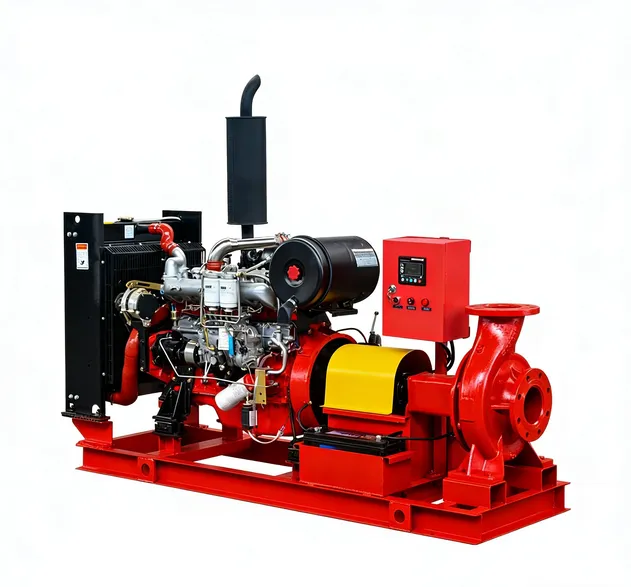

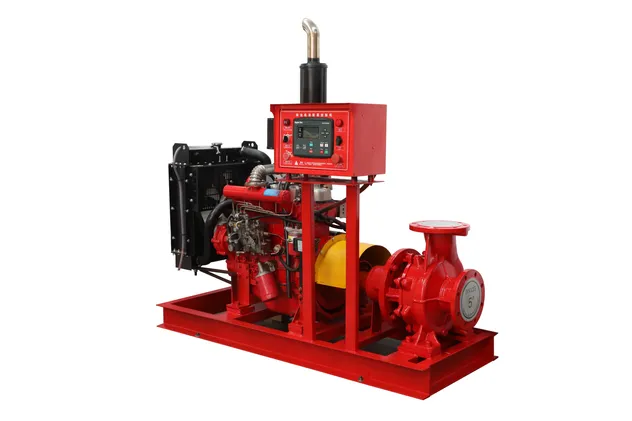

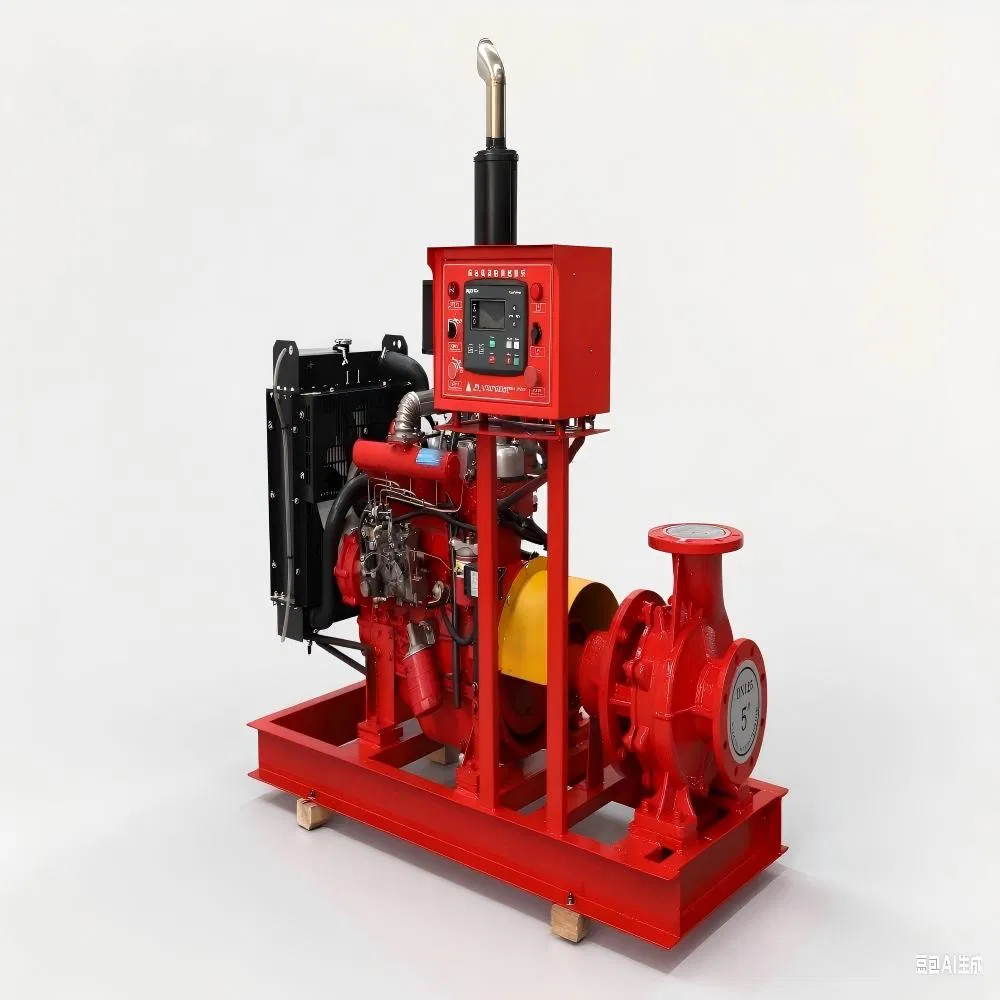

Our EDJ series diesel engine fire pump unit is strictly in accordance with the Chinese national standard GB 6245 "Fire Pump" and GB 27898.5-2011. This is a compliant product with the national fire protection product 3CF mandatory certification certificate.
Suitable for petrochemical and flammable and explosive places, large-scale logistics warehousing, and cold storage. Wherever there is a high requirement for fire safety and potential power outages, diesel engine fire pumps are indispensable.
Automatically starts and puts into full load operation within ≤ 15 seconds after receiving the fire signal, outperforming national standard requirements.
When a fire causes power grid paralysis, the diesel engine ensures the fire pump continues to operate without interruption.
Easily drives high-lift pumps to meet the rigorous requirements of high-rise buildings and industrial complexes.

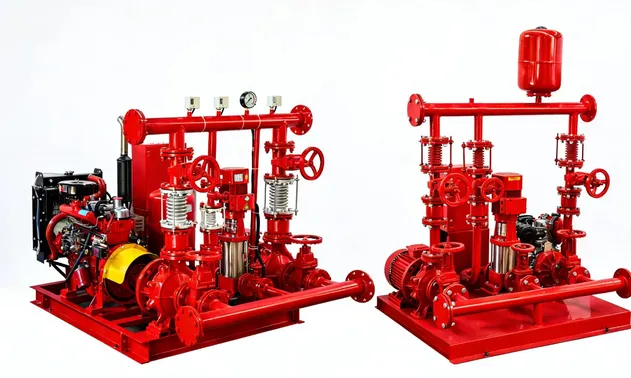

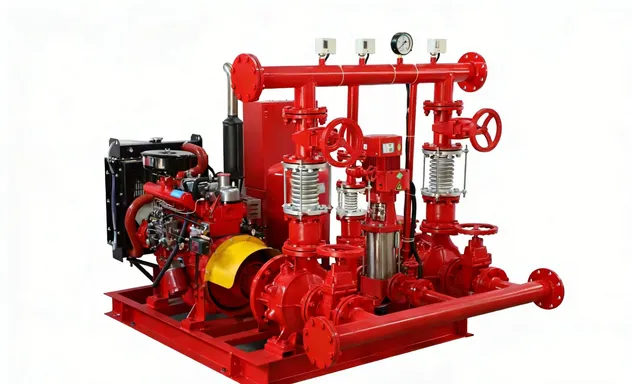

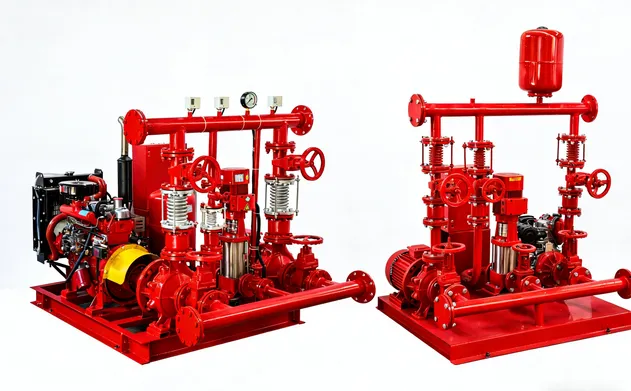

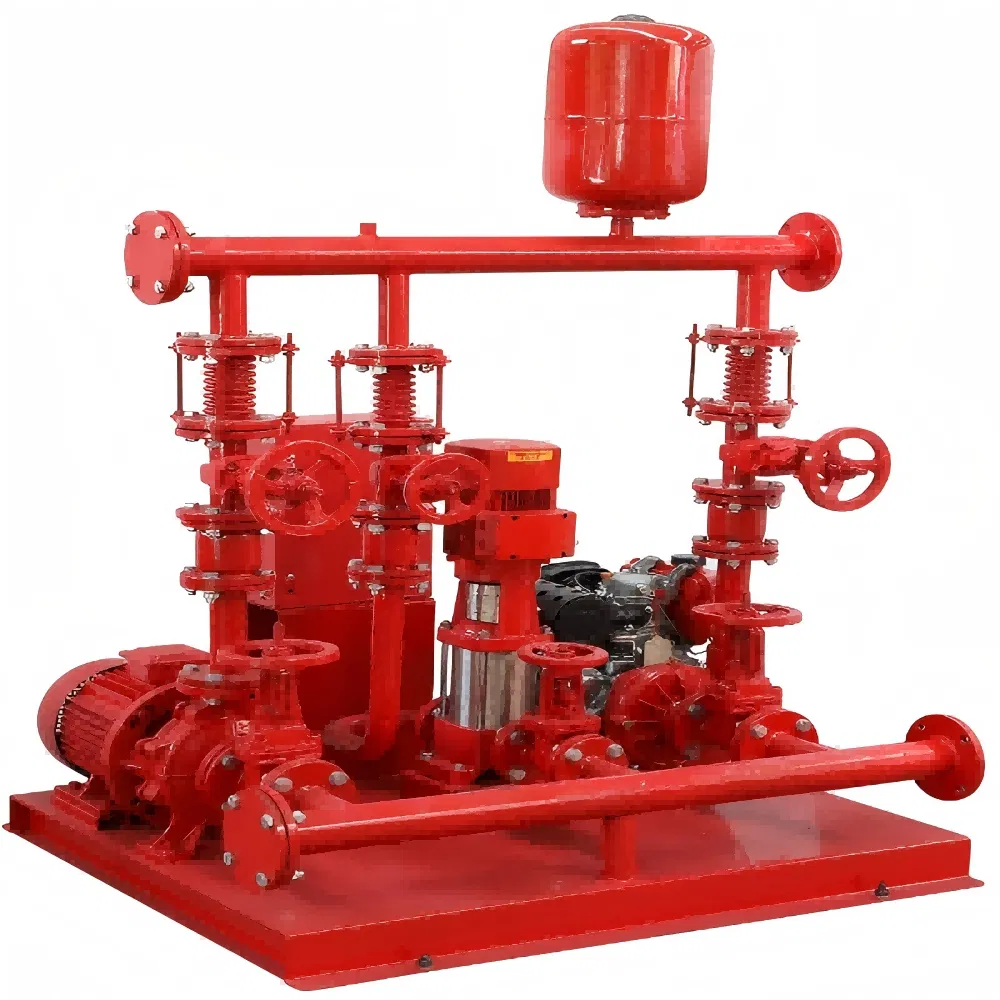

| Model Set | Q (GPM) | H (Bar) | Electric Pump | Diesel Pump | Jockey Pump |
|---|---|---|---|---|---|
| EDJ 50/6-5.5-8.6-2 | 50 | 6 | 5.5HP | 8.6HP | 1HP |
| EDJ 100/8-15-27-3 | 100 | 8 | 15HP | 27HP | 2HP |
| EDJ 200/8-30-32-3 | 200 | 8 | 30HP | 32HP | 3HP |
| EDJ 300/10-50-58-5.5 | 300 | 9-10 | 50HP | 58HP | 5.5HP |
| EDJ 500/11-75-75-7.5 | 500 | 10-11 | 75HP | 75HP | 10HP |
Independent diesel power ensures stable water supply in areas without electrical infrastructure or during power grid failures.
Works normally from -25°C to 55°C and altitudes up to 2500 meters. IP55 protection rating for harsh environments.
We are a large-scale diversified mechanical equipment manufacturing enterprise integrating design, development, manufacturing, and installation. We are committed to promoting the development of the fluid industry and upgrading products to meet international quality standards.
