What is an off-grid system?
Off-grid solar energy systems, also known as stand-alone solar systems, do not connect with the Grid or Utility. They are ideal for remote areas where public power is unavailable or unstable.
Suitable for Home, Commercial, and Industrial applications. Systems can be customized: 1kW to 200kW+ off-grid power solutions.

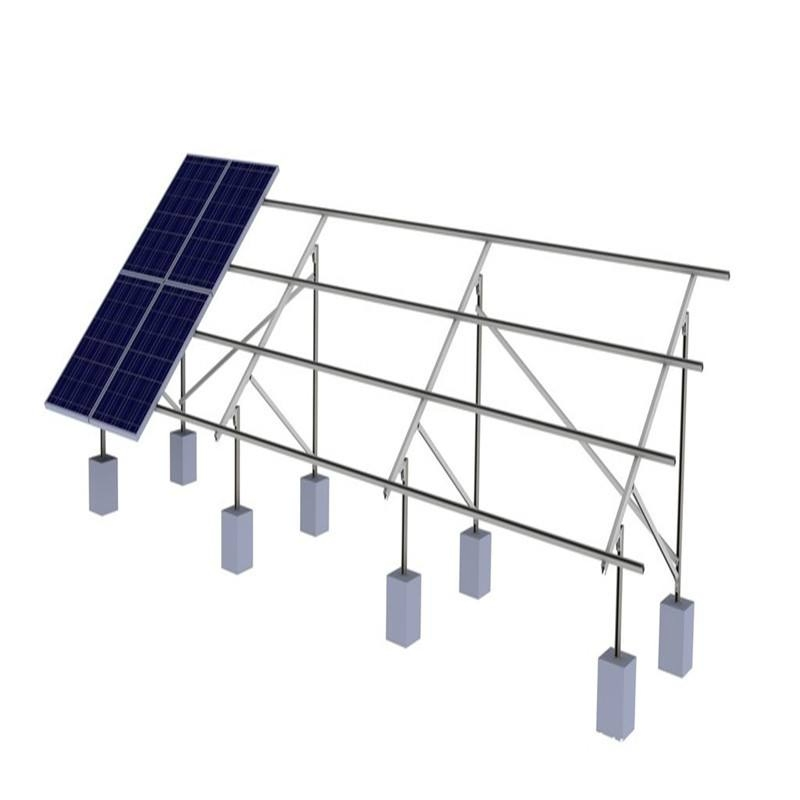

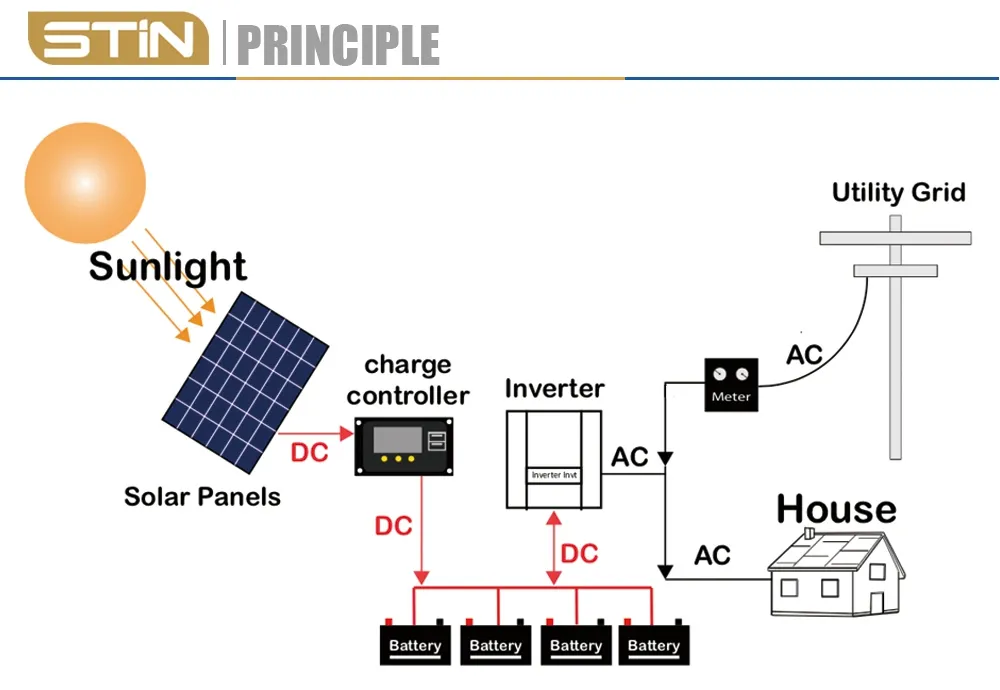

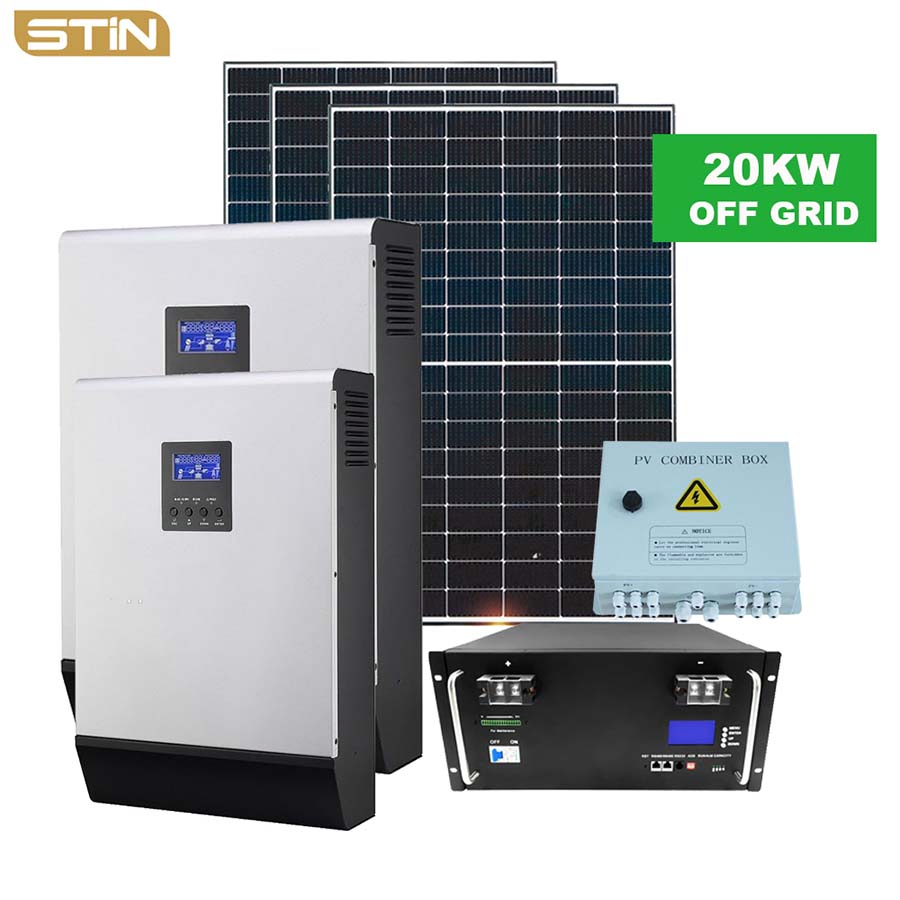

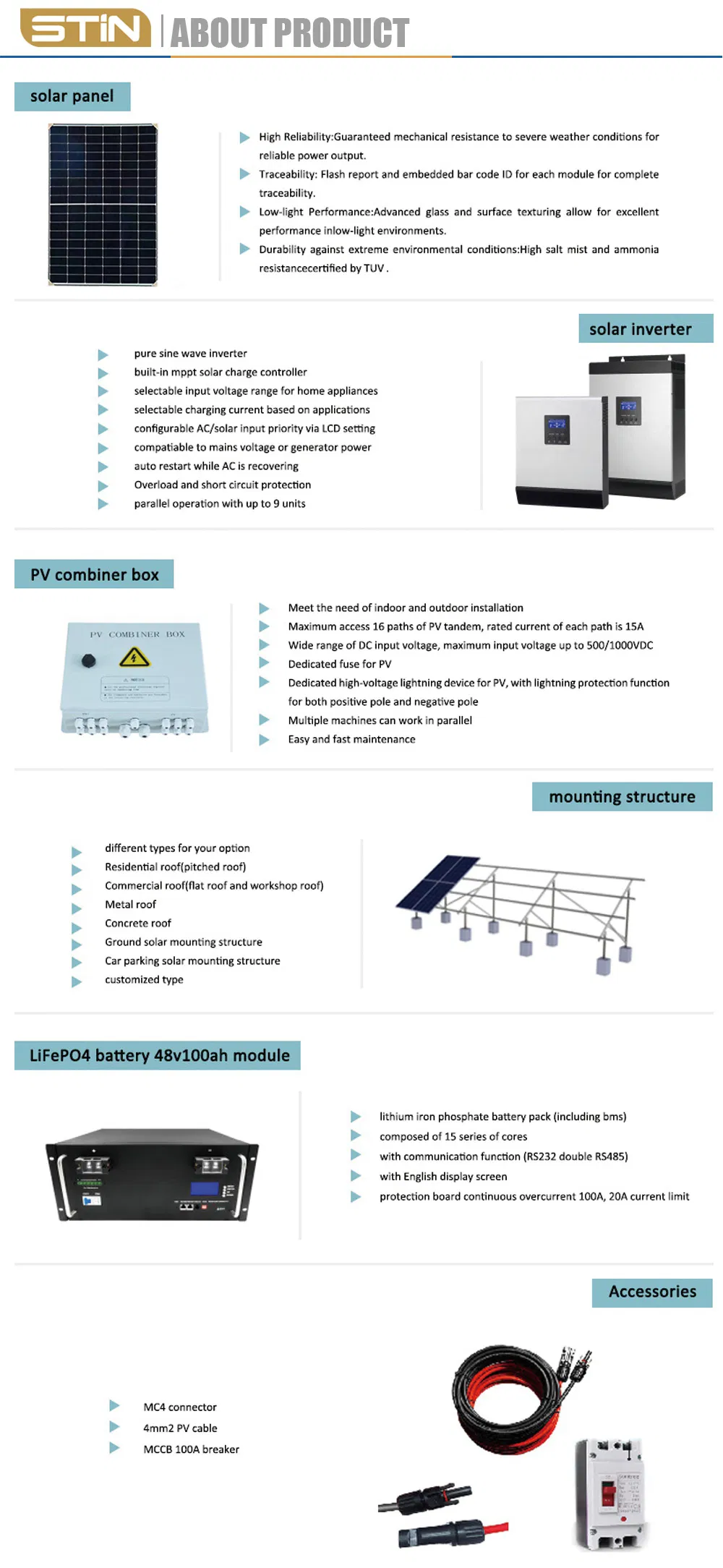

An off-grid system typically consists of solar panels, connectors, inverters, batteries, and a mounting system.
| 12000W Off-Grid Photovoltaic System (48VDC) | ||||
|---|---|---|---|---|
| Item | Part | Specification | Quantity | Remarks |
| 1 | Solar panel | Mono 410W | 27 PCS | 3 in series, 9 parallel |

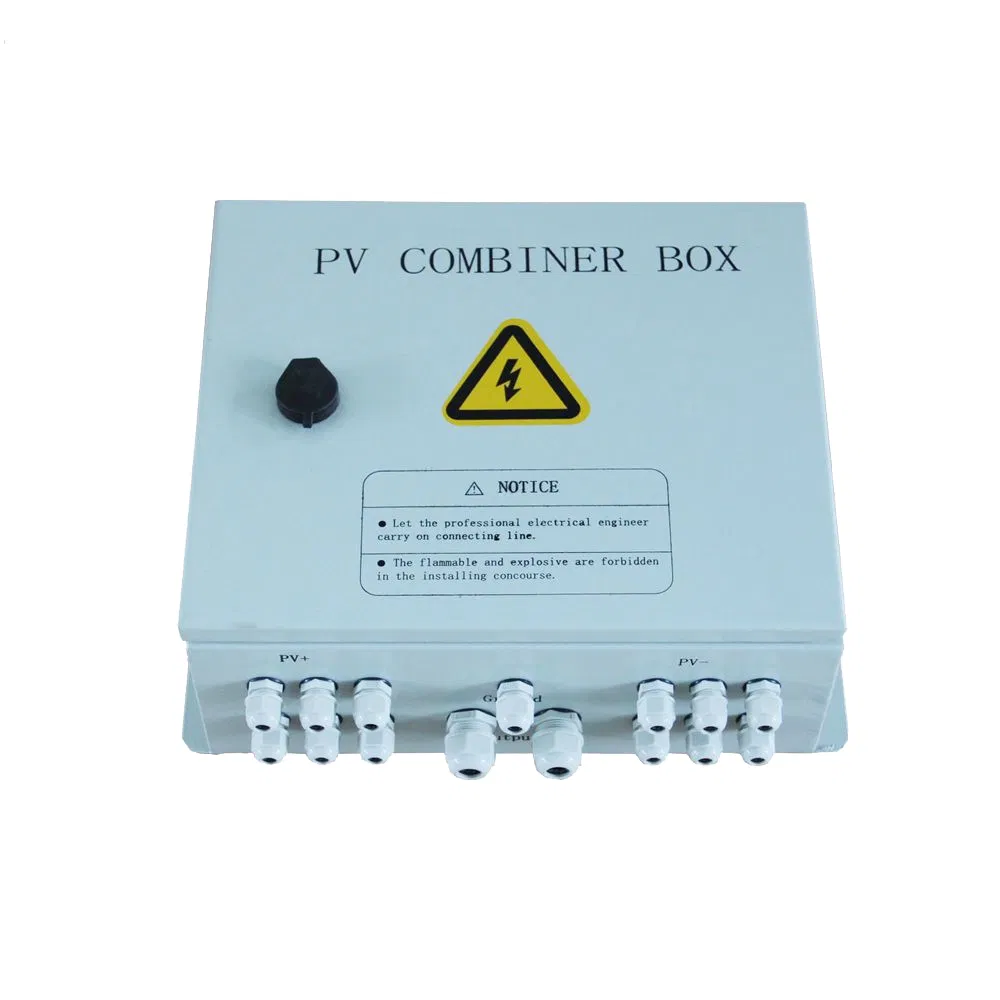

| 2 | Combiner box | 3 inputs, 1 output | 3 SETS | - |

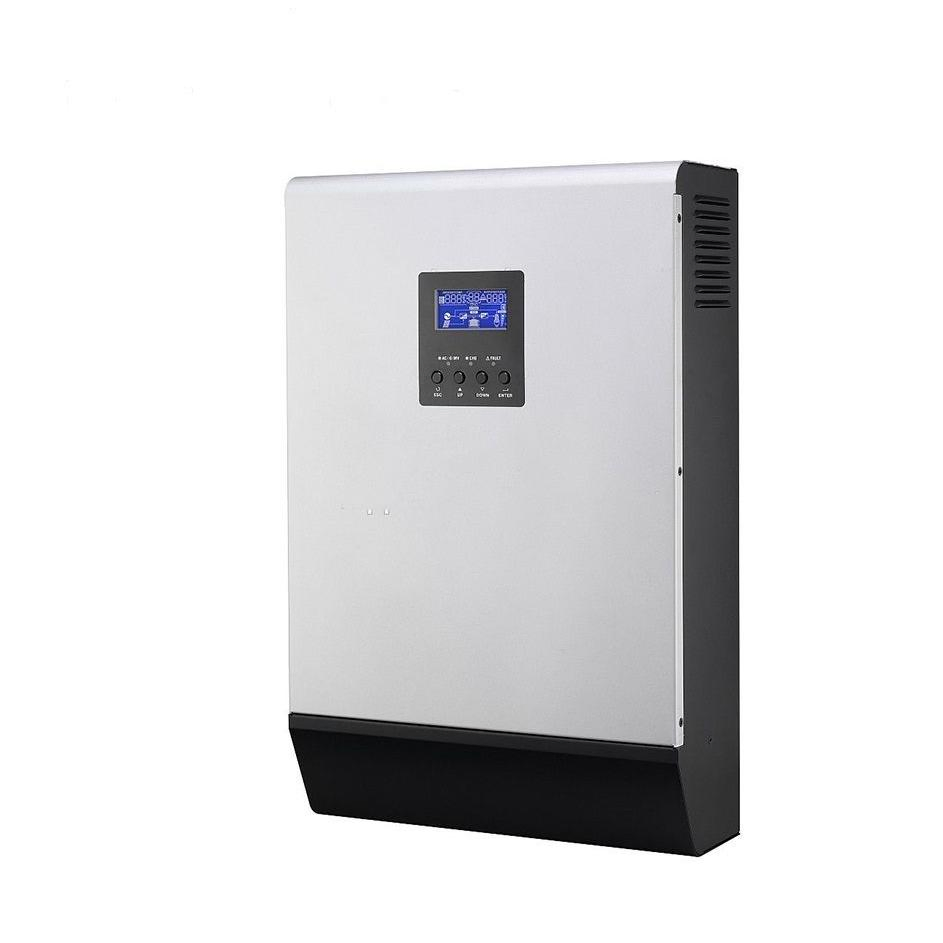

| 3 | Inverter | 4000W with MPPT | 3 PCS | Parallel connection |

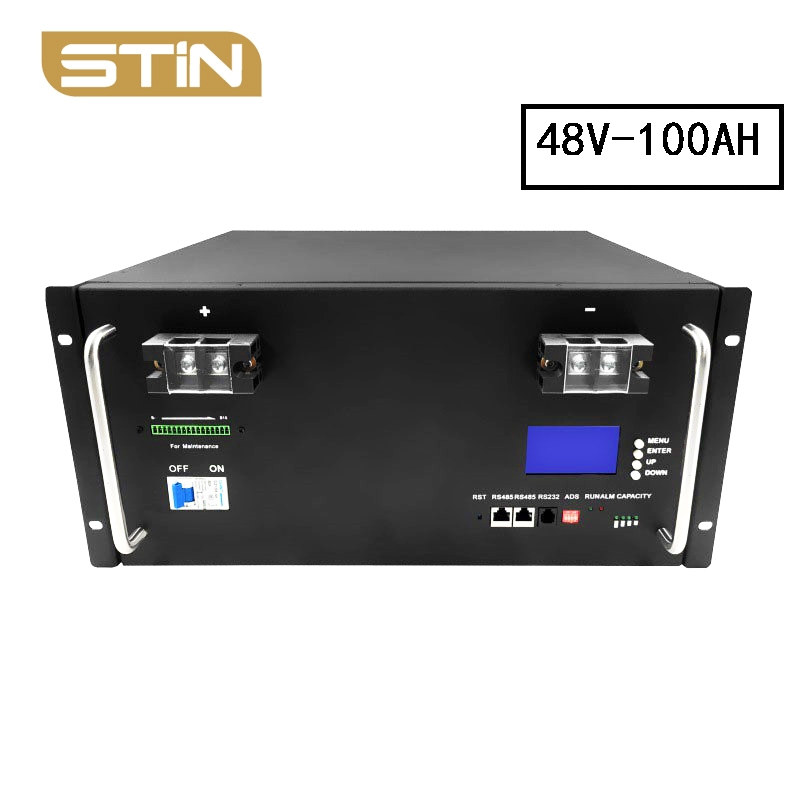

| 4 | Battery | LiFePo4 48V-100AH | 6 PCS | - |
| 5 | Cables | PV & BVR Cables | 1 SET | Red & Black pairs |
| 16000W Off-Grid Photovoltaic System (48VDC) | ||||
|---|---|---|---|---|
| Item | Part | Specification | Quantity | Remarks |
| 1 | Solar panel | Mono 410W | 36 PCS | 3 in series, 12 parallel |
| 2 | Combiner box | 3 inputs, 1 output | 4 SETS | - |
| 3 | Inverter | 4000W with MPPT | 4 PCS | Parallel connection |
| 4 | Battery | LiFePo4 48V-100AH | 8 PCS | - |
| 24000W Off-Grid Photovoltaic System (48VDC) | ||||
|---|---|---|---|---|
| Item | Part | Specification | Quantity | Remarks |
| 1 | Solar panel | Mono 410W | 54 PCS | 3 in series, 18 parallel |
| 2 | Combiner box | 3 inputs, 1 output | 6 SETS | - |
| 3 | Inverter | 4000W with MPPT | 6 PCS | Parallel connection |
| 4 | Battery | LiFePo4 48V-100AH | 12 PCS | - |
As a provider of clean sustainable solar energy solutions, we focus on product development, system integration, sales, and service. Our product range includes high-efficiency solar panels, turn-key on-grid, off-grid, and hybrid solar systems, inverters, and lithium-ion battery storage. We are committed to delivering reliable and cost-effective solar energy solutions globally through rigorous quality control and innovative design.
