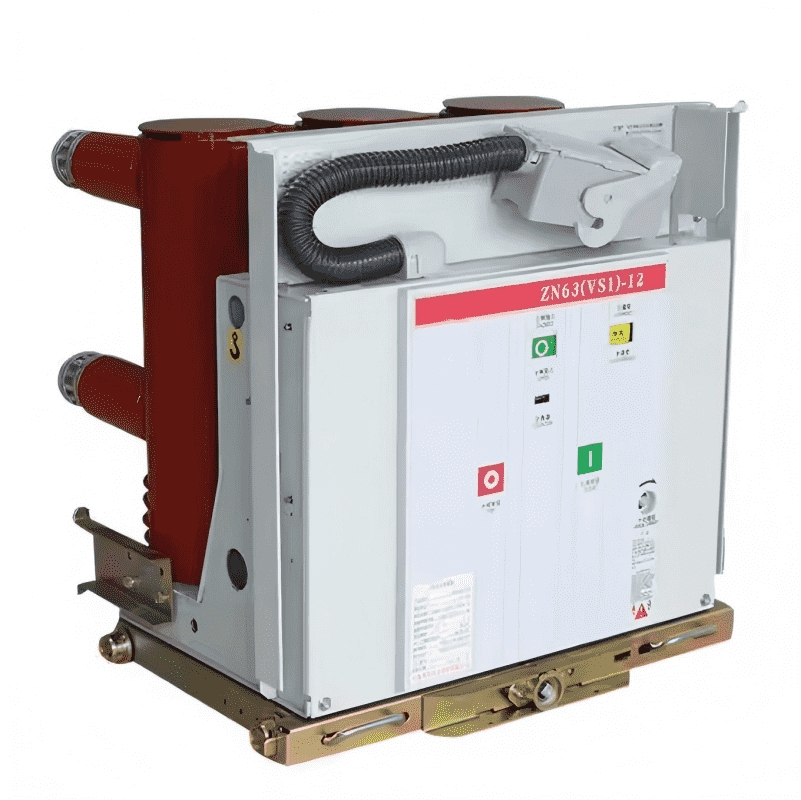

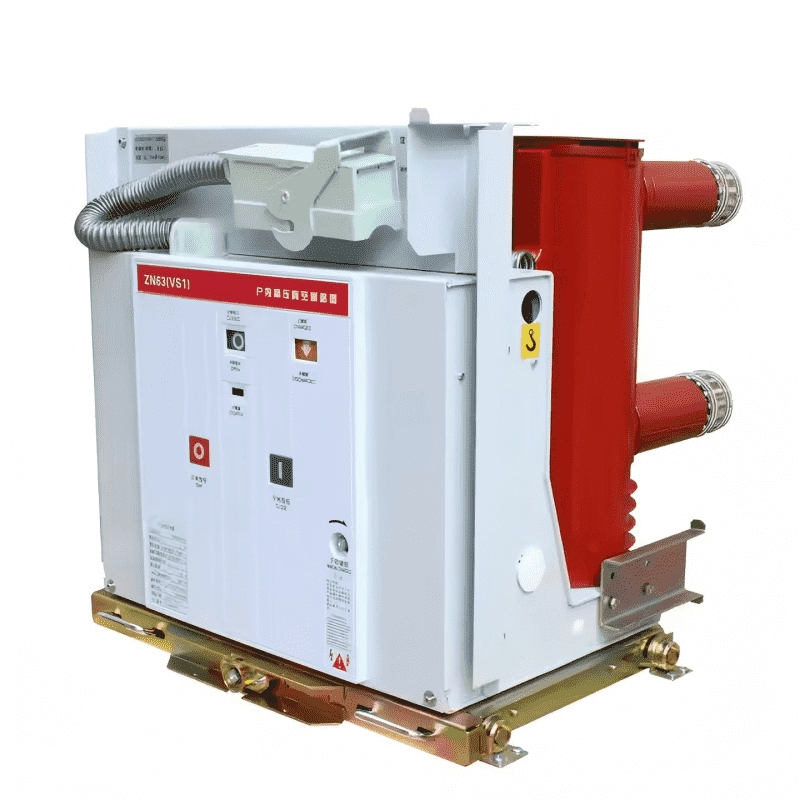

Compact Structure Electrical Breaker Explosion Circuit Breaker for Microgrids

Customization:	Available
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type

i

Basic Information

Model NO.

VS1

Speed

Normal Type Circuit Breaker

Arc-extinguishing Medium

Vacuum

Installation

Insert / Fixed / Withdrawable

Poles Number

3

Rated Voltage

12kV

Rated Current

630A~4000A

Rated Frequency

50Hz

Certification

ISO9001-2000, CCC

Origin

China

✓

Product Description

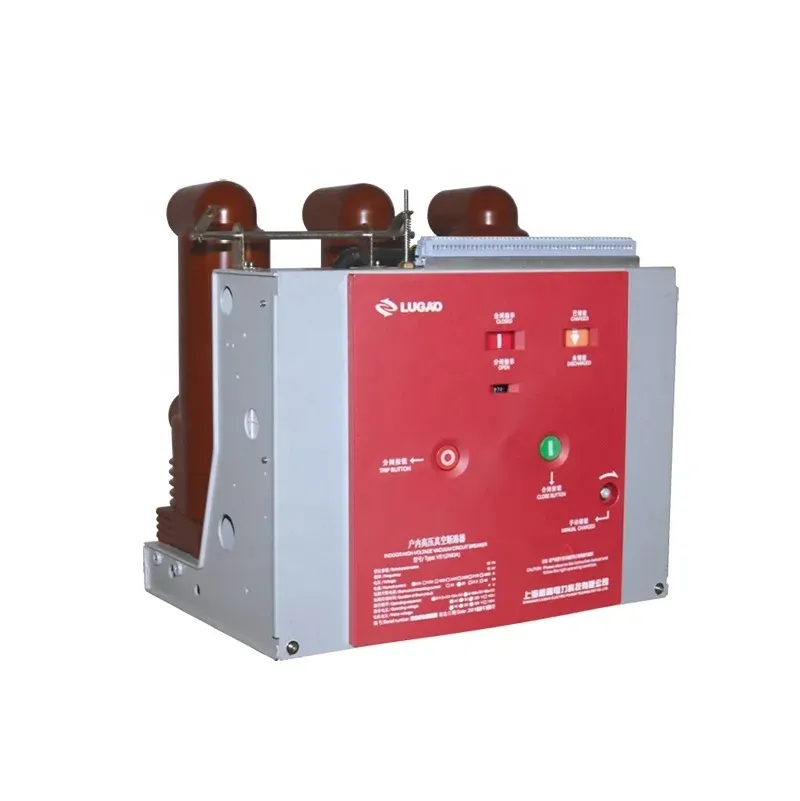

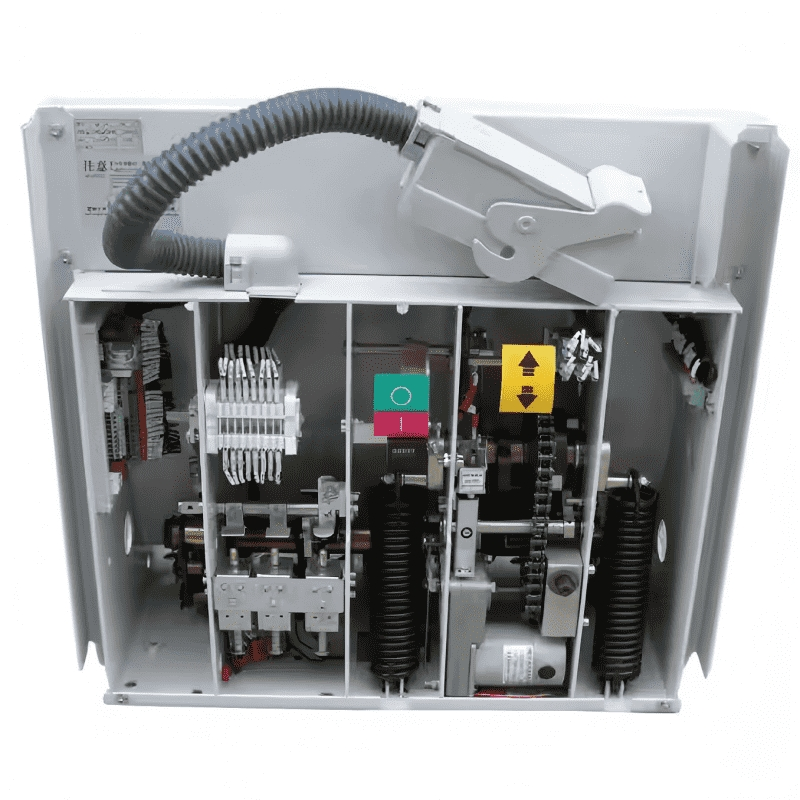

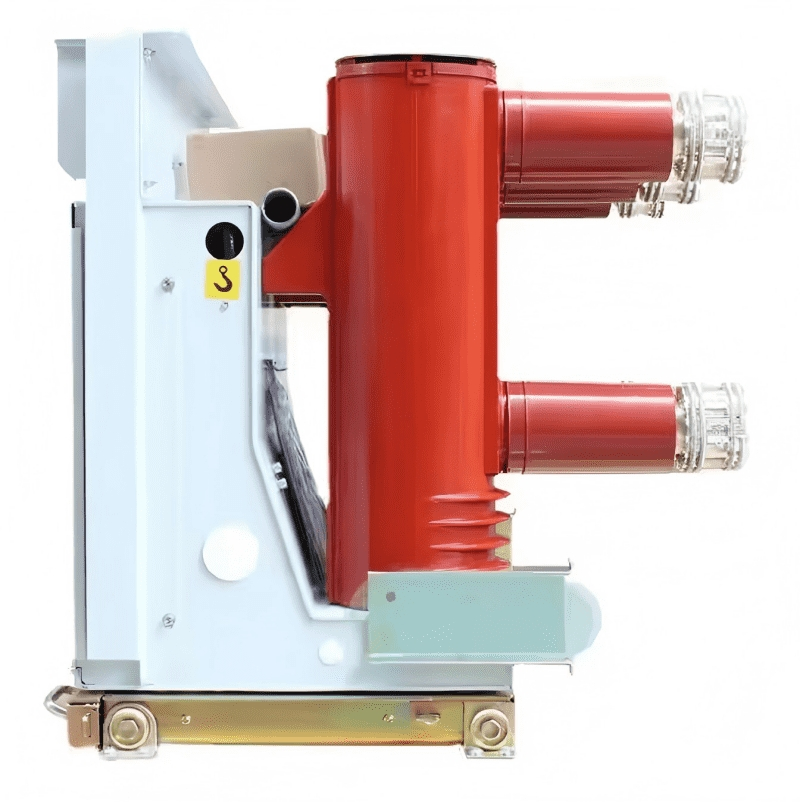

This series of vacuum circuit breakers is designed for applications that are frequently operated at rated working current or prone to multiple short-circuit breaking currents. The operating mechanism and circuit breaker body are integrated into a design with a reasonable, beautiful and compact layout. The vertical insulating shell can effectively resist impacts under various weather conditions and effectively prevent the vacuum circuit breaker from being damaged by external factors.

Advanced technology and rugged design ensure that high-voltage circuit breakers have unparalleled reliability and performance. There are two installation methods, fixed and withdrawable, to meet different usage requirements in microgrids and solar systems.

⚙

Technical Parameters

No.	Item	Units	Parameters
1	Rated voltage	kV	12
2	Rated current	A	630~1250 / 1250
3	Rated short-circuit breaking current	kA	20 / 25 / 31.5
4	Rated short-circuit closing current	kA	50 / 63 / 80
5	Rated peak withstand current	kA	50 / 63 / 80
6	4S rated short-circuit withstand current	kA	20 / 25 / 31.5
7	Insulation Level (1min power freq)	kV	42 (fracture 48)
8	Mechanism life	Times	10000
9	Average opening speed	m/s	1.1±0.2
10	Average closing speed	m/s	0.6±0.2

★

Certifications & Quality Control

The production process integrates cutting-edge technologies supported by rigorous quality control systems, ensuring compliance with international standards.

?

Frequently Asked Questions

Are you a manufacturer or a trader?

We are a leading & professional manufacturer specializing in high-voltage, medium-voltage, and low-voltage transmission and distribution equipment.

What are your after-sales service terms?

We provide 24-hour online support, 1-3 years quality guarantee, and door-to-door service for certain large-scale equipment like transformers and switchgear panels.

What payment methods do you accept?

We typically accept 30% T/T in advance as a deposit, with the balance due before shipment. For large orders, irrevocable L/C at sight is also accepted. Samples can be paid via Western Union or PayPal.

Can you provide invitation letters for site visits?

Yes, we can provide formal invitation letters for business partners planning to visit our manufacturing facilities.

What installation options are available for the VS1 vacuum circuit breaker?

The VS1 series supports both fixed and withdrawable installation methods to meet different switchgear and usage requirements.

What international quality certifications do your products hold?

Our products are manufactured under rigorous quality systems and hold certifications such as CE, RoHS, KEMA, CB, TUV, CCC, and ISO9001-2000.
