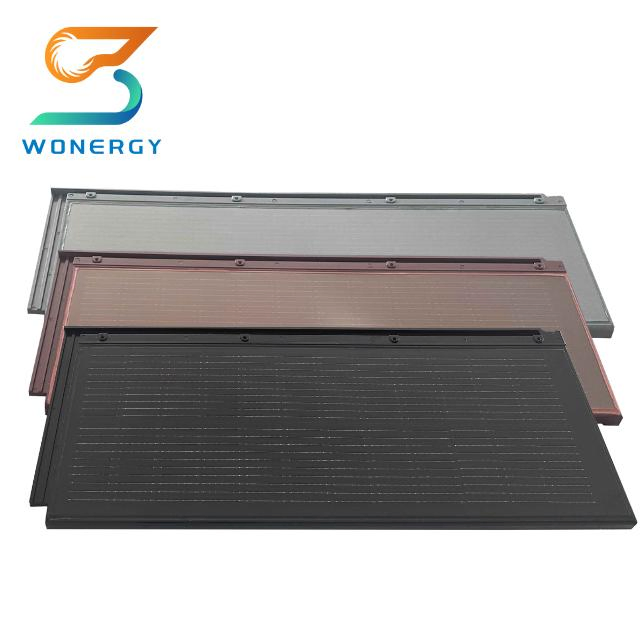

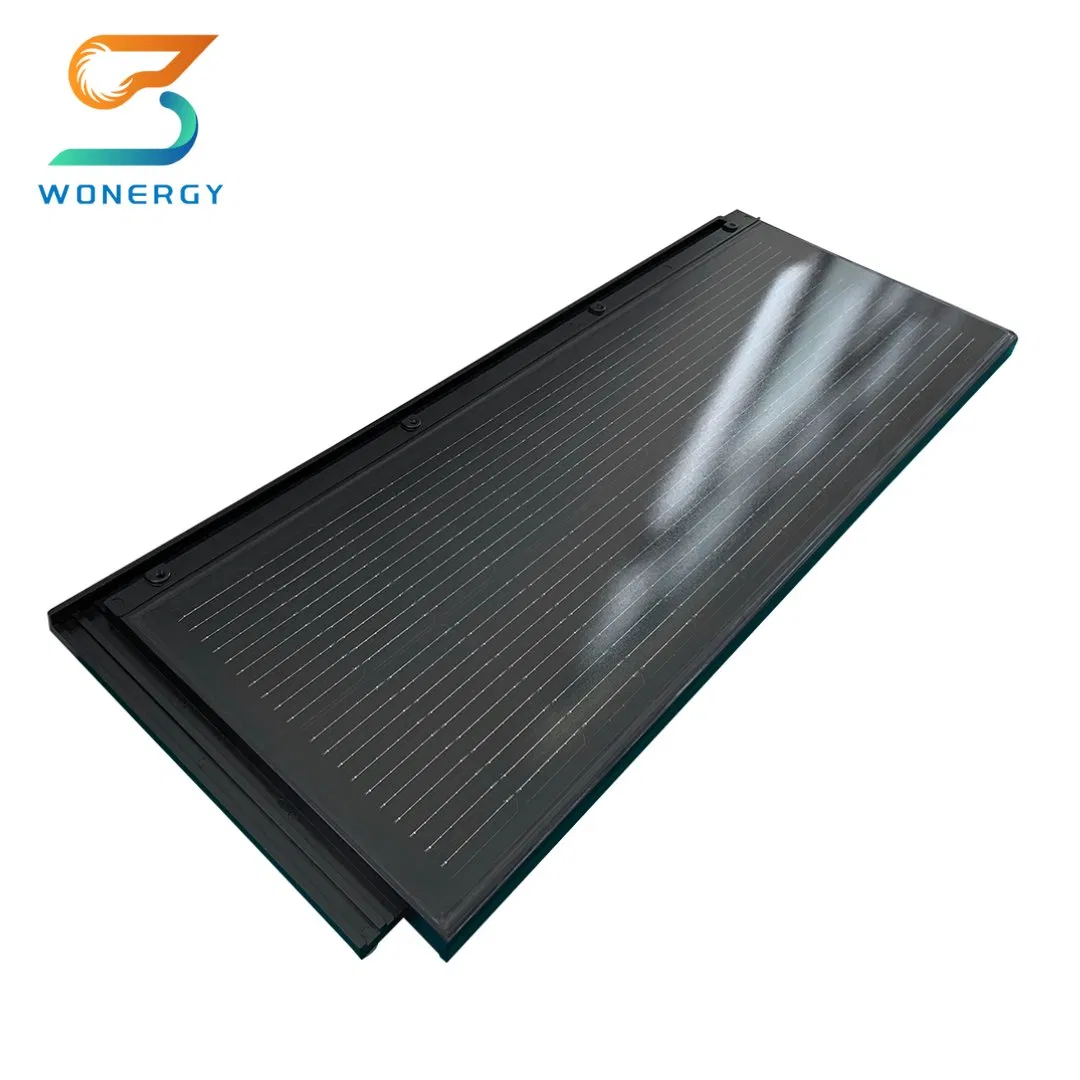

CE Europe BIPV Solar Installation Double Glass 3.2mm German Solar Roof Tiles

1 / 5

CE Europe BIPV Solar Installation Double Glass 3.2mm German Solar Roof Tiles

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Information

Model	SOLAR ROOF TILE
Shape	Plain
Color	Black
Model Specification	Js35dg-5e 1/2; Js87dg-12e 1/2
Glass	Tempered / 3.2mm
Junction Box	≥IP67
Cable Joiner	MC4
Fireproof	Class A
Temperature Range	-40℃ to +85℃
Class of Loading	2400PA
Maximum Fuse Rating	20A
Weight/Piece	9kg / 16.5kg
Battery Size	182*91mm
Certification	ISO, IEC61215/IEC61730
Warranty	30 Years
Production Capacity	1000 Pieces/Day

🚀

Product Description

⚡ Technical Specifications

Product Name	BIPV Solar Panel Powered Roof Structure Home Solar Tile Roofing
Material	Tempered glass, PVB/EVA/POB, Solar Cell, Bottom Support
Effective Size	1260480mm / 630480mm
Chip Type	Monocrystalline Silicon
Peak Power	35W / 87W
Pavement Density	1.65 - 3.31 pcs/sqm
Lifespan	> 30 Years

⭐ Key Product Features

1. High Power Generation

High-efficiency crystalline silicon cell technology and unique packaging for maximum output.

2. High Security

Class A fire protection and Class 15 wind resistance. Excellent waterproof and shock resistance.

3. High Loading Strength

3 times the strength of ordinary tiles; resistant to trampling and hail.

4. Fashion and Beauty

Customizable colors and integrated design for a coordinated, beautiful roof.

5. Thermal Insulation

Unique heat dissipation structure reduces roof temperature by up to 5°C.

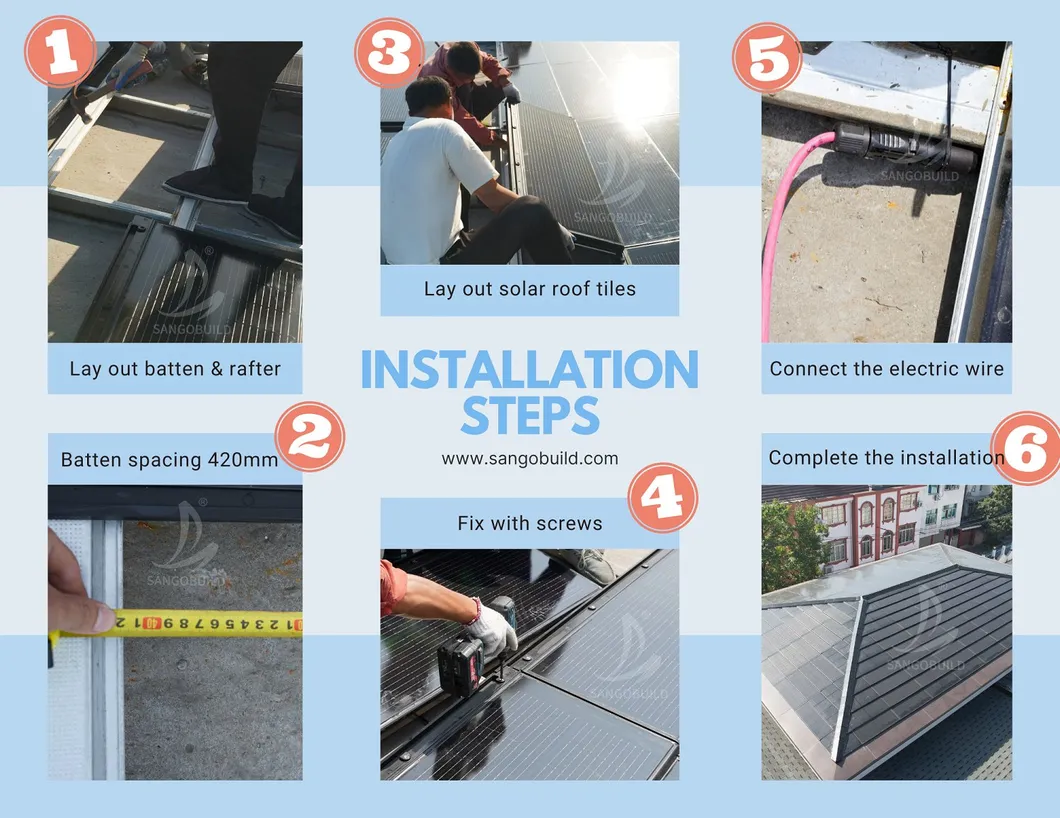

6. Easy Installation

Standardized modular units save installation time by more than 50%.

🏗️

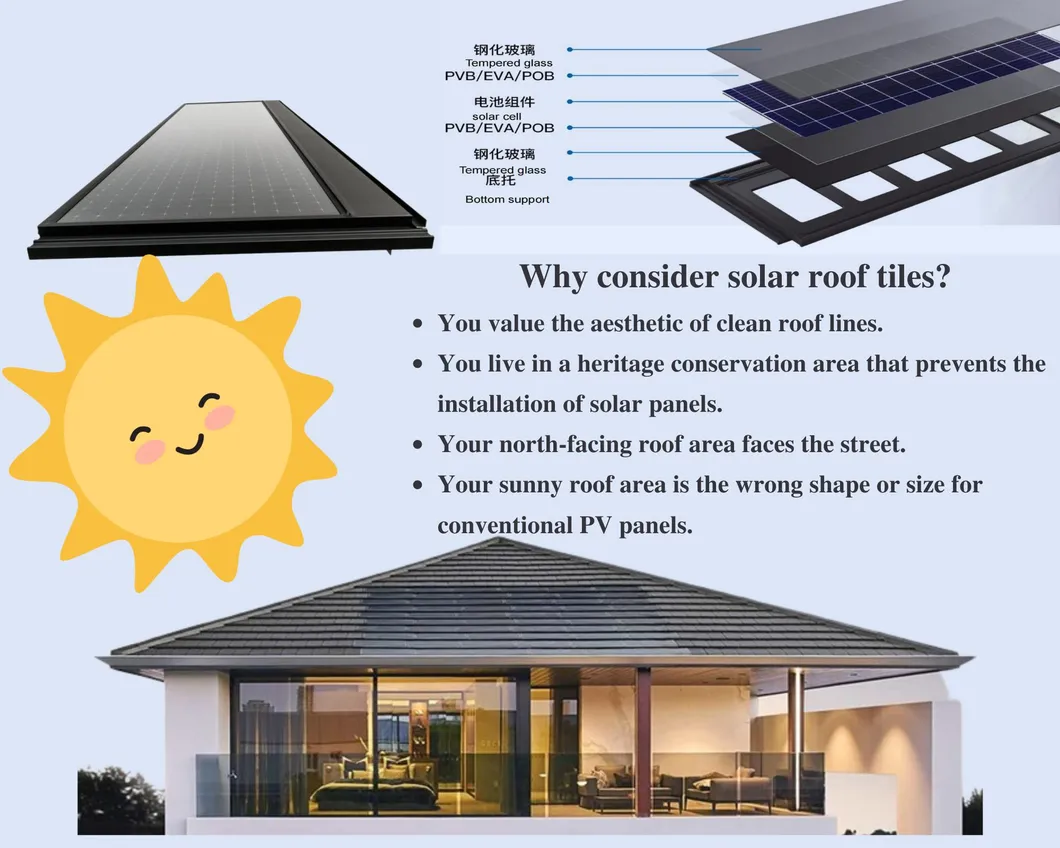

Structure of Product

📷

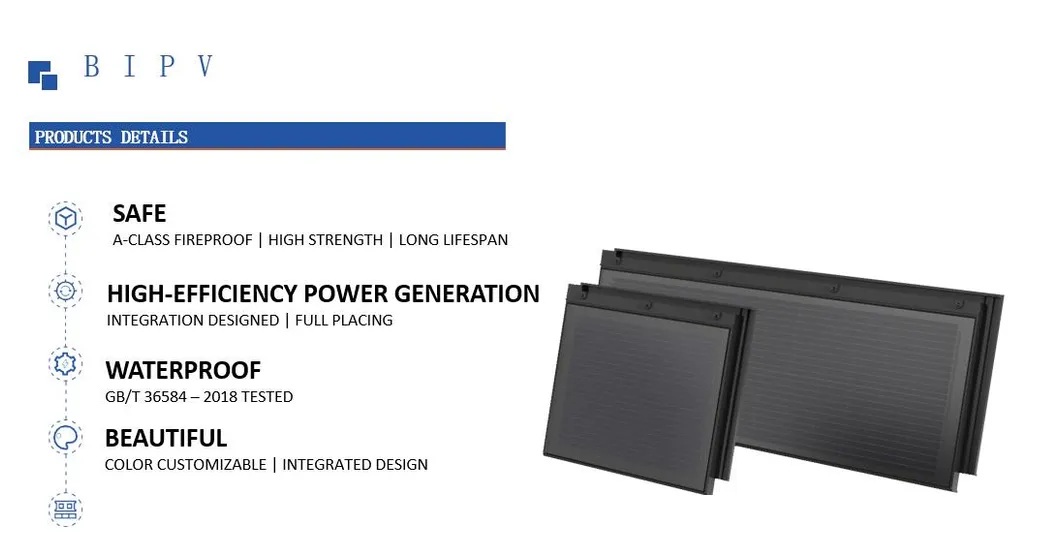

Detailed Photos

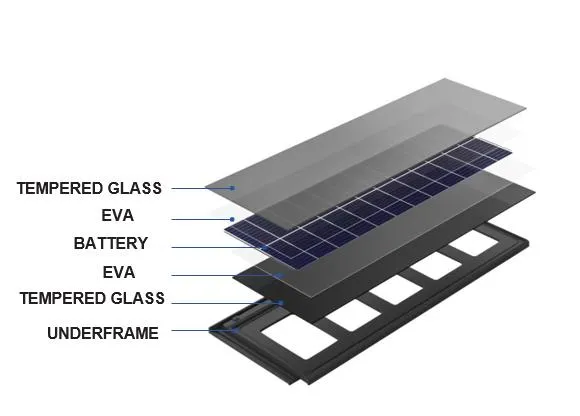

Solar Roof Tile Structures

Glass/glass solar panels are the standard for energy-generating buildings. This technology offers the highest durability against harsh environmental conditions and a longer lifespan.

🔧

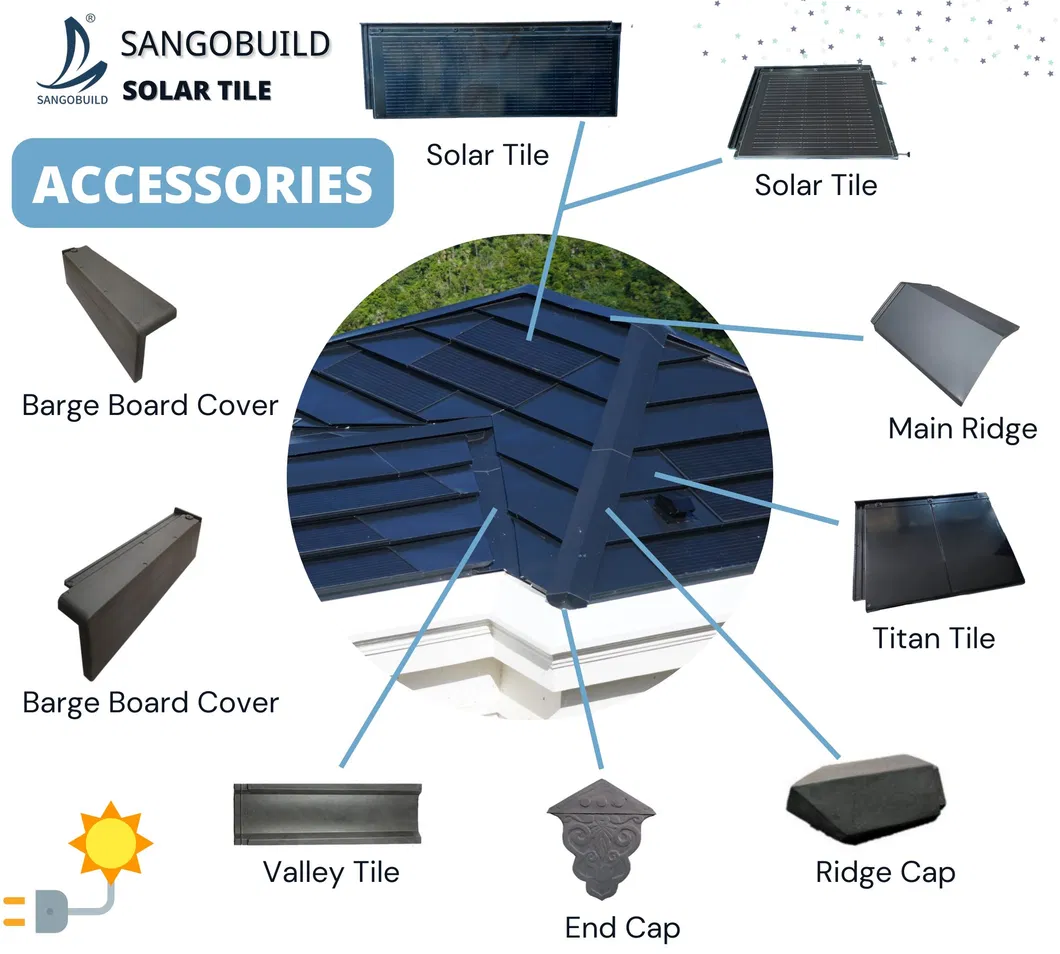

Accessories

📦

Packaging & Shipping

🏠

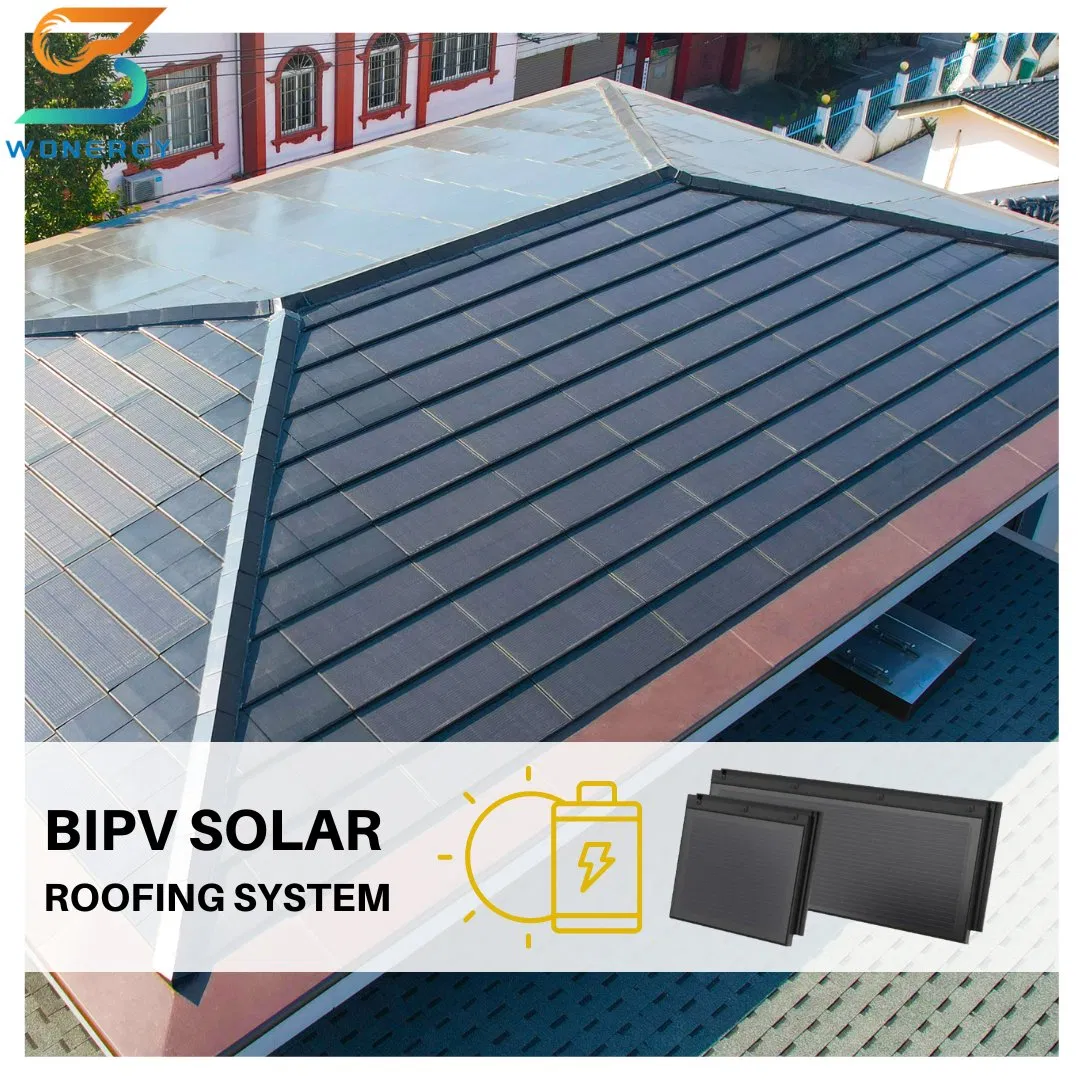

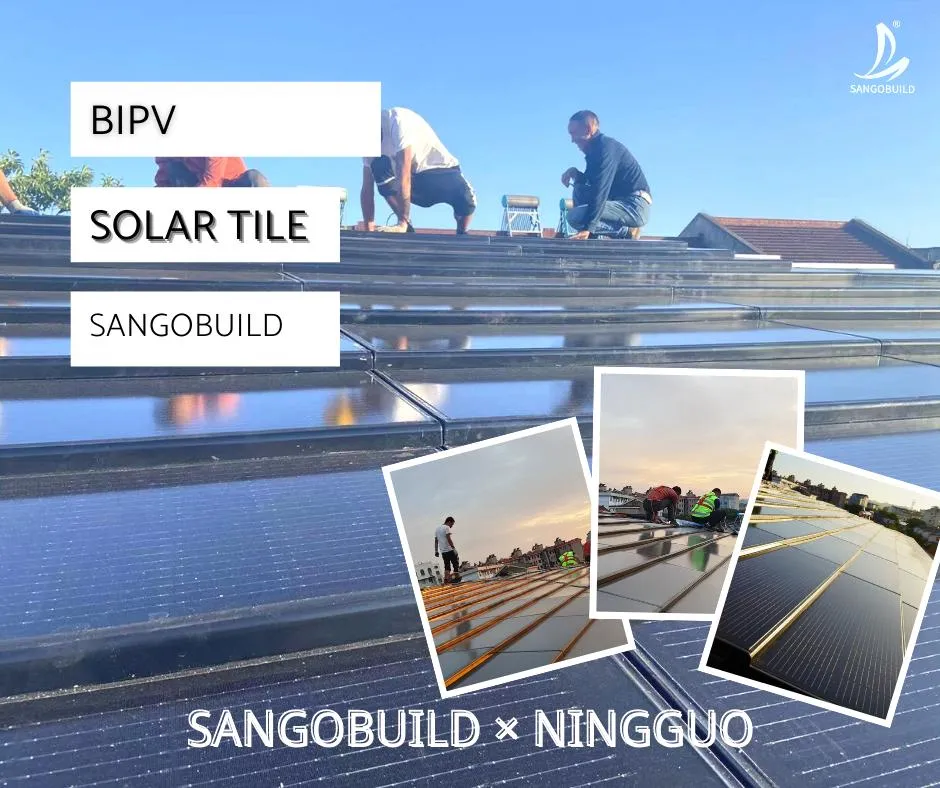

Project Gallery

❓

Frequently Asked Questions

Q: What Types of Building-Integrated Photovoltaics (BIPV) Can You Buy?

A: BIPV products function as part of the building skin while converting solar energy into electricity. Options include roofing panels, solar tiles, and solar shingles that resemble traditional slate or asphalt materials.

Q: Where Can You Install Building Integrated Photovoltaics (BIPV)?

A: BIPV can be installed as part of the roof structure or building facade. Our tiles are built with strong materials and specialized coating technologies, making them suitable for buildings intended to last over 50 years.

Q: How Much Energy Can BIPVs Produce?

A: System output depends on environmental factors like solar radiation (insolation), local climate, shading from trees or nearby buildings, and air pollution levels. Modern BIPVs are designed to maximize efficiency even in less-than-ideal conditions.

Q: How Long Do Solar Roofing Products Last?

A: Solar shingles and roofing tiles are designed to withstand rain, wind, and hail. They typically last for 25 to 30 years with only a minor drop in efficiency toward the end of their lifespan.

Q: Are BIPV Systems Worth the Investment?

A: Yes. By combining a roofing material and a solar panel into one product, BIPV essentially subsidizes the cost of going solar. They also offer added benefits like thermal insulation, noise reduction, and enhanced weather protection.

Q: What is the warranty on Solar Tiles?

A: Standard solar roof tiles often come with 25-year warranties for the tile itself, the power output, and weatherization, with high fire (Class A) and wind ratings.
