📘 Product Description

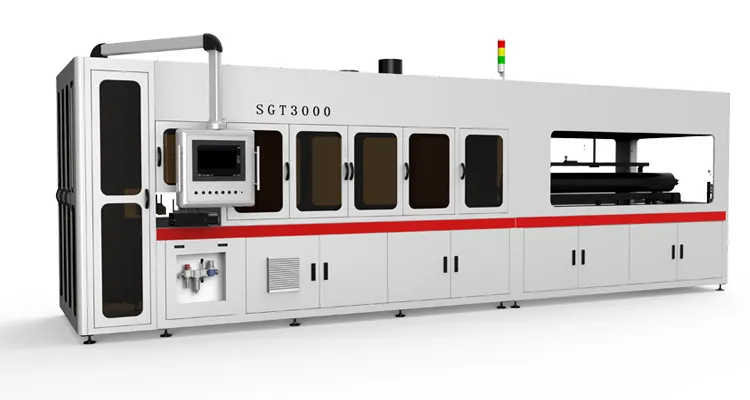

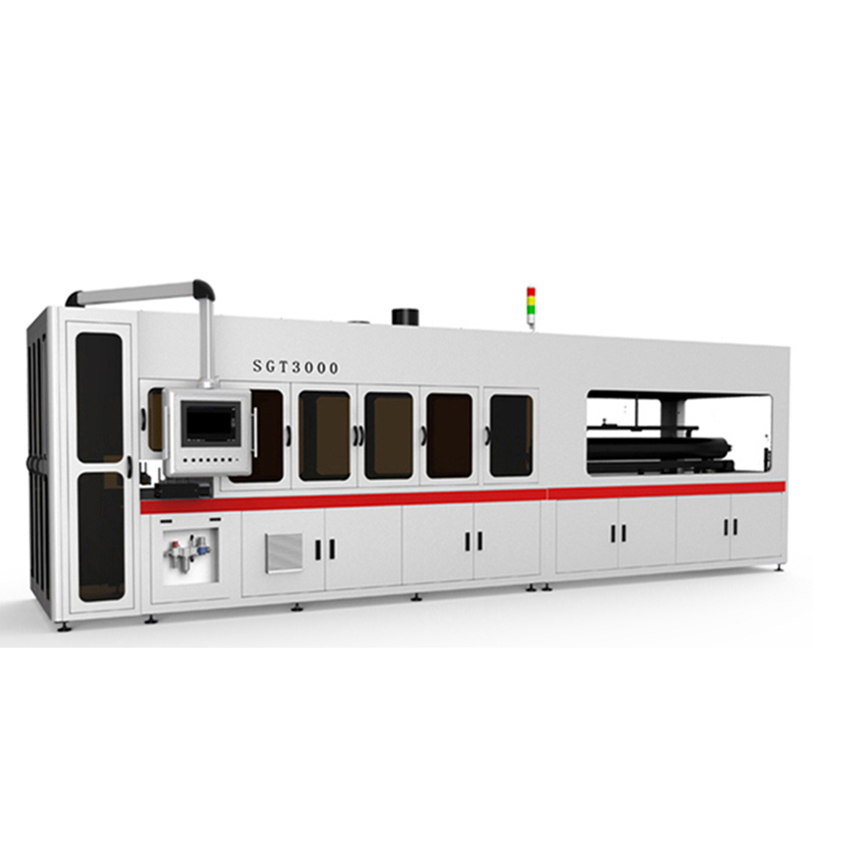

Automatic solar PV modules manufacturing machine for soldering solar cells
| Welding speed |
3000 pcs/h |
Ribbon Specifications |
Thickness: 0.15-0.3mm
Width: 0.7-2mm |
| Welding way |
Infrared welding |
Breakage |
≤0.1% |
| Cells grid line |
2-6BB |
Power |
AC380V(3phases, 5lines)/50~60Hz/35KW |
| Weld band width |
1.2mm, 1.6mm, 1.8mm, 2.0mm (optional) |
Cells per battery |
1-12 pcs |
| Misalignment |
≤±0.1mm |
Battery gauge |
156*156mm, 156*78mm |
| Size |
6000*1450*2100mm |
Net weight |
3500 Kg |
💡 Characteristics
- CCD visual defect detection and positioning, immersion soldering flux method, and unique flexible pressure holding welding band mechanism.
- Infrared heating with section welding. Closed-loop control for temperature and power ensures gentle temperature climb, small thermal shock, and effective reduction of battery chip fragment rates.
- Optional battery string detection system to detect main gate misalignment and busbar positions.
- High-speed four-axis manipulator batteries for efficient classification, handling, and positioning.
🏭 Production Line Details

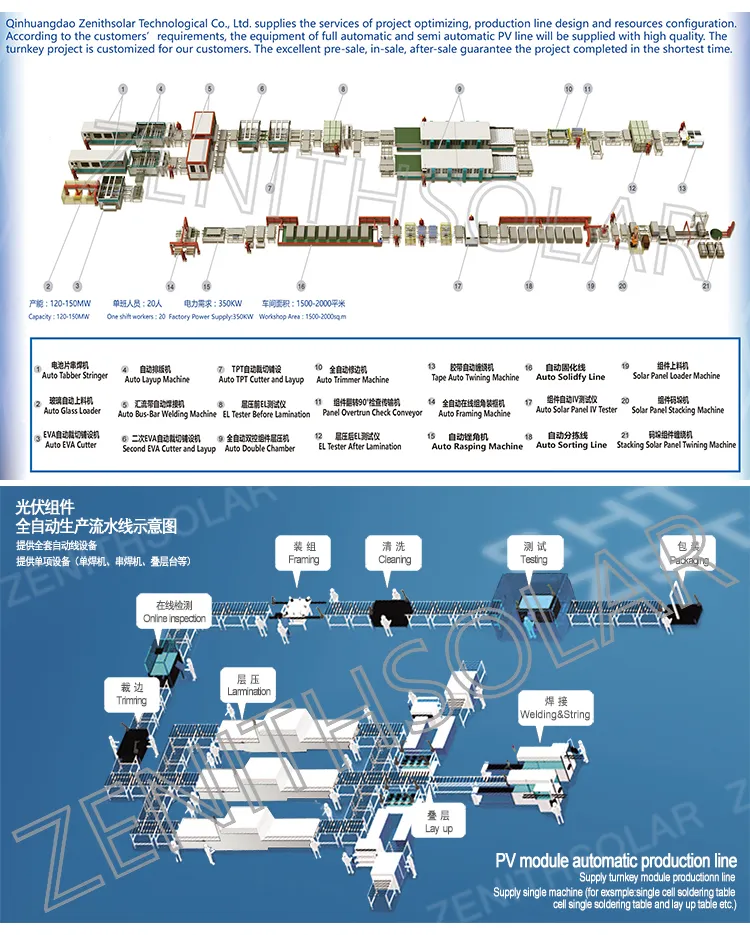

We supply customized complete production lines. Our engineers can adjust the layout and performance of the production line according to specific customer requirements.
❓ Frequently Asked Questions
Q1: What is the maximum welding speed of the machine?
A: The machine can reach a welding speed of up to 3000 pieces per hour (3000 pcs/h).
Q2: Which solar cell sizes are compatible with this equipment?
A: It supports standard battery gauges including 156*156mm and 156*78mm.
Q3: How does the machine minimize battery cell breakage?
A: It utilizes infrared heating with closed-loop power control for gentle temperature increases and minimal thermal shock, keeping the breakage rate ≤0.1%.
Q4: Does the machine support different grid line configurations?
A: Yes, it is compatible with battery cells ranging from 2BB to 6BB (Busbars).
Q5: Is the production line customizable?
A: Yes, we provide customized complete production lines where layout and performance can be adjusted to meet specific customer needs.
Q6: What certifications does the welding machine have?
A: The machine is fully certified with CE and ISO standards for industrial quality assurance.
