Fully Automatic Solar Panel PV Module Laminator EVA Glass Laminating Machine
1 / 1
Fully Automatic Solar Panel PV Module Laminator EVA Glass Laminating Machine

Fully Automatic Solar Panel PV Module Laminator EVA Glass Laminating Machine

Customization: Available
Production Scope: Parts Production Line
Automation: Automation
Send Inquiry

Product Description

Technical Specifications Overview

Transmission Type
Flexible
Production Line
Comprehensive Automatic
Certification
CE, ISO
Manufacturing
Intelligent Manufacturing
Rhythm
Flow Production Line
Transport Package
Frame Container
HS Code
848640
Capacity
100 Set/Sets Per Year

Negotiate the price according to specific circumstances

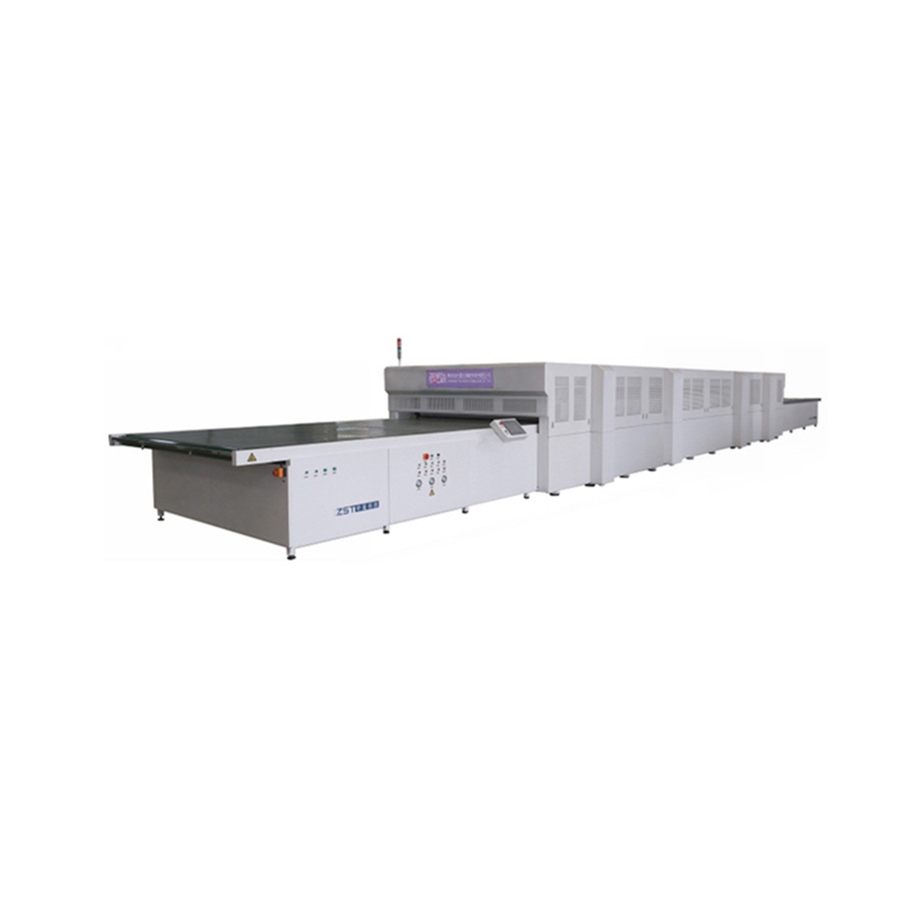

Fully Automatic Solar Panel PV Module Laminator EVA Glass Laminating Machine

Solar Panel Laminator

Detailed Parameters

PowerAC380V/50HZ/3Phases/5Lines Capacity25-75(1-3shift)MW/year
Noise at Work<65dB Vacuum Rate606m³/H
Normal power36KW Max. Power110KW
Cavity height25mm Lamination Area2200*4500mm*2
Temperature range30ºC~180ºC Uniformity≤±2ºC
Working Temp100ºC~160ºC Accuracy±1ºC
Max Setting Temp180ºC Heating PlatformNon-flatness ≤ 300μm/m²
Dimensions20400*3200*1850mm Weight32T

Product Highlights

📐 Integrated Design

Patented design with vacuum and oil pumps integrated inside to maximize plant space efficiency.

🔇 Low Noise Operation

Equipped with high-quality imported vacuum pumps, reducing noise to 65dB for a better work environment.

💨 Smokeless System

Unique smokeless pump design eliminates the need for complex external exhausting systems.

⚡ Energy Efficient

Engineered to save approximately 30% energy compared to conventional industry brands.

Visual Display

Module Laminator Detail 1 Module Laminator Detail 2 Module Laminator Detail 3
Module Laminator Full View Production Line Integration

Frequently Asked Questions

What certifications does the solar laminating machine have?
The machine is fully certified with CE and ISO standards, ensuring international quality and safety compliance.
How much energy can this system save?
Our patented integrated design allows for approximately 30% energy savings compared to other standard industry brands.
Is the machine noisy during full production?
No, by utilizing premium vacuum pumps, the operational noise is kept below 65dB, providing a comfortable working environment.
Does the equipment require an external exhaust system?
Thanks to the unique smokeless design of the pump, you do not need to configure an additional exhausting system for smoke removal.
What is the maximum lamination area available?
The equipment provides a large lamination area of 2200*4500mm*2, suitable for high-capacity PV module production.
What is the annual production capacity of this line?
The capacity ranges from 25 to 75 MW per year depending on the number of shifts (1-3 shifts).
