10-30MW Annual Capacity Automatic PV Module Laminating Machine
10-30MW Annual Capacity Automatic PV Module Laminating Machine
10-30MW Annual Capacity Automatic PV Module Laminating Machine
10-30MW Annual Capacity Automatic PV Module Laminating Machine
10-30MW Annual Capacity Automatic PV Module Laminating Machine
1 / 5
10-30MW Annual Capacity Automatic PV Module Laminating Machine
10-30MW Annual Capacity Automatic PV Module Laminating Machine
10-30MW Annual Capacity Automatic PV Module Laminating Machine
10-30MW Annual Capacity Automatic PV Module Laminating Machine
10-30MW Annual Capacity Automatic PV Module Laminating Machine

10-30MW Annual Capacity Automatic PV Module Laminating Machine

Customization: Available
After-sales Service: Life Time
Warranty: 1 Year, 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
27-29
Transmission Type
Flexible
Production Line
Comprehensive / Automatic
Certification
ISO, CE
Automation
Automation
Production Scope
Parts Production Line
After-Sales Service
All Life
Capacity
10-30MW
Transport Package
Frame Container
HS Code
848640
Annual Output
30 Sets Per Year
Product Description

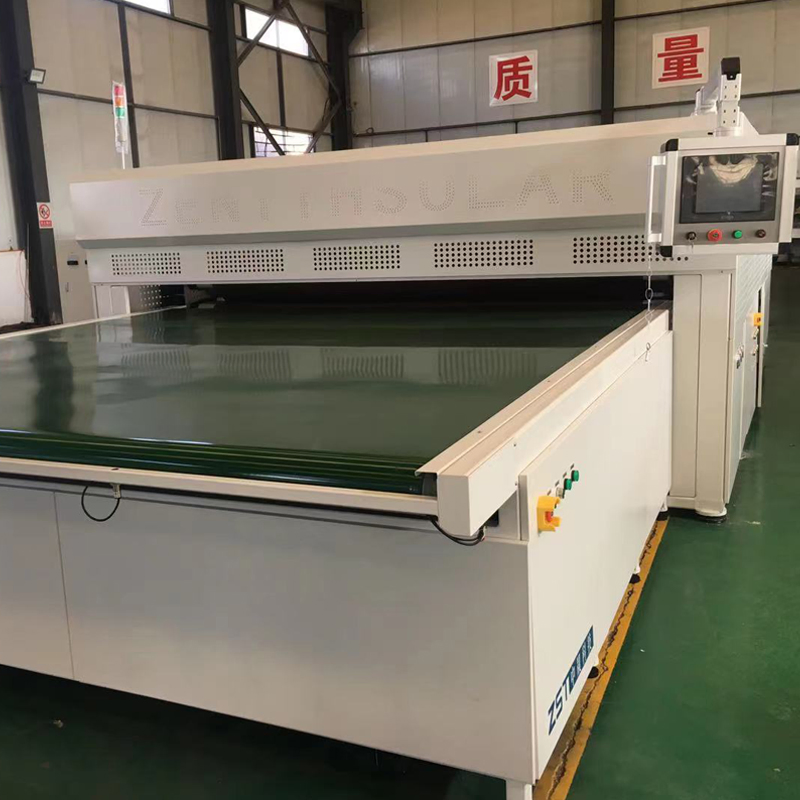

10-30MW Annual Capacity Automatic PV Module Laminating Machine
Compatible with M12 solar cell panels. This equipment supports customization based on specific industrial requirements.

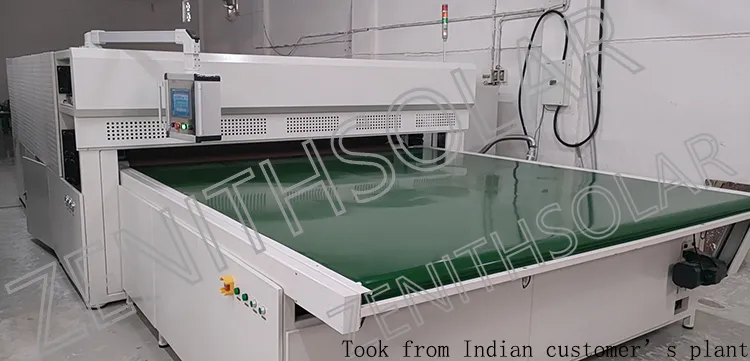

PV Module Laminating Machine
Technical Parameters
Power AC380V/50HZ/3Phases/5Lines Capacity 12-36(1-3shift)MW/year
Normal Power 25KW Max. Power 55KW
Cavity Height 25mm Lamination Area 2700*2900mm
Temperature Range 30ºC ~ 180ºC Uniformity ≤±2ºC
Working Temp 100ºC ~ 160ºC Accuracy ±1ºC
Max. Oil Temp 180ºC Platform Flatness Per sq.m non-flatness ≤ 300μm
Dimensions 10280*3590*2330mm Weight 12.8T
Key Characteristics
🟦 Integrated Design

Vacuum and oil pumps are placed inside the machine to save plant floor space (Patented design).

🟦 Lower Noise

Utilizes high-quality vacuum pumps to reduce noise levels to 65dB for a better working environment.

🟦 Smoke Free

Unique smokeless pump design eliminates the need for complex exhausting systems.

🟦 Energy Saving

Offers approximately 30% energy savings compared to standard industry brands.

🟦 CE Certificate

Full compliance with CE standards for all machines in the production line.

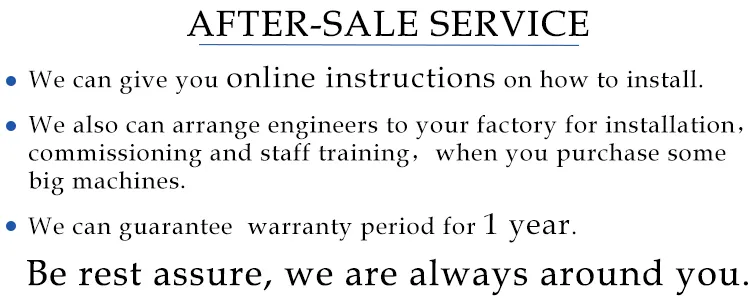

Laminating Machine View 1
Laminating Machine View 2
Laminating Machine View 3

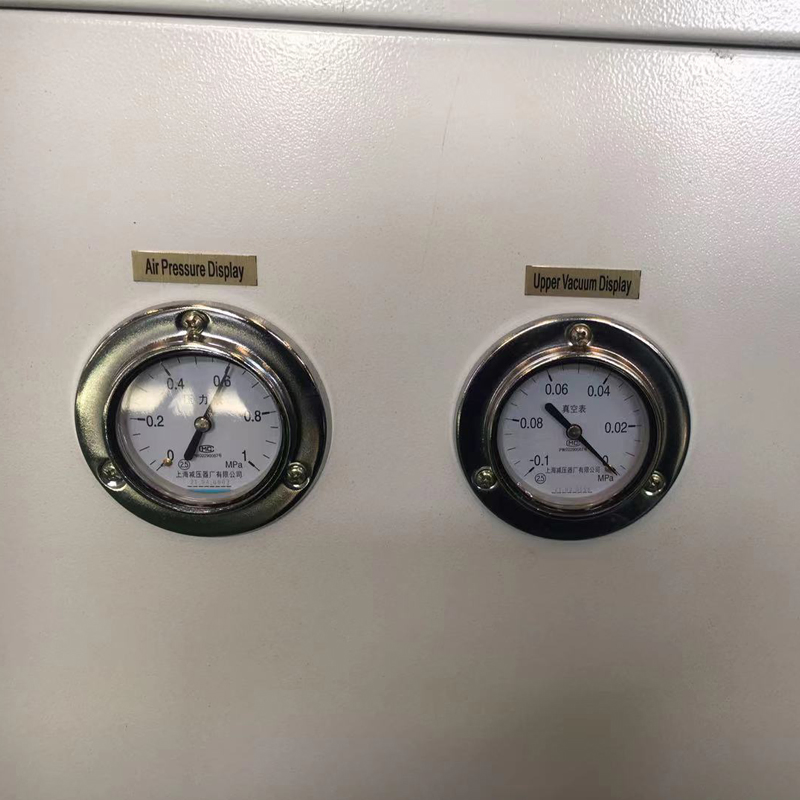

Machine Detail 1

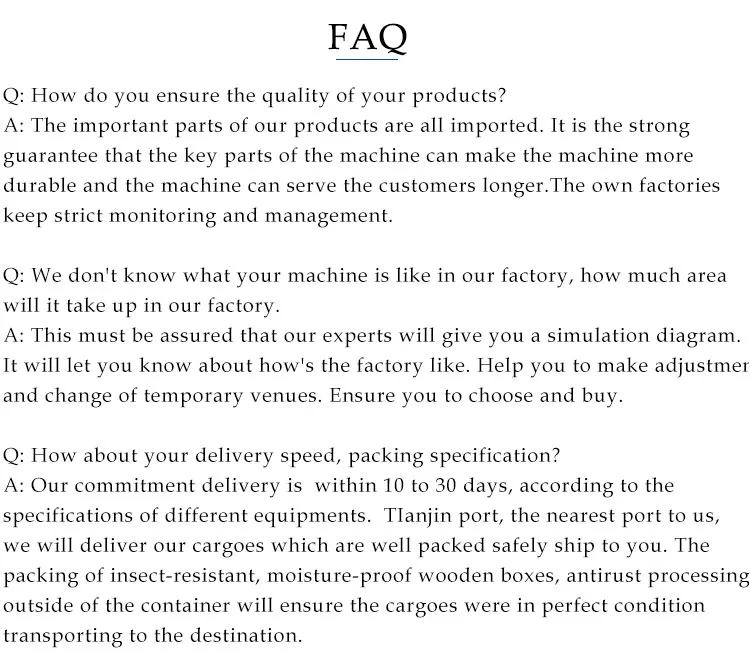

Machine Detail 2
Frequently Asked Questions
What is the annual production capacity of this machine?
The machine is designed for an annual capacity of 10-30MW, depending on the number of shifts operated.
Is the laminating machine compatible with large solar cells?
Yes, it is fully compatible with M12 solar cell panels and supports modern high-efficiency module production.
How does the integrated design benefit factory operations?
By housing the vacuum and oil pumps inside the machine, it significantly reduces the footprint, helping to maximize your available plant space.
What is the temperature accuracy of the heating platform?
The machine offers high precision with a temperature accuracy of ±1ºC and uniformity across the platform of ≤±2ºC.
Does this equipment require an external exhaust system?
Due to its unique smokeless pump design, an external exhausting system is typically not required for standard operations.
Is the machine certified for international markets?
Yes, the equipment has passed CE certification and meets ISO quality management standards.
