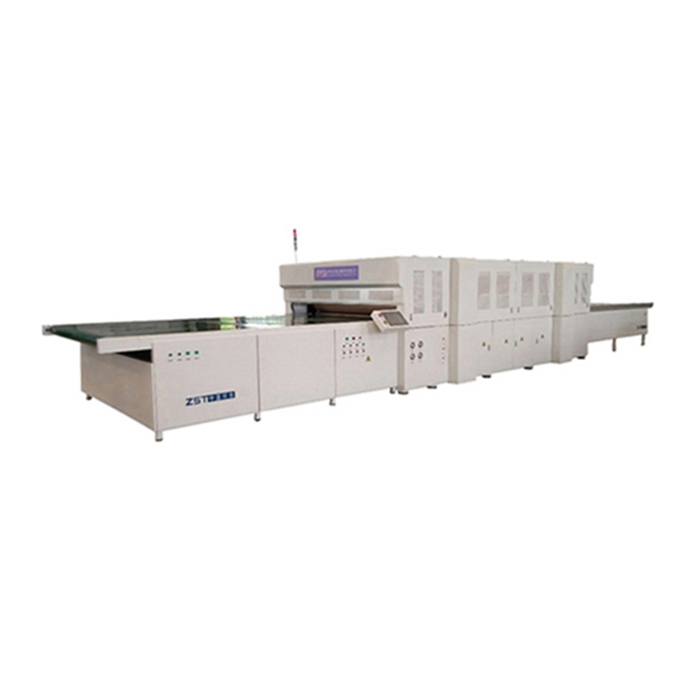

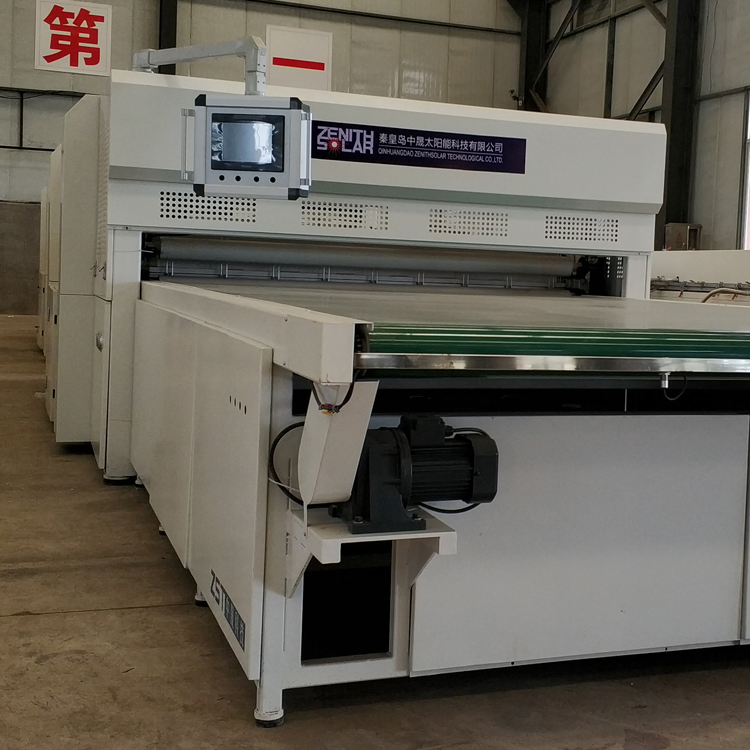

Full Automatic PV Module Assembly Solar Cell Vacuum Lamination Machine
Full Automatic PV Module Assembly Solar Cell Vacuum Lamination Machine
1 / 2
Full Automatic PV Module Assembly Solar Cell Vacuum Lamination Machine
Full Automatic PV Module Assembly Solar Cell Vacuum Lamination Machine

Full Automatic PV Module Assembly Solar Cell Vacuum Lamination Machine

Customization: Available
After-sales Service: Life Time
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications

Automation
Automation
Transmission Type
Flexible
Production Line
Comprehensive
Certification
CE, ISO
Flexible Production
Intelligent Manufacturing
Rhythm
Flow Production Line
Production Scope
Parts Production Line
Transport Package
Frame Container
Specification
11800*3200*1800mm
HS Code
848640
Production Capacity
100 Set/Sets Per Year

Full Automatic PV Module Vacuum Lamination Machine

PV Module Assembly Machine
Solar Cell Vacuum Lamination

Technical Parameters

Power AC380v/50HZ/3phases/5Lines Capacity 10-30(1-3shift)MW/year
Noise at work <65dB Vacuum Rate 200m³/H
Normal Power 15KW Max. Power 52KW
Max. Temperature 180ºC Lamination Area 2200*3600mm
Heating Platform Non-flatness ≤300μm/m² Temp. Uniformity ≤±2ºC
Dimension 11800*3200*1800mm Weight 12.8T

Key Characteristics

1
Integrated Design Patented design where the vacuum pump and oil pump are placed inside the machine, significantly saving plant space.
2
Lower Noise Operation Equipped with high-quality imported vacuum pumps, reducing operational noise to below 65dB for a better working environment.
3
Smokeless Technology Unique smokeless pump design eliminates the need for complex external exhausting systems.
4
Energy Efficiency Advanced engineering provides approximately 30% energy savings compared to standard industry models.
5
✓
Certified Quality Full compliance with CE certification standards for all PV line machinery.
Process Detail 1
Process Detail 2
Process Detail 3
Process Detail 4
Process Detail 5

Frequently Asked Questions

What is the annual production capacity of this lamination machine?
The machine has a capacity of 10-30 MW per year depending on the shift configuration (1-3 shifts), with a total output of up to 100 sets per year.
Does the machine require a special exhaust system for smoke?
No, the machine features a unique smokeless design, so you do not need to configure an external exhausting system.
How much space can be saved with the integrated design?
By placing the vacuum and oil pumps inside the machine frame, the footprint is significantly reduced, allowing for more efficient use of your factory floor space.
What are the noise levels during operation?
The machine uses high-end vacuum pumps that keep noise levels below 65dB, ensuring a comfortable working environment for operators.
What certifications does the equipment carry?
All machines in our PV production line have passed CE and ISO certifications, meeting international safety and quality standards.
What is the maximum lamination area supported?
The machine supports a maximum lamination area of 2200*3600mm, suitable for various PV module sizes.
