Manufacturing Solar Panel-Automatic Trinity Solar Module Hydraulic Riveting Angle Framing Machine

Customization:	Available
Hydraulic System Pressure:	16m
PA Combining Pressure:	0.5~10 MPa

Overview & Technical Specifications

Model	Hydraulic Riveting Angle Framing
Compressed Air	0.4~0.7MPa
Panel Size Range	Length (1634-2500 mm) Width (986-1400mm)
Hydraulic Parts	High-performance Import Brands
Control System	User-friendly, Safe, and Reliable
Pressure Range	15MPa
Support	24 Hours Online Support
Warranty	12 Months
Packaging	Professional Wooden Box

Product Description

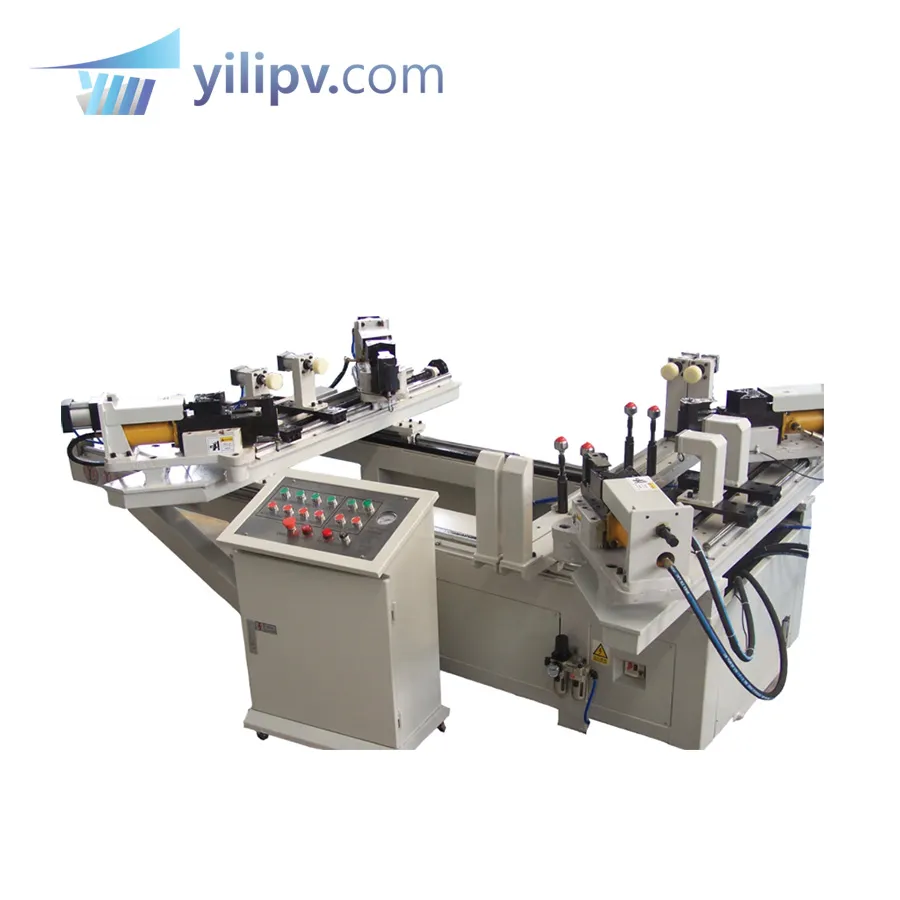

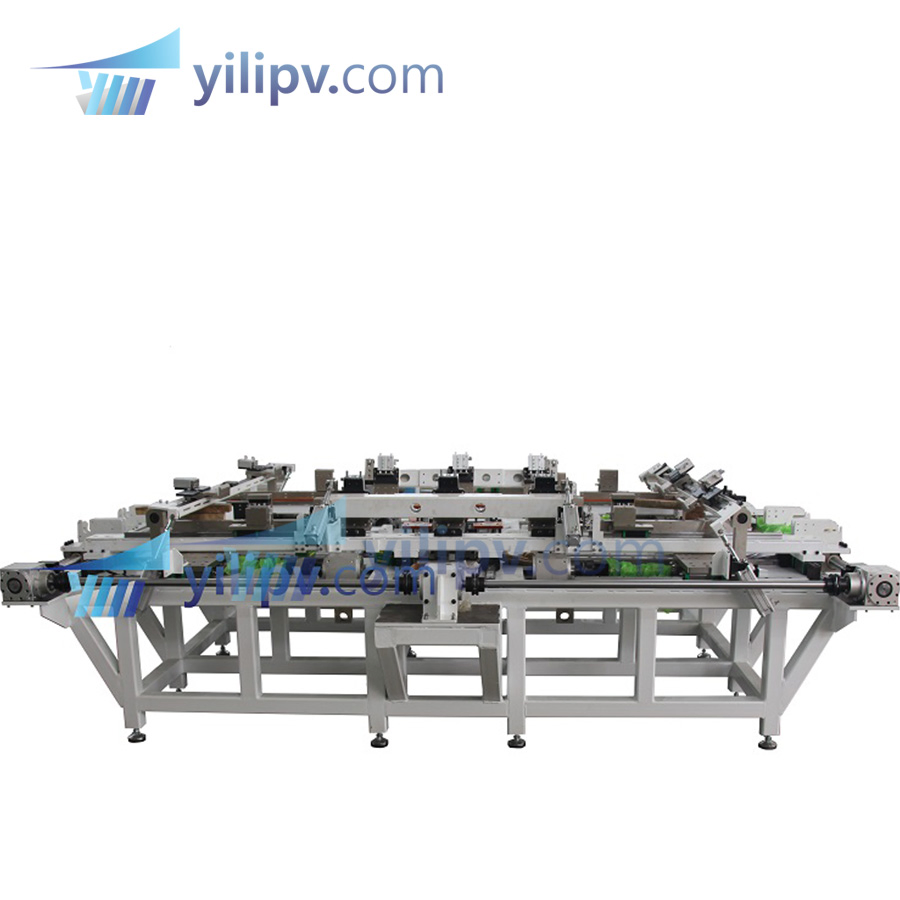

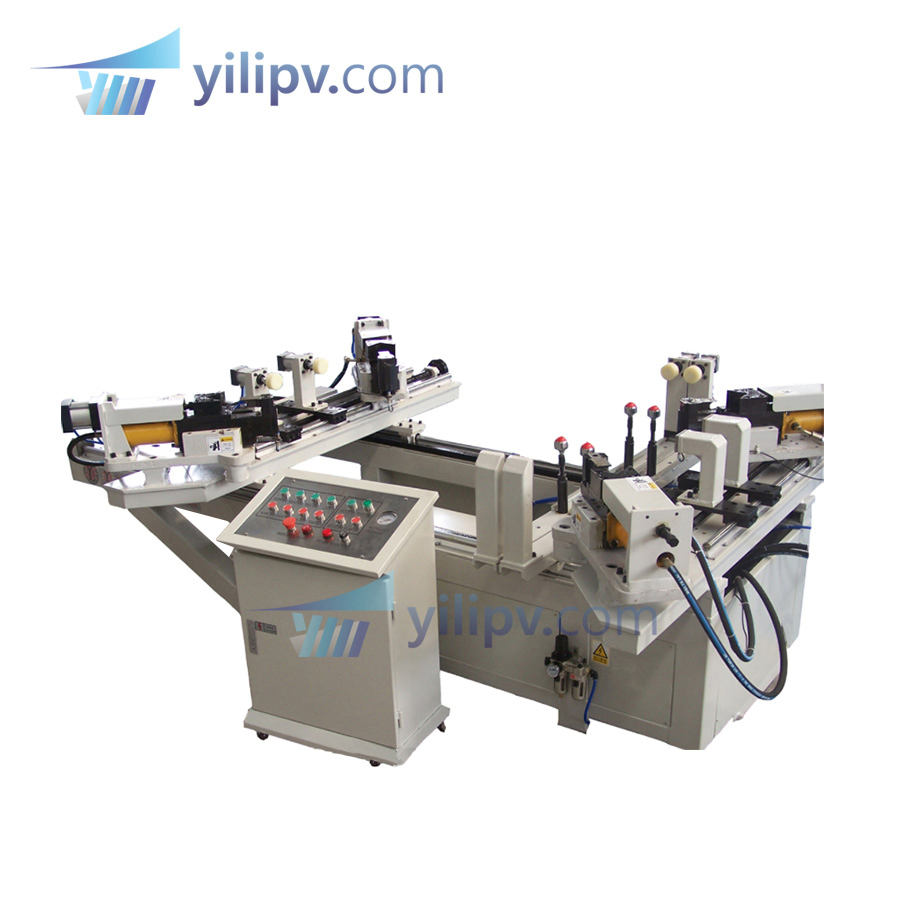

Automatic Solar Module Hydraulic Riveting Angle Framing Machine

This specialized equipment is designed for the precise combination of solar module frames. It offers high flexibility and robust performance for modern PV production lines.

⚙️ Flexible Adjustment: Easily adjustable specifications and dimensions ranging from 800x800mm to 2500x1500mm to meet various production needs.
🔧 Customizable Tooling: Equipped with a punching cutter that can be customized according to specific frame profiles.
💧 Premium Hydraulics: All hydraulic components utilize imported brands to ensure consistent high performance and longevity.
🛡️ Advanced Control: The integrated control system is engineered for ease of operation, maximum safety, and operational reliability.
📊 Pressure Precision: Hydraulic pressure is adjustable via the relief valve to achieve optimal punching effects, with a range up to 15Mpa.

Technical Parameters

Item	Parameters
Panel Size Capacity	Length (1634-2500 mm) Width (986-1400mm)
Hydraulic System Pressure	16M
Combining Pressure	0.5~10 Mpa
Compressed Air Requirement	0.4~0.7Mpa
Compressed Air Flow	30L/min
Standard Warranty	12 Months

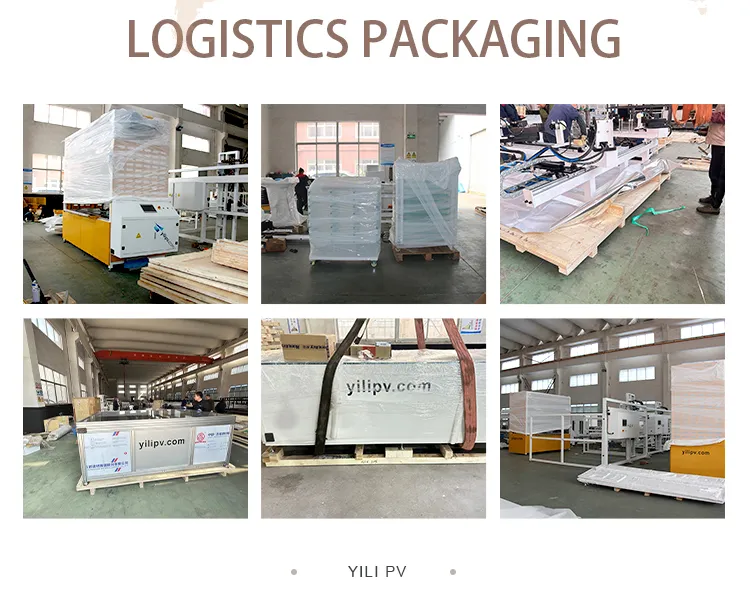

Packaging & Shipping Display

Manufacturing Expertise

Adhering to the principle of "Quality First," we operate dedicated finishing and roughing workshops to ensure the precision and quality of every component. Our experienced production and assembly teams guarantee steady production progress and exceptional equipment reliability.

Established in 2008, our team provides comprehensive turnkey solutions for solar module manufacturers. This includes automatic production lines, multi-layer laminating machines, robot typesetting systems, and integrated framing machinery. Our equipment is compatible with all modern solar cell technologies, including Conventional, Double Glass, Half-Cut, MBB, Shingled, Heterojunction, and Topcon processes.

Core Advantages

Frequently Asked Questions (FAQ)

Q1: What panel sizes can this framing machine accommodate?

The machine is highly adjustable, supporting panel lengths from 1634mm to 2500mm and widths from 986mm to 1400mm. It can also be adjusted for smaller modules down to 800x800mm.

Q2: How does the hydraulic system ensure high performance?

We utilize imported premium hydraulic components to ensure stable pressure control and durability, allowing for a pressure range of up to 15Mpa for precise framing.

Q3: Is the machine compatible with different solar module types?

Yes, it is compatible with various processes including Conventional, Double Glass, Half-Cut, MBB, Shingled, Heterojunction (HJT), and Topcon modules.

Q4: What are the installation requirements for compressed air?

The machine requires a compressed air supply between 0.4 and 0.7Mpa with a flow rate of approximately 30L/min.

Q5: What kind of warranty and after-sales support is provided?

We offer a 12-month standard warranty. After-sales support includes 24-hour online technical assistance and local engineering support in key international regions.

Q6: How is the equipment protected during international shipping?

The machine is securely packaged in a robust, professional wooden box designed to withstand long-distance maritime or land transportation.
