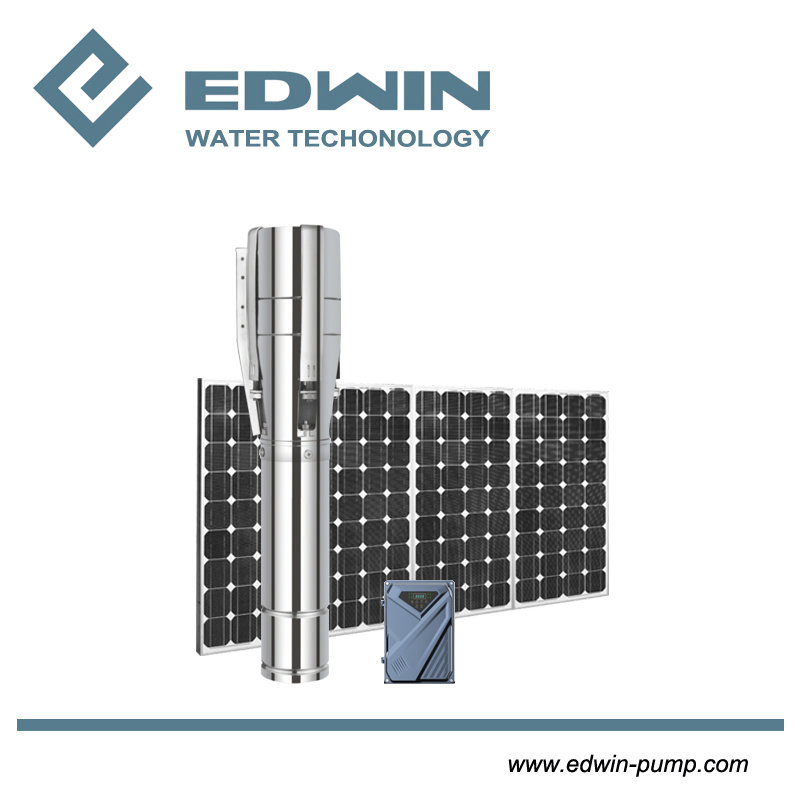

AC/DC Wholesale Stainless Steel Solar Borehole Deep Well Water Pump

1 / 5

AC/DC Wholesale Stainless Steel Solar Borehole Deep Well Water Pump

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

ℹ

Basic Information

Model NO.AC/DC solar pump

Max.Head>150m

Max.Capacity>400 L/min

Driving TypeMotor

MaterialStainless Steel

StructureSingle-stage Pump

Power SourceElectric / Solar

ApplicationSubmersible Pump

MediaClean Water

Voltage24V/48V/72V/110V

CertificateCE

OriginChina

★

Product Advantages

Permanent magnet ACDC brushless synchronous motor: Efficiency improved by 15%-20%; significantly reduces solar panel consumption.
High-Quality Components: 304 S/S pump shaft and Brass or stainless steel outlet/connector.
Japanese NSK bearing: Ensures a prolonged working life for the motor system.
Intelligent Protection: Built-in water shortage protection stops the pump when the well is dry and restarts after 30 minutes.

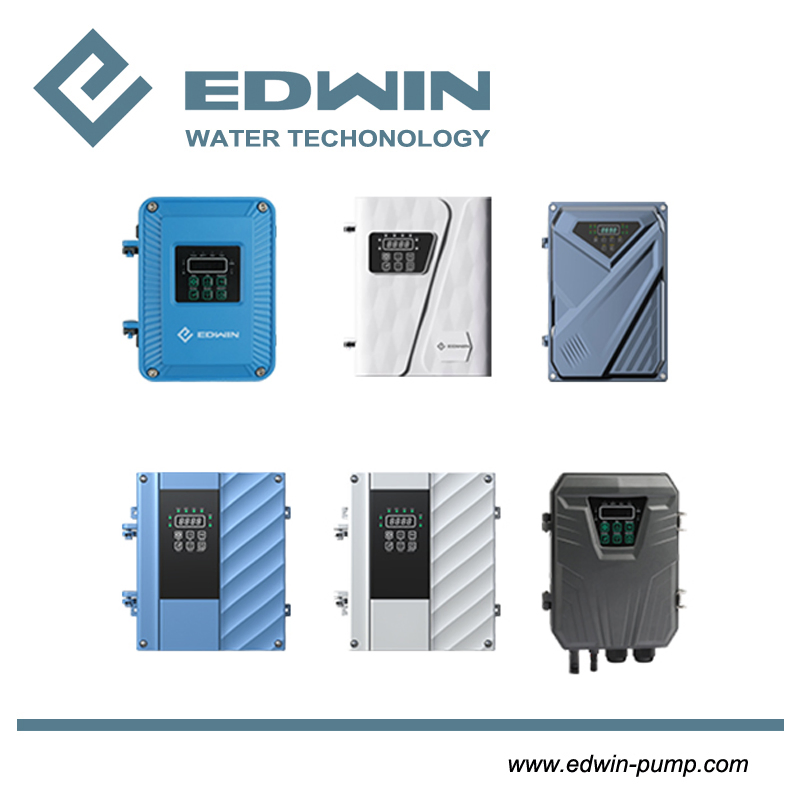

Advanced Controller: IP65 waterproof grade, MPPT function for higher solar utilization, and frequency conversion for automatic or manual speed adjustment.
LED Display: Real-time monitoring of power, voltage, current, and speed.
Soft Start: Prevents impulse current to protect the pump motor.

📷

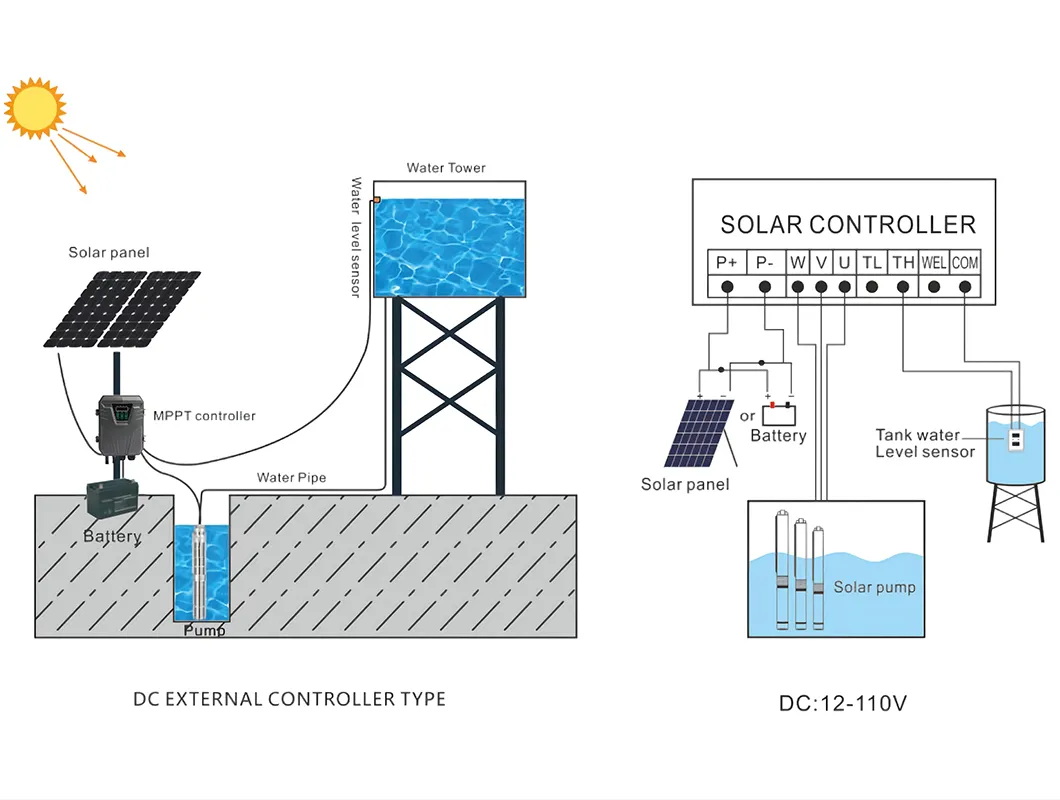

Product Visuals & Installation

📊

Technical Parameters

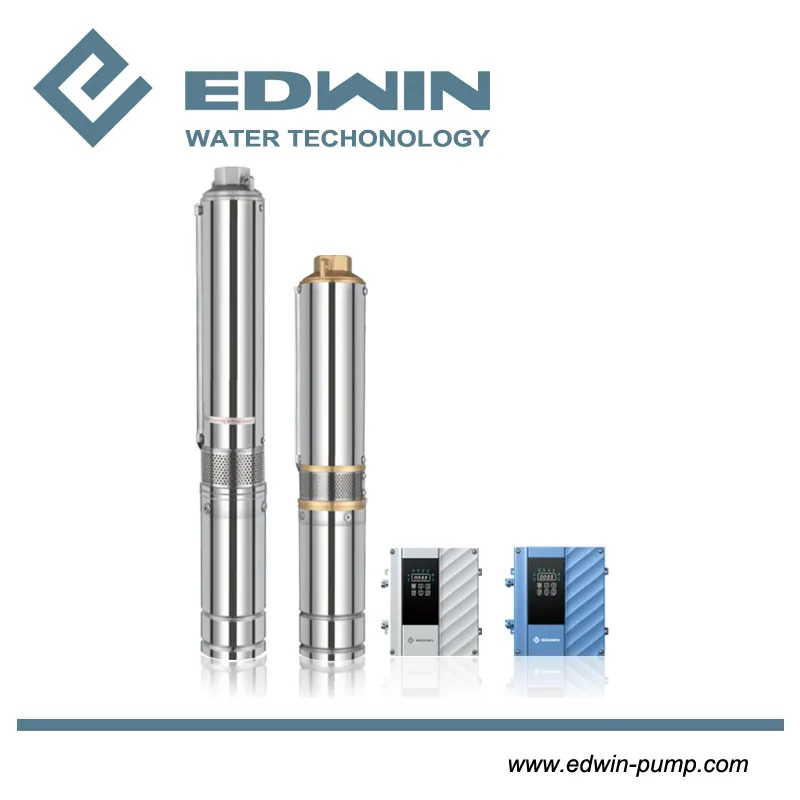

3ADPC Series Technical Data

ITEM	(AC) Voltage	(DC) Voltage	Power	Flow	Head	Outlet	Solar Panel VOC
3ADPC3.8-95-72-750	85V-280V	100V-350V	750W	3.8m³/h	95m	1.25"	<430V
3ADPC3.8-123-150-1100	85V-280V	110V-350V	1100W	3.8m³/h	123m	1.25"	<430V
3ADPC6-125-200-1500	85V-280V	110V-350V	1500W	6m³/h	125m	1.5"	<430V

4ADPC & 4ADSC Series High Power Data

ITEM	Voltage Type	Optimum DC Input	Power	Max Flow	Max Head	Outlet	Solar VOC
4ADSC6-300-380/520-3000	AC380/DC520V	520V-650V	3000W	6m³/h	300m	1.25"	<780V
4ADSC11-339-380/520-7500	AC380/DC520V	520V-650V	7500W	11m³/h	339m	2"	<780V
4ADSC30-155-380/520-7500	AC380/DC520V	520V-650V	7500W	30m³/h	155m	2"	<780V

🔍

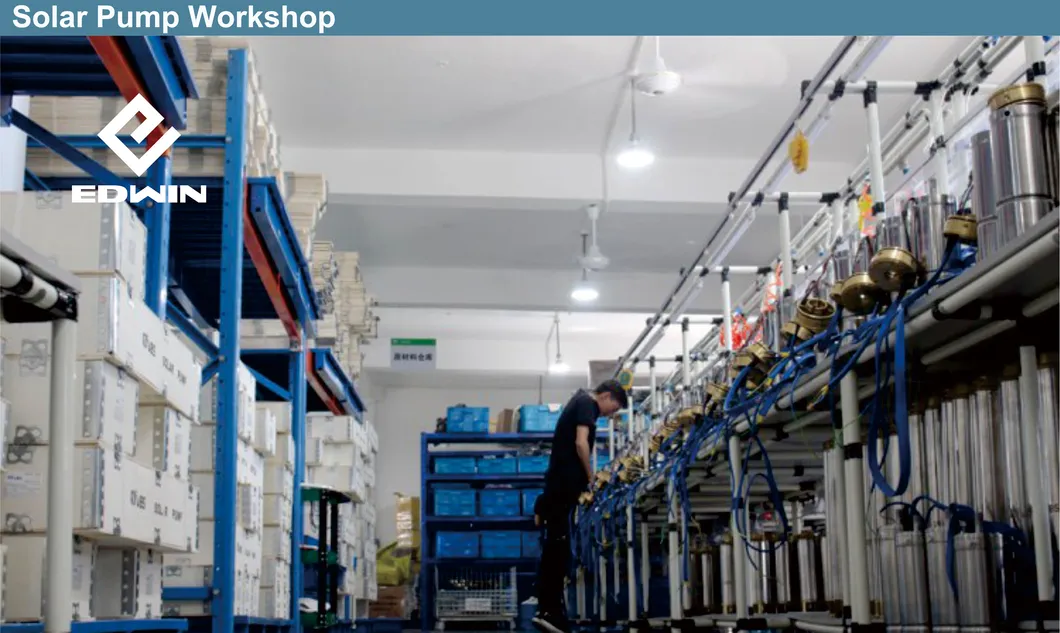

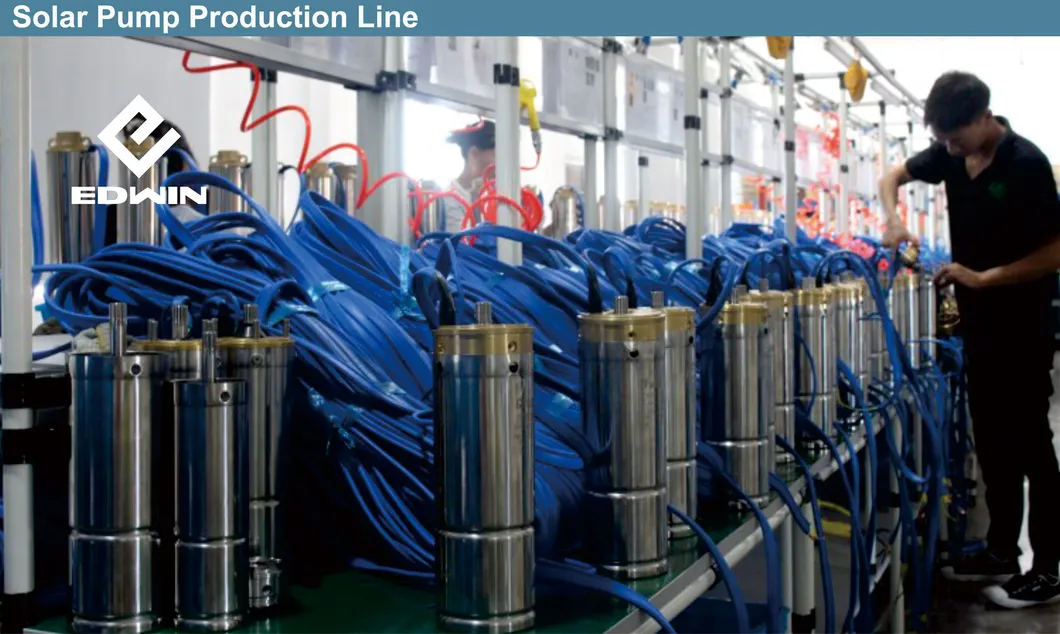

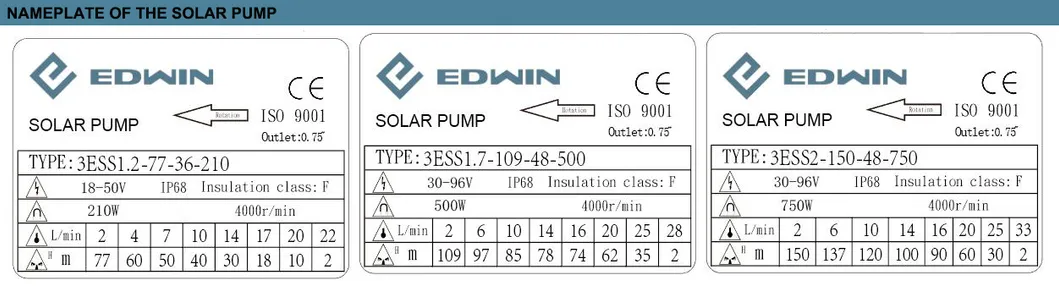

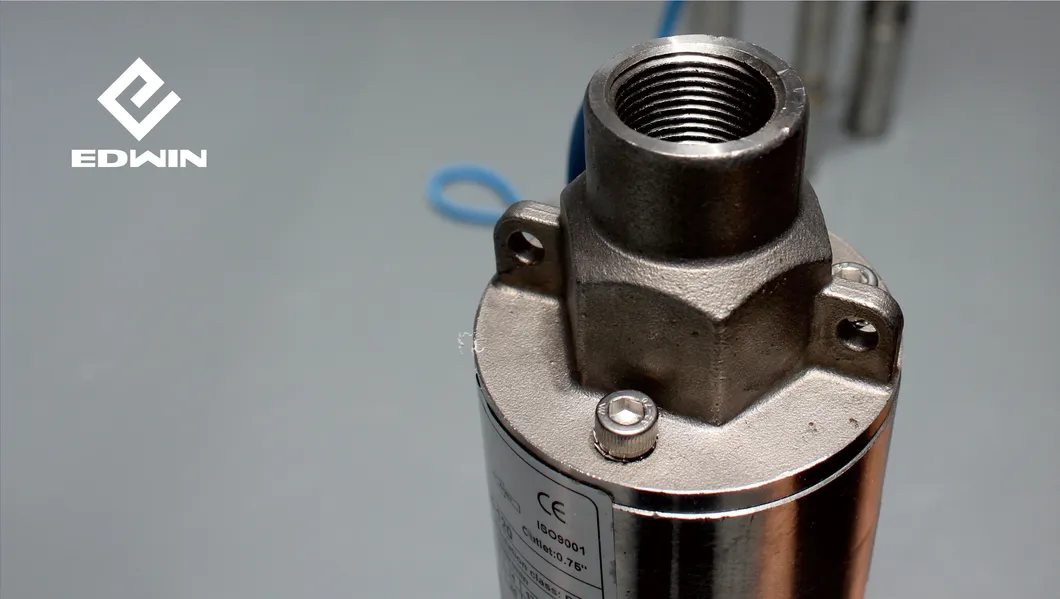

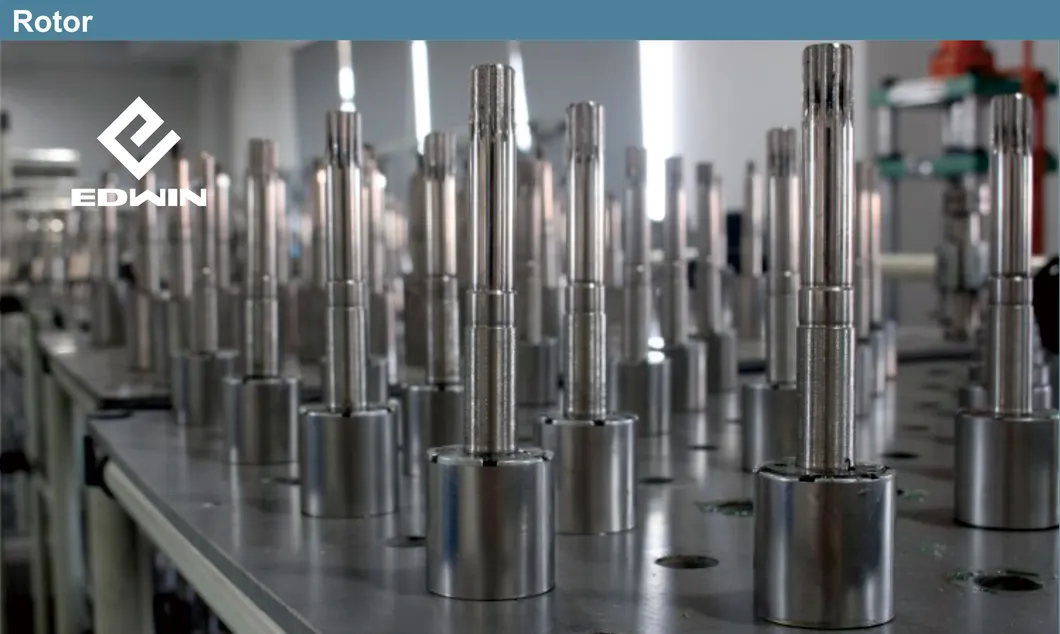

Detailed Photos

📜

Certifications

❓

Frequently Asked Questions

What is the delivery time for orders?

Samples can be sent within 10-15 days. Batch orders are typically shipped within 35-45 days after receiving the deposit payment.

What is the warranty period for the solar pumps?

We offer a 2-year warranty on the product, providing high reliability and peace of mind for all purchases.

What information is required for an accurate quote?

Please provide the required pump flow rate, total head, voltage, frequency, and preferred material specifications.

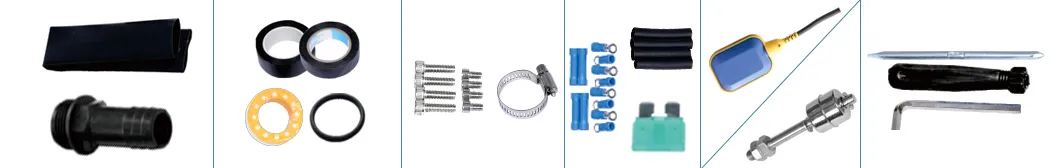

Are spare parts supplied with the pumps?

Yes, we can supply additional components such as tanks, flexible hoses, pressure switches, brass connectors, and cables.

Does the pump feature protection against dry running?

Yes, it includes intelligent water shortage protection. The pump stops automatically when no water is detected and restarts after 30 minutes.

Can the pump handle customized voltage and frequency?

Yes, we can produce pumps according to specific requirements, including 110V, 220-240V, and 50Hz or 60Hz configurations.
