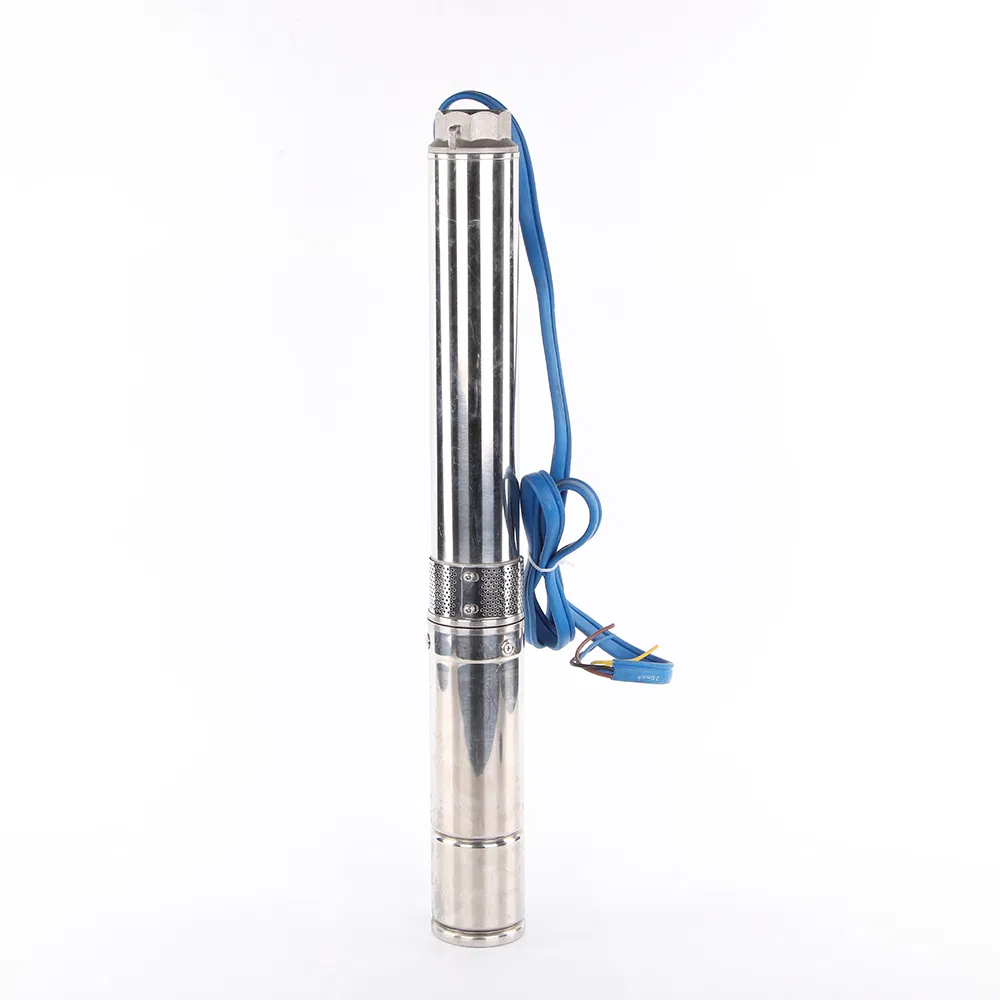

AC/DC Solar Submersible Borehole Water Pumps Used for Deep Well

1 / 4

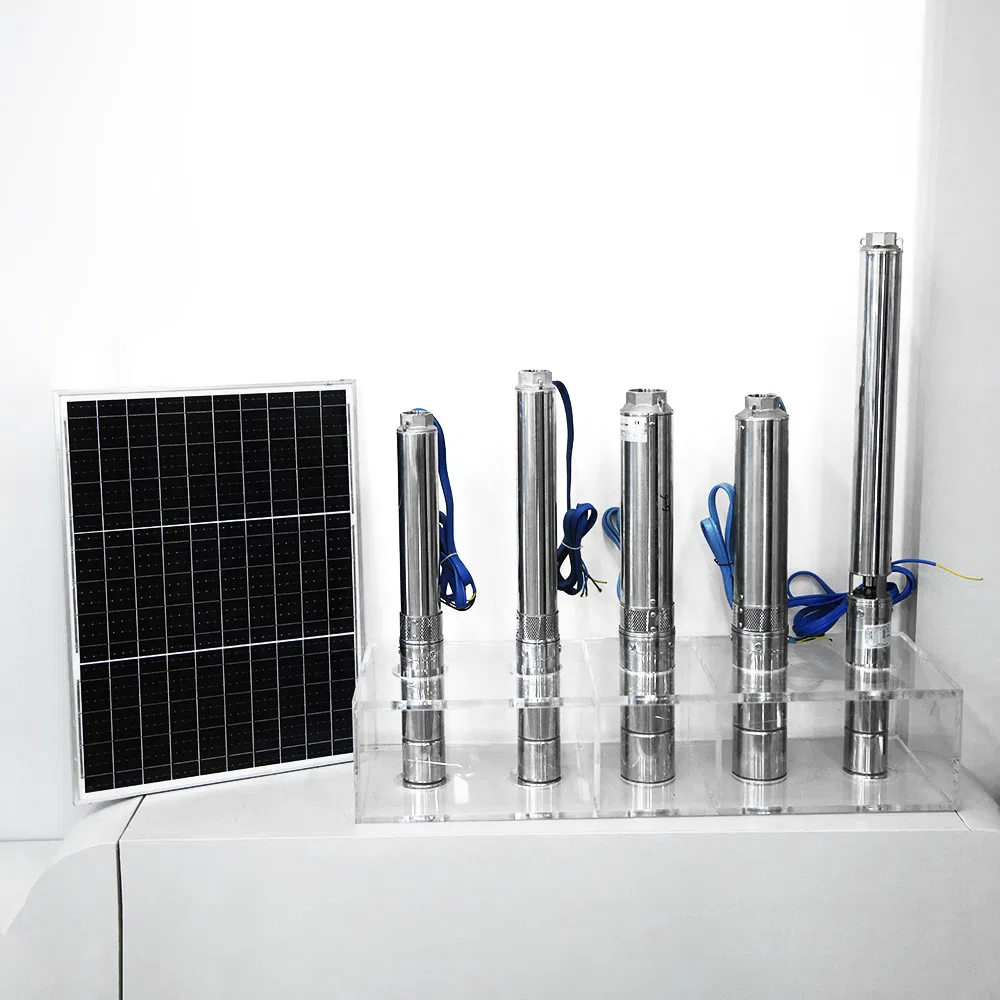

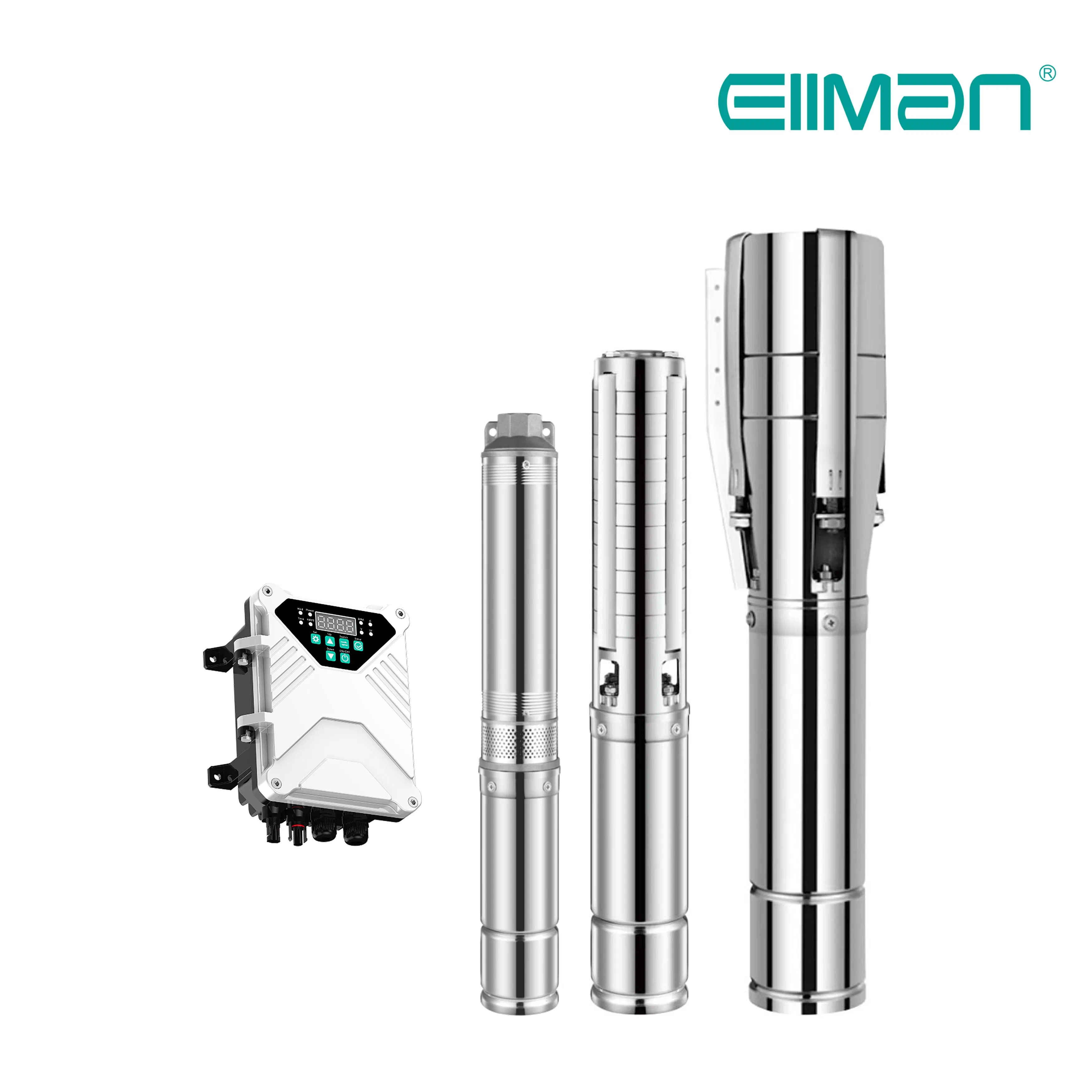

AC/DC Solar Submersible Borehole Water Pumps Used for Deep Well

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.4DSS

Max. Head>150m

Max. Capacity50-100 L/min

Driving TypeMotor

MaterialCast Iron

StructureMultistage Pump

Power SourceSolar Energy

MediaClean Water

TheoryCentrifugal Pump

CertificatesGS, CE, EMC, ISO9001

📦

Packaging & Delivery

Package Size144.00cm * 13.00cm * 13.00cm

Gross Weight24.000kg

Transport PackageCarton

⚙

Product Technical Parameters

Solar Submersible Borehole Pump Technical Data

Model	Power (W)	Voltage (DC)	Optimal Voltage (DC)	Open Circuit Voltage	Flow (m³/h)	Head (m)	Outlet (inch)
4DSP5/55-48/600	600	48	48-90	<110V	5	55	1.25"
4DSP5/85-72/600	600	72	72-120	<160V	5	55	1.25"
4DSP5/85-72/900	900	72	72-120	<160V	5	85	1.25"
4DSP5/105-72/1100	1100	72	72-120	<160V	5	105	1.25"
4DSP5/105-110/1100	1100	110	110-160	<210V	5	105	1.25"
4DSP5/125-110/1300	1300	110	110-160	<210V	5	125	1.25"
4DSP5/142-110/1500	1500	110	110-160	<210V	5	142	1.25"
4DSP6.5/42-48/600	600	48	48-90	<110V	6.5	42	1.25"
4DSP6.5/42-72/600	600	72	72-120	<160V	6.5	42	1.25"
4DSP6.5/70-72/900	900	72	72-120	<160V	6.5	70	1.25"
4DSP6.5/86-72/1100	1100	72	72-120	<160V	6.5	86	1.25
4DSP6.5/86-110/1100	1100	110	110-160	<210V	6.5	86	1.25"
4DSP6.5/100-110/1300	1300	110	110-160	<210V	6.5	100	1.25"
4DSP6.5/115-110/1500	1500	110	110-160	<210V	6.5	115	1.25"
4DSP9/50-72/900	900	72	72-120	<160V	9	50	1.25"
4DSP9/60-72/1100	1100	72	72-120	<160V	9	60	1.25"
4DSP9/60-110/1100	1100	110	110-160	<210V	9	60	2"
4DSP9/72-110/1300	1300	110	110-160	<210V	9	72	2"
4DSP9/85-110/1500	1500	110	110-160	<210V	9	85	2"
4DSP13/44-72/1100	1100	72	72-120	<160V	13	44	2"
4DSP13/44-110/1100	1100	110	110-160	<210V	13	44	2'"
4DSP13/52-110/1300	1300	110	110-160	<210V	13	52	2'"
4DSP13/60-110/1500	1500	110	110-160	<210V	13	60	2"

Frequently Asked Questions

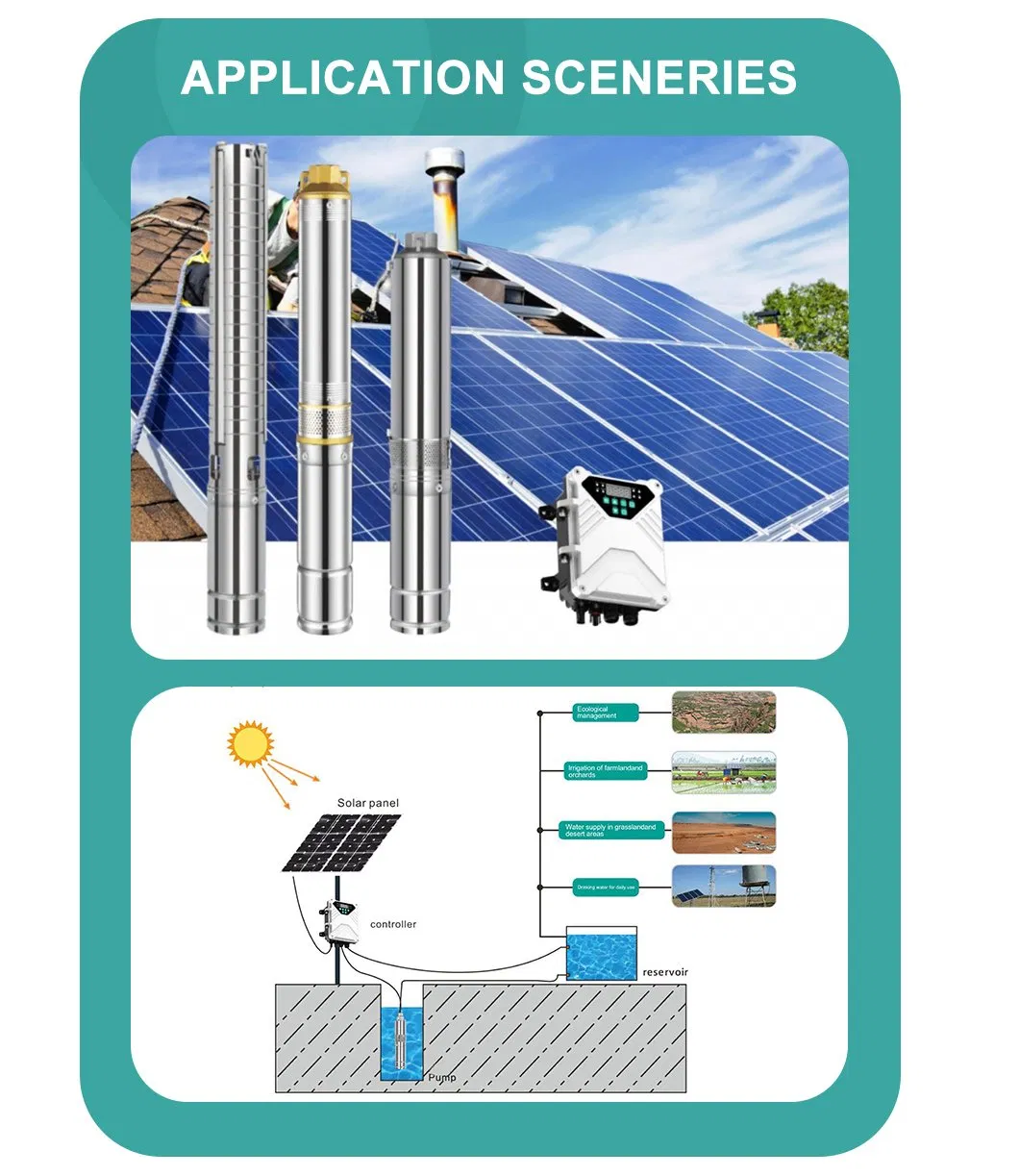

In which scenarios are these solar pumps mainly applied?

They are ideal for domestic water supply, agricultural irrigation, commercial circulation systems, and industrial cooling.

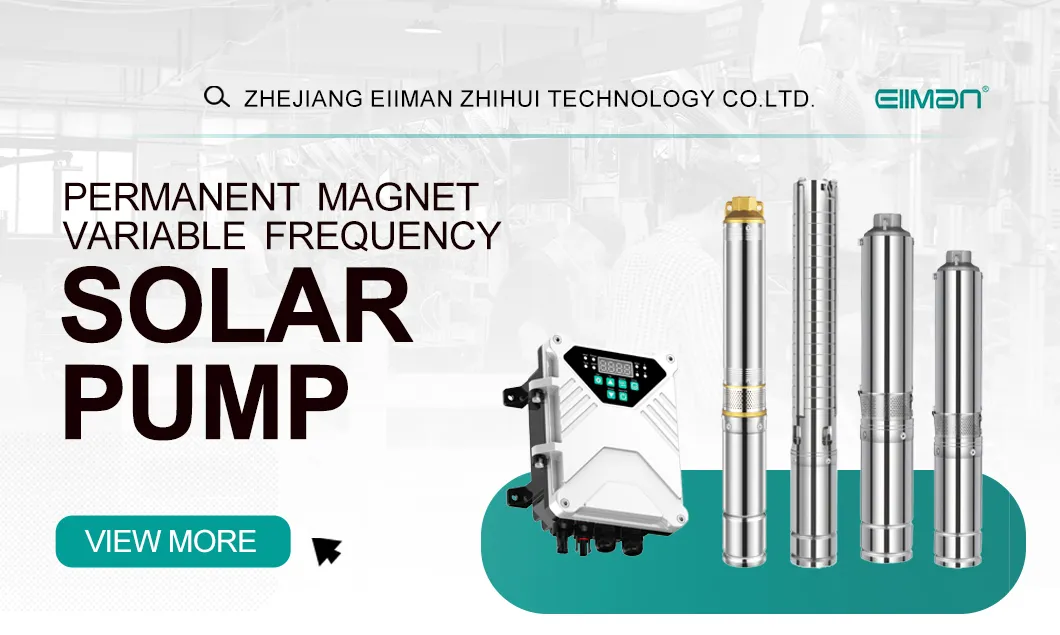

What are the advantages of permanent magnet variable frequency pumps?

These pumps save 30% to 50% energy compared to traditional models, offer lower noise levels, intelligent speed regulation, and a longer service life.

What precautions should be taken during installation?

Ensure a flat foundation, install a filter at the water inlet to protect the impeller, keep the motor shaft horizontal, and verify power voltage after wiring.

Does the pump support remote monitoring?

Yes, certain models in this series support intelligent monitoring and remote management for optimized operation.

What kind of media can the centrifugal pump handle?

The pump is designed primarily for clean water without large solids or abrasive impurities.

Can these pumps be powered directly by solar panels?

Yes, the system is optimized for solar energy (DC) input, allowing for efficient off-grid water pumping solutions.
