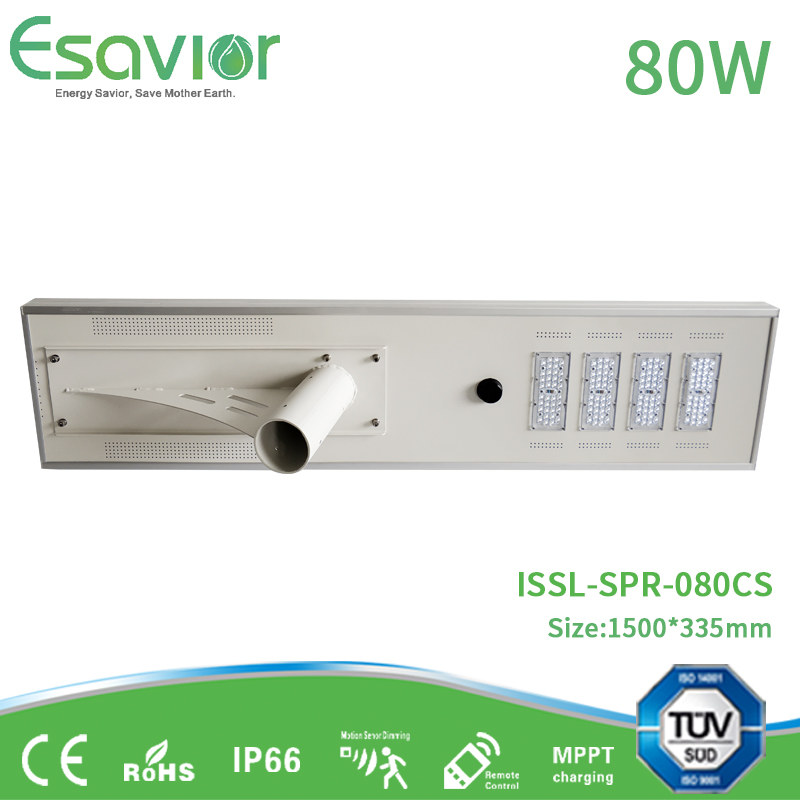

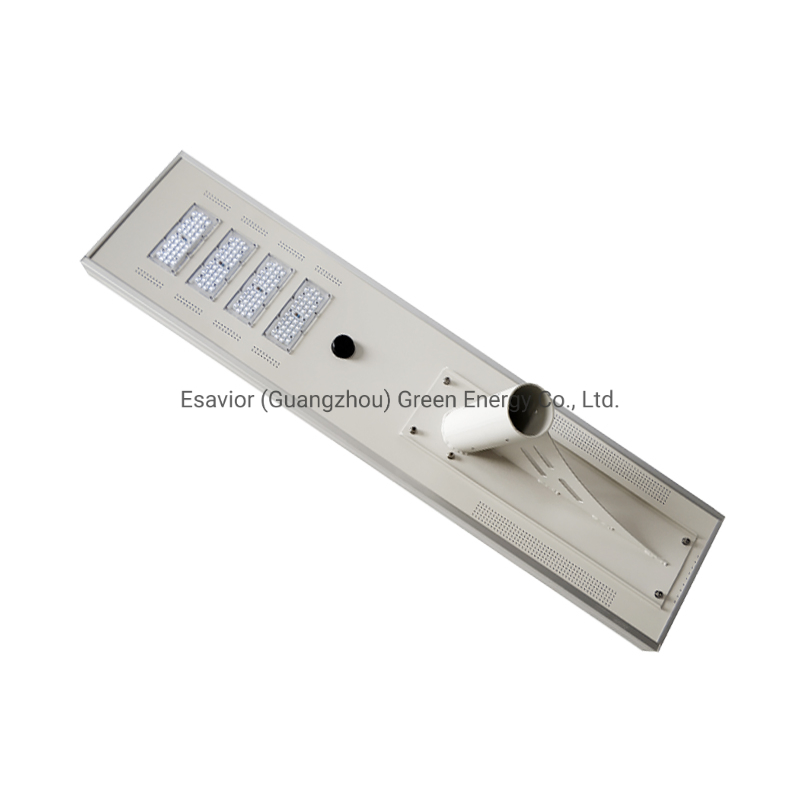

Energy Saving Lamp 80W 9600 Lumen All in One Smart Iot LED Solar Street Lights with LiFePO4 Lithium Battery

Still deciding? Get samples of $ !
Request Sample

Product Description

Solar Street Light Banner

Basic Specifications

Model NO.
ISSL-SPR-080C
Power
80W
Light Type
Solar
Color Temp.
2700~6500K
Illumination Time
>13 Hours
Cell Type
LiFePO4 Lithium
Charging Time
6 Hours
IP Rating
IP66
Certification
CE, RoHS
Dimensions
1520*355*55mm

Product Features & Advantages

  • High Brightness: 9,600 LM max lamp lumen high brightness.
  • Long Lifespan: 100,000+ Hours LED lifespan with professional heat dissipation.
  • Durable Battery: 3,000+ Cycles LiFePO4 batteries with inbuilt Micro-BMS technologies.
  • High Efficiency: 99.9% MPPT solar charge efficiency.
  • Weather Autonomy: 5+ Days autonomy during cloudy or rainy days.

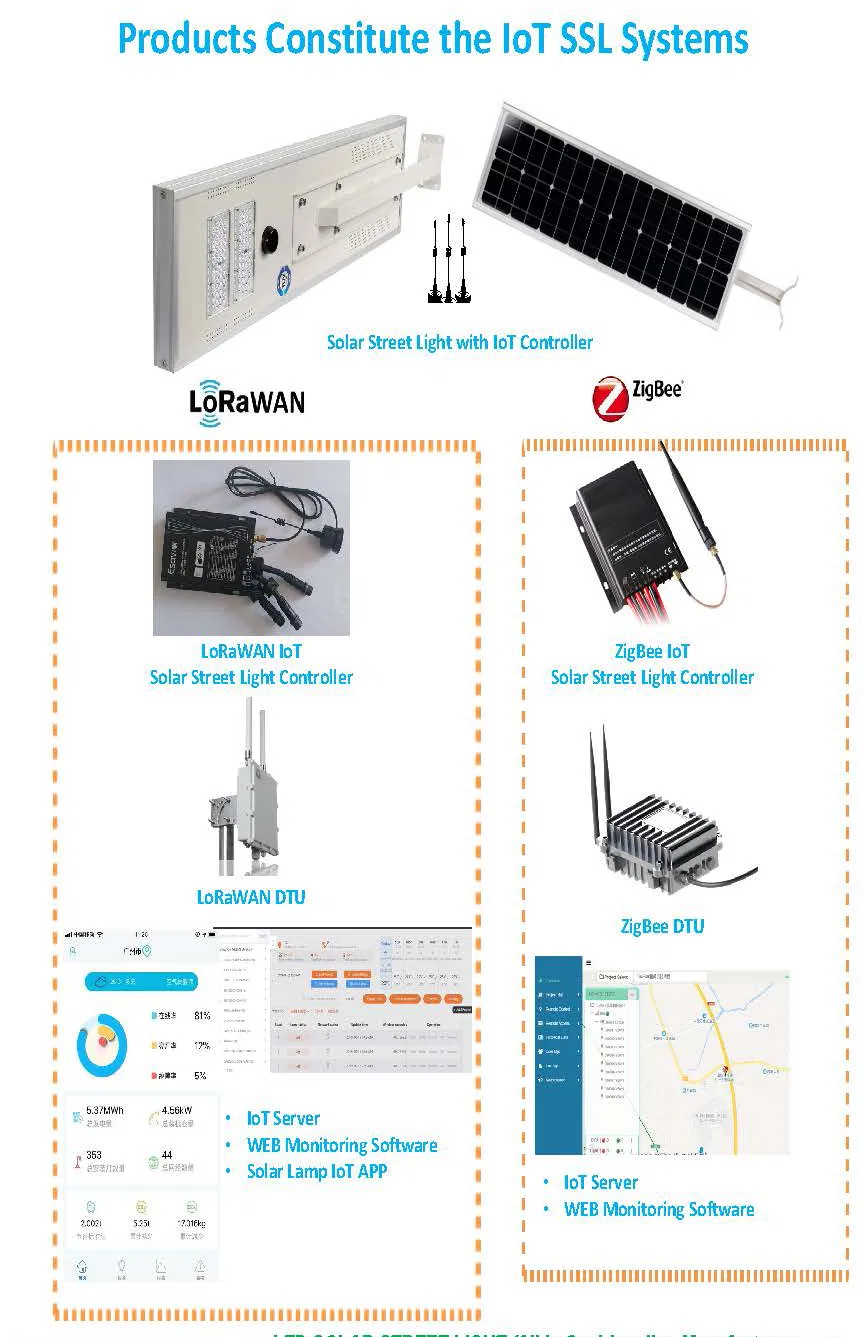

  • Smart Control: IoT Control and remote monitoring via ZigBee or LoRaWAN (Optional).

Applications

Highway lighting, Expressway lighting, Street lighting, Roadway lighting, and Public Areas (squares, theme parks, park lots).

Technical Specifications

SUPERIOR Series MODEL NO. ISSL-SPR-080C
LED Light Source Rated Power 24V/ 80W (36LEDsx4 modules)
LED Brand 3030 (LED Lumen: 195lm/W)
Viewing Angle 140° (Customized Angles & IES Types Available)

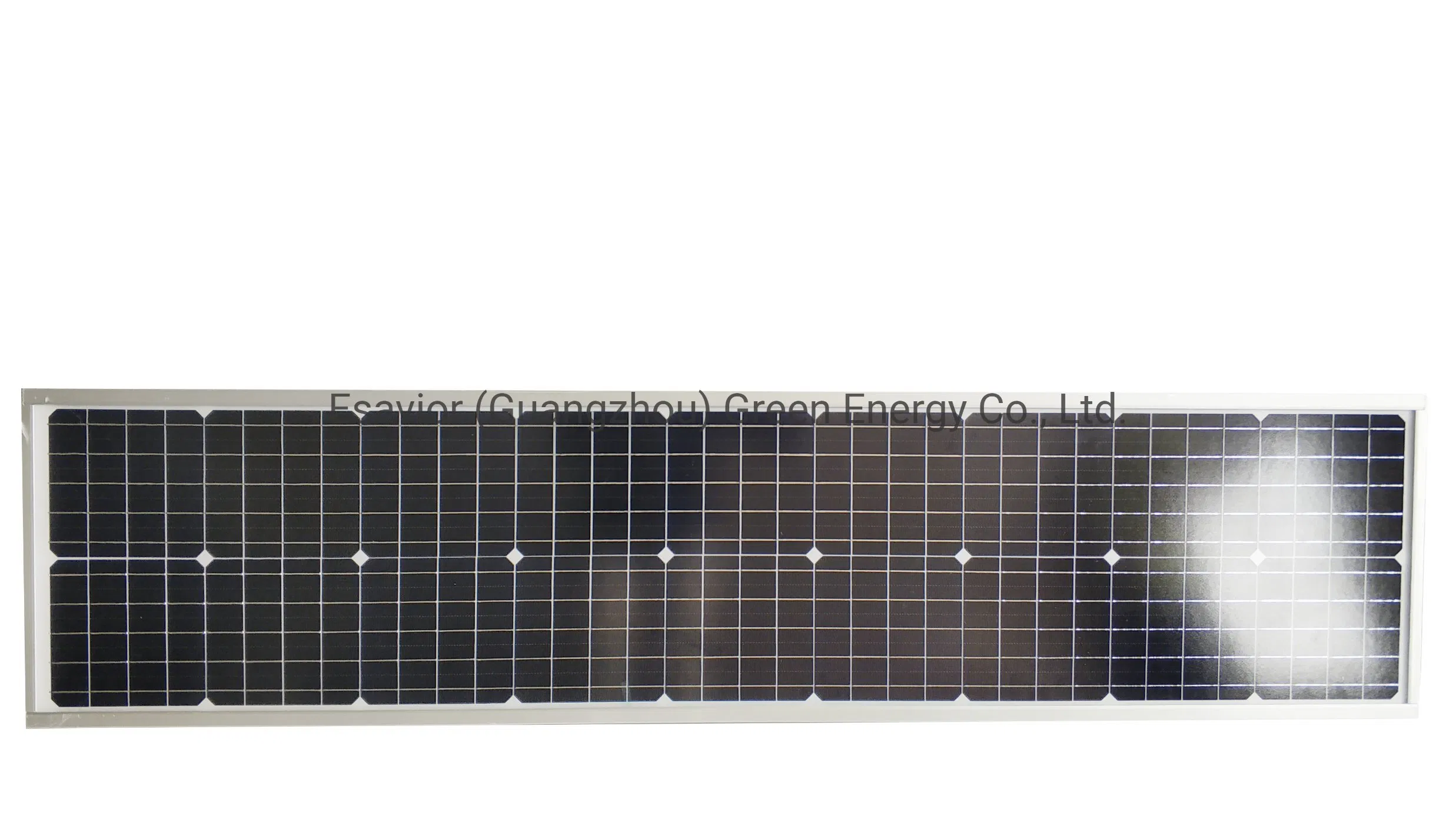

Solar Panel Power 36V/100Wp (High Efficiency Mono PV)
Life-span 25 years
Batteries Capacity/Type 25.6V/24AH (614.40WH) / LiFePO4 Lithium
Life-span 8+ years (3,000 cycles @ 60% DoD)
Controller Type MPPT / IP68 / IoT Optional
Working Temp. Range -30ºC ~ +80ºC

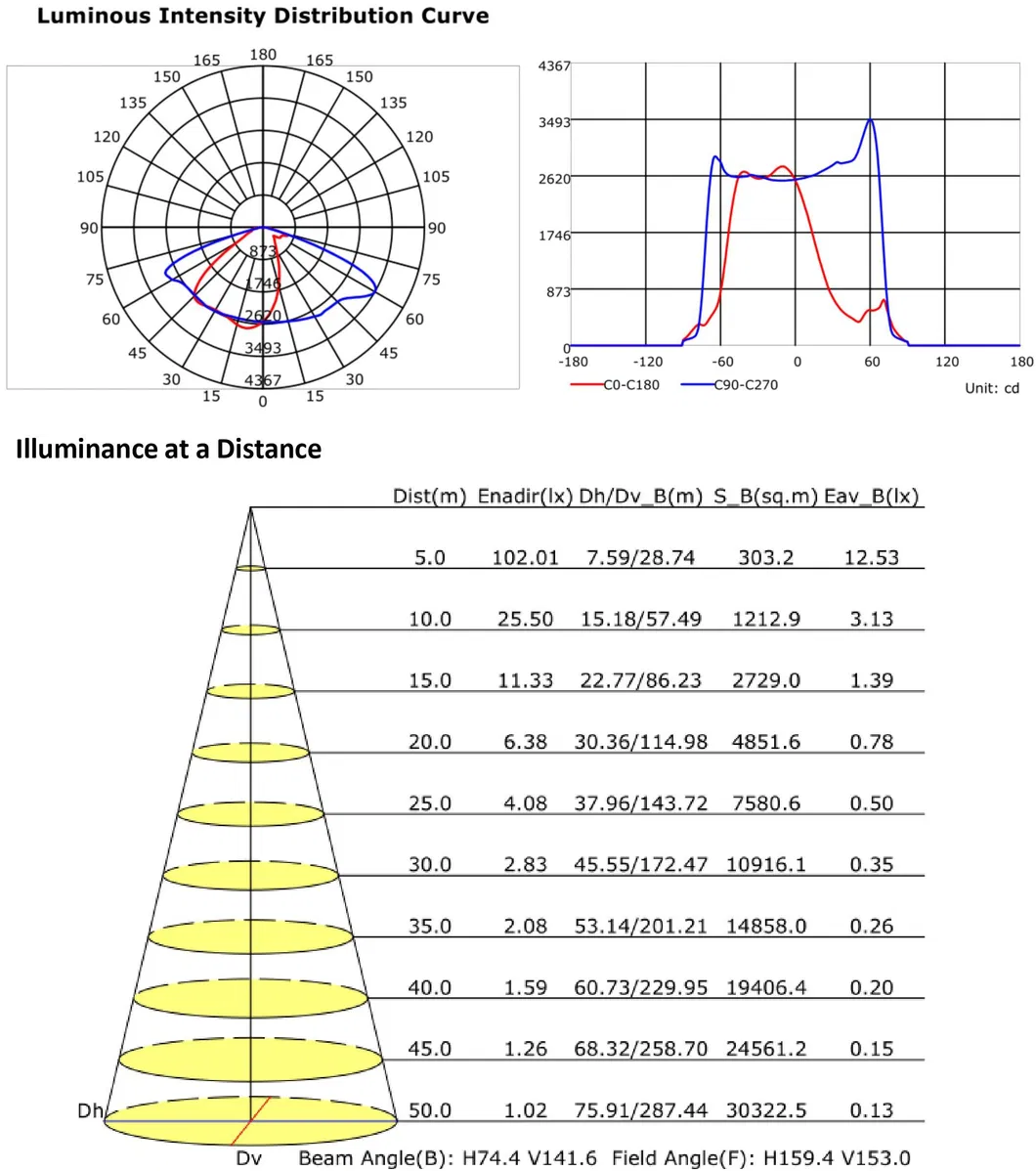

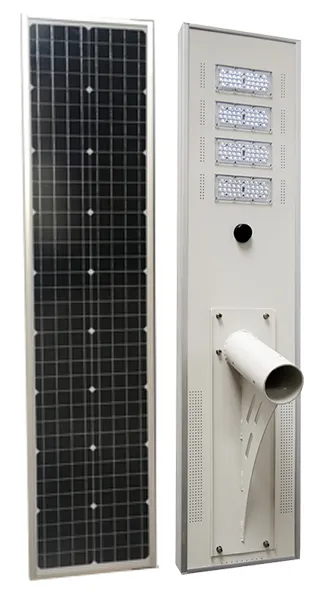

Product View 1 Product View 2 Distribution Diagram

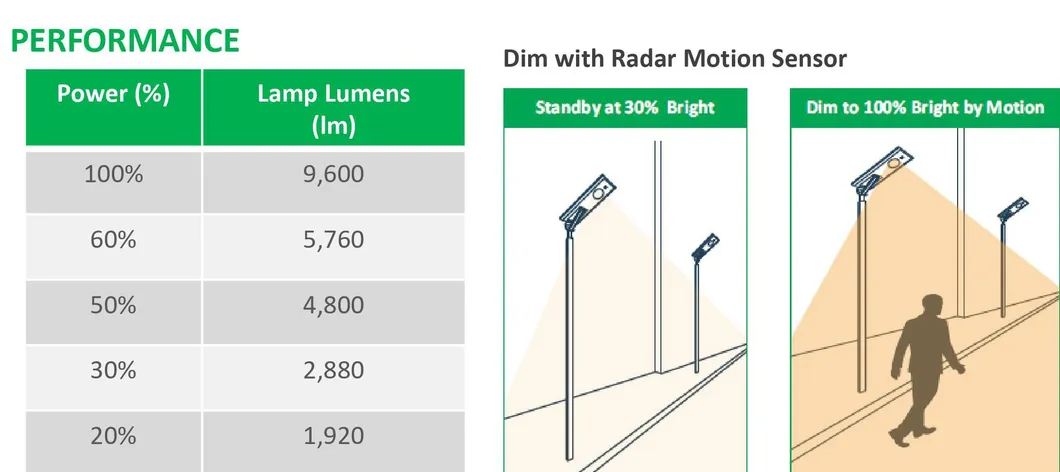

Simulation & Performance

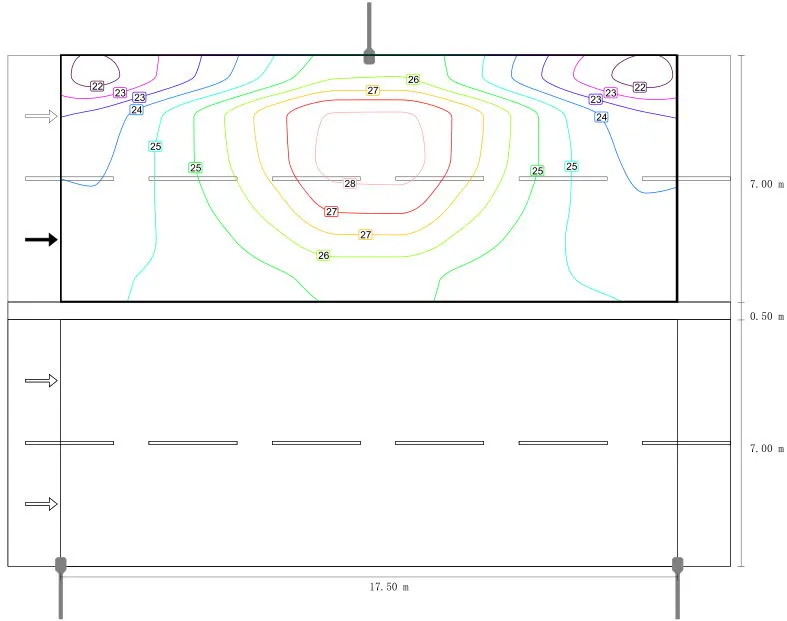

DIALux Simulation

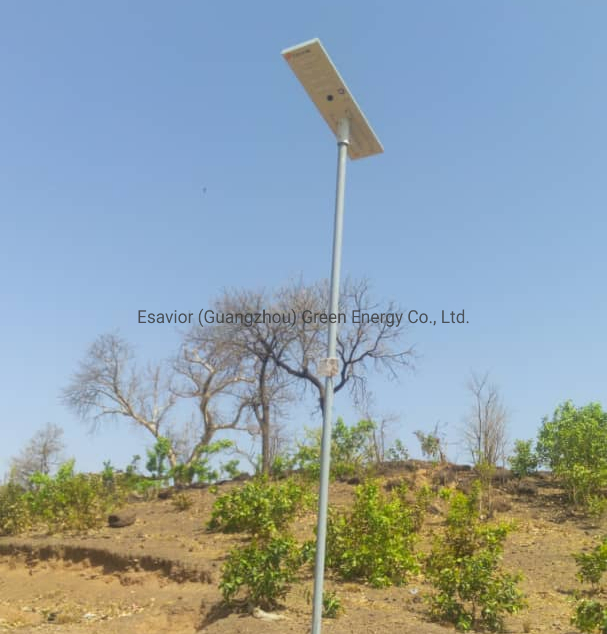

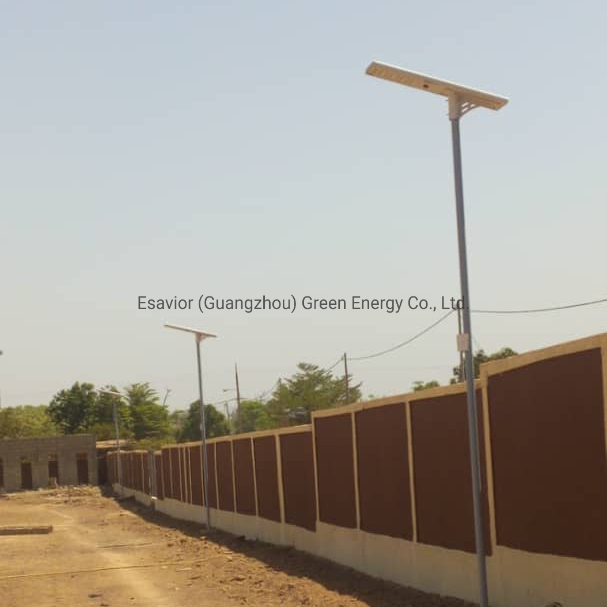

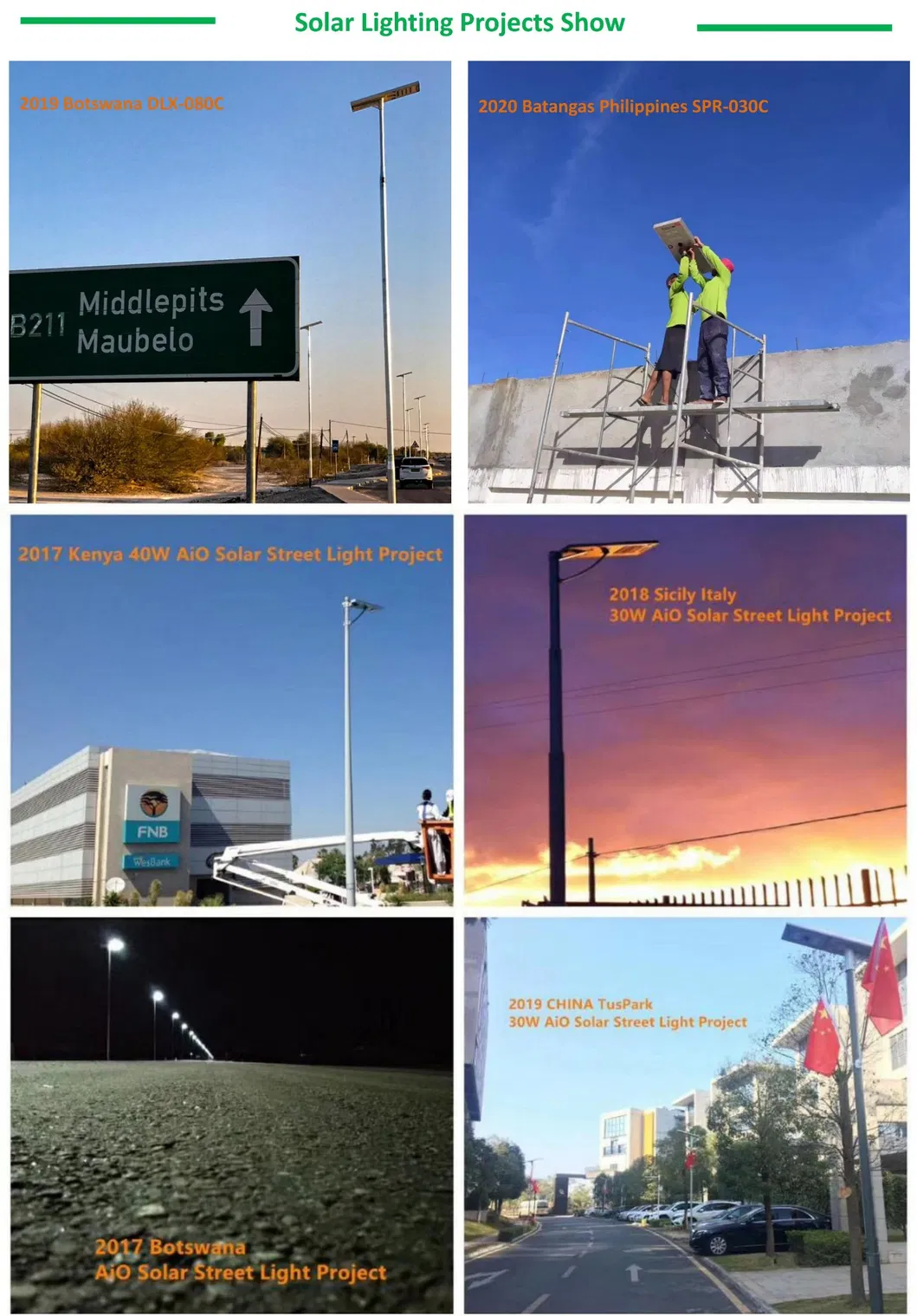

Manufacturing Center Project Reference

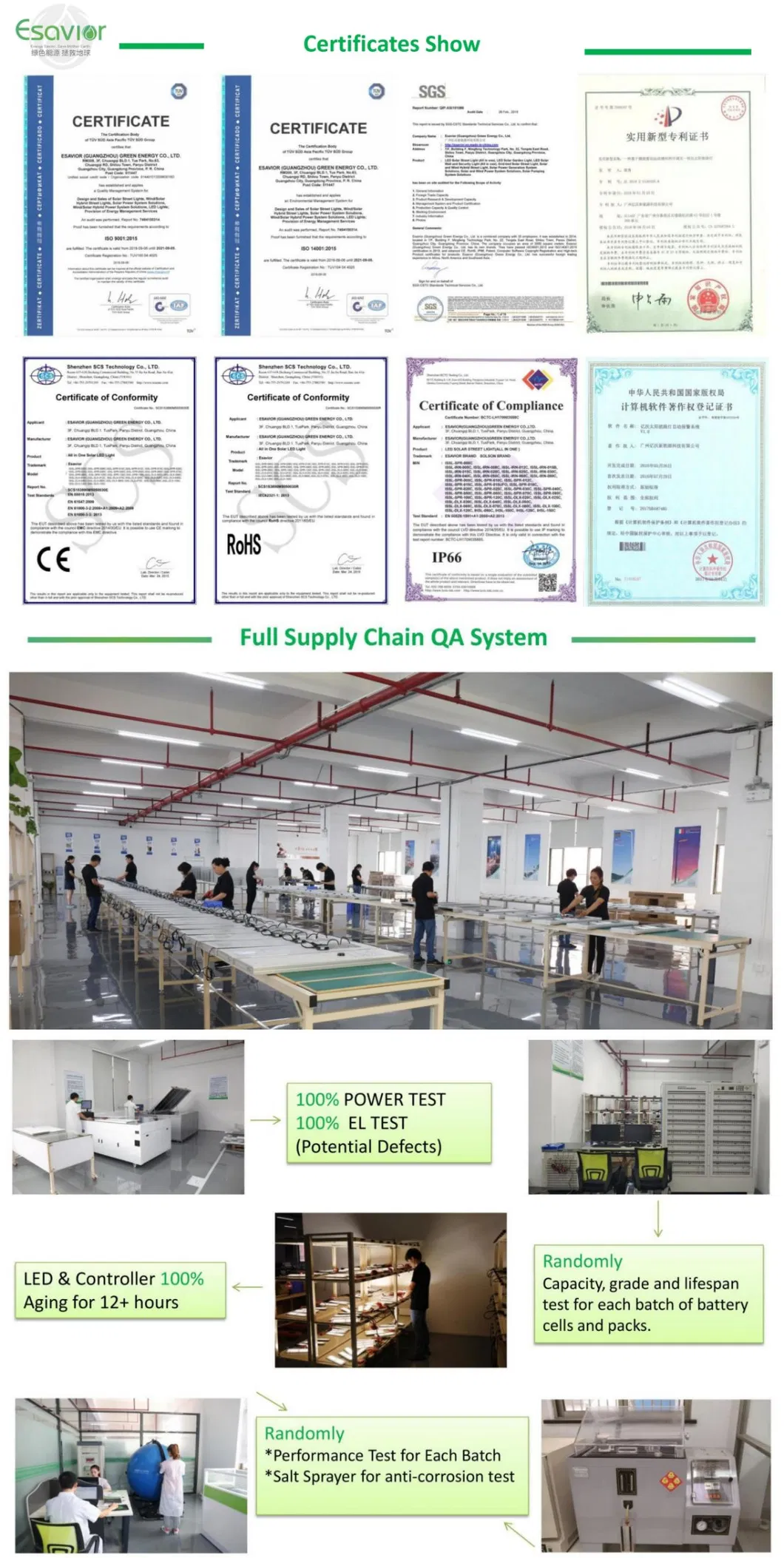

Quality Assurance

Certificates Quality Standards

Frequently Asked Questions

Does the lamp turn on automatically?
Yes, it will light on automatically at darkness in all modes except when set to "OFF".
What is the lead time for orders?
The lead time is approximately 3 workdays for samples and 7-15 workdays for batch orders exceeding 100pcs.
Can these lights withstand strong winds?
Absolutely. The units feature an aluminum-alloy holder that is solid, firm, zinc-plated, and resistant to rust and corrosion.
What is the difference between a Motion sensor and a PIR sensor?
A motion (radar) sensor emits high-frequency waves to detect movement up to 10 meters away. A PIR sensor detects heat changes (environment temperature) and typically has a range of 3-5 meters.
What kind of warranty is provided?
We offer a standard 3 to 5-year warranty on our solar street lighting products.
How do you handle product defects?
Our products are manufactured under a strict quality control system with a defect rate below 0.5%. During the warranty period, we provide replacements for any faulty units.
