| Model NO. | CHN-675-PC-SG |
| Number of Cells | 132 Pieces |
| Application | Industrial |
| Certification | CE, TUV, CQC |
| Material | Monocrystalline Silicon |
| Type | Perc |
| Panel | Single Glass |

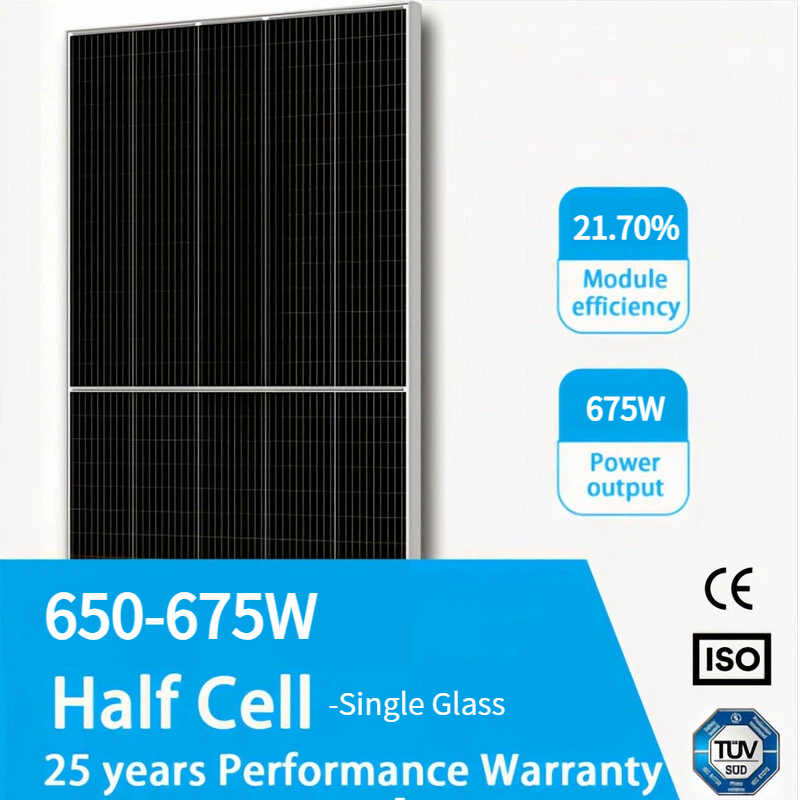

| Max. Power | 650~675W |
| Module Efficiency | 21.70% |
| Weight | Approx. 35.4/35.7 Kg |
| Power Output Tolerance | 0~+3% |
| Max. Power Voltage | 37.40-38.40 |
| Max. Power Current | 17.38-17.58 |
| Open Circuit Voltage | 45.20-46.20 |
| Short Circuit Voltage | 18.46-18.70 |
| Nominal Operational Cell Temp | 44±2 Celsius |
| Max. Series Fuse Rating | 35A |
Delivers Reliable Performance Over Time
Our 675W monocrystalline PERC solar module represents the pinnacle of modern photovoltaic technology, engineered to deliver exceptional power output, superior reliability, and maximum return on investment for large-scale commercial, industrial, and utility solar projects.
| Number of Cells | 132 pieces (6×22) |

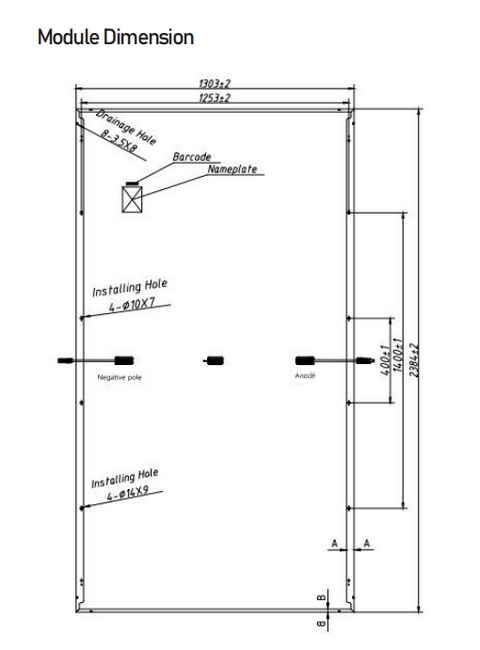

| Module Dimensions (L×W×H) | 2384 × 1303 × 30/33mm |
| Front Side Glass | 3.2 mm, Anti-reflection coating glass |
| Back Sheet | Black |
| Frame Material | Anodized aluminum |
| Junction Box (J-Box) | Protection level IP68 |
| Cable | 4.0 mm², 300 mm length |
| Wind/Snow Load | 2400 Pa / 5400 Pa |
| Connector Type | MC4 compatible |
The company's business scope covers a wide range, including emerging energy technology research and development, sales of photovoltaic equipment and components, solar thermal utilization equipment, and solar power generation technical services. We are also engaged in the sales of semiconductor device special equipment, electronic products, and high-efficiency energy-saving technologies.
We are committed to promoting the development and application of new energy technologies, aiming to contribute to the global energy transformation and sustainable development through continuous innovation and high-quality services. Our expertise extends to intelligent power transmission, distribution, and control equipment, ensuring comprehensive solutions for modern energy needs.
