| Component Name | 500KW On-grid Description | Quantity |
|---|---|---|
| Solar Panel | Mono Half Cell 650 Watt PV Module | 770 Pieces |
| DC Disconnect Switch | IP66 1000VDC 16A | Few Sets |
| On-Grid Inverter | 500KW Three Phase 380/400Vac | 1 Set |
| AC Disconnect Switch | IP 66 1000VDC 32A | Few Sets |
| DC Cable | 4mm2 | 1000 Meters |
| MC4 Connector | 4mm2 1000VDC | 100 Pairs |
| Mounting System | Standards Pitched Roof (Customized Optional) | 1 Set |
| PV Tools | Wire Cable Cutter & Stripper, Disassembly Tool | 5 Sets |

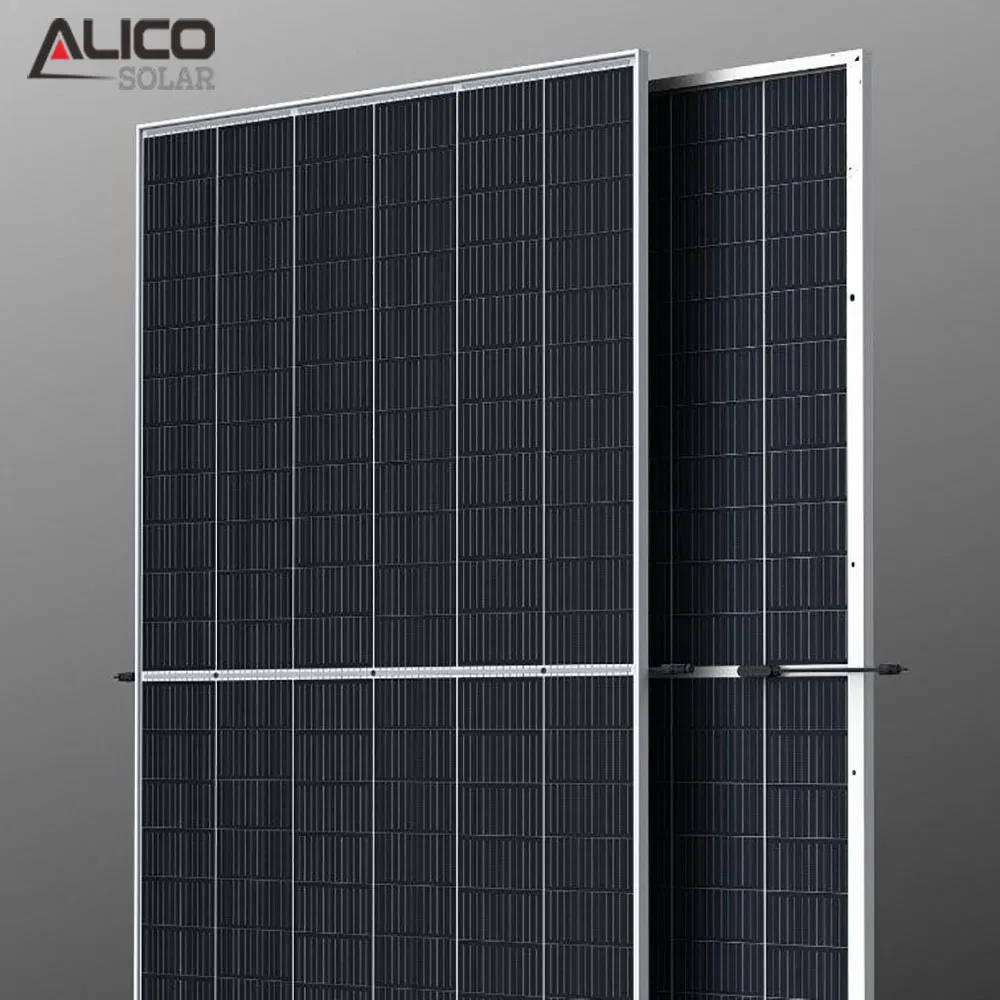

Peak Power Watts: 380-690W
Maximum Power Voltage: 32.2-45V
Maximum Power Current: 9.02-18A
Open Circuit Voltage: 39.5-55V
Short Circuit Current: 9.55-19A
Weight: 18.6 kg - 35 kg
Tier 1 Standard | 12 years quality warranty | 30 years power warranty

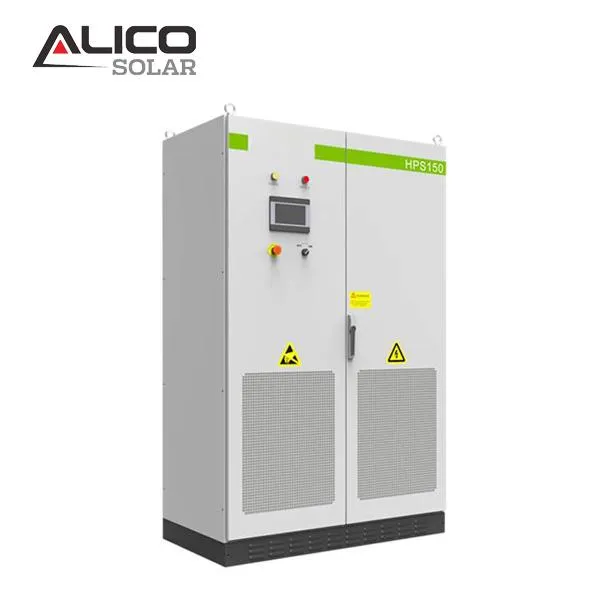

Max.DC Input Power: 500KW
Max. DC Input Voltage: 1500V
MPPT Voltage Range: 120-1200V
Rated Grid Voltage: 208/240V(US); 230V(EU); 380/400V
Warranty: 5-10 Years | Wifi/Lan/GPRS Optional | Support parallel

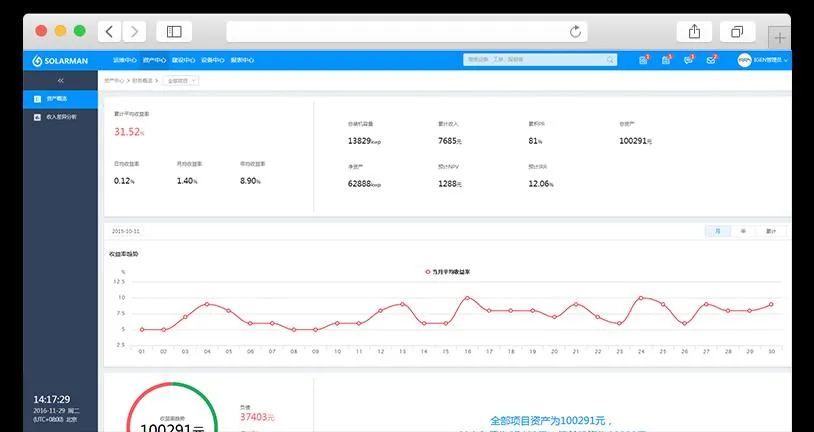

Data Logging Stick allows you to receive information from the solar power system everywhere and every time via web server (Wi-Fi, Lan, or GPRS). App Available for PC, IOS & Android.

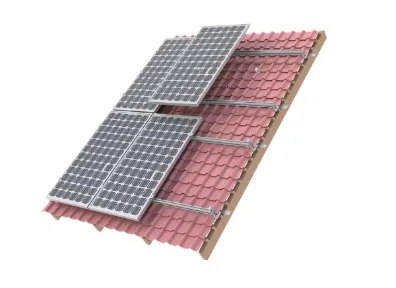

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
Options: Asphalt Shingle Mount, Hanger Bolt, Cable Clips, Ground Lugs.

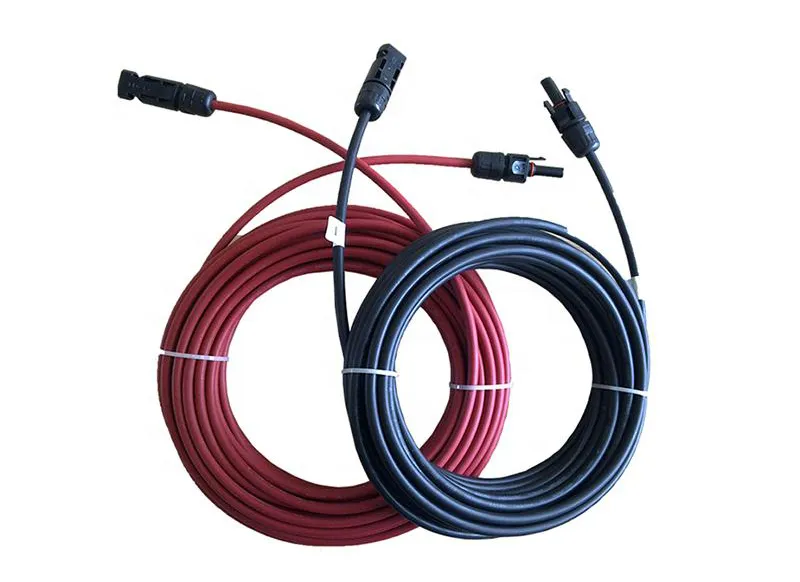

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC/1000VDC(TUV)
Rated Current: 55A, 70A
Colors: Black (Standard), Red (Optional). Lifetime: ≤25 Years

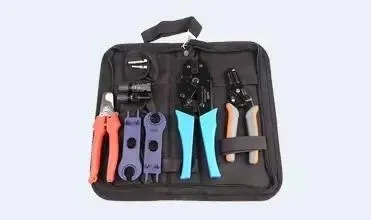

Wire Cable Cutter & Stripper, MC3 MC4 Crimper, MC4 Connectors Assembly and Disassembly Tool kits.

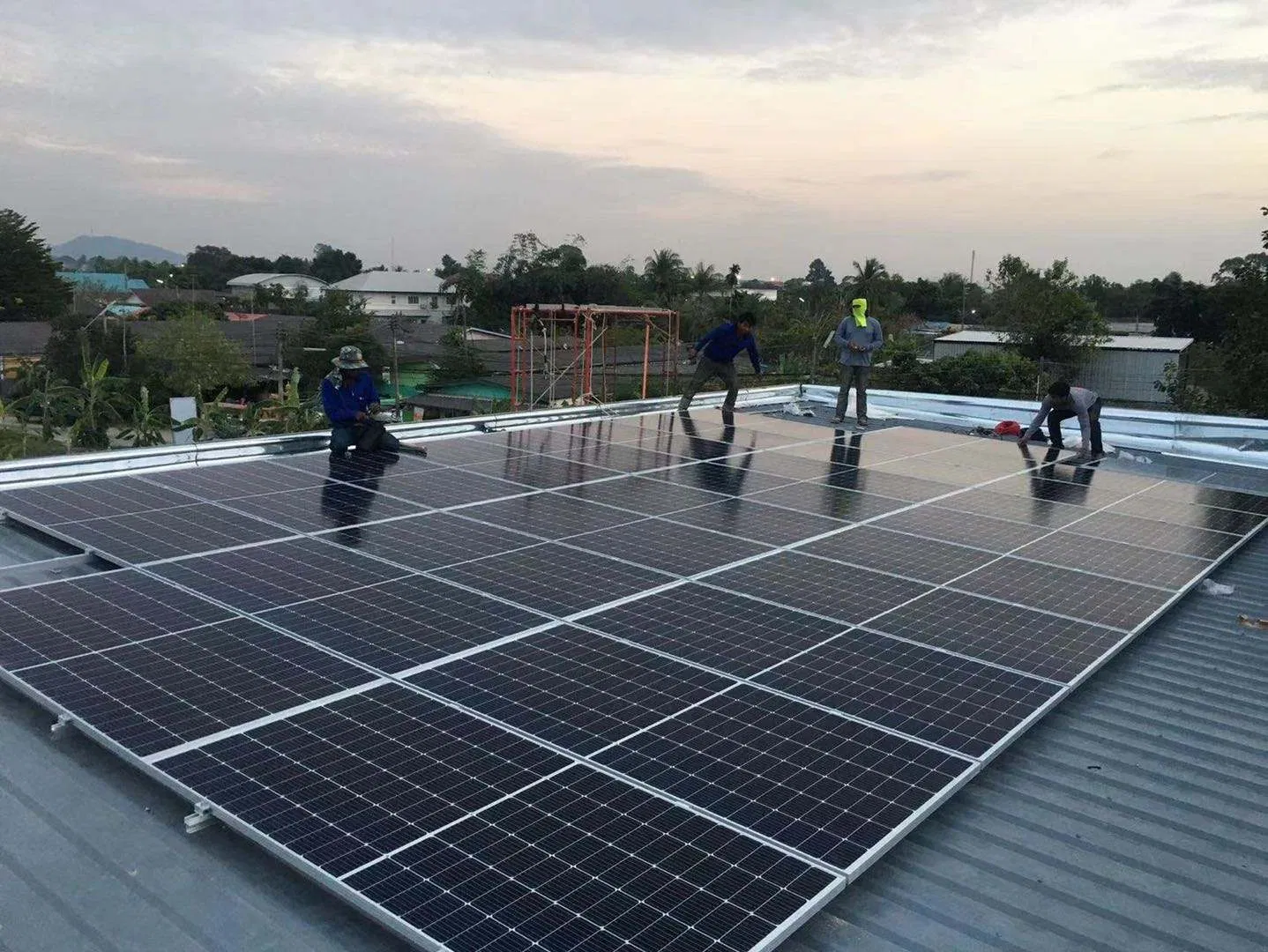

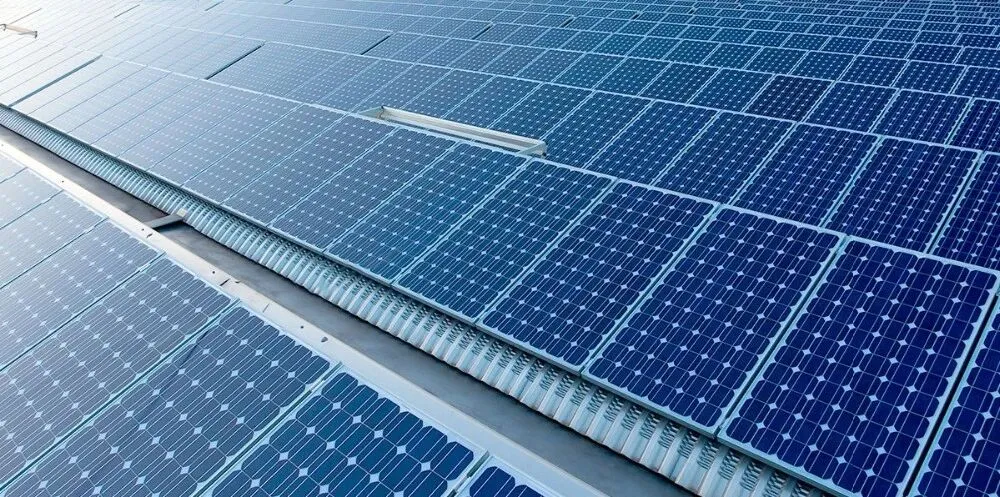

12MW Commercial Metal Roof Solar Plant

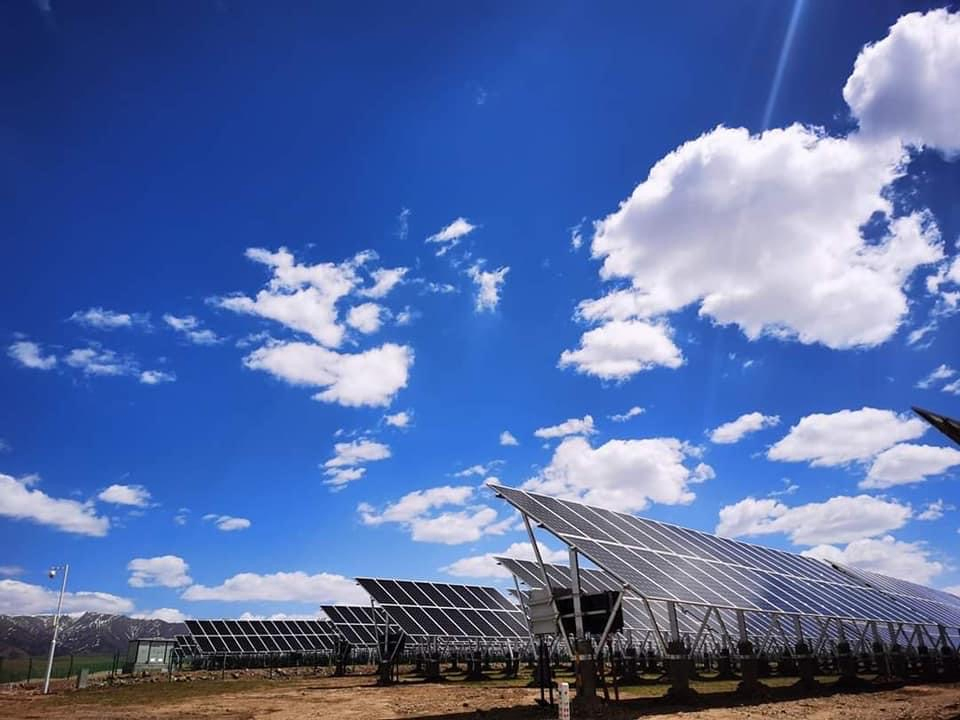

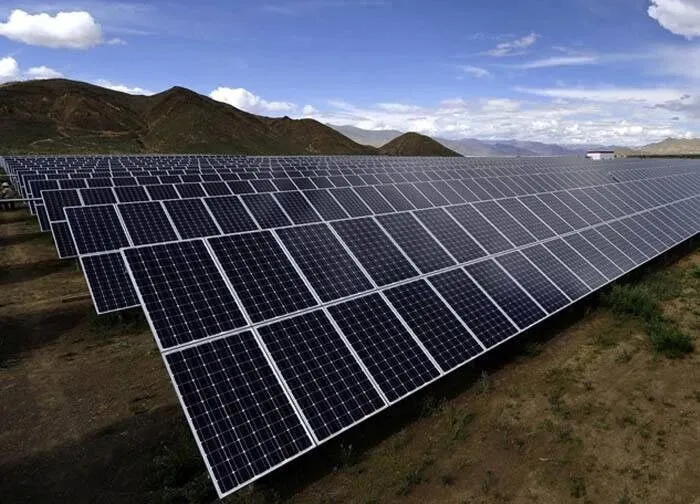

20MW Ground Solar Plant in USA

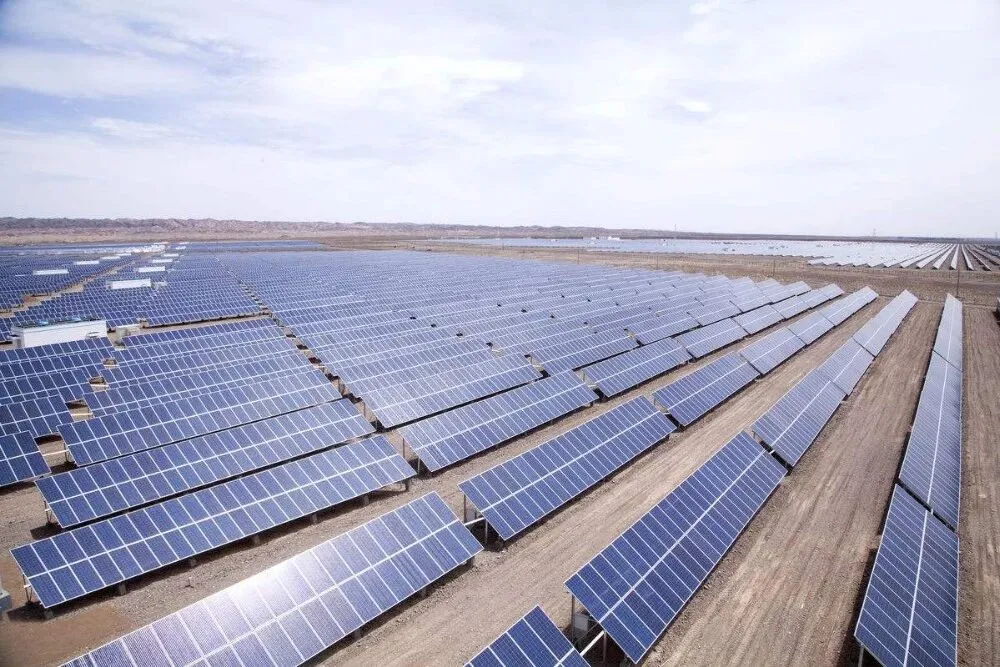

50MW Solar Plant in Brazil

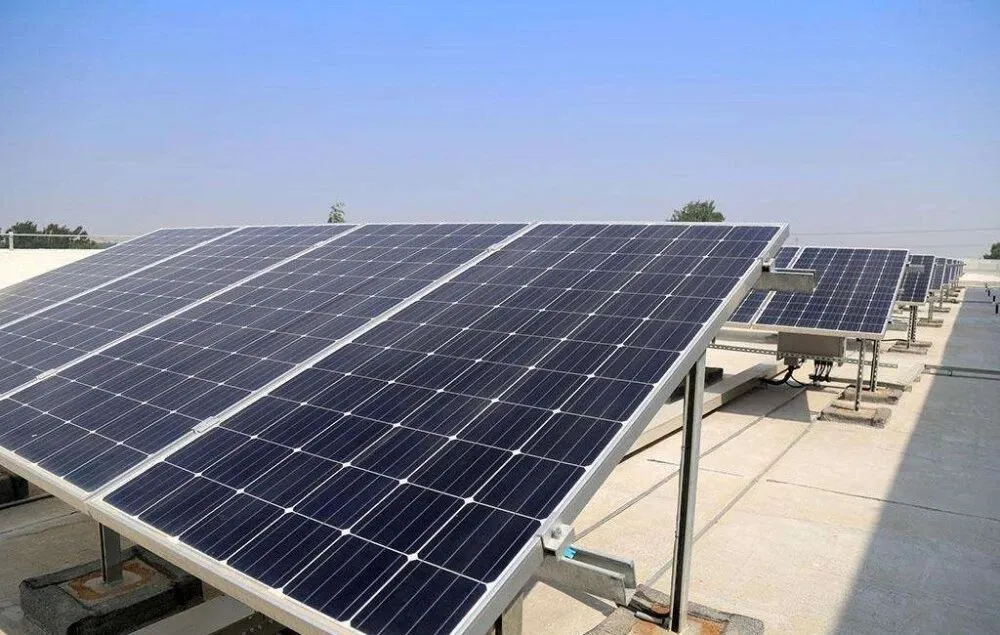

20KW Solar Plant in Mexico
