5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System
5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System
5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System
5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System
5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System
1 / 5
5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System
5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System
5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System
5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System
5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System

5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.
5-30KWH
Condition
New
Certification
ISO, CE, 10years Warranty
Application
Home, Industrial, Commercial
Load Power
5kw-30kw
Output Frequency
50/60Hz
Output Voltage
220V/380V Us 120/240V
Monitoring
WiFi/GPRS Device
Work Time
24hours/Day
System Type
Single Phase/Triple Phase
Inverter Type
Pure Sine Wave Inverters
Solar Panel Type
Mono Panels
📦

Packaging & Delivery

Package Size
80.00cm * 50.00cm * 30.00cm
Gross Weight
50.000kg
Capacity
60000 Pieces/Year
📝

Product Description

Solar Energy System

System Instruction & Applications:

The 5KW off-grid solar system is designed for high efficiency and reliability in various environments:

  • Mobile equipment such as motor homes and ships
  • Civilian life in remote areas (plateaus, islands, border posts) for lighting and appliances
  • Home rooftop grid-connected power generation systems
  • Photovoltaic water pumps for deep well irrigation
  • Transportation fields (beacon lights, signal lights, obstacle lights)
  • Communication fields (microwave relay stations, optical cable maintenance, GPS power supply)

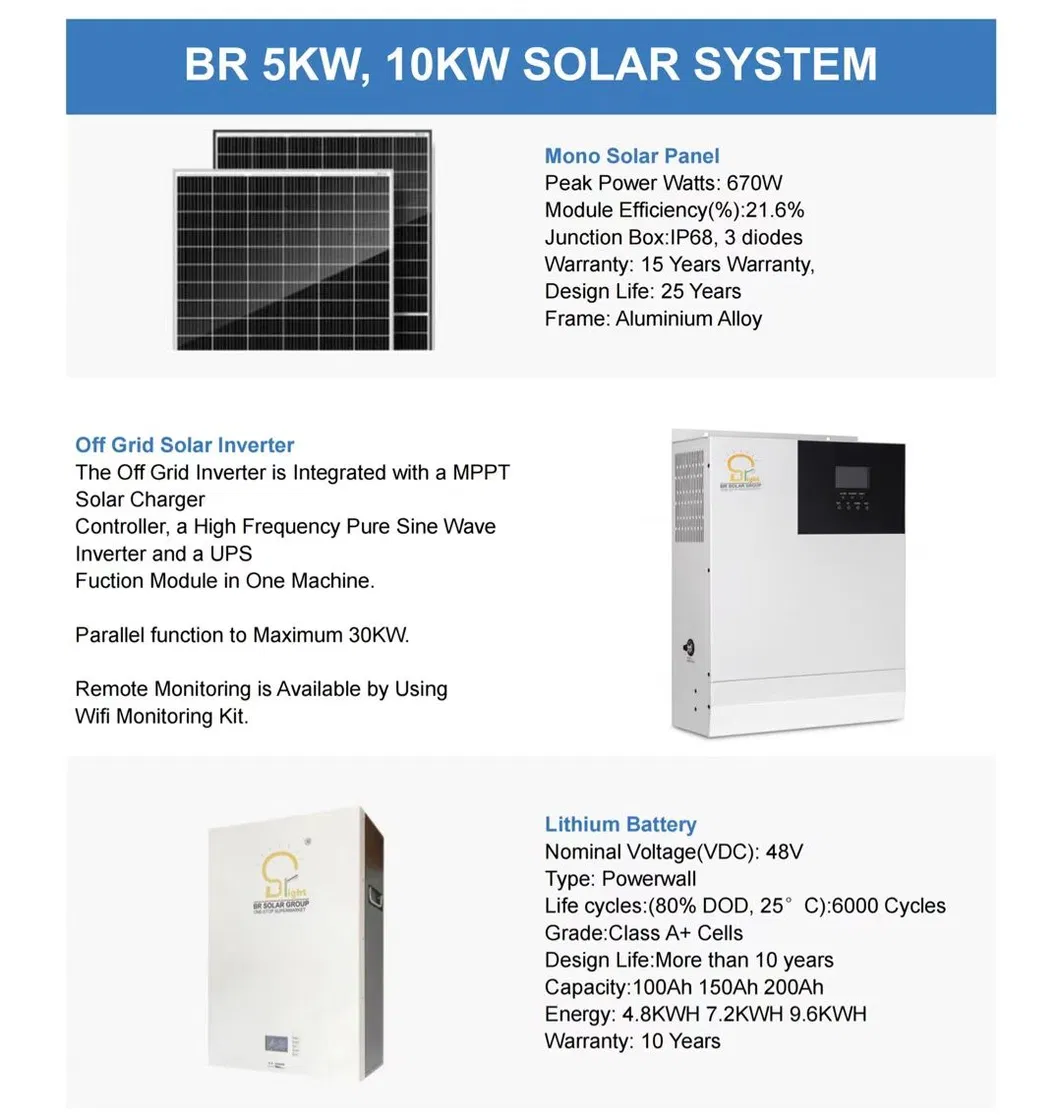

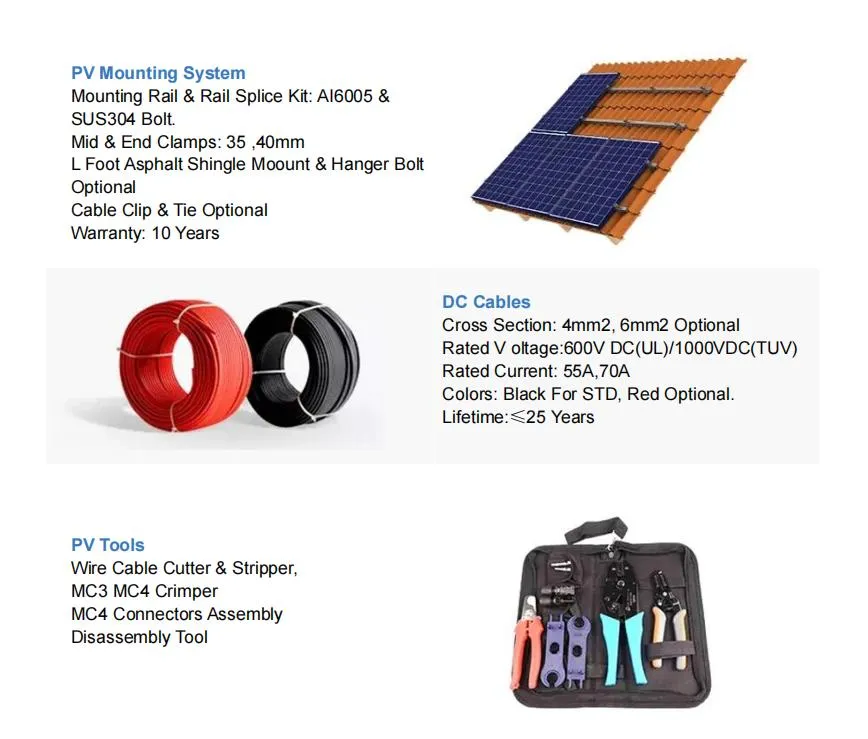

Solar System Detail 1 Solar System Detail 2
⚙️

System Configuration (5KW Example)

Part Specification Qty Design Lifespan

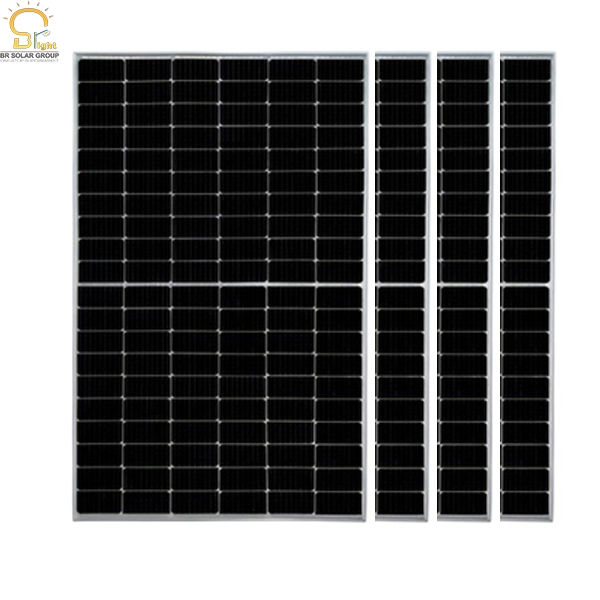

Solar Panel Mono Half Cell BR-M550W Class A+ 4pcs 25 Years
Inverter Pure Sine Wave All-in-one 48V/5kw 1set 15 Years
Battery Deep Cycle GEL Battery 12V-200AH 4pcs 12 Years
Bracket Hot-dip Galvanized Rooftop Mount 1set 35 Years
PV Cables 4mm2 / 6mm2 Standard 60m+ 20 Years
📐

System Diagram

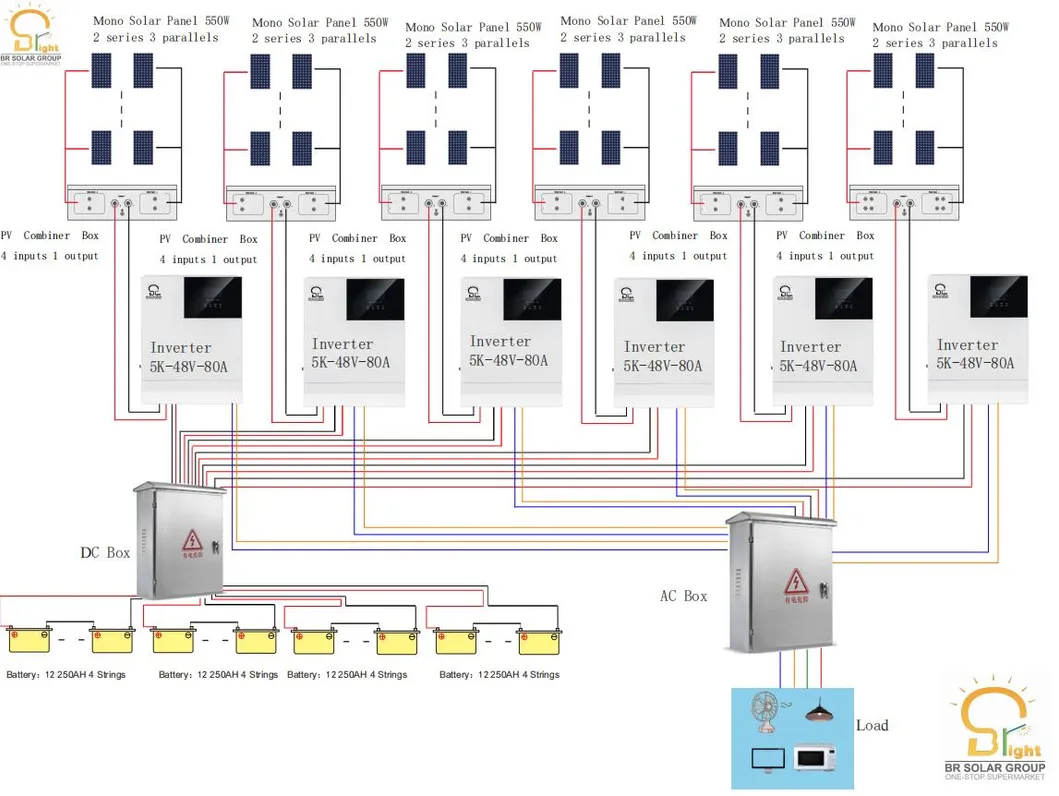

Parallel Solar System Diagram
🏭

Factory & Quality Control

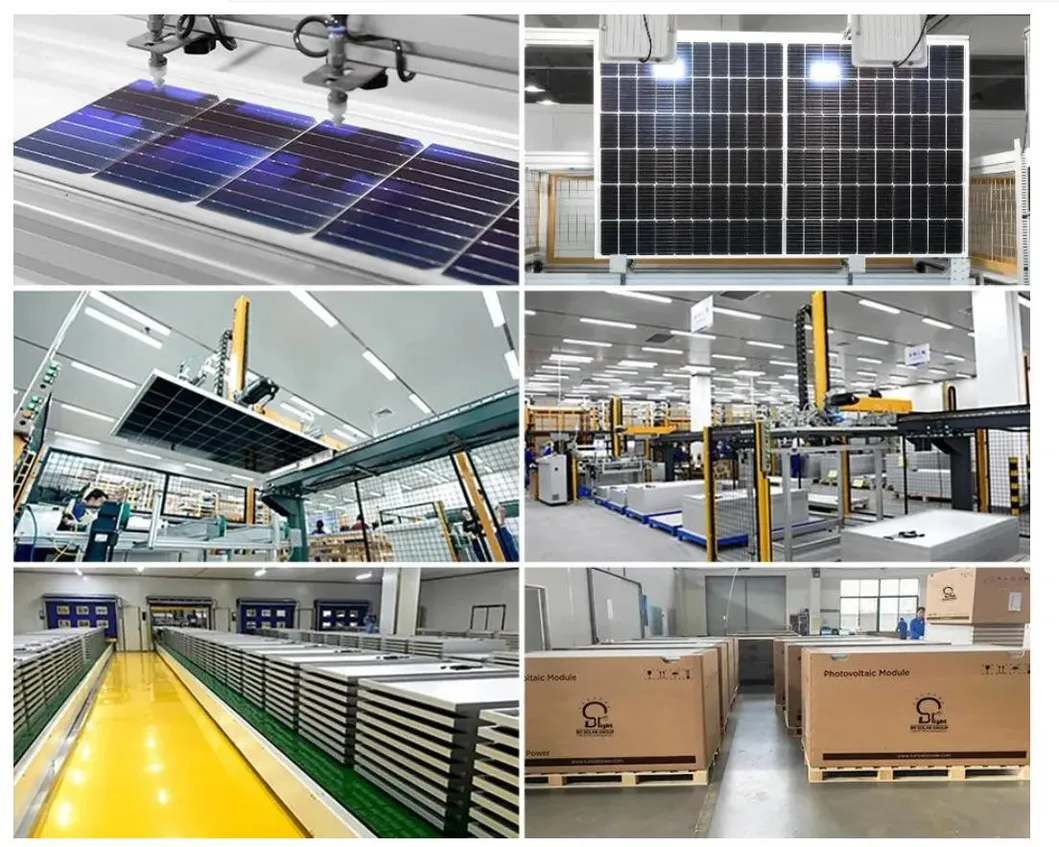

Factory Detail 1 Factory Detail 2

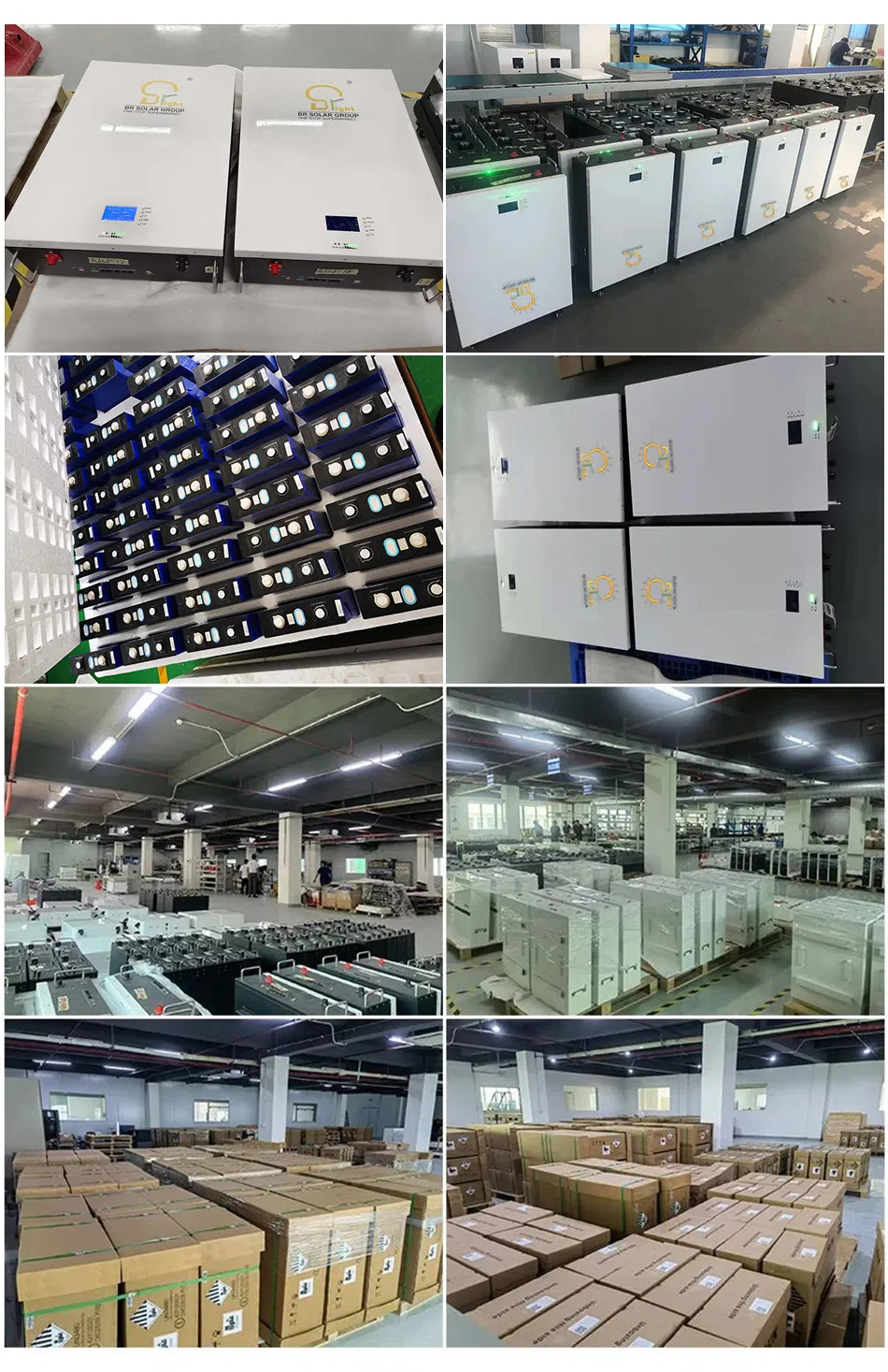

Production Process
🌍

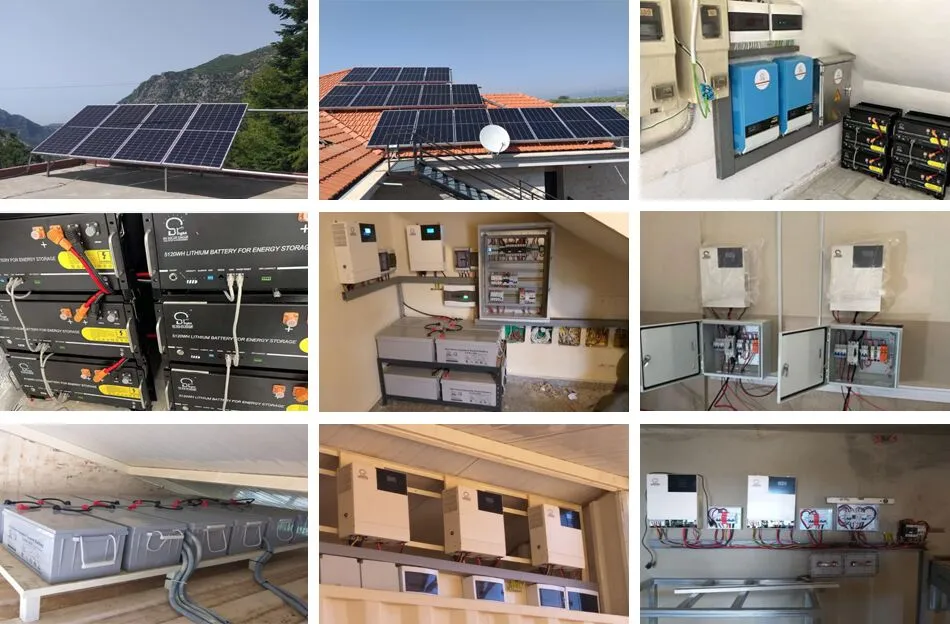

Global Projects

Our solar products have been successfully applied in more than 128 countries including UN projects and NGO projects. Quality is our culture.

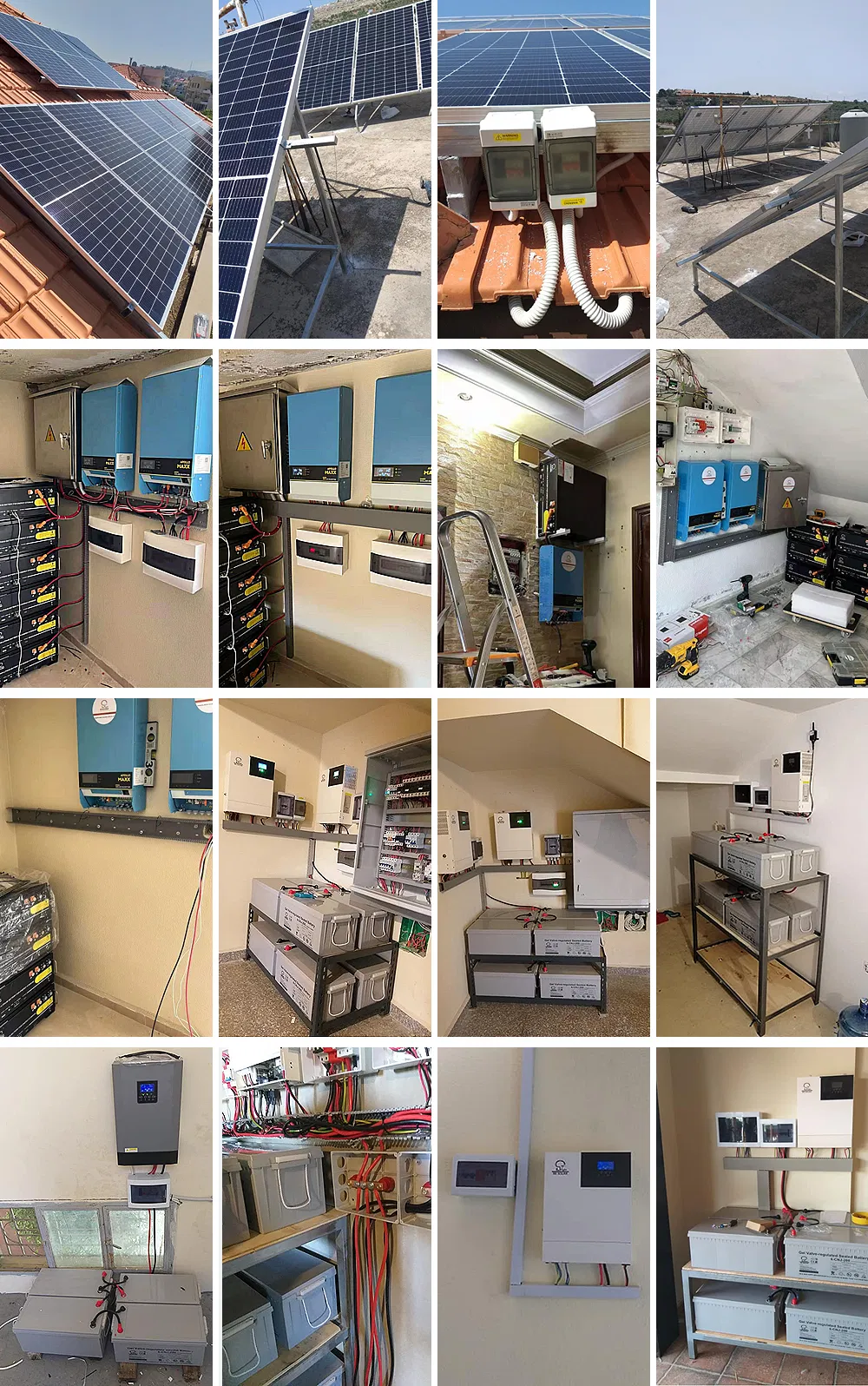

Global Project 1 Global Project 2
📜

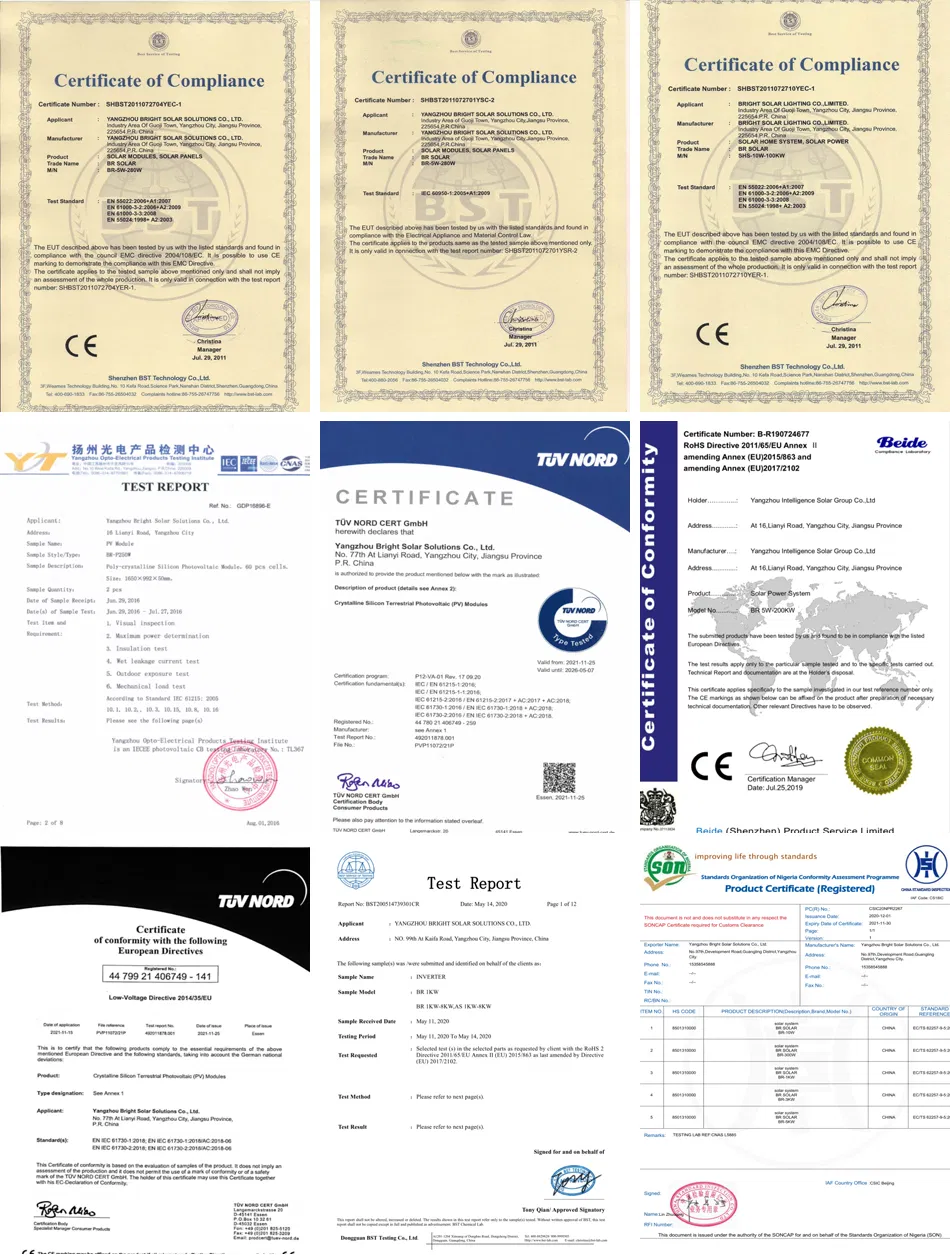

Certificates

Solar Certificates
🚢

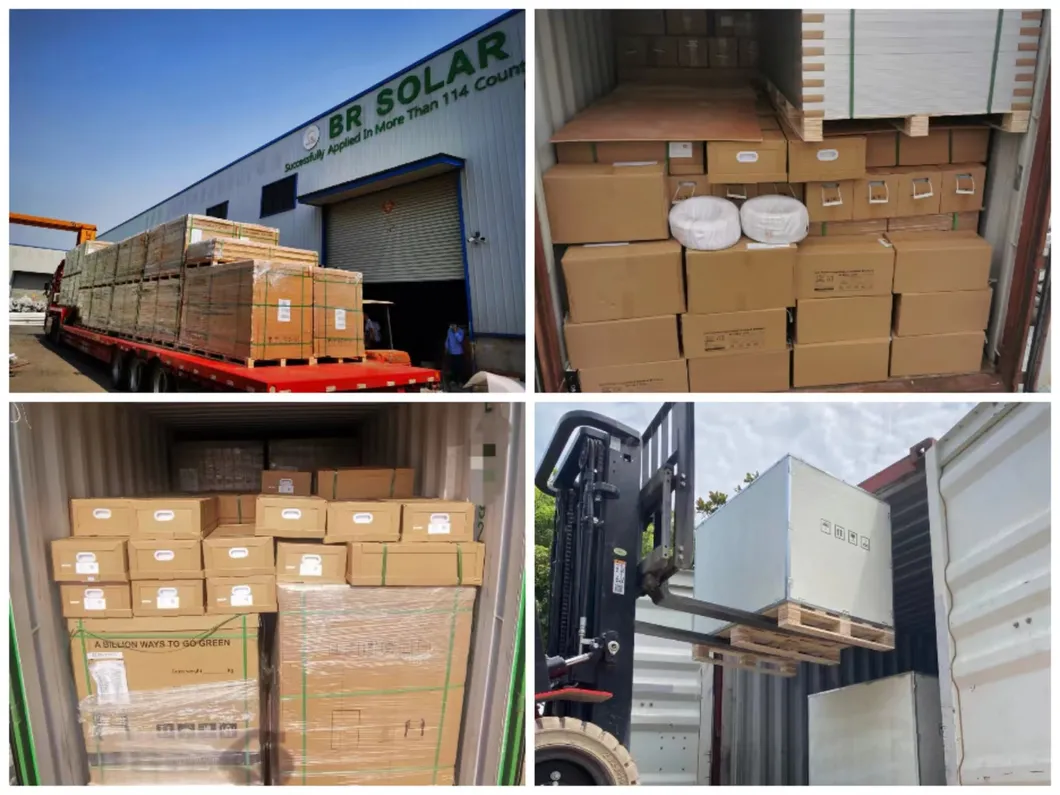

Shipping & Loading

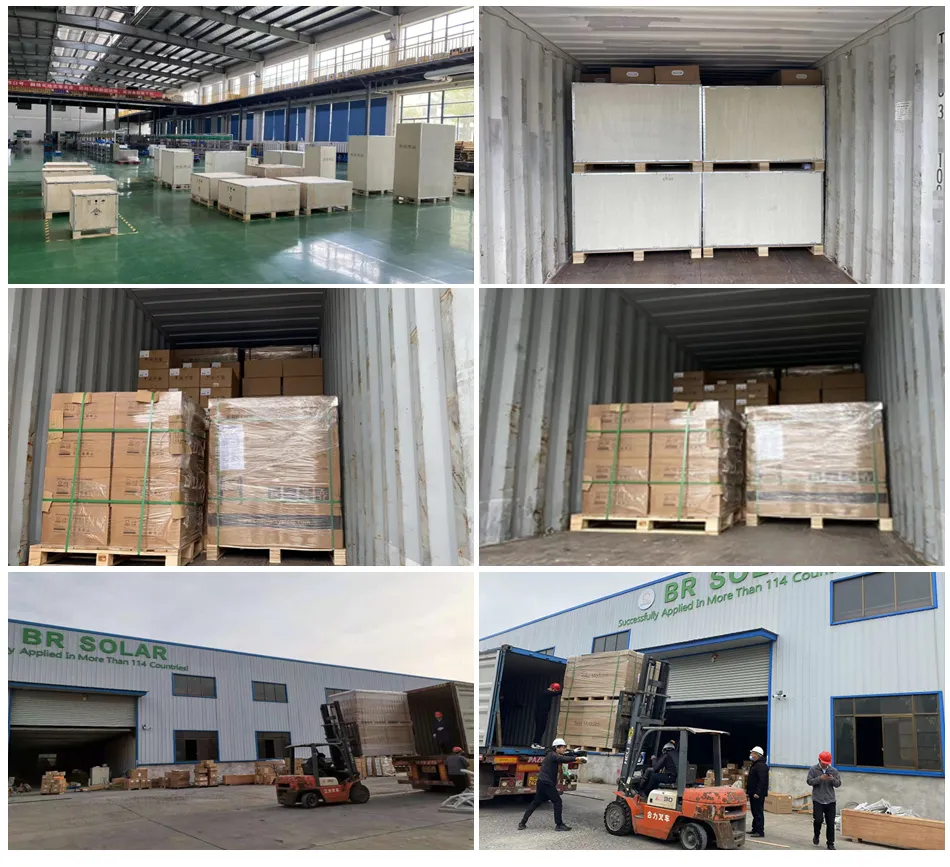

Packaging Detail Loading Detail
❓

Frequently Asked Questions

Can I have a sample order for solar products?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
What about the lead time for production?
Samples need 5-7 days. Mass production time depends on the specific order quantity.
Are you a factory or a trading company?
We are a factory with high production capacity and a wide range of solar products in China.
How do you ship the goods and how long does it take?
Samples are typically shipped by DHL, UPS, FedEx, or TNT (7-10 days). Airline and sea shipping are also optional.
What is your Warranty Policy?
We offer a 3 to 5-year warranty for the entire system and provide free replacements for any quality problems.
Do you provide installation guidance?
Yes, installation videos and site guiding installation services are available for container orders.
