• Solar water pump: 3 years
• MPPT controller: 3 years
• Solar panels: 25 years
Note: If the controller or motor is damaged within 3 years, we provide new components for replacement. Damaged impellers within 3 years are also covered by spare parts replacement.

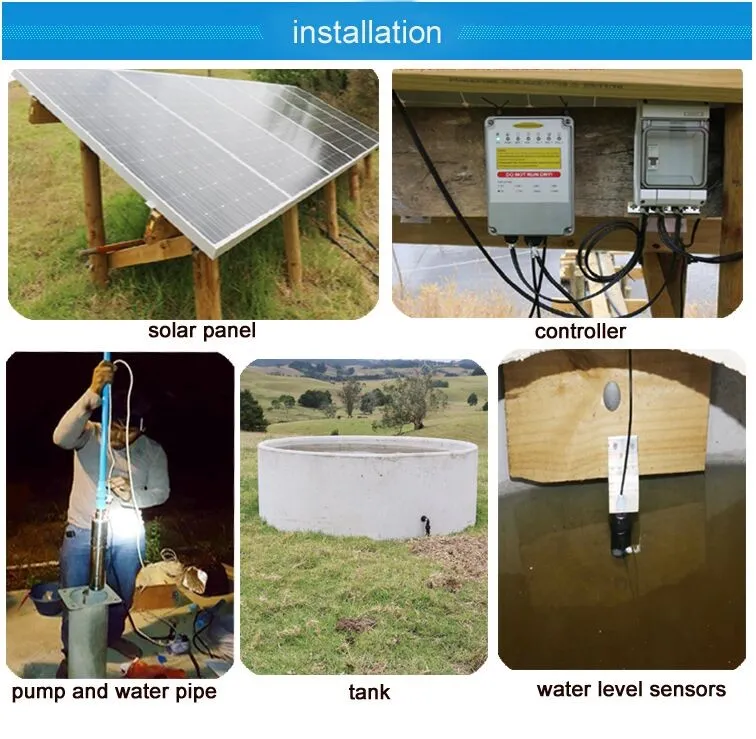

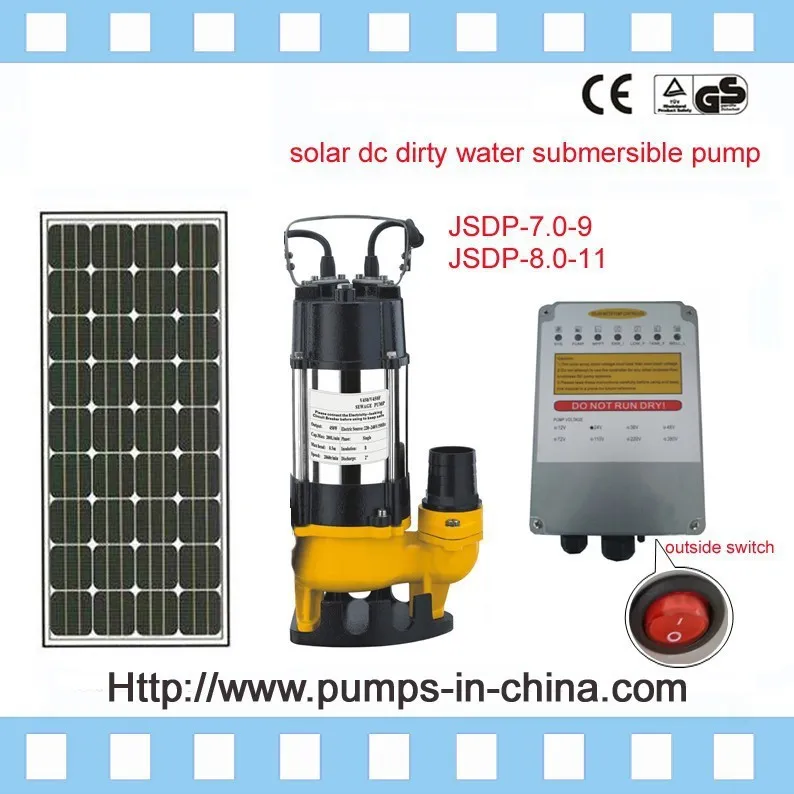

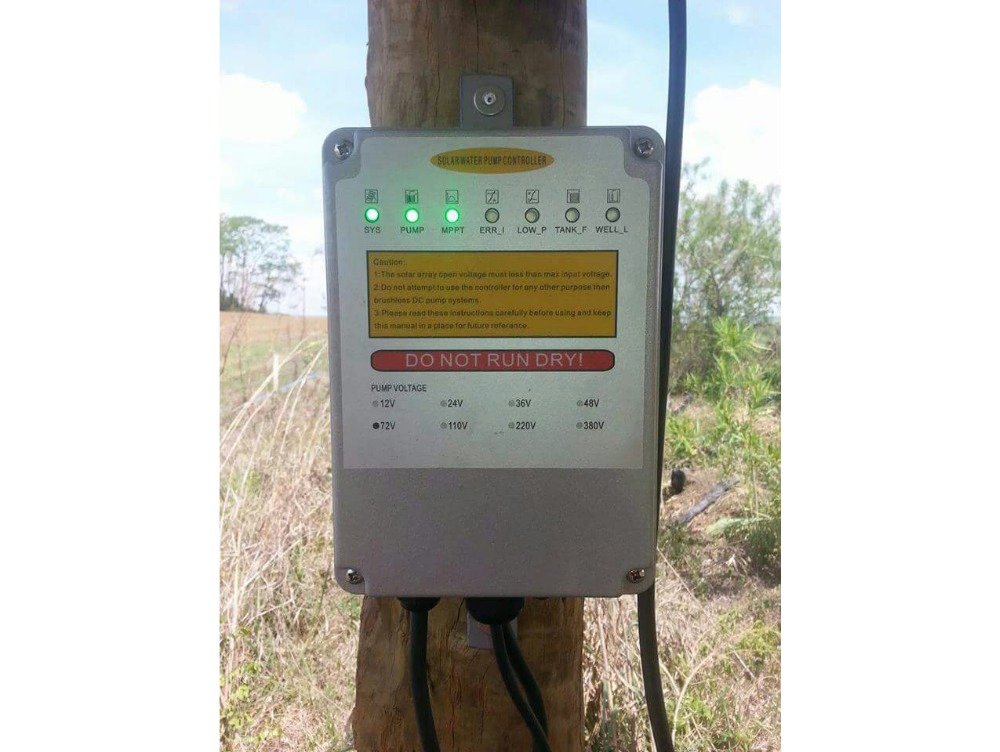

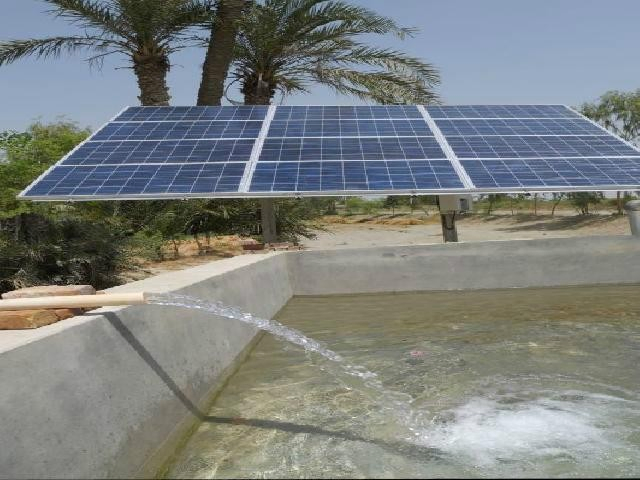

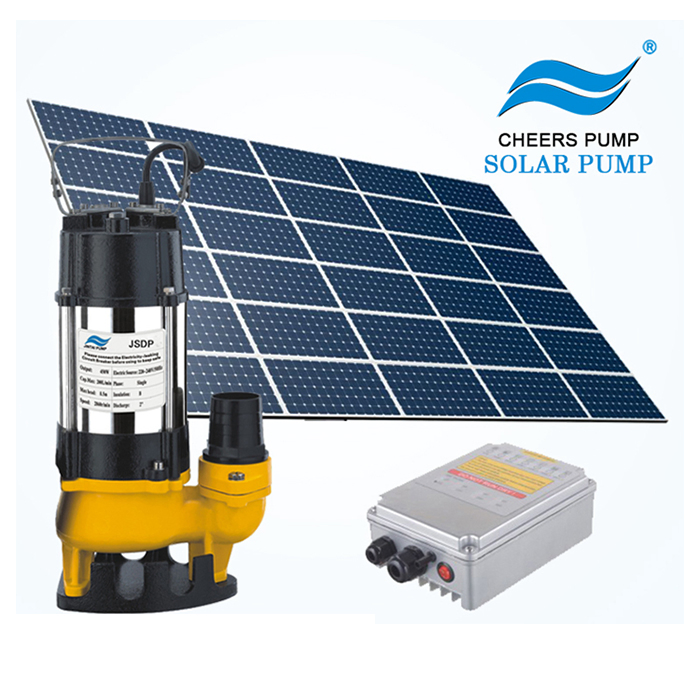

The Solar dirty water pump system consists of solar generating modules, a photovoltaic water pump controller system, and the pump itself. Solar arrays absorb radiation energy and convert it into electricity. The photovoltaic controller regulates the system, converting unstable DC from the solar array into stable DC to drive the pump. It achieves Maximum Power Point Tracking (MPPT), maximizing the utilization of solar energy based on sunlight intensity.
1. Application Innovation: Efficiency is improved by 25% compared to traditional AC machines using permanent magnetism, brushless DC, and non-sensor motors.
2. Technics Innovation: Double plastic package for rotor and stator provides motor insulation ≥300MΩ, significantly improving security.
3. Structure Innovation: Oil filling design for convenient installation and environmental protection.
| TYPE | VOLTAGE (V) | POWER (W) | MAX FLOW (m3/h) | MAX HEAD (m) | INLET/OUTLET |
|---|---|---|---|---|---|
| JSDP-7.0-9 | 48 | 400 | 7 | 9 | 1.5" |
| JSDP-8.0-11 | 48 | 500 | 8 | 11 | 1.5" |

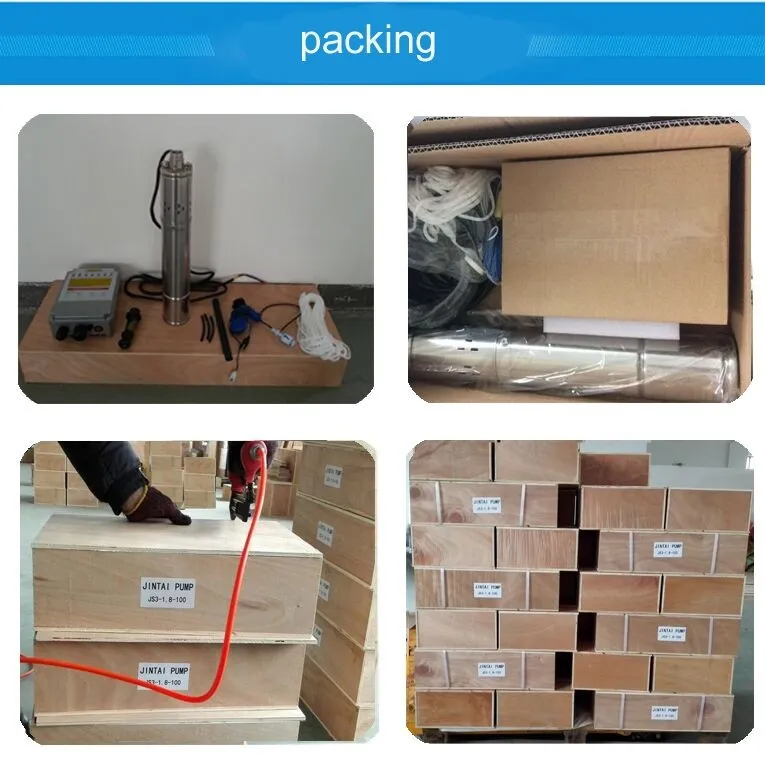

The Complete Kit Includes:
