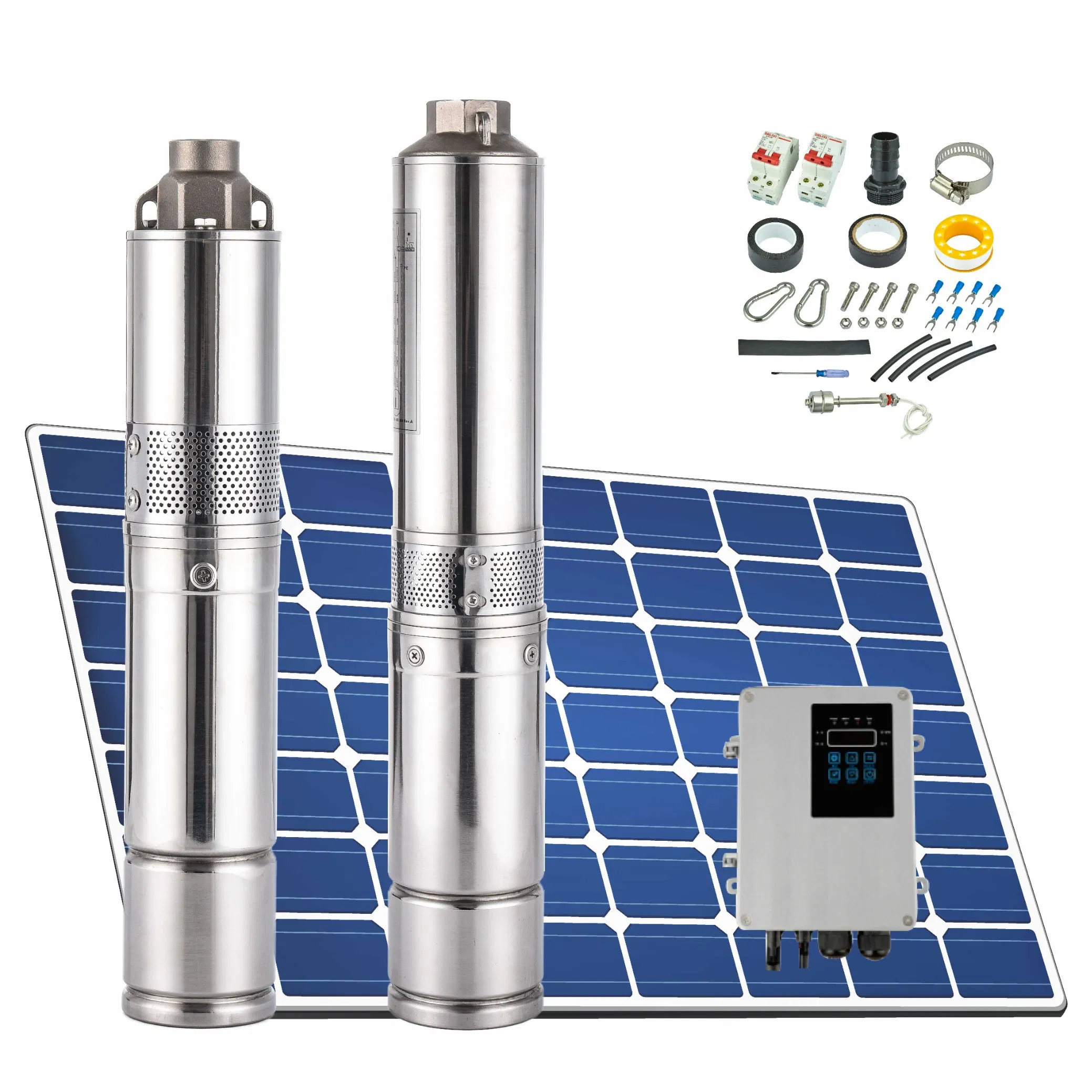

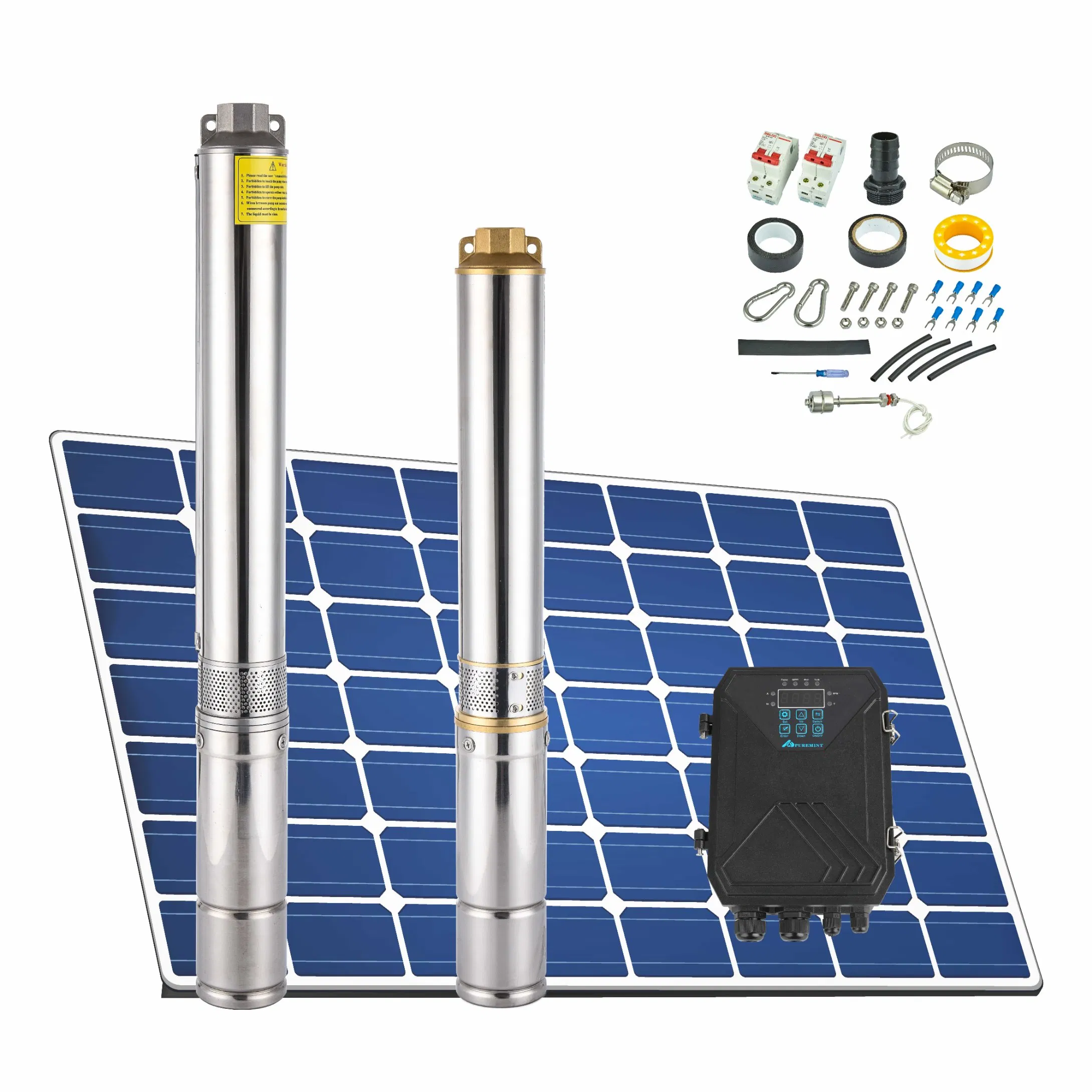

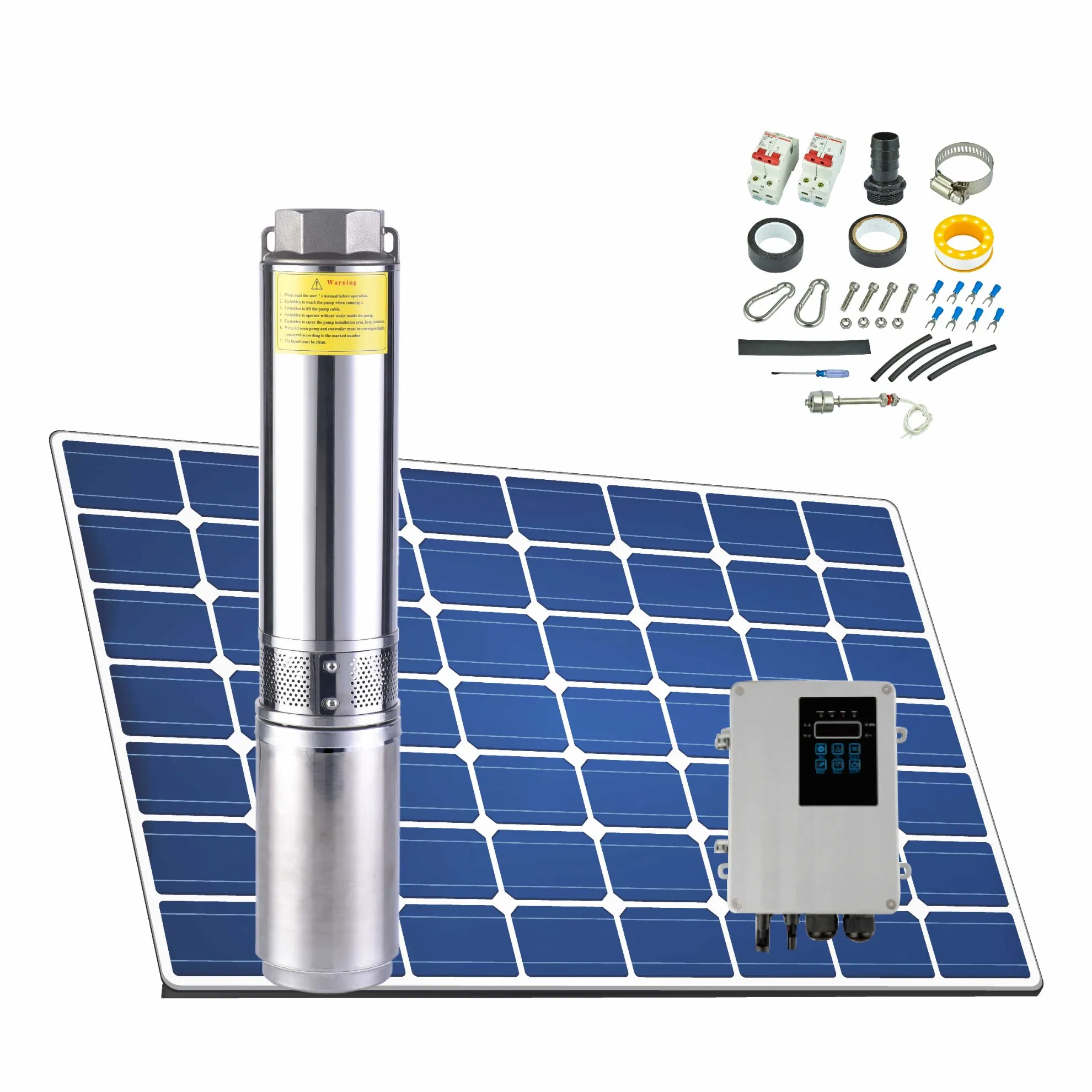

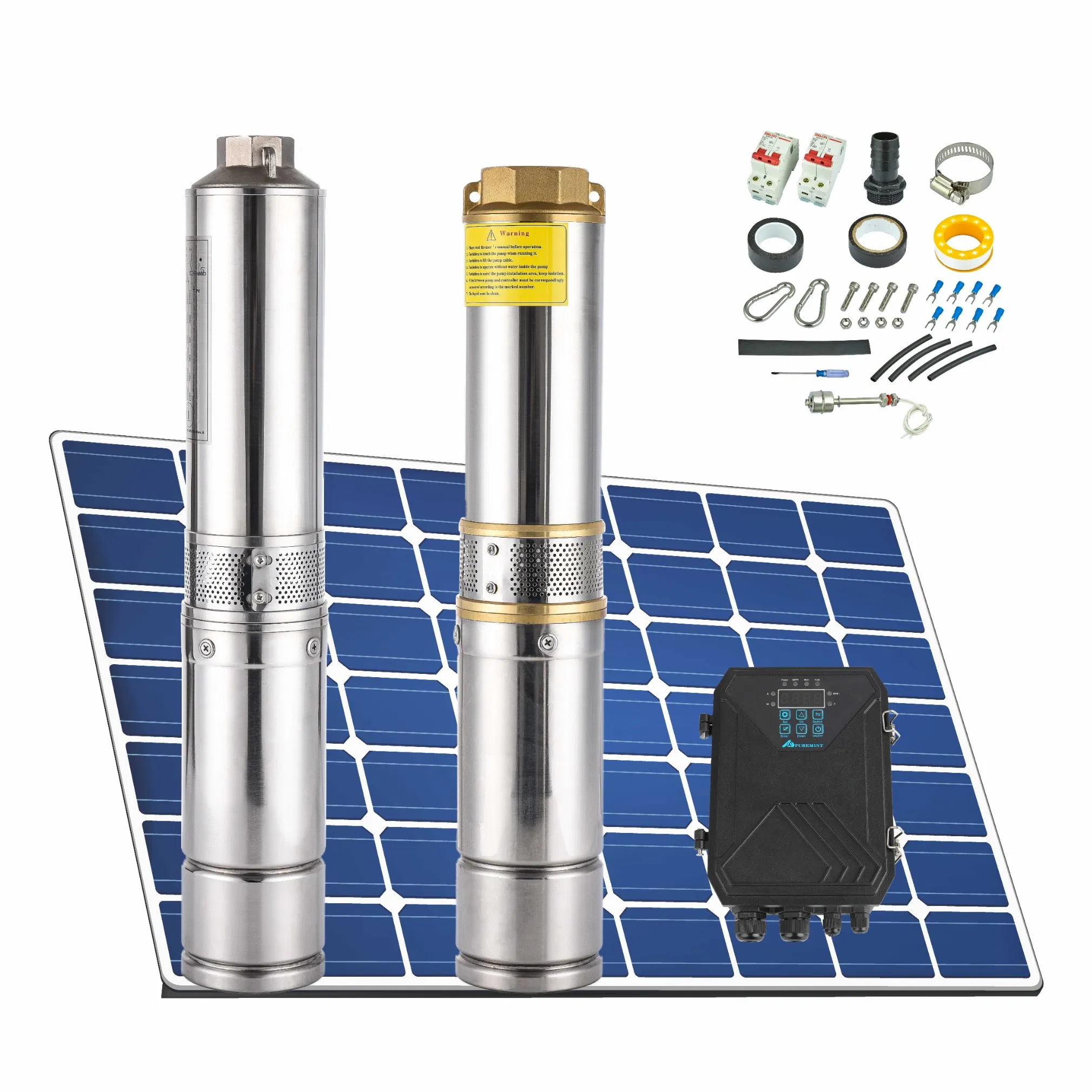

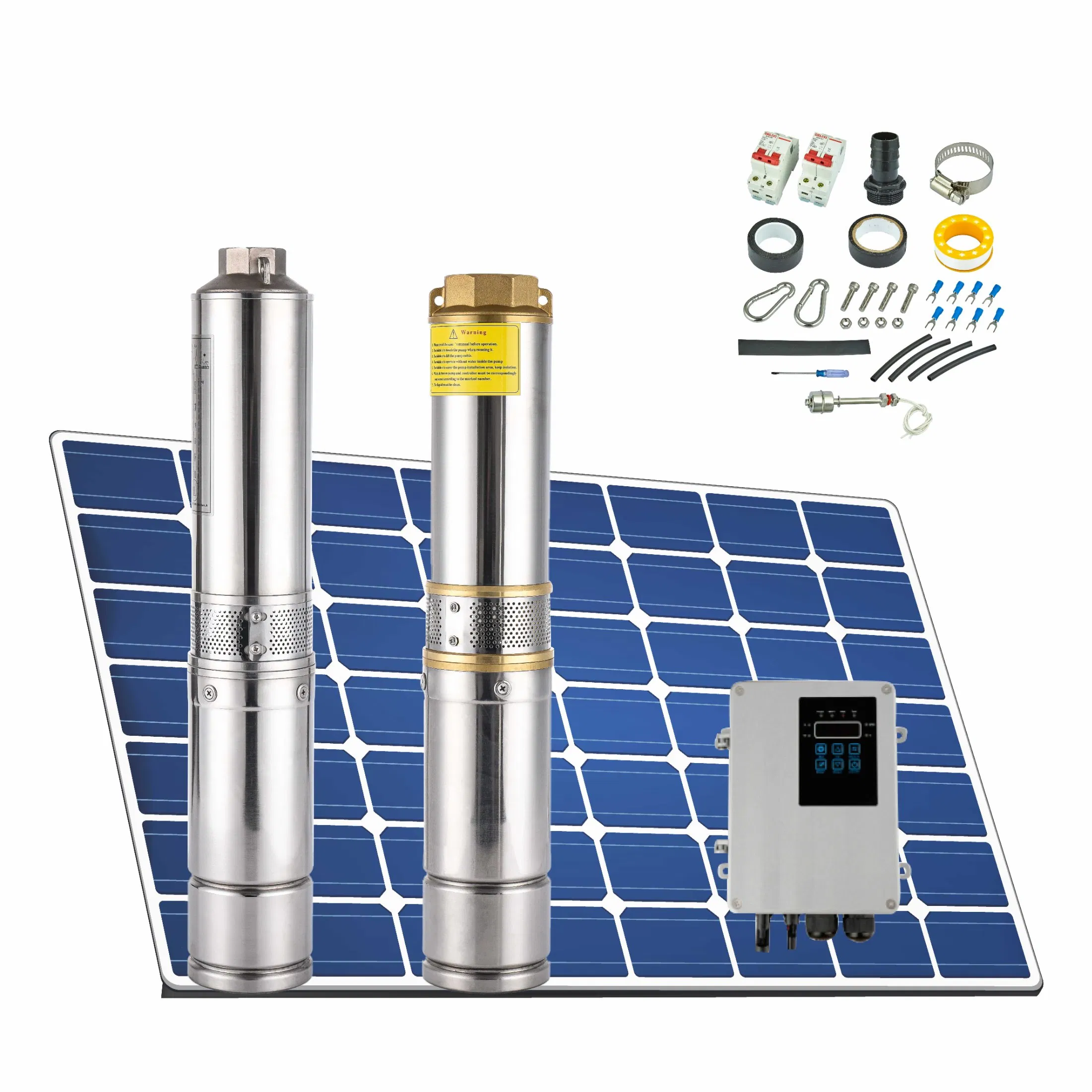

3 Inch Solar Water Pump Solar Pumps Solar Deep Well Submersible Pump

Basic Information

Max. Head

>150m

Max. Capacity

100-200 L/min

Driving Type

Motor

Material

Stainless Steel

Structure

Multistage Pump

Power

Electric

Type

Jet Pump / Solar Pump

Theory

Centrifugal Pump

HS Code

8413709990

Package

Wooden Case

Product Description

3 Inch Solar Water Pump - Solar Deep Well Submersible Pump

High-efficiency irrigation and fountain solar borehole water pump system.

Key Advantages

⚡

DC Brushless Permanent-magnetic Synchronous Motor: Designed for high speed and maximum efficiency in solar power DC submersible applications.

🛡️

Premium Construction: Features a 304 Stainless Steel pump shaft, high-quality bearings, and an alloy mechanical seal for durability.

⚙️

Advanced Winding Technology: Motor coil utilizes automatic winding with centralized technology, significantly improving motor efficiency.

💧

Intelligent Protection: Automatic water shortage protection system stops the pump when the well is dry and restarts after 30 minutes.

🎮

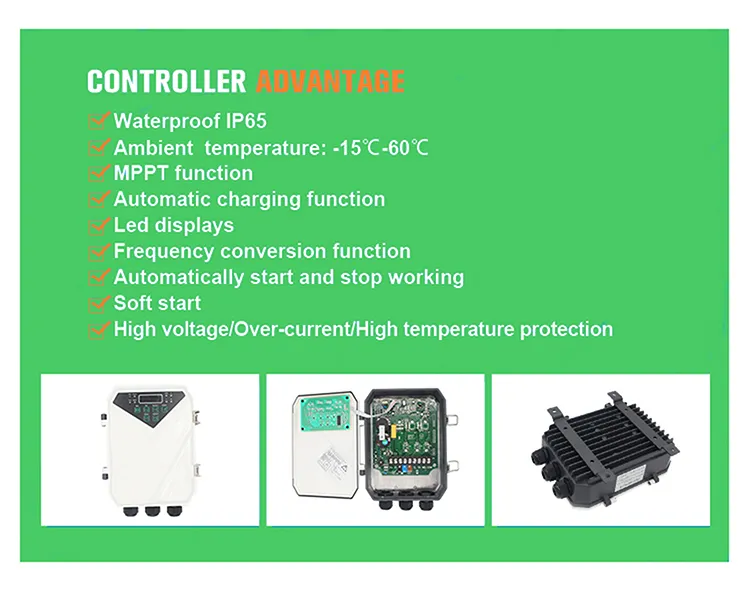

Smart Controller: Equipped with MPPT function, frequency conversion, automatic operation, and waterproof/leak-proof sealing.

Applications

Irrigation in horticulture & agriculture
Livestock watering
Gardens or fountains
Domestic water supply
Pond management
Small scale service industries

Technical Specifications

Model	Voltage	Power	Max. Flow	Max. Head	Outlet
3DSC4-35-24-300	24V	300W	4m³/h	35m	1.25"
3DSC4-50-48-400	48V	400W	4m³/h	50m	1.25"
3DSC4-80-48-600	48V	600W	4m³/h	80m	1.25"
3DSC4.8-95-72-750	72V	750W	4.8m³/h	95m	1.25"
3DSC4.8-112-72-1100	72V	1100W	4.8m³/h	112m	1.25"
3DSC4.8-112-110-1100	110V	1100W	4.8m³/h	112m	1.25"
3DSC4.8-135-110-1500	110V	1500W	4.8m³/h	135m	1.25"
3DSC4.8-112-220/300	AC220/DC300V	1100W	4.8m³/h	112m	1.25"
3DSC4.8-135-220/300	AC220/DC300V	1500W	4.8m³/h	135m	1.25"

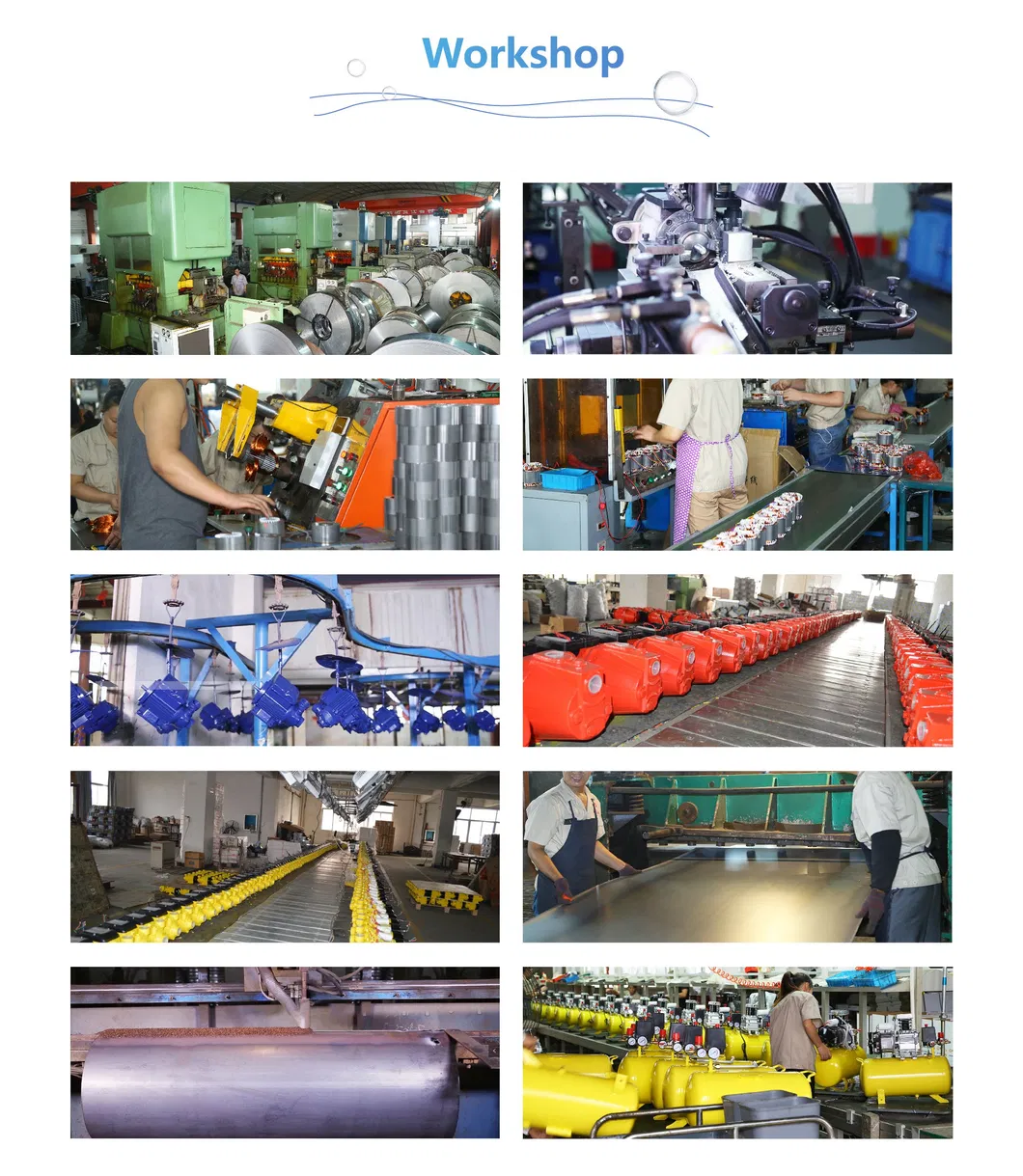

Production & Quality Control

Specialized in research, development, and manufacturing of peripheral pumps, centrifugal pumps, jet pumps, and submersible pumps. All operations are carried out strictly according to quality control system standards, focusing on the details of each component.

Frequently Asked Questions

What is your Minimum Order Quantity (MOQ)?

Trial sample orders are accepted to help you test the quality and performance.

What are the available payment terms?

We accept various payment methods including T/T, L/C, D/A, and D/P.

What is the estimated delivery time?

The standard delivery time is approximately 45 days after receiving your advanced deposit.

Do you support OEM branding?

Yes, we welcome OEM orders and can customize the brand according to your requirements.

How do I select and buy the right pump?

Please provide details regarding the fluid type (clean/dirty water, temperature), required flow rate, head height, power, and the voltage/frequency of your local electricity supply.

Are the pumps suitable for solar power?

Yes, these are specifically designed DC solar submersible pumps featuring high-efficiency MPPT controllers.
