| Model NO. | LXP-80 |
|---|---|
| Product Name | DC Brushless Solar Centrifugal Water Pump |
| Theory | Water Ring Type |
| Power | 900W |
| Voltage | DC 48/60/72V |
| Outlet | 80mm, 3 Inch |
| Max. Flow | 40m³/H |
| Max. Head | 10m |
| Suction | 8m |
| Motor | DC Brushless 100% Copper Motor |
| Impeller | Irony |
| Certification | CE |

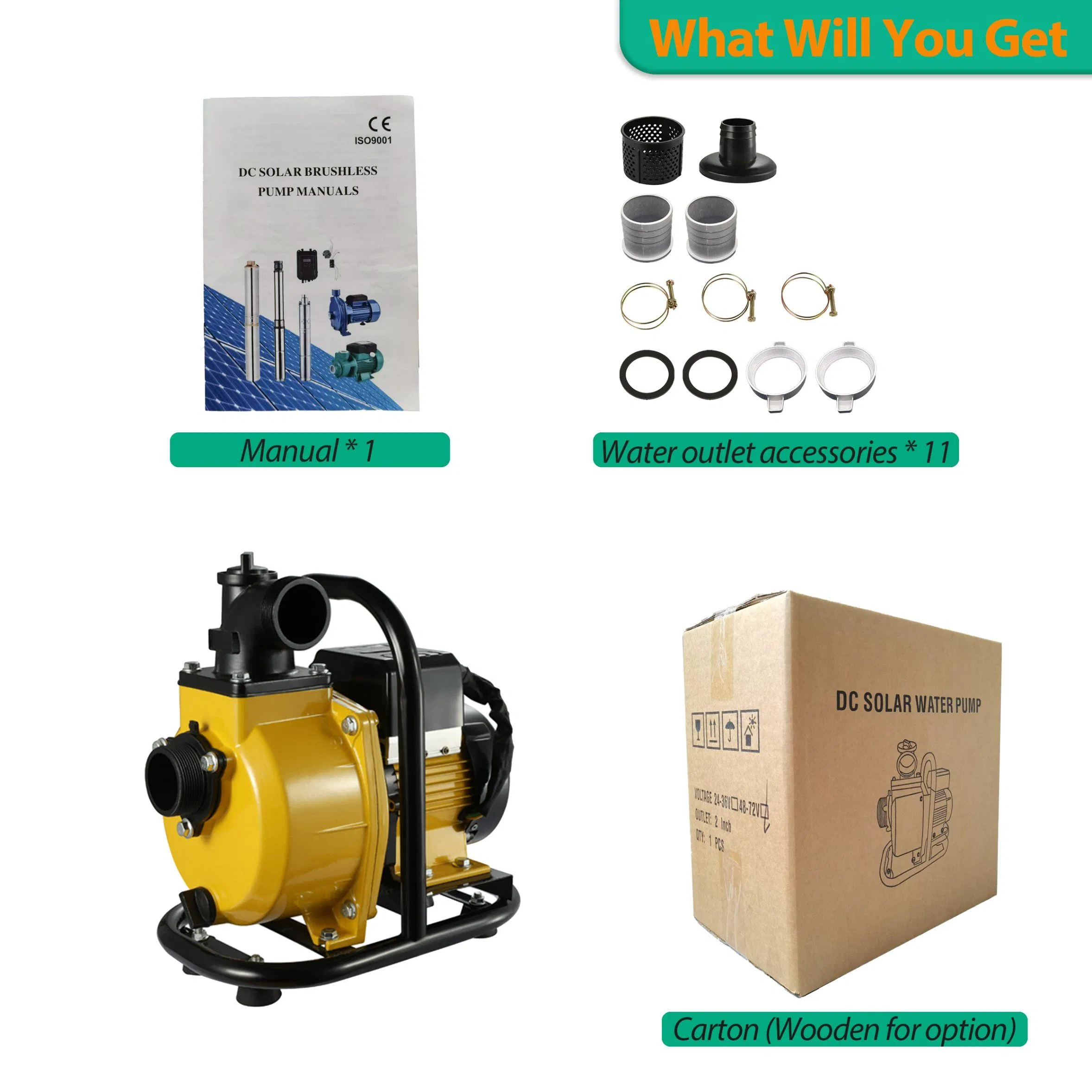

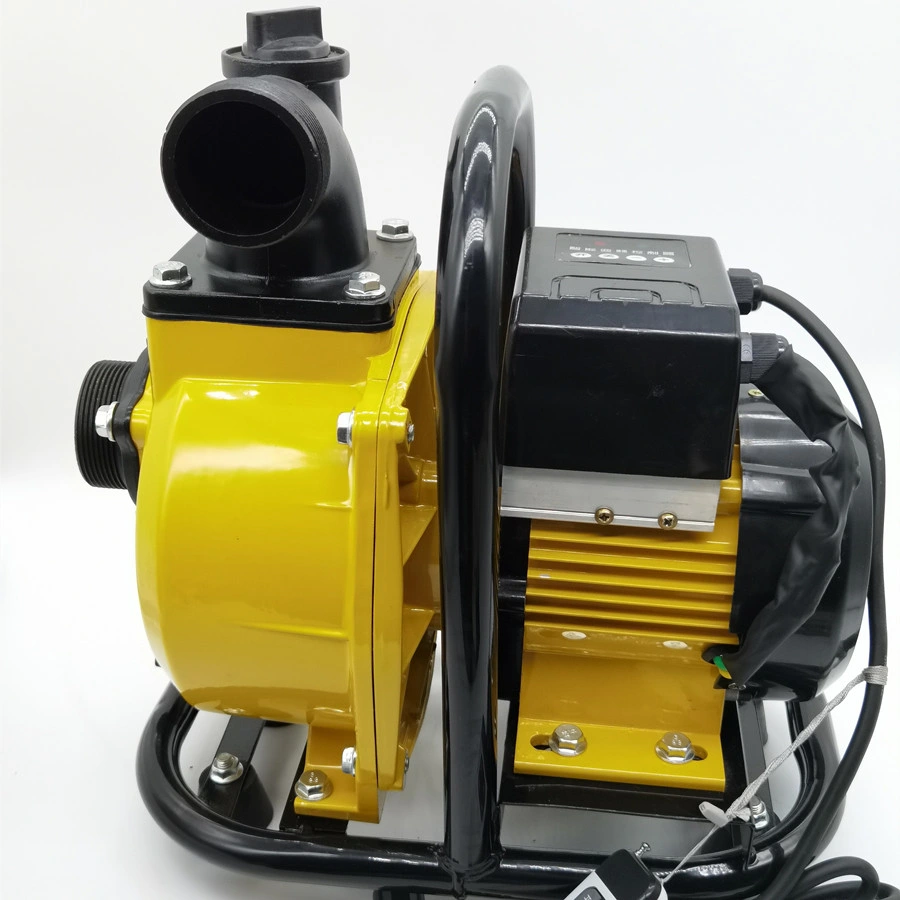

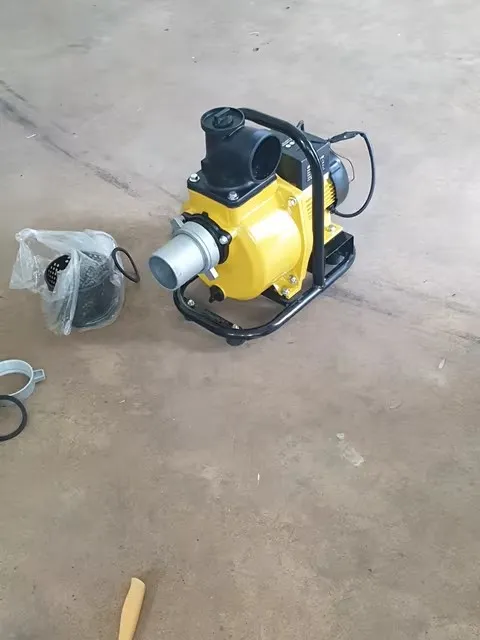

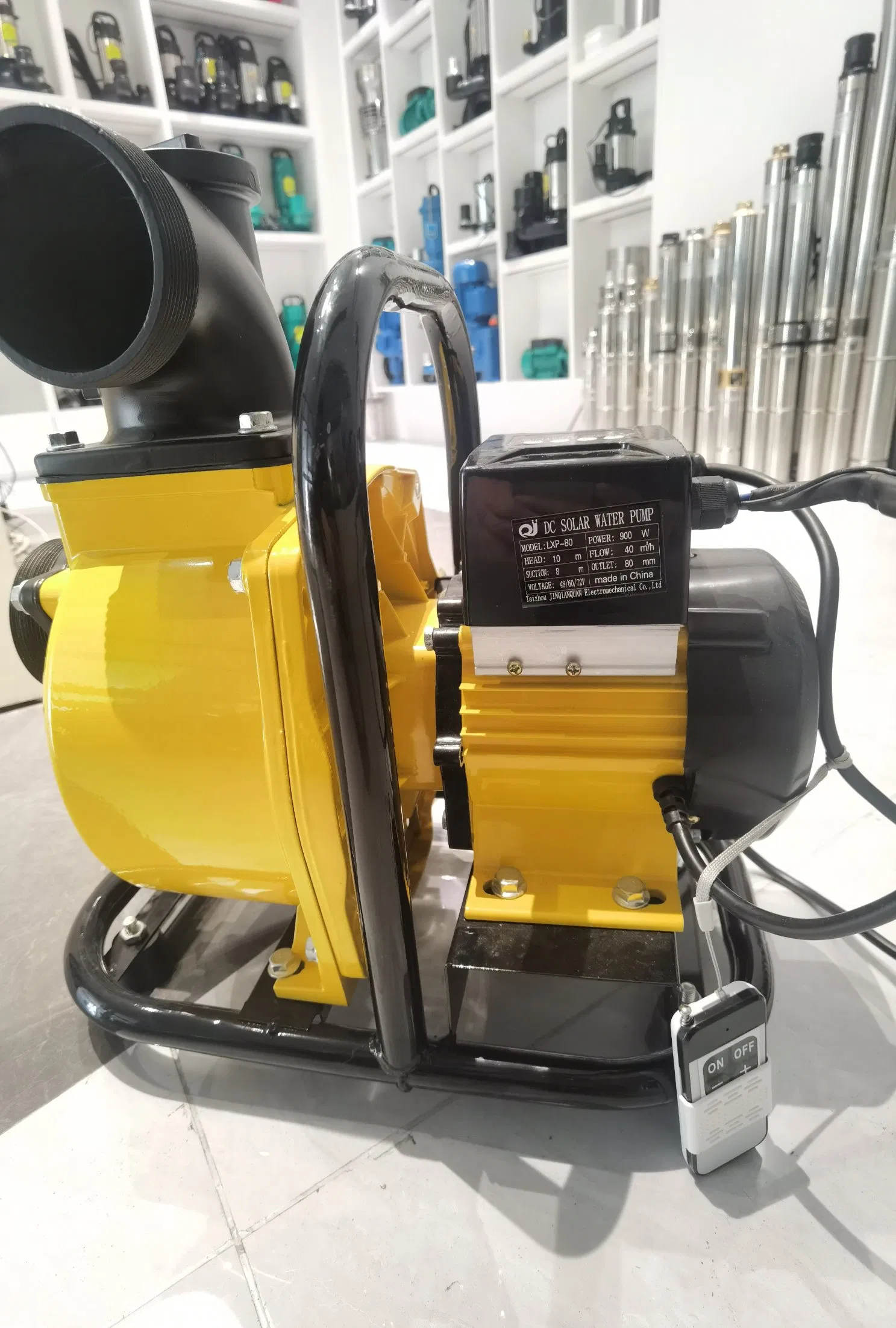

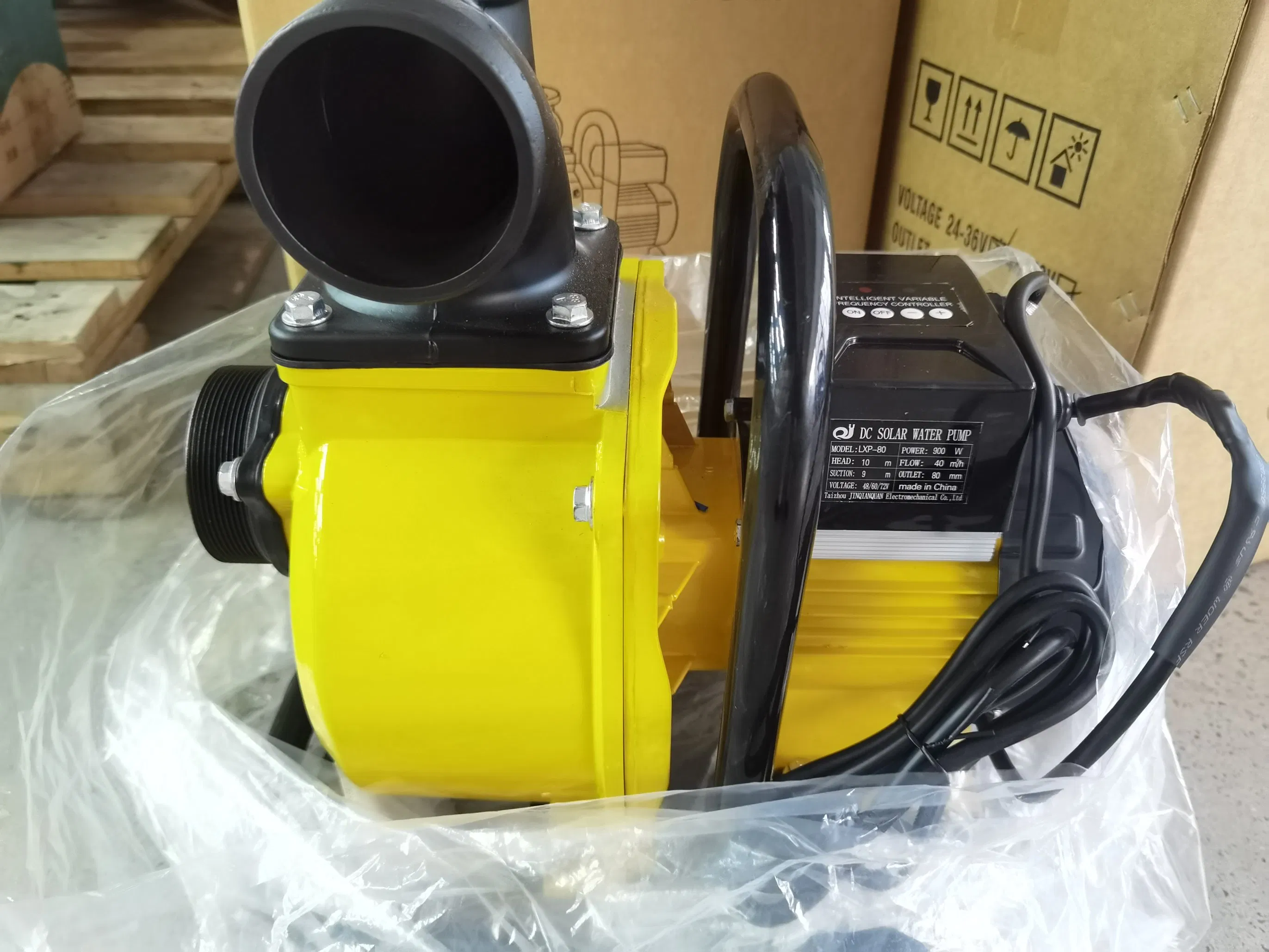

40m³/h 10m 3 Inch DC Brushless Solar Surface Self-Priming Centrifugal Water Pump

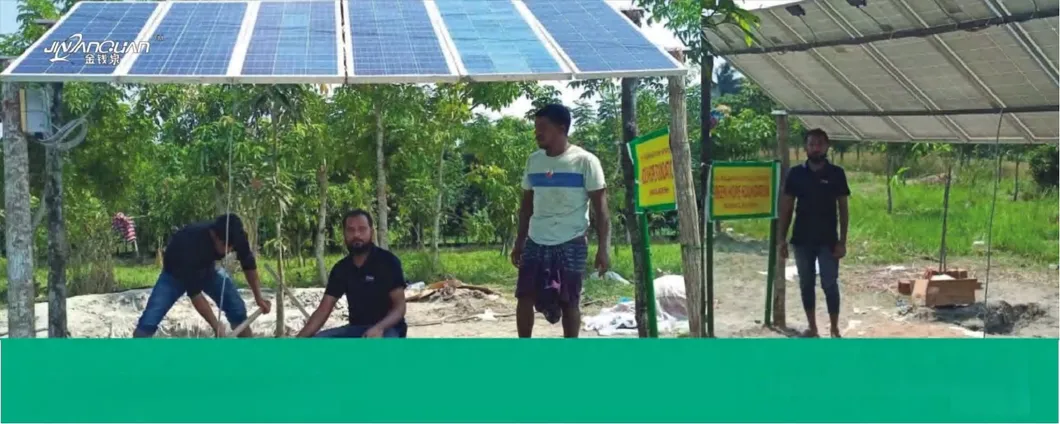

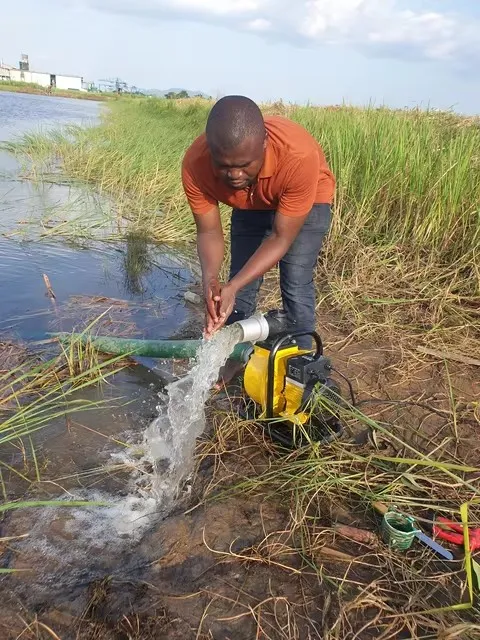

This high-efficiency solar pump is designed for agricultural irrigation and domestic water supply, featuring a built-in controller for direct connection to solar panels or batteries.
Configuration Suggestion:
Power of solar panel * 0.7 ≥ 900W
Voc of solar panel: DC40-90V

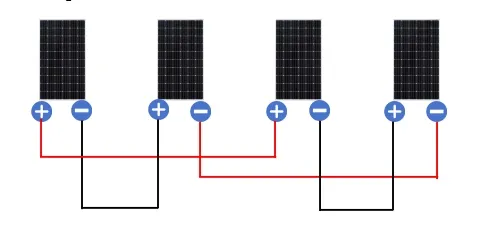

Recommended Setup: 4 units of 450W panels (Voc 41.56V). Connect 2pcs in series and 2pcs in parallel.

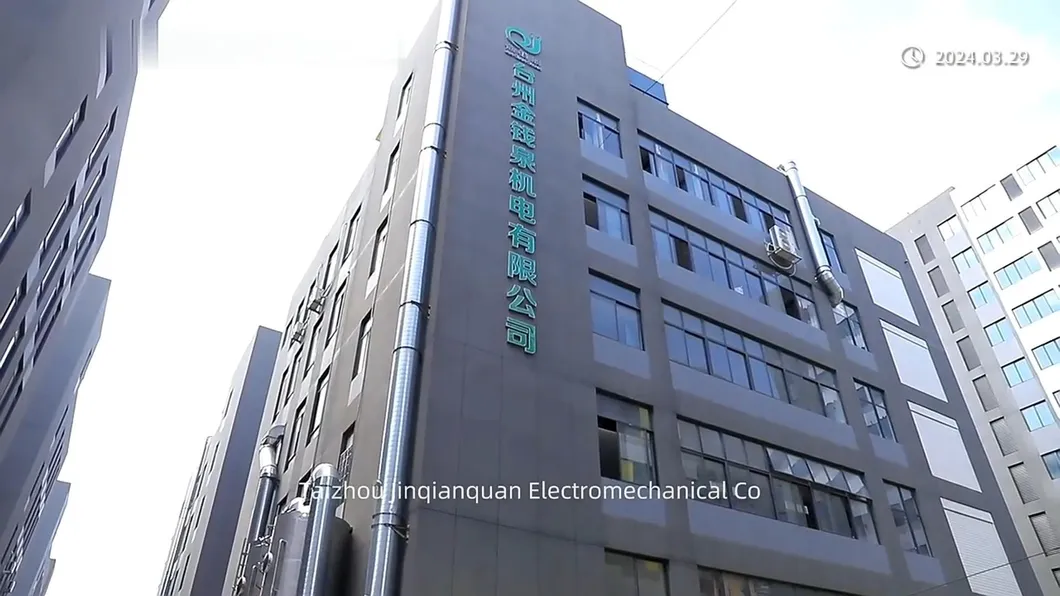

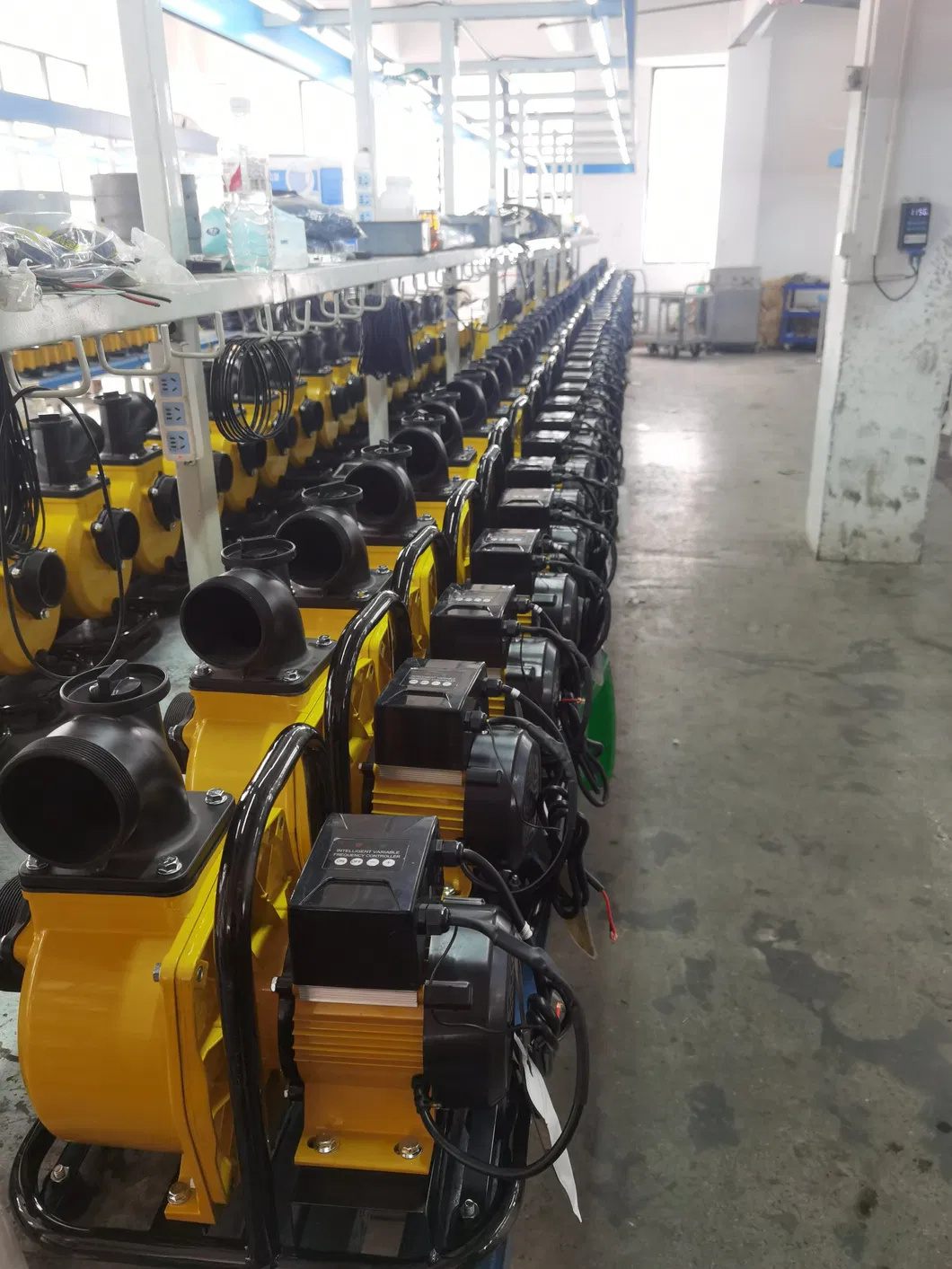

With over 20 years of experience in water pump manufacturing, we specialize in DC brushless solar technology. Our products feature advanced designs, excellent material selection, and unique technology, making them a preferred choice for domestic and industrial water supply worldwide.
