215kwh Commercial/Industrial Energy Storage System All in One 215kw Hybrid Solar Energy System with Lithium Ion Battery

1 / 5

215kwh Commercial/Industrial Energy Storage System All in One 215kw Hybrid Solar Energy System with Lithium Ion Battery

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

💠 Overview & Features

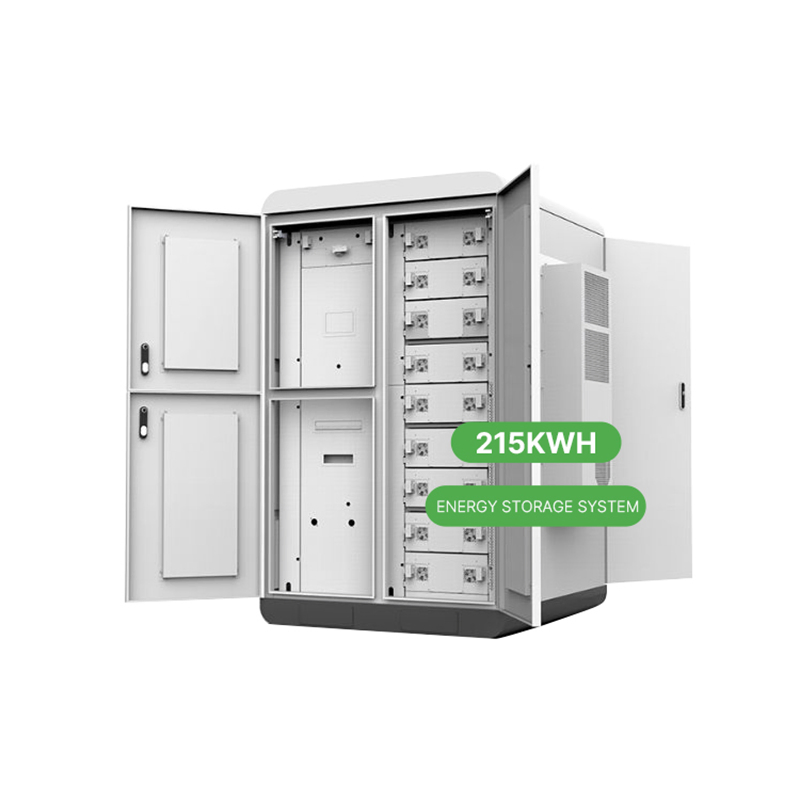

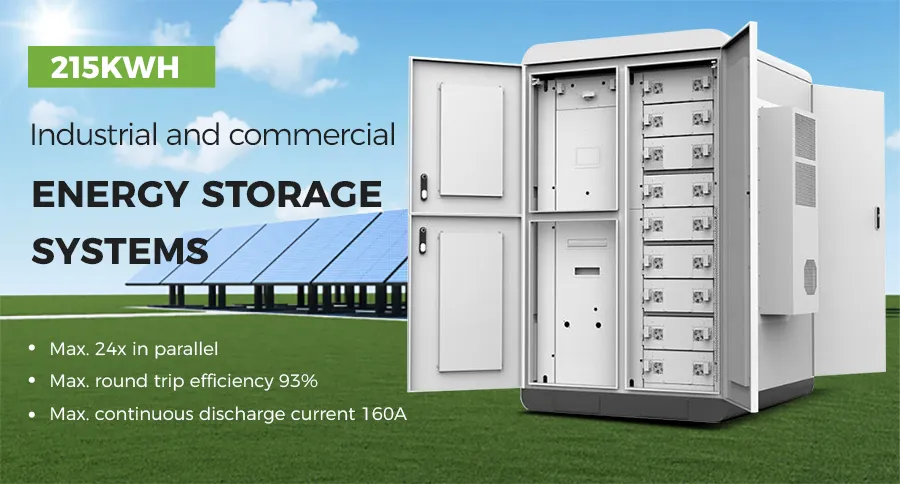

Commercial & industrial energy storage system adopts the all-in-one design concept. The cabinet is integrated with a battery management system (BMS), energy management system (EMS), modular power conversion system (PCS), and fire protection system. The system's capacity is up to 215 kWh and the power is up to 100 kW. The modular design allows for flexible expansion, adapting to various scenarios such as power expansion, backup power supply, and black start.

📊 Product Parameters

Model NO.	SWS-215kWh
Nominal Voltage	768V
Nominal Capacity	215 kWh
Cycle Life	> 8000 cycles
Protection Degree	IP 55
Communication Port	RS485, Ethernet
Grid Connection	Hybrid Grid
Cooling	Industrial Air Cooling
DoD	95%
Rated AC Voltage	380/400 Vac
Rated Power	100 kW
Battery Type	Lithium Ion (LFP)
Fire Fighting System	Perfluorohexanone
Dimensions (WDH)	152012702117 mm
Operating Temperature	-20 to +55°C

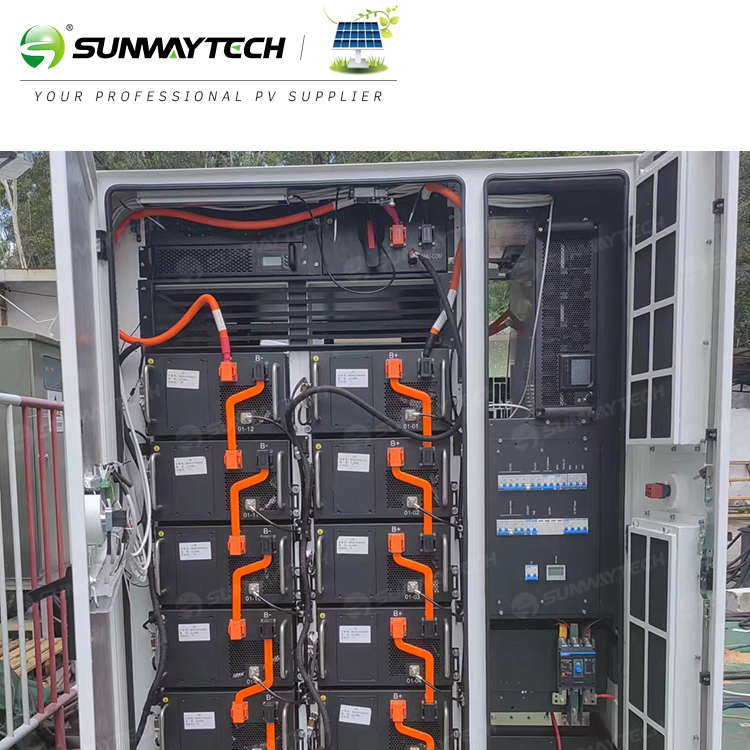

🖼️ Product Display

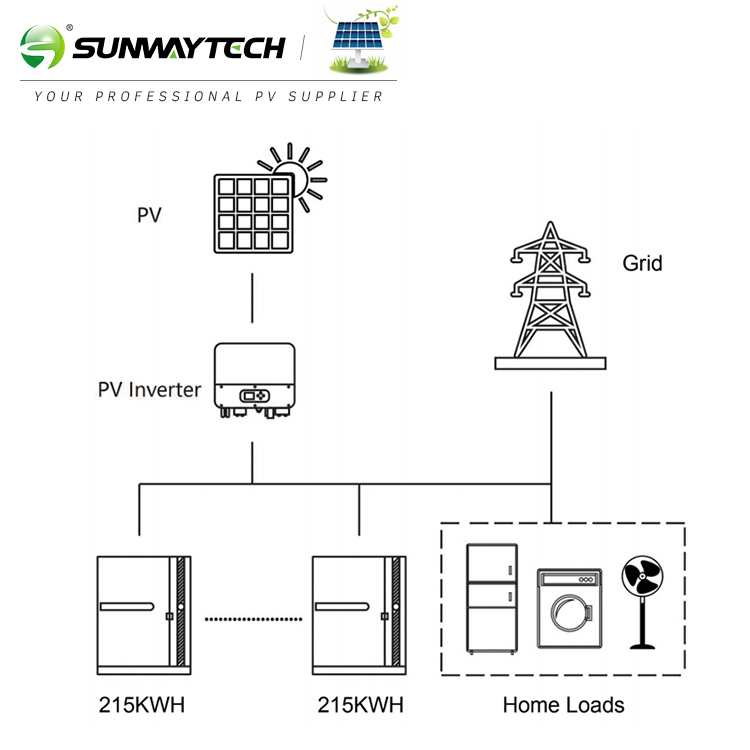

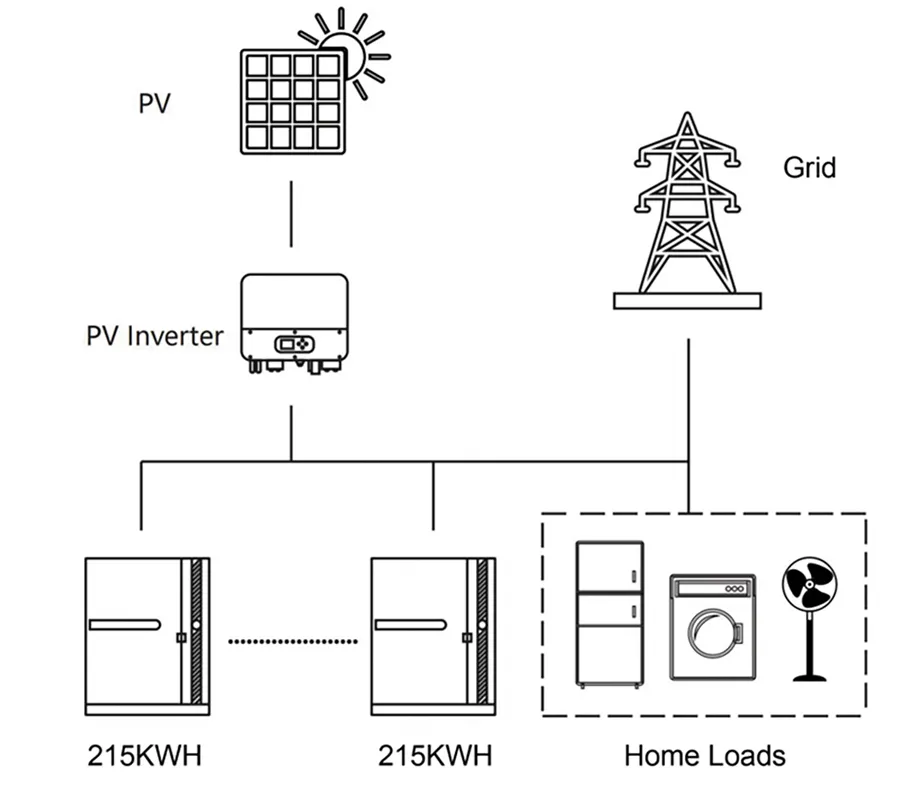

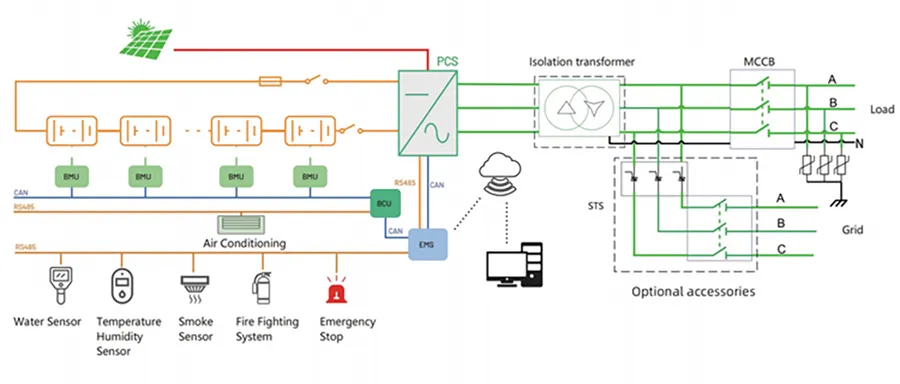

The commercial energy storage system stores excess energy generated by solar panels during the day. The power conditioning system (PCS) converts DC electricity into AC for appliances. The isolation transformer ensures safety and grid compliance, while the MCB connects the system to the grid and the load.

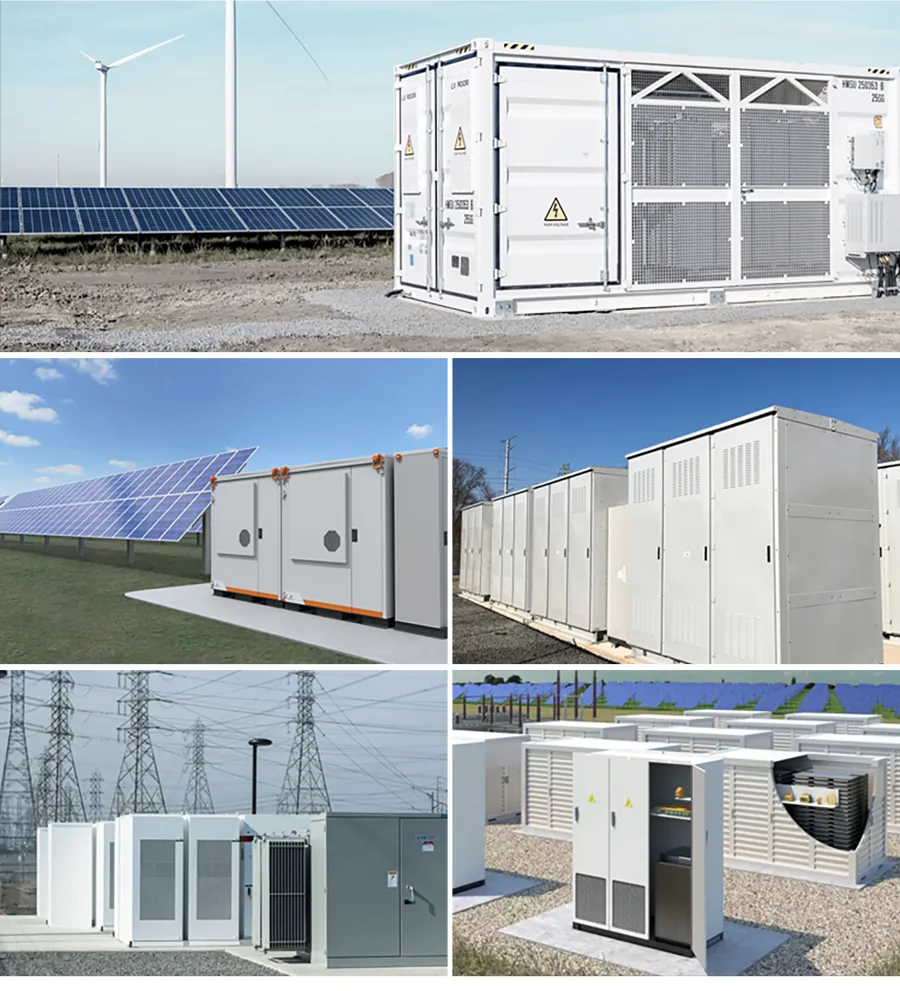

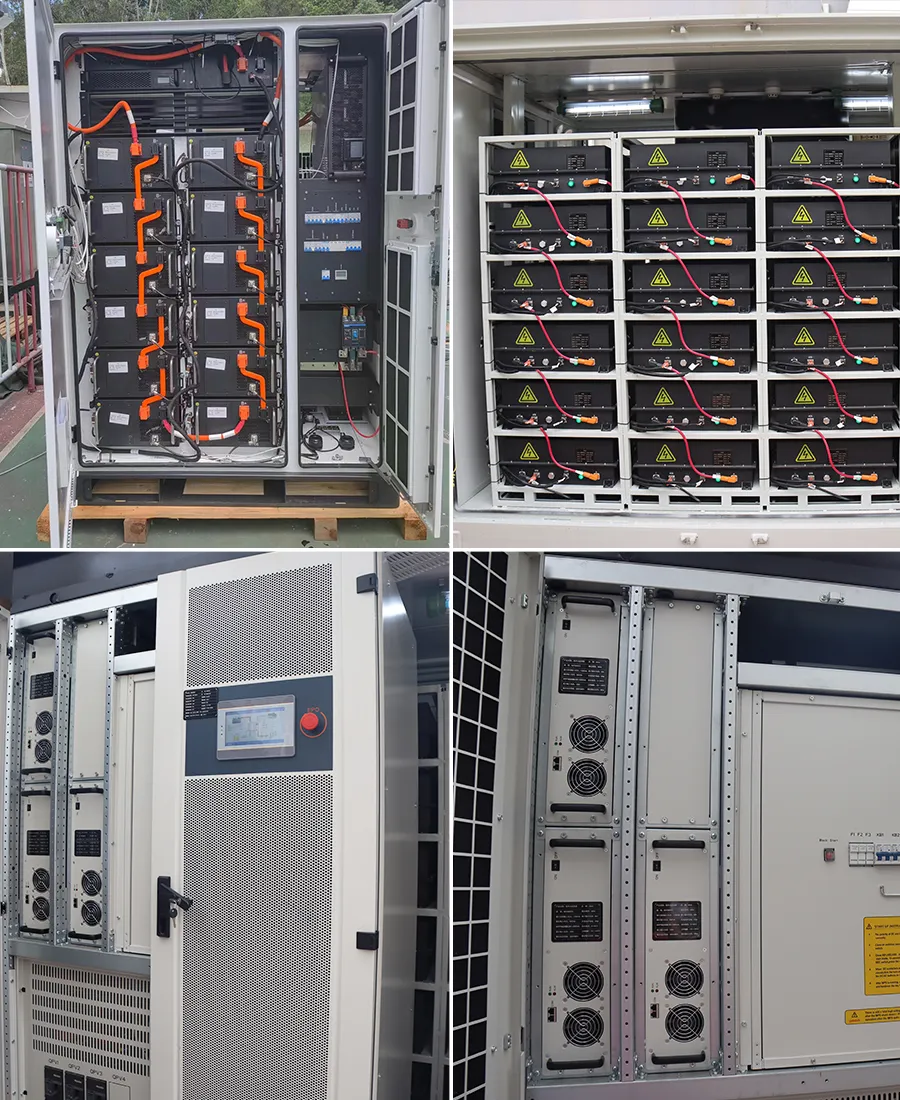

🚀 Application Scenarios

📜 Certifications

💡 Related Products

❓ Frequently Asked Questions

What is the capacity and power of this system?

The system provides a battery capacity of 215 kWh and a rated power output of 100 kW.

How long is the service life of the batteries?

The system utilizes high-quality lithium-ion cells with a cycle life of over 8,000 cycles at 80% EOL.

Can the system be installed outdoors?

Yes, the cabinet features an IP55 protection rating, making it suitable for industrial and commercial outdoor environments.

What safety features are integrated into the All-in-One cabinet?

It includes a Battery Management System (BMS), Energy Management System (EMS), modular PCS, and a Perfluorohexanone fire protection system.

What communication protocols does the system support?

The system supports Modbus RTU, Modbus TCP, and IEC 104 protocols via RS485 and Ethernet interfaces.

Does the system support off-grid operation?

Yes, it features "Black Start" capability, allowing it to restore power independently during grid outages.
