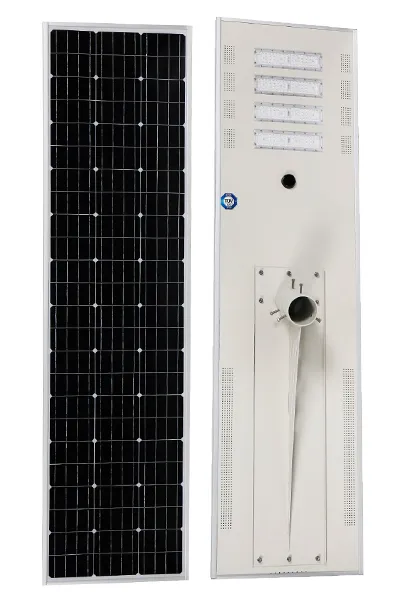

18000 Lamp Lumen All in One LED Solar Street Light with Smart Iot CCTV System

1 / 5

18000 Lamp Lumen All in One LED Solar Street Light with Smart Iot CCTV System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

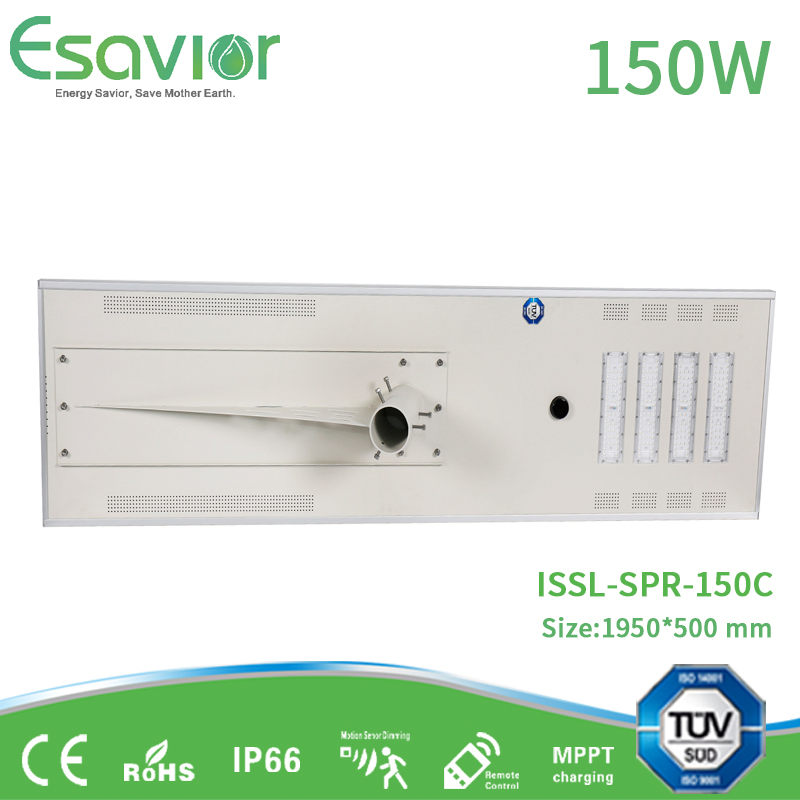

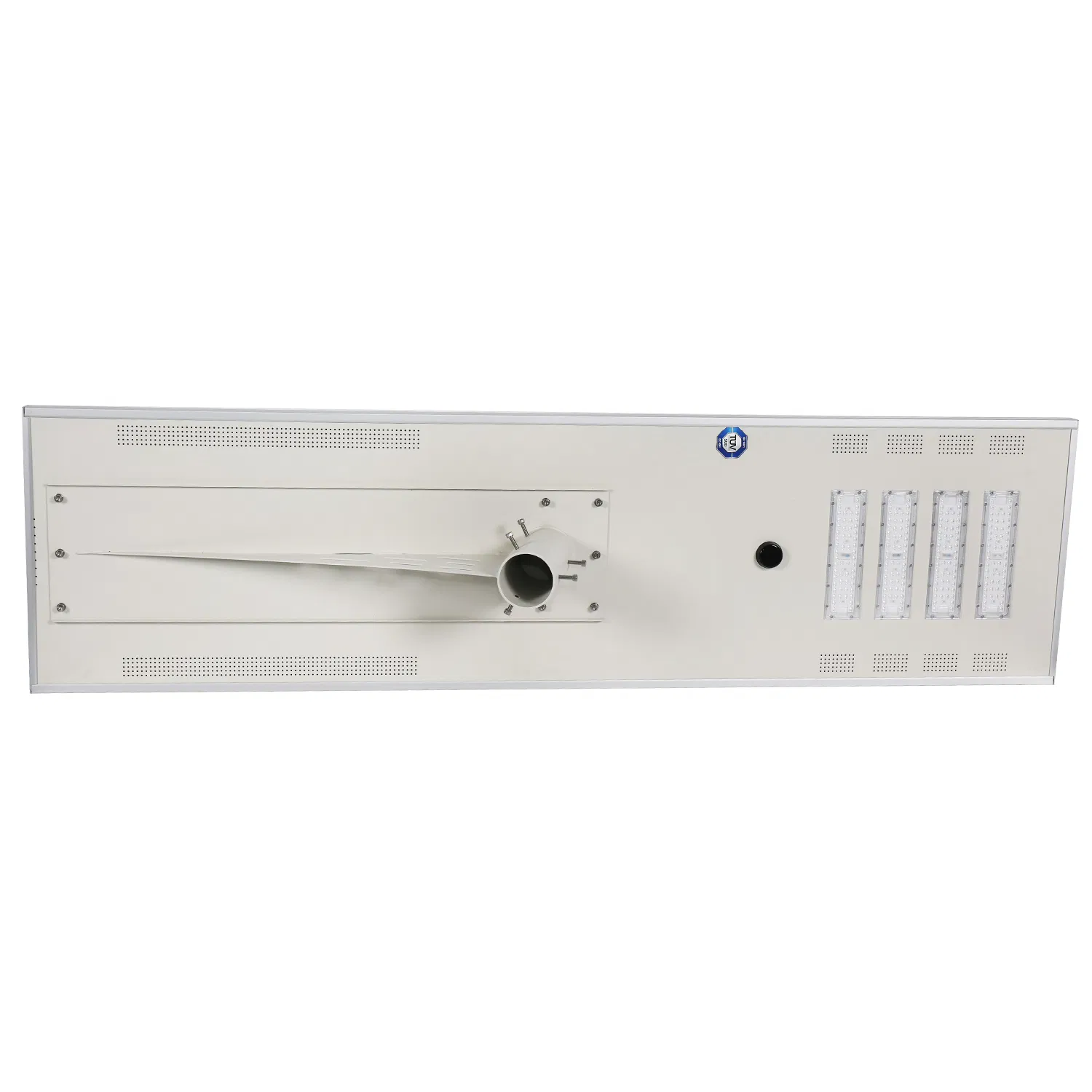

Model NO.ISSL-SPR-150C

Lamp Body MaterialAluminum Alloy

Light TypeSolar

Color TemperatureWarm White / Daylight White

Power150W

Illumination Time>12h

Cell TypeLiFePO4 Lithium

IP RatingIP66 / IP68

Solar PanelHigh Efficiency Monocrystalline

Charge ControllerMPPT

Mounting Height10-12m

Specification1970*520*55mm

★

Features & Advantages

Energy Saving All In One LED Solar Street Lights 150W for Government Solar Road Lighting Projects

18,000 LM max lamp lumen high brightness
100,000+ Hours long LED lifespan with professional heat dissipation
25 Years long product lifespan
3,000+ Cycles LiFePO4 batteries with Micro-BMS technologies
99.9% MPPT solar charge efficiency
IP68 rated controller and IP66 electrical compartment
5+ Days autonomy during cloudy or rainy days

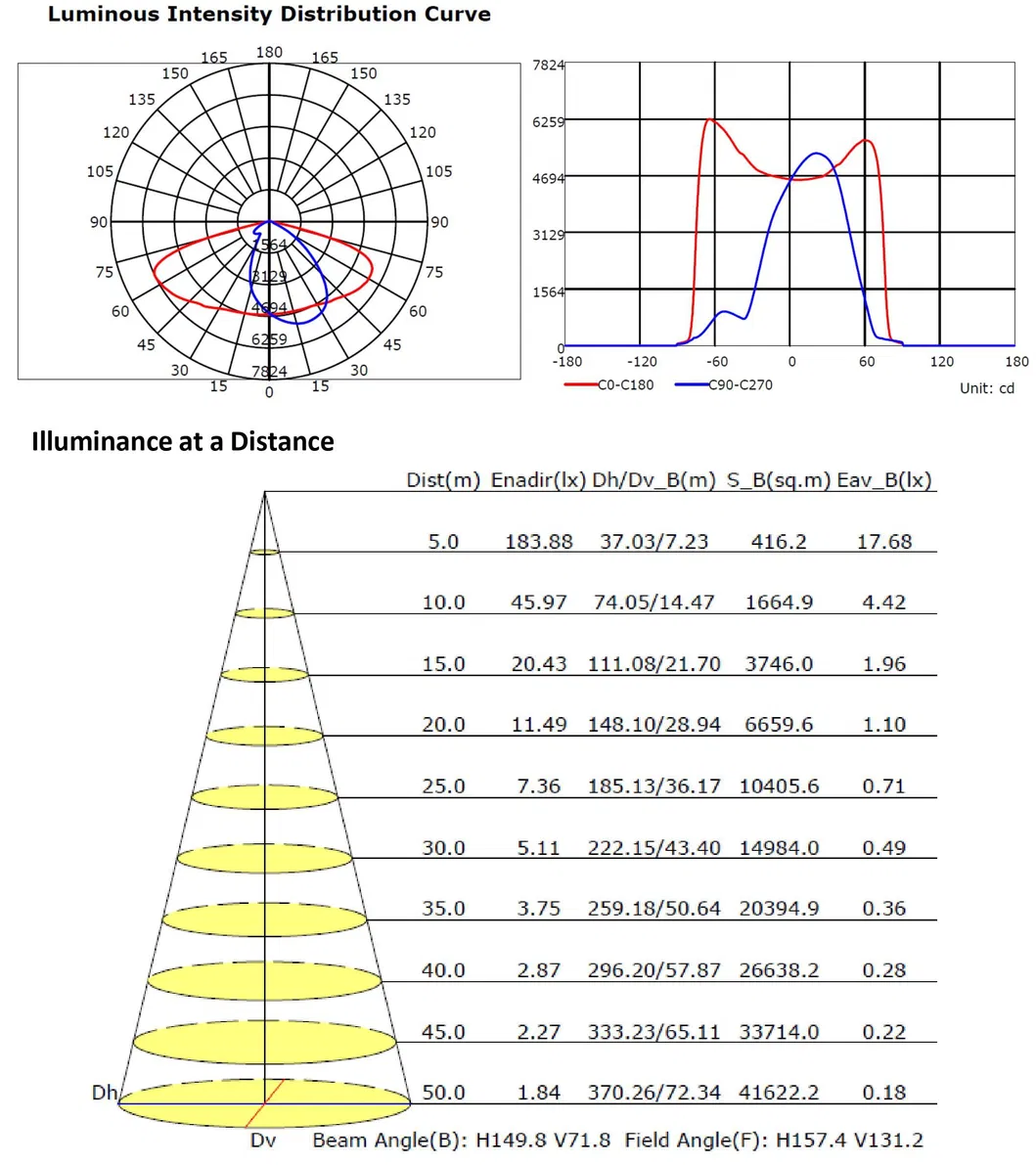

IES Type 1~5 professional optical designs available

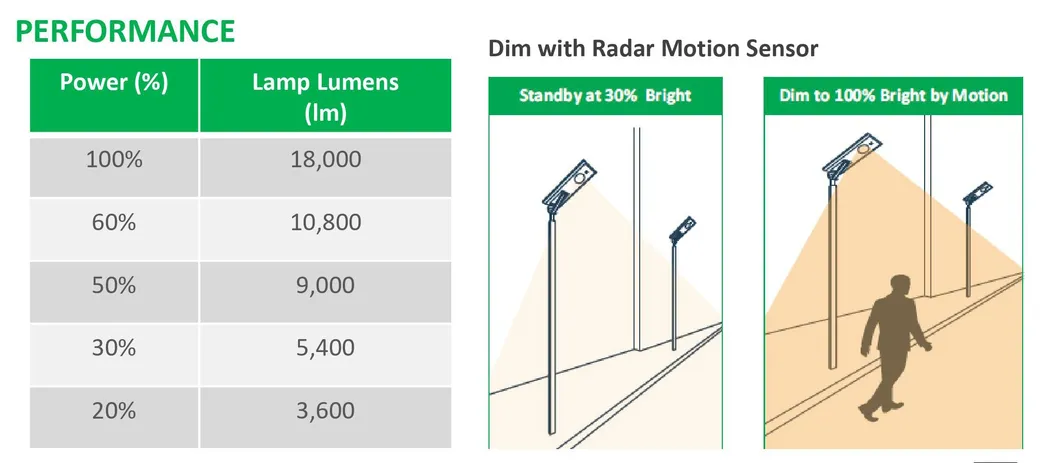

Smart Control Timer and motion sensor programming

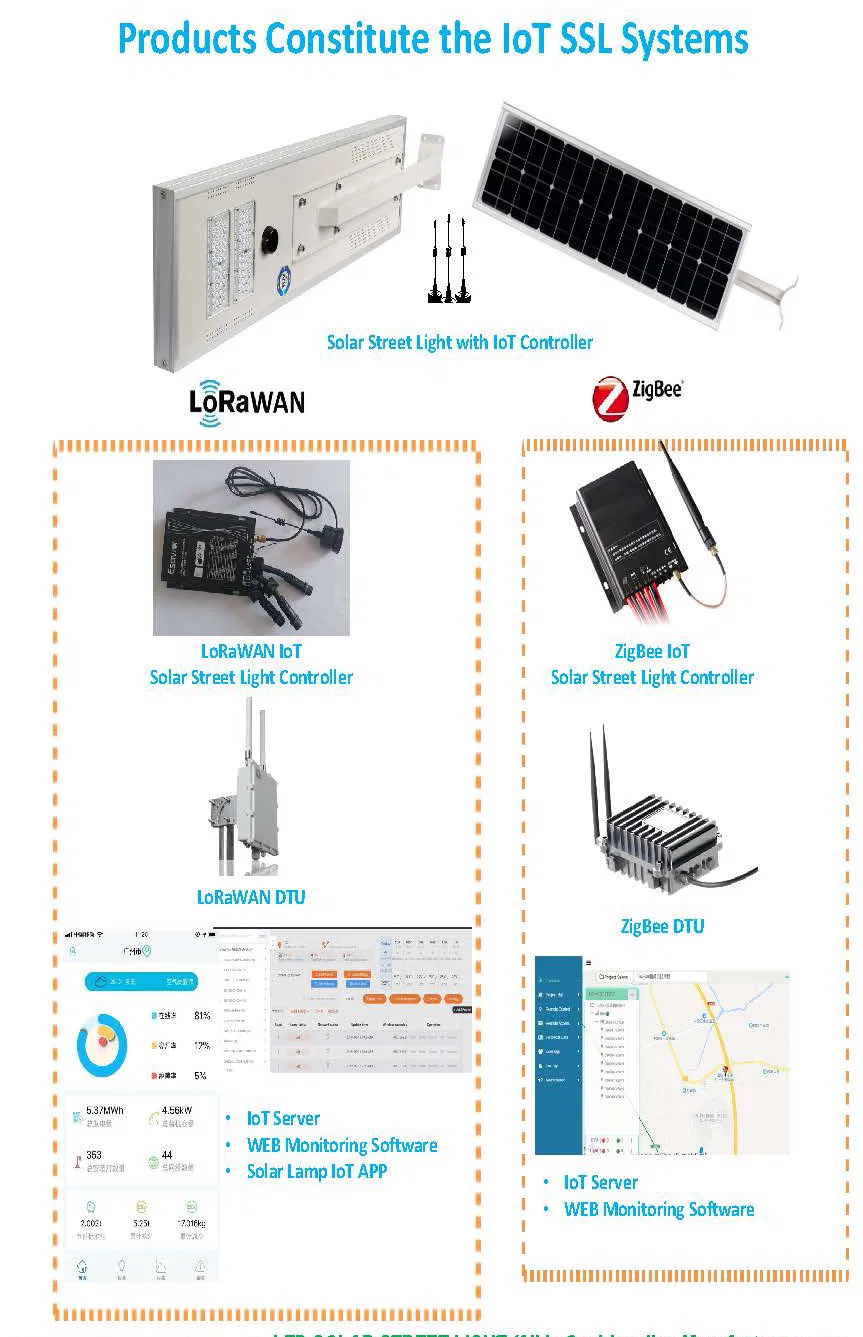

IoT Ready Online remote monitoring via ZigBee or LoRaWAN

⚙

Technical Specifications

Superior Series - Model ISSL-SPR-150C
LED Source	24V/ 150W (56LEDsx4 modules) - 3030 LED (195lm/W)
Lumens	15000-18000lm

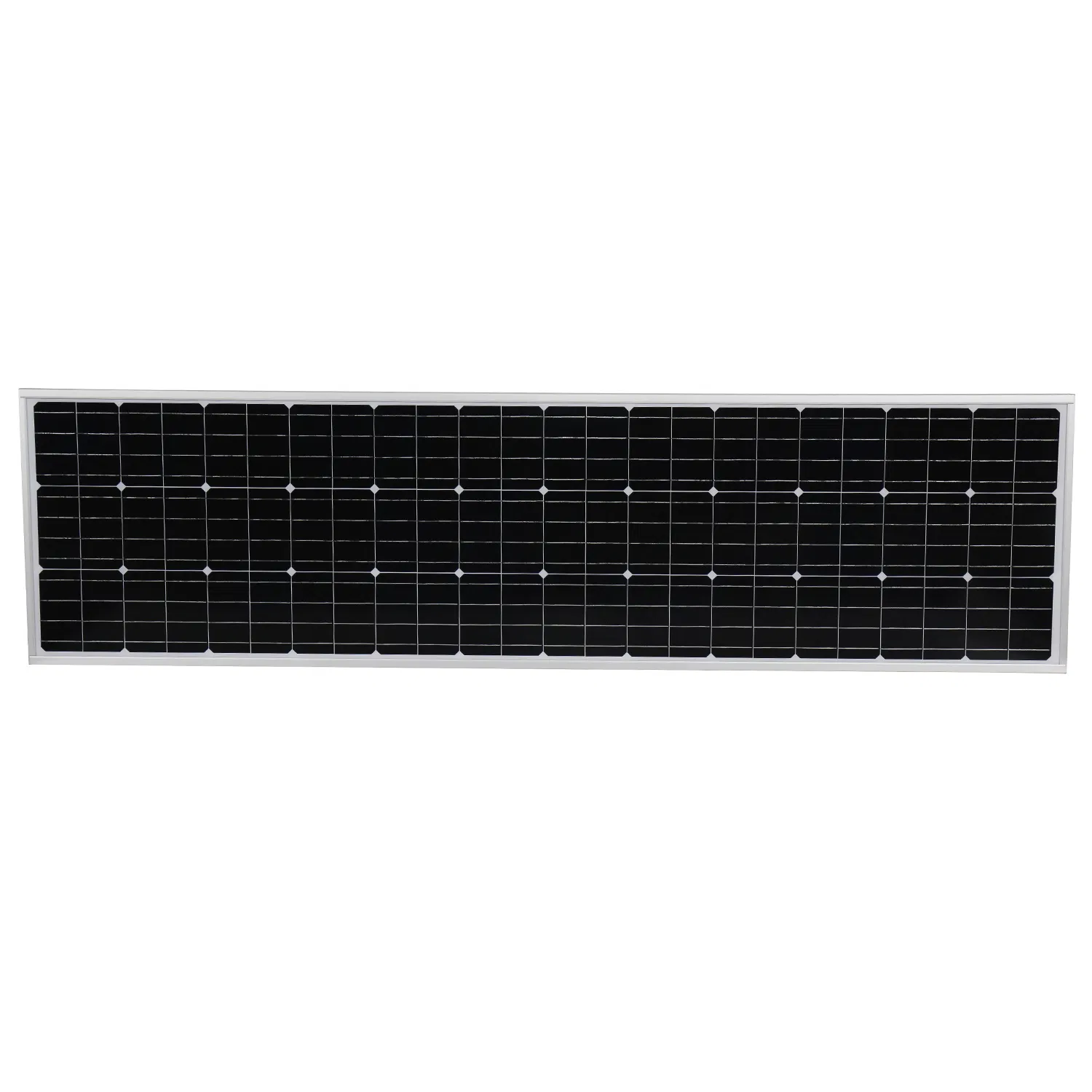

Solar Panel	36V/180Wp High Efficiency Mono PV (25 years lifespan)
Battery	25.6V/42AH (1075.2WH) LiFePO4 Lithium (8+ years lifespan)
Controller	MPPT / IP68 / Microwave Radar Sensor
Charging Time	6 hours (STC)
Discharge Time	Bright Mode: >12 hours; Dim Mode: >60 hours
Materials	Aluminum Alloy
Dimensions	197052055mm \| Weight: 35kg

☷

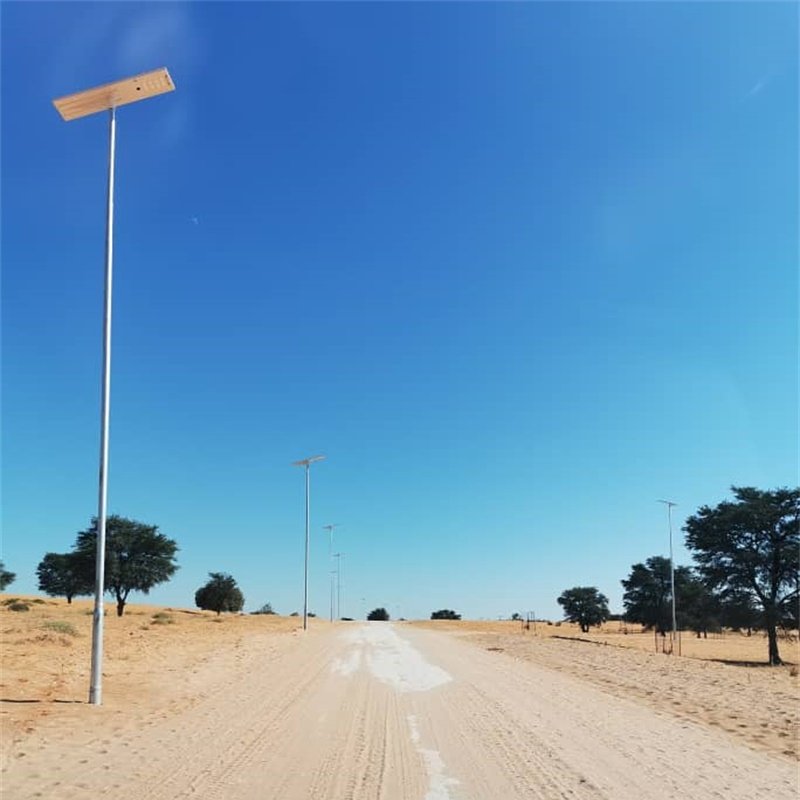

Applications

Highway

Expressway

Street Lighting

Public Areas

✔

Why Choose This Solution?

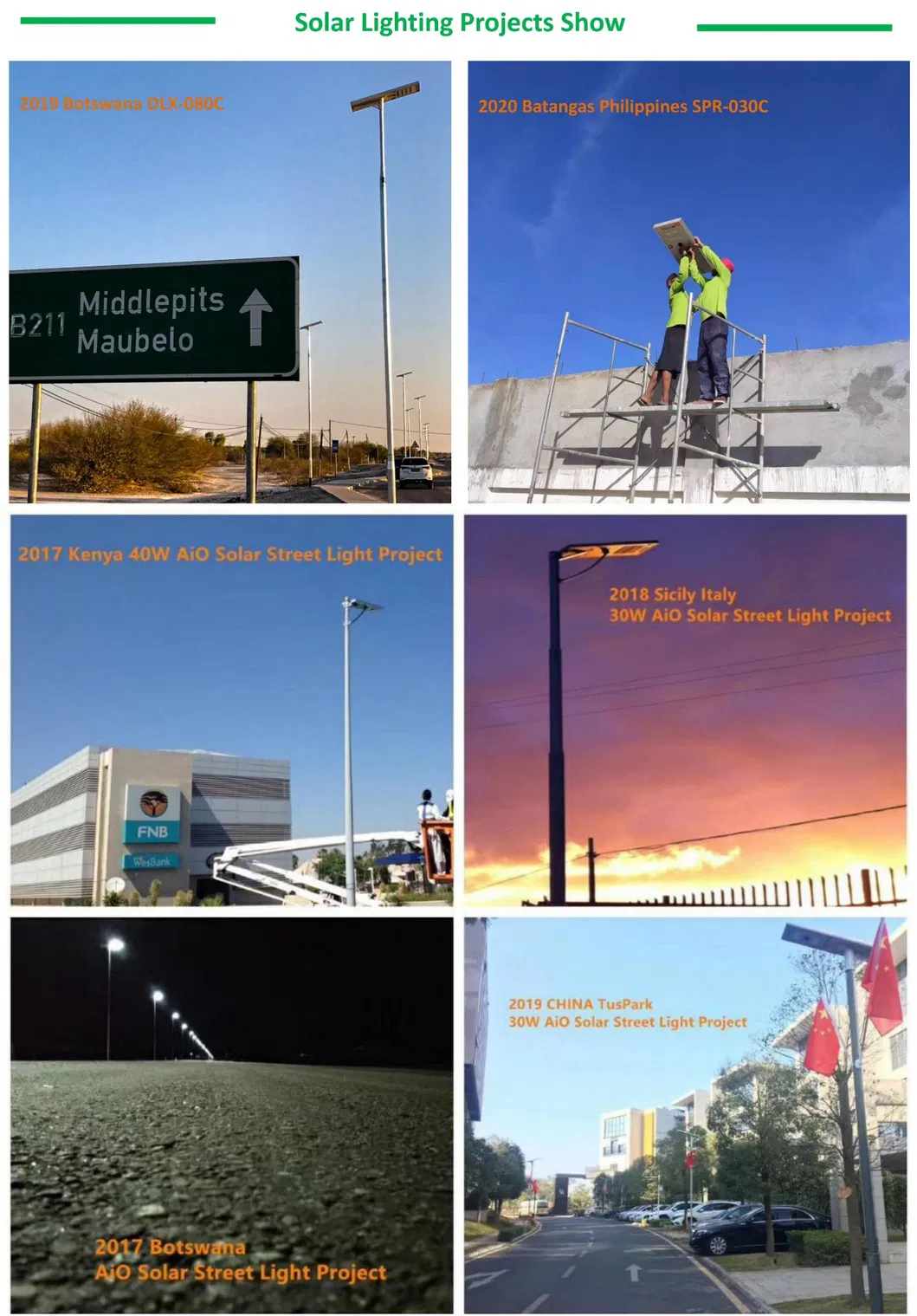

1. Over 12 years of experience with global successful project references in Solar Lighting.

2. Core technologies with 13 patents awarded for Solar Street Lights and IoT monitoring systems.

3. Certified by TUV-SUD: ISO 9001/14001, IEC 60598, IES TM-21.

4. Trusted by international organizations including UNDP, UNHCR, and The World Bank.

Frequently Asked Questions

Q1: Does the lamp light on automatically? A: Yes, it will light on automatically at darkness in any mode except "OFF".

Q2: Can I order samples for testing? A: Yes, we welcome sample orders to test and check quality. Mixed samples are also acceptable.

Q3: What is the typical lead time? A: 3 workdays for samples and 7-15 workdays for batch orders (over 100pcs).

Q4: What kind of warranty is offered? A: We offer a 3 to 5-year warranty on our products depending on the configuration.

Q5: Is the lamp suitable for high wind environments? A: Yes, the unit uses a solid Aluminum-alloy holder that is zinc-plated for anti-rust and corrosion resistance.

Q6: What is the difference between Motion and PIR sensors? A: Motion (radar) sensors emit high-frequency waves and are accurate up to 10 meters. PIR sensors detect temperature changes and usually cover 3-5 meters.
