Basic Specifications

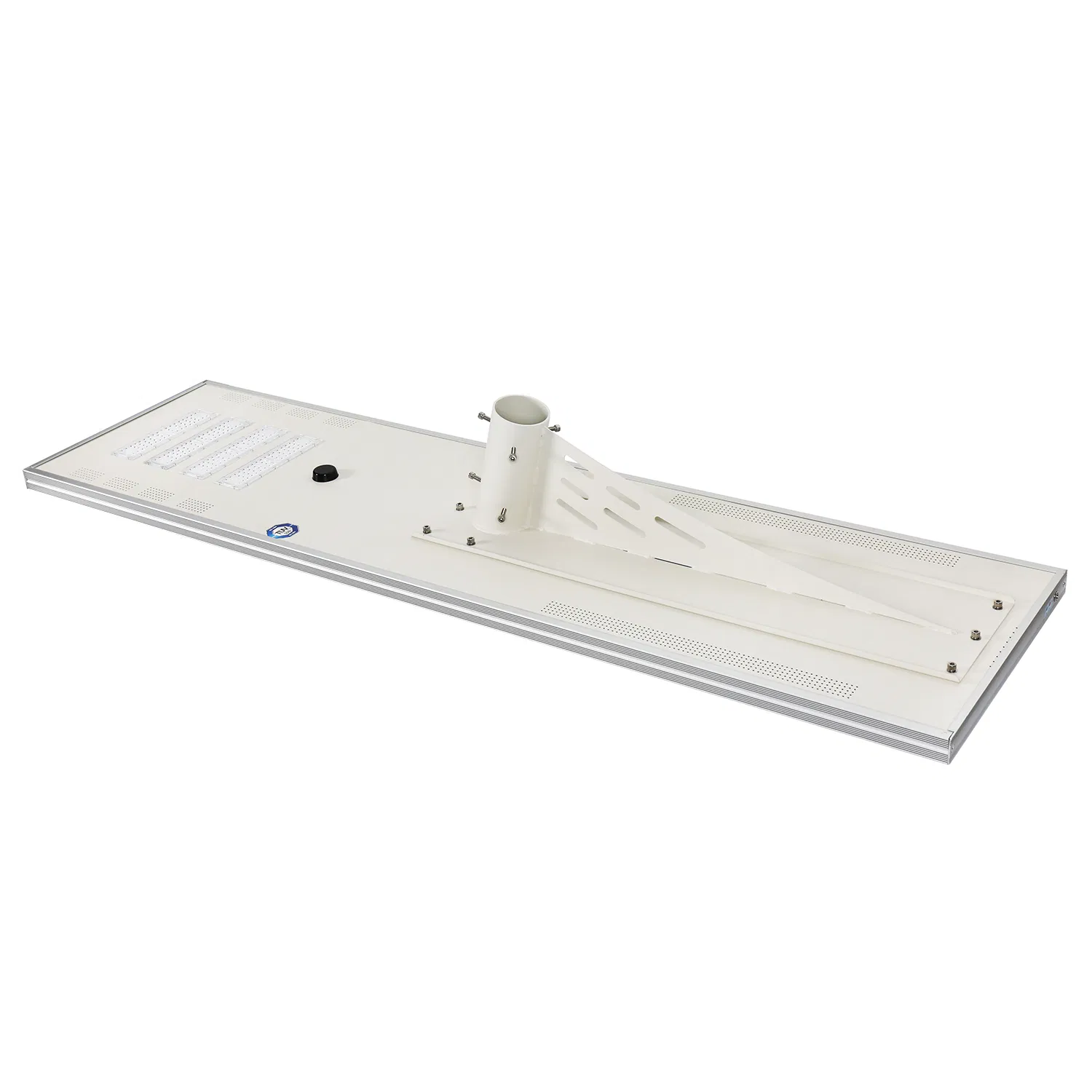

Lamp Body Material
Aluminum Alloy
Color Temperature
Warm White
Luminous Flux
15000-18000lm

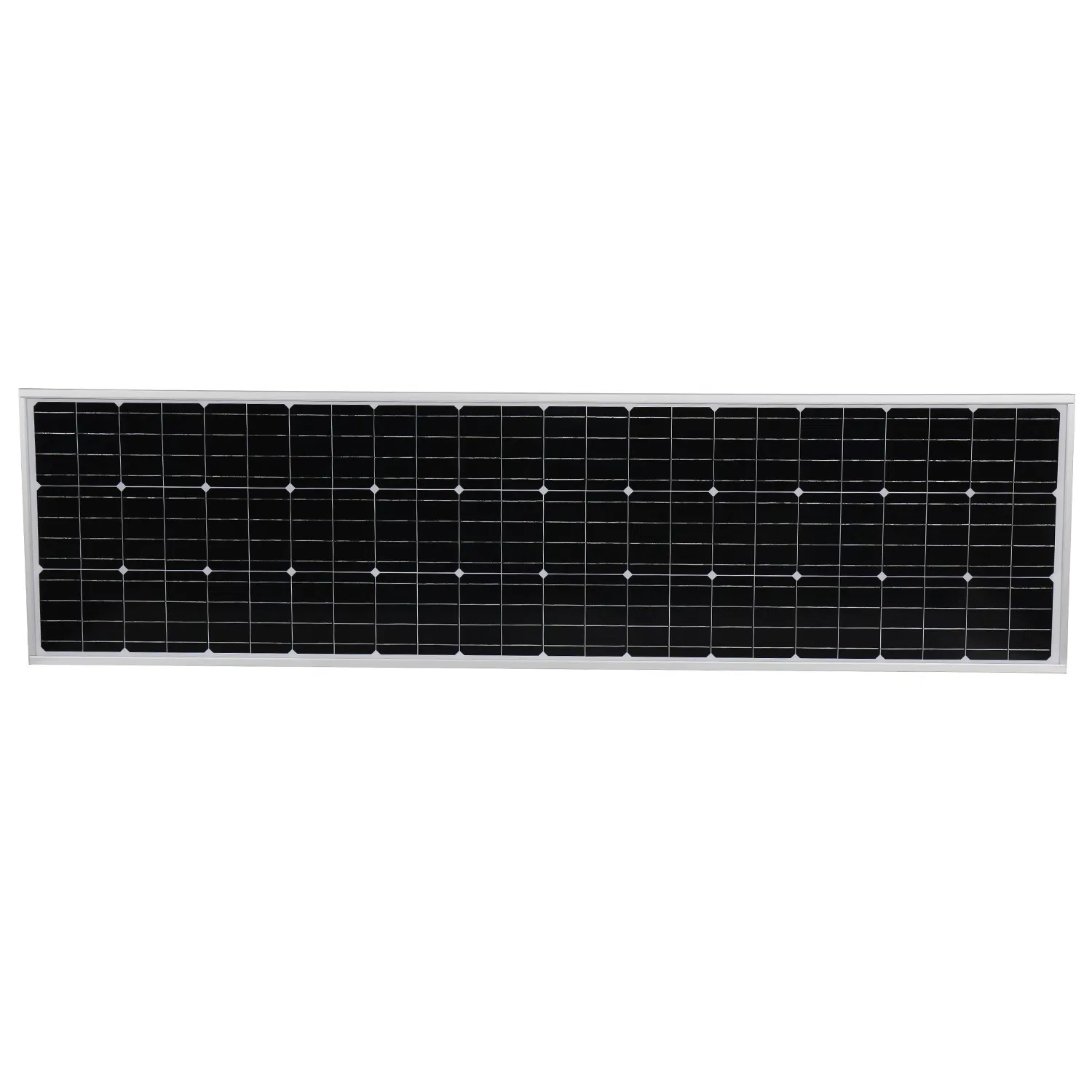

Solar Panel
High Efficiency Monocrystalline
Smart Function
Remote Control/Motion Sensor/Light Sensor
Features & Advantages
- 18,000 LM max lamp lumen high brightness
- 100,000+ Hours long LED lifespan, with professional heat dissipation design
- 25 Years long product lifespan
- 3,000+ Cycles life LiFePO4 batteries with inbuilt Micro-BMS technologies
- 99.9% MPPT solar charge efficiency
- IP68 rated controller vs. IP66 rated electrical compartment
- 5+ Days cloudy/rainy days autonomy
- Flexible Working Modes with timer and motion sensor by programming

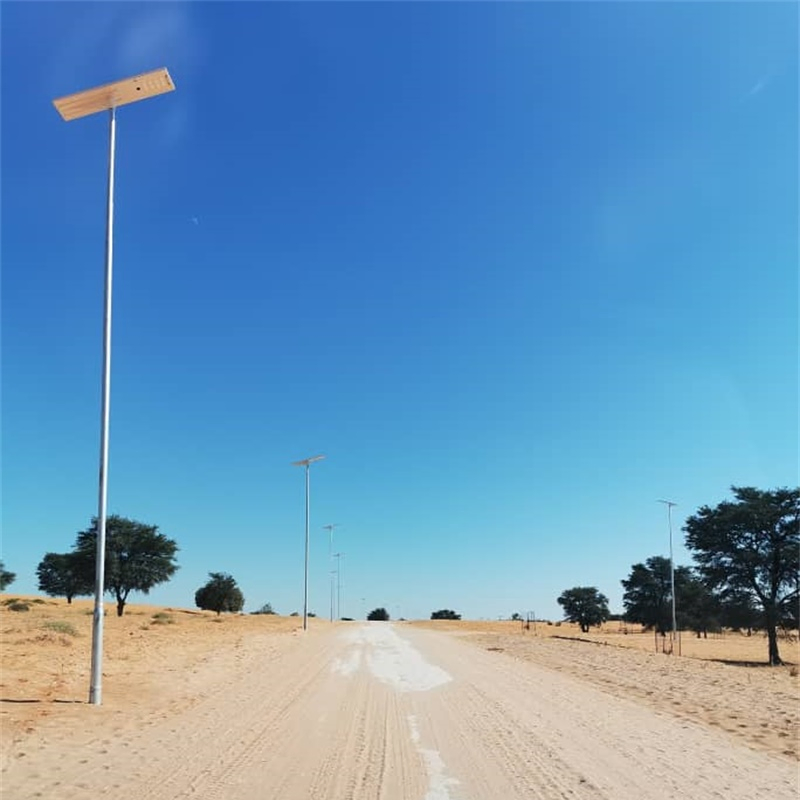

Applications
- Highway and Expressway lighting
- Urban Street and Roadway lighting
- Public Areas (squares, theme parks, parking lots)
Technical Specifications
| SUPERIOR (SILVER) Series |

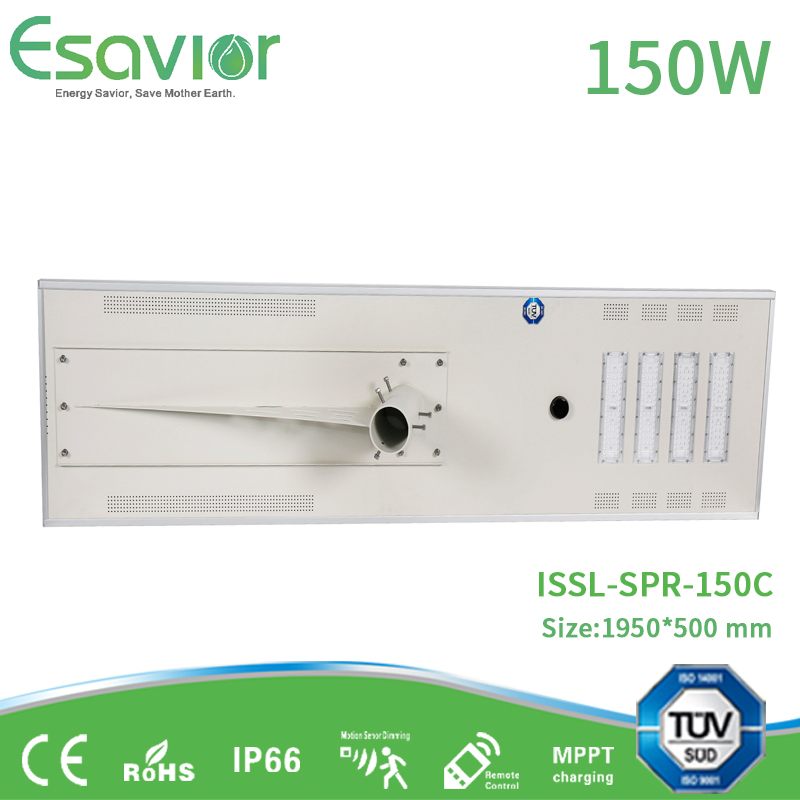

MODEL NO. ISSL-SPR-150C |
| LED Source | 24V/ 150W (3030 LED Brand) |  |
| Lumens | 15000-18000lm |
| Solar Panel | 36V/180Wp High Efficiency Mono |
| Battery | 25.6V/42AH (1075.2WH) LiFePO4 |
| Controller | MPPT / IP68 |
| Charge Time | 6 Hours (STC) |
| Working Temp. | -30ºC ~ +80ºC |
| Mounting Height | 10~12 m |
| Dimensions | 1970*520*55mm |

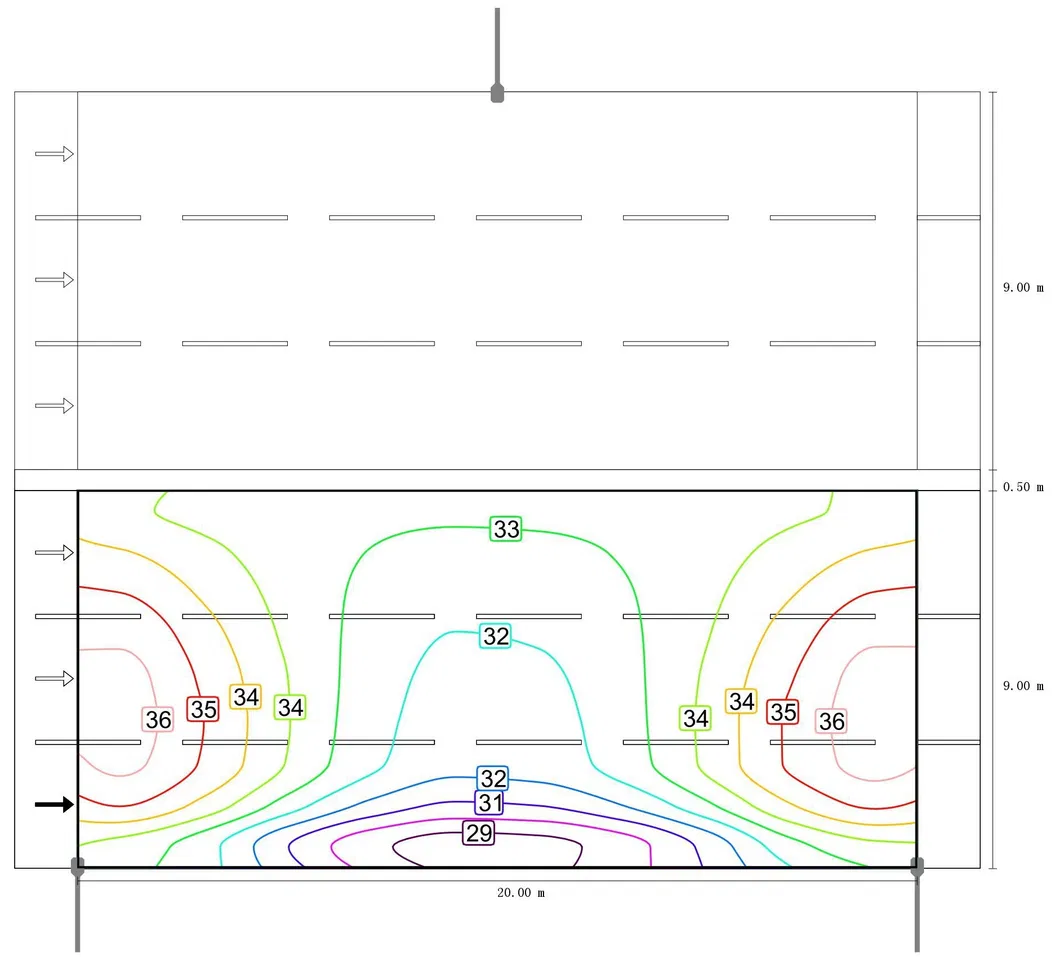

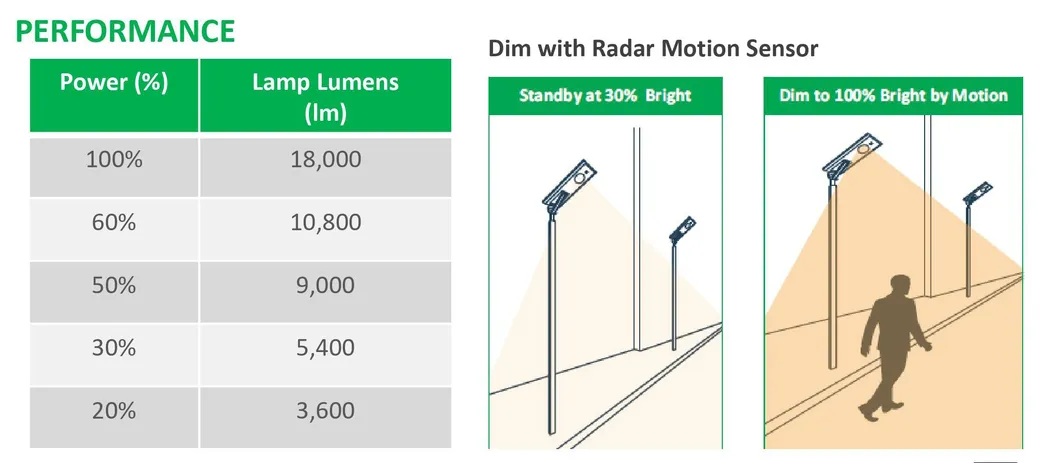

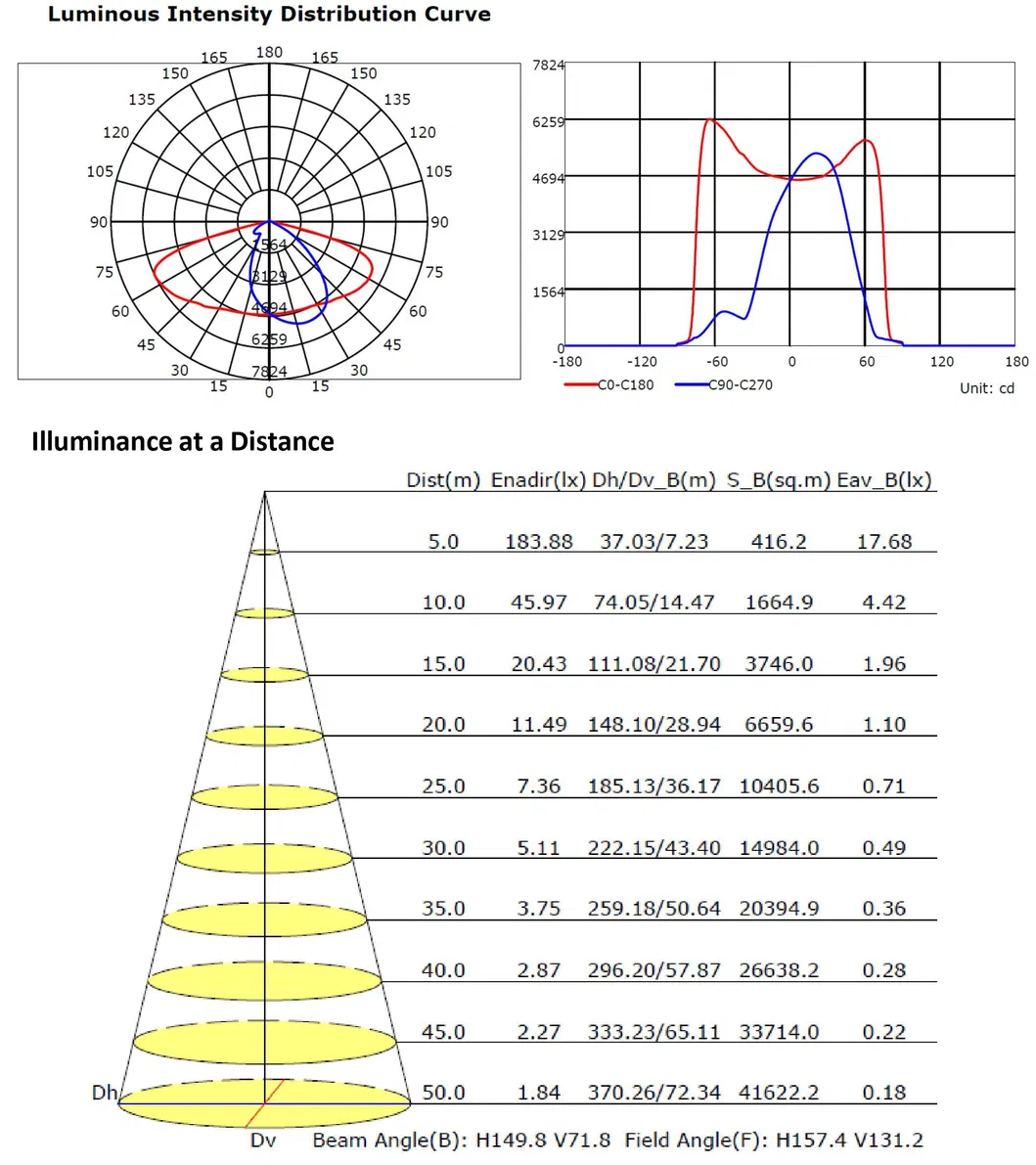

Performance & Simulations

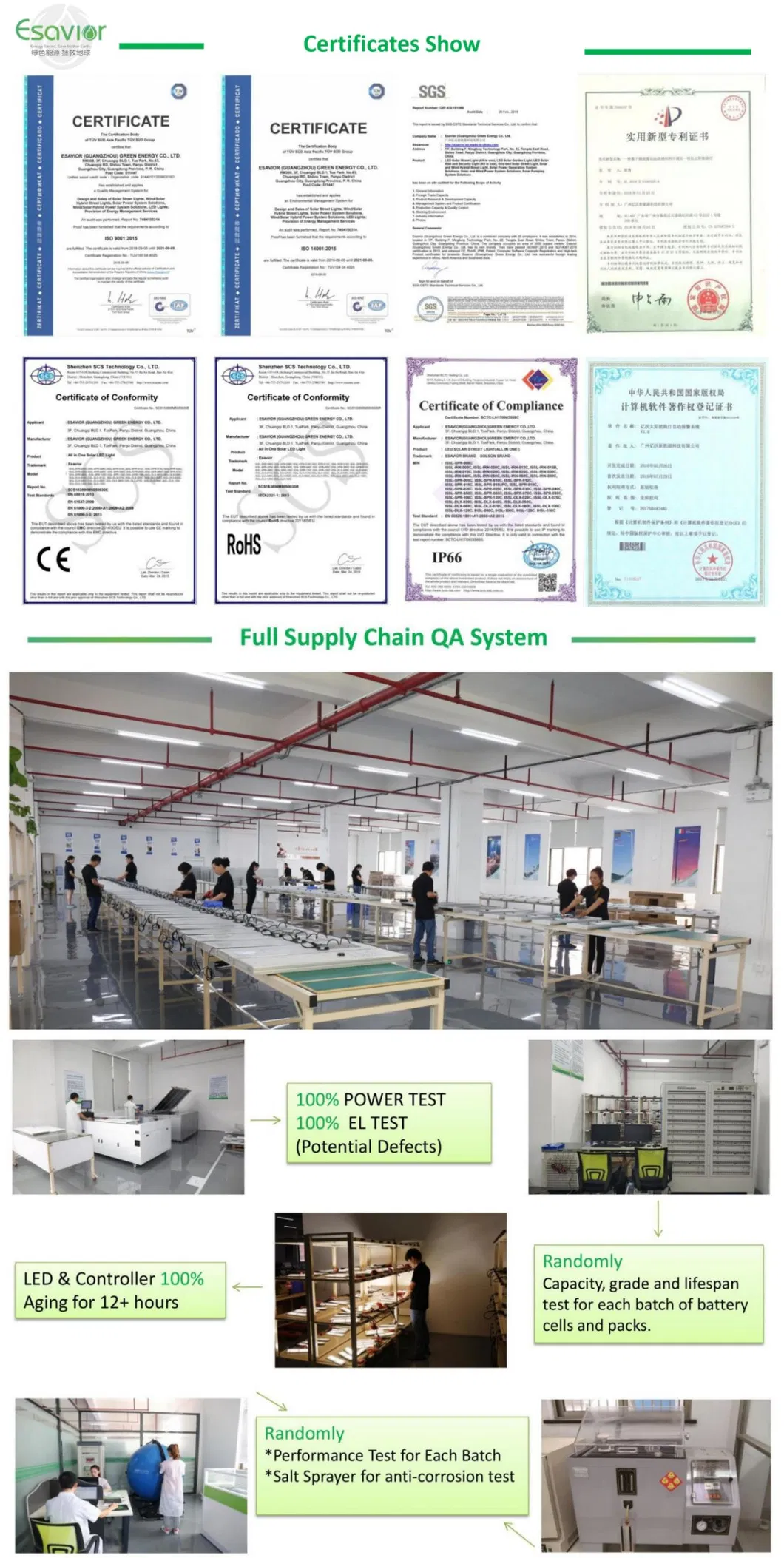

Manufacturing Quality

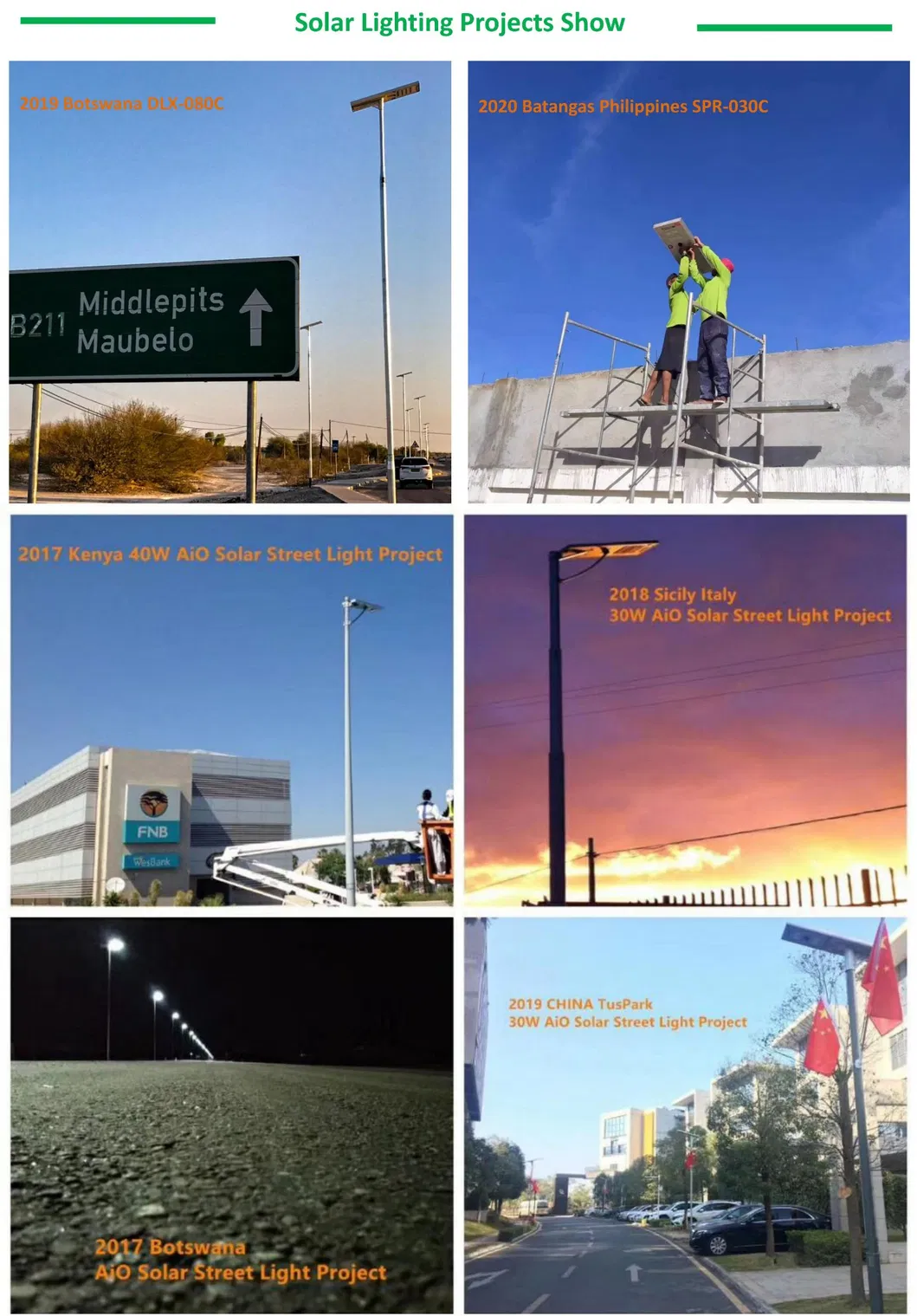

- 12 years' experience in global successful solar lighting projects.

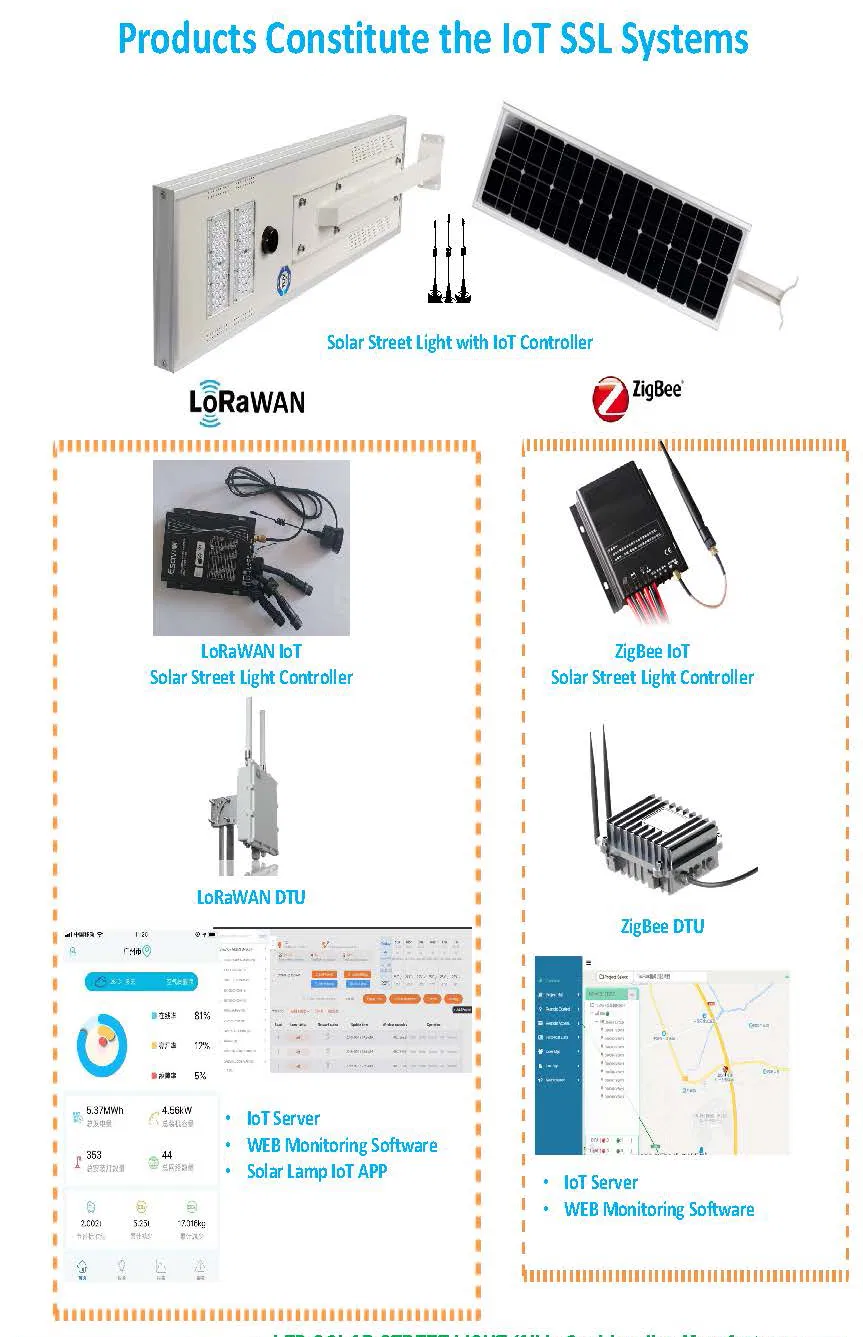

- 13 patents in core technologies including IoT online Monitoring Systems.
- ISO 9001/14001, IEC 60598, TUV-SUD, CE, RoHS, and IP66 certified.
- Modern manufacturing base with advanced inspection equipment and faultless QA system.
Solar Street Light FAQ
Does the lamp light on automatically?
Yes, it will light on automatically at darkness in all modes except "OFF".
Can I order samples for solar street light?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
What is the typical lead time?
Approximately 3 workdays for samples and 7-15 workdays for batch orders (over 100pcs).
What warranty is provided?
We offer a 3 to 5-year warranty on our solar street lighting products.
Can the lamp withstand strong wind environments?
Yes, the units use an Aluminum-alloy holder which is solid, firm, and zinc-plated for anti-rust corrosion resistance.
What is the difference between a Motion sensor and PIR sensor?
A Motion sensor (radar) emits high-frequency electric waves to detect movement up to 10 meters accurately. A PIR sensor detects environmental temperature changes with a shorter range of 3-5 meters.
