| Model NO. | XINGHUI-125/261-230/400 |
| Protection Class | IP55 |
| Cooling Method | Liquid Cooling |
| Rated Output Voltage | 400V, 3L/N/E |
| Operating Voltage Range | 650V~959V |
| Cell Type | 3.2V/314ah LFP |
| System Efficiency | >90% |
| Communication Method | 4G/LAN |
| Operating Temperature | -25°C~55°C |
| Transport Package | Standard Packaging or Customized |
| Specification | Standard Specifications or Customized |
| Production Capacity | 500000sets/Year |
Our energy storage battery systems deliver cutting-edge power solutions designed for residential, commercial, and industrial applications. These high-performance battery systems serve as dependable emergency backup power sources, ensuring uninterrupted operation during grid outages while optimizing energy consumption for maximum cost savings.
| TECHNICAL SPECIFICATIONS | |

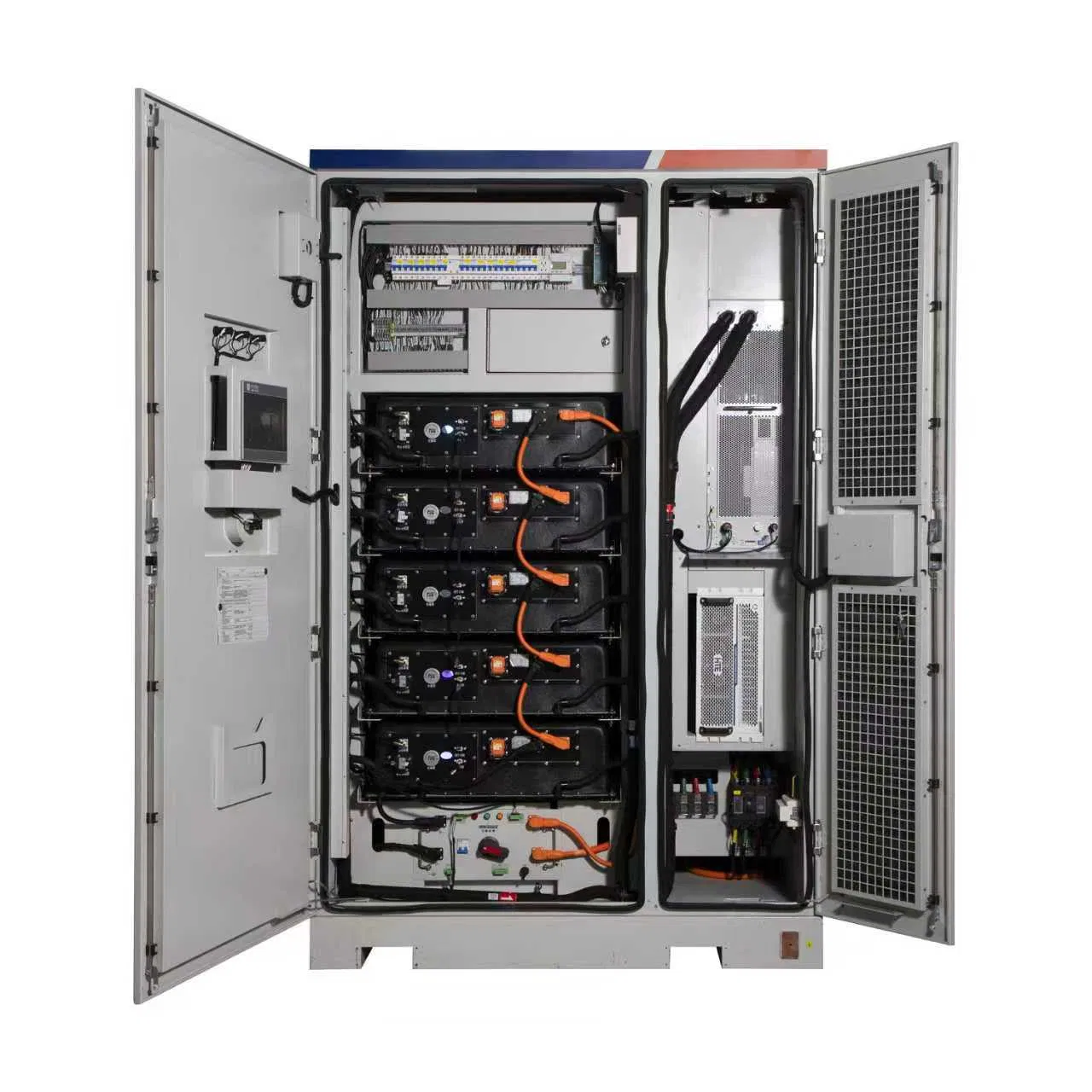

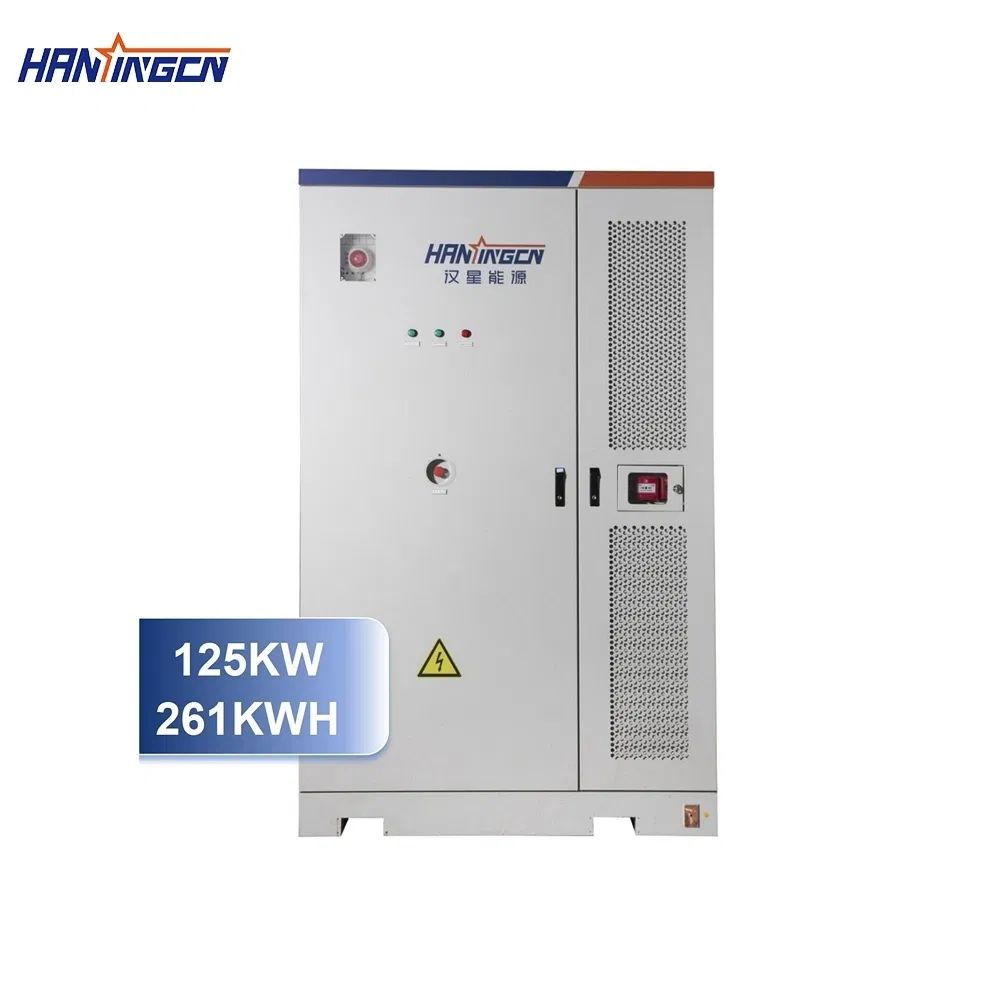

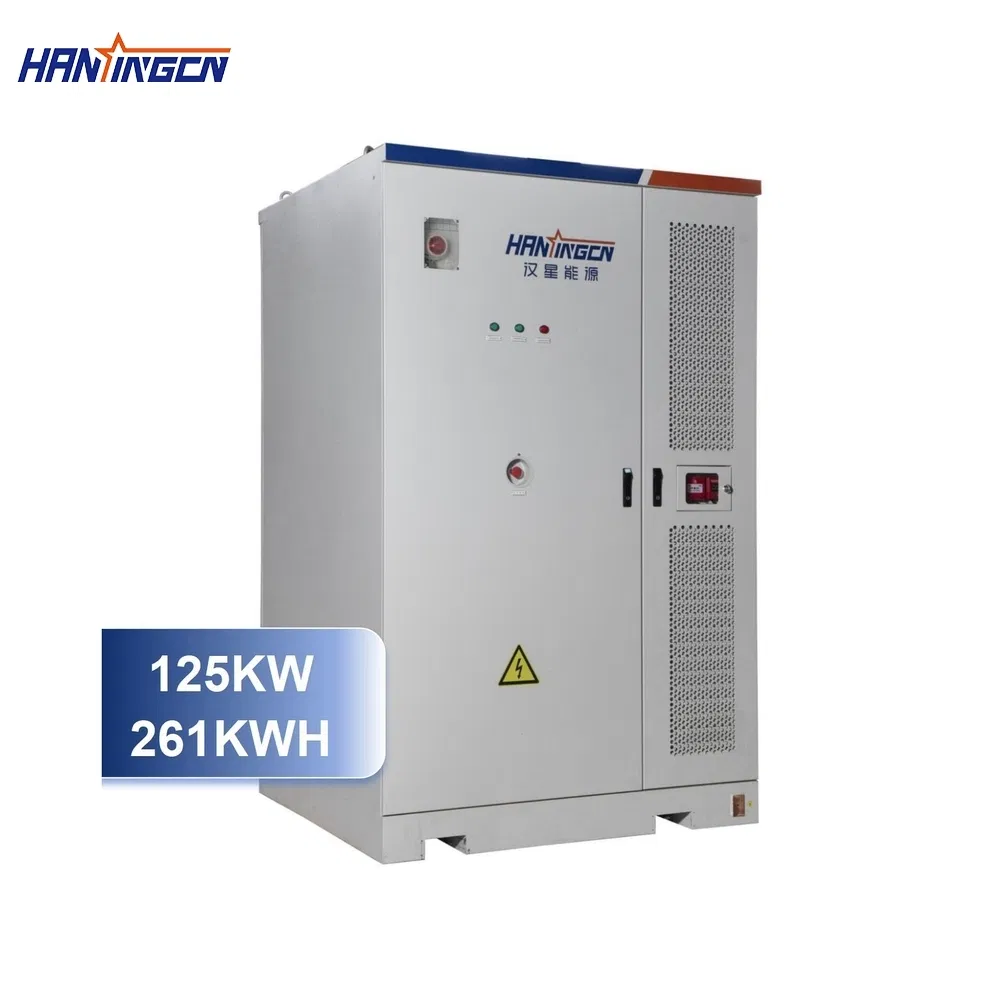

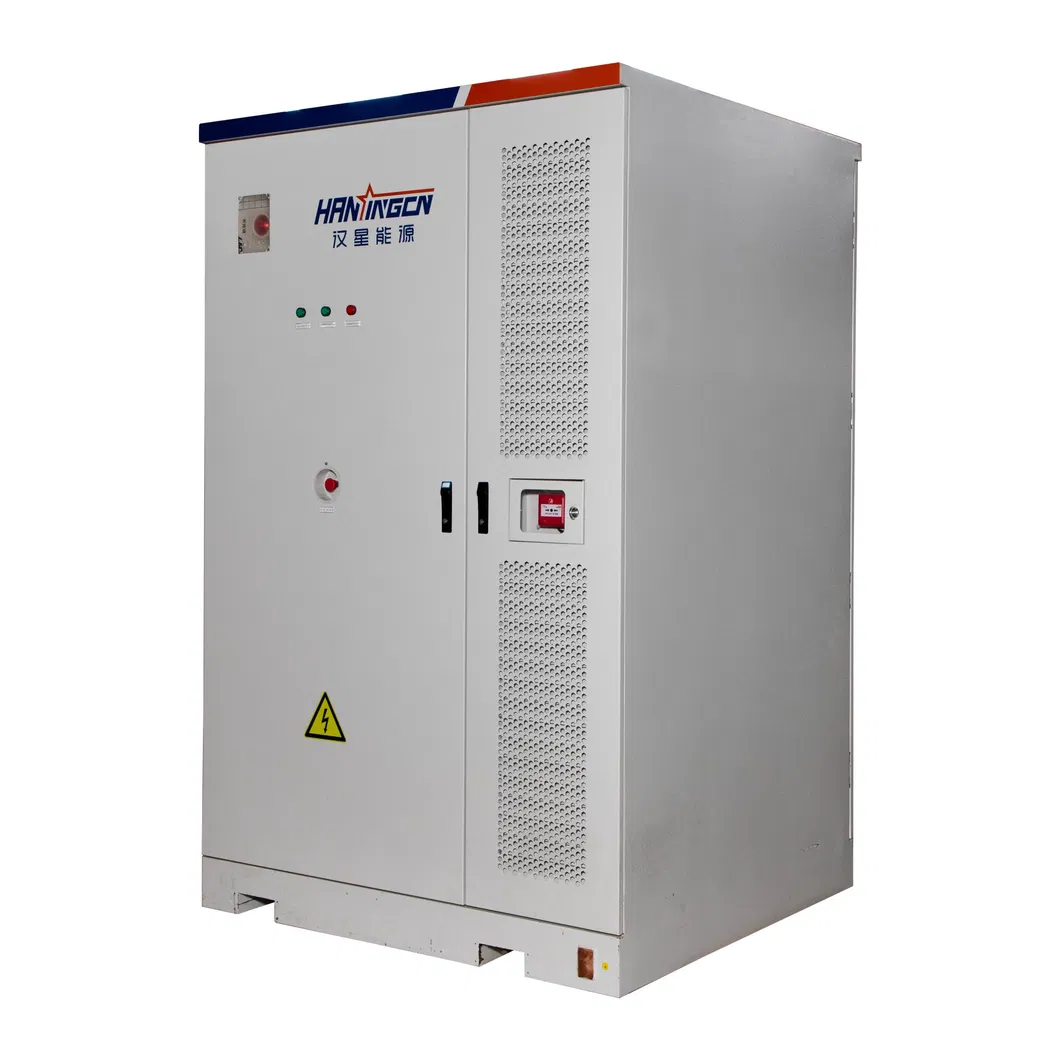

| Product Name | Commercial Energy Storage Battery |
| Keywords | Energy Storage Battery |
| Nominal Voltage | 230V/400V |
| Nominal Capacity | 125KW/261KWH |
| Cycle Life | 8000cycles+ |

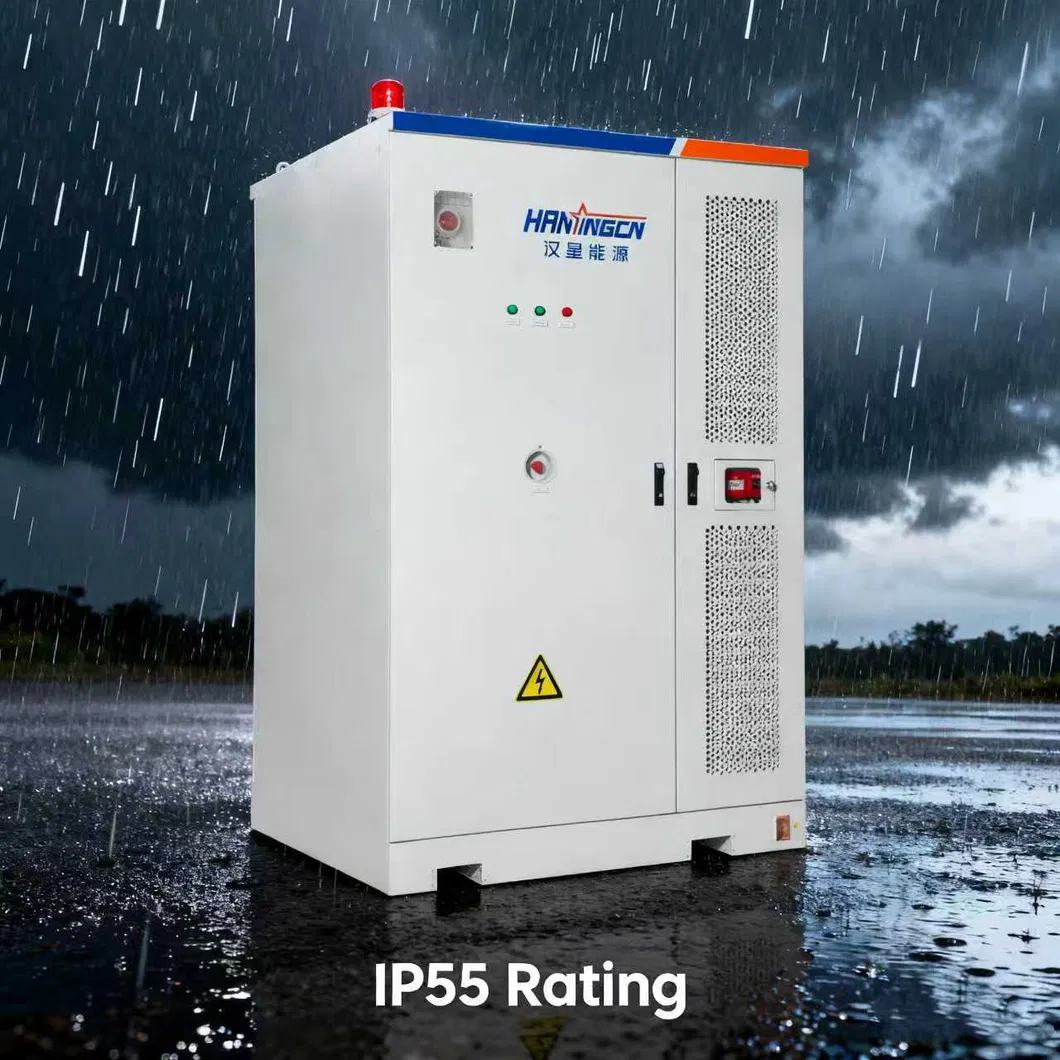

| Protection Class | IP55 |
| Cooling Method | Liquid Cooling |
| Rated Output Voltage | 400V, 3L/N/E |
| Operating Voltage Range | 650V~959V |
| Cell Type | 3.2V/314Ah LFP |
| System Efficiency | >90% |
| Communication Method | 4G/LAN |
| Operating Temperature | -25°C~55°C |

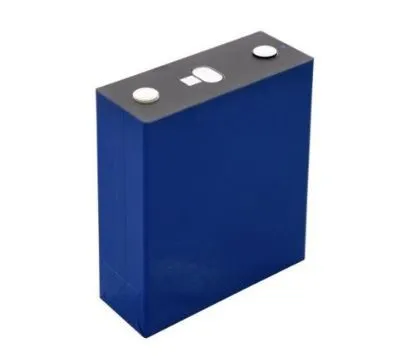

Function: Achieve conversion between chemical and electrical energy, serving as the basic storage unit.
Advantages: High-quality cells with long cycle life reduce long-term usage costs.

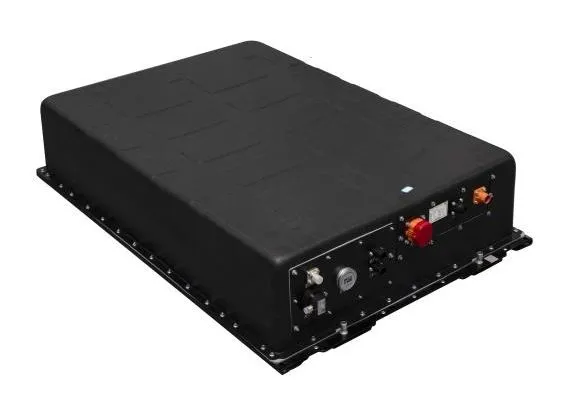

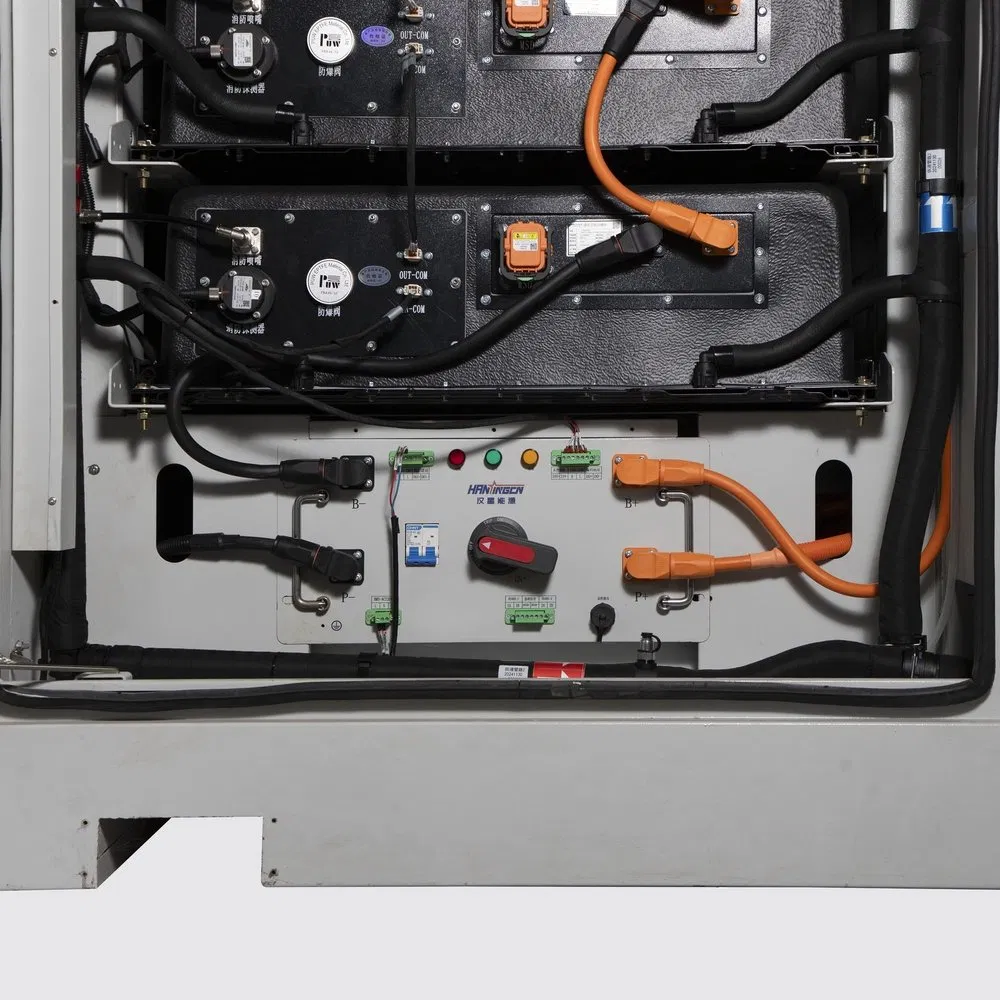

Function: Combines cells in series/parallel for stable voltage, integrating cooling and protection mechanisms.
Advantages: Modular design for easy maintenance; enhances safety by isolating single cell failures.

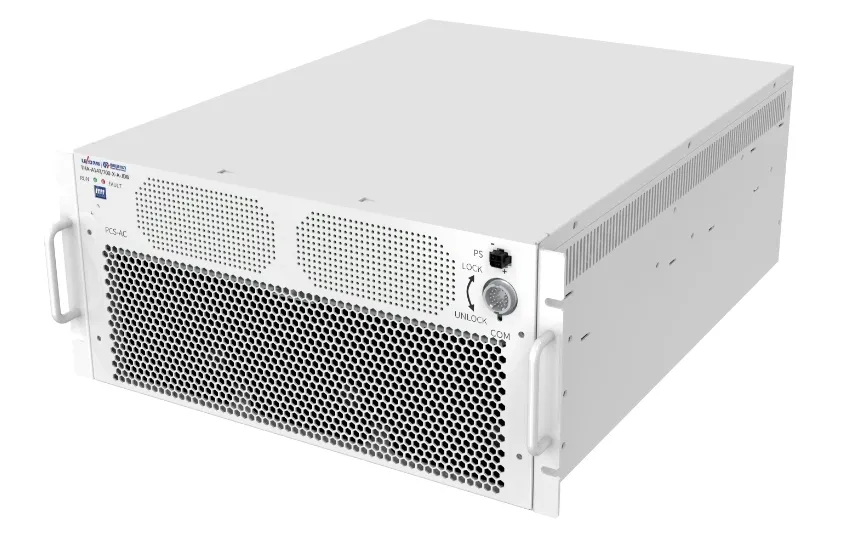

Function: Bidirectional DC/AC conversion, enabling energy interaction with the grid and loads.
Advantages: High conversion efficiency and fast response speed.

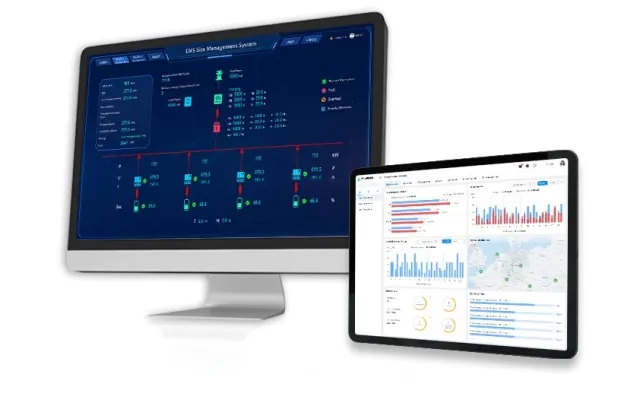

Function: Real-time monitoring, optimal strategy formulation, and emergency protection.
Advantages: Intelligent scheduling enhances efficiency and extends system lifespan.

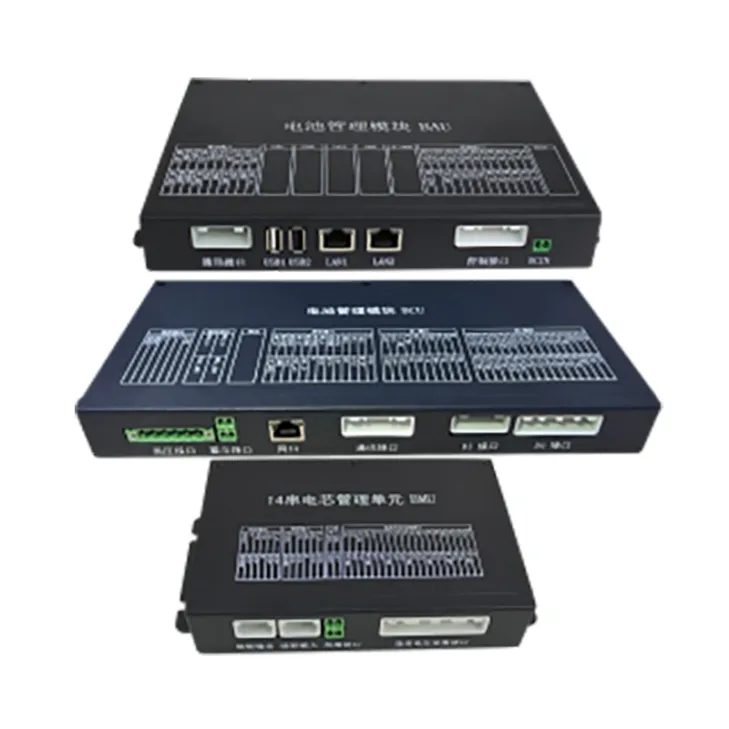

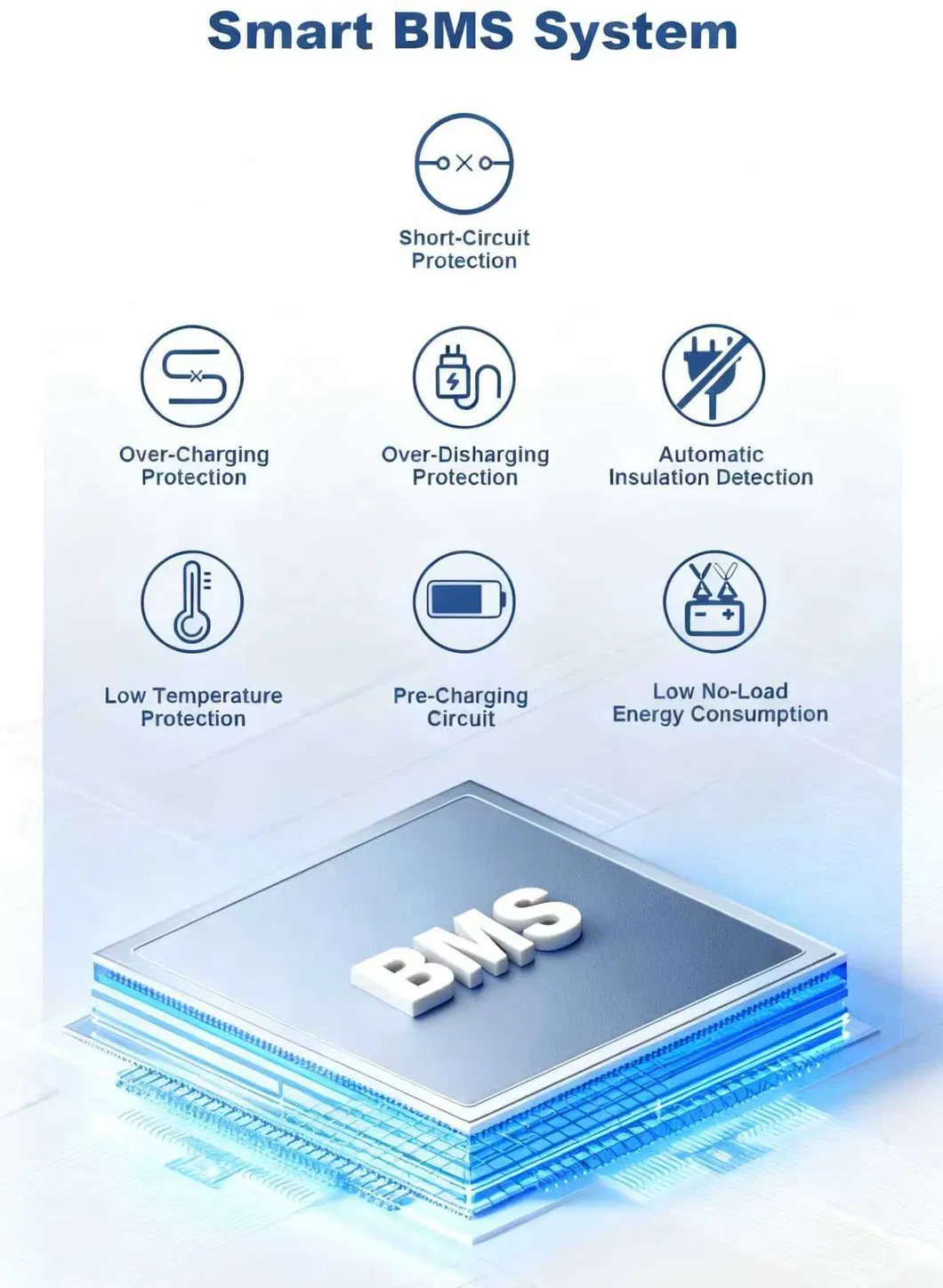

Function: Monitors voltage, temperature, SOC, and SOH; triggers fault protection.
Advantages: Precise control prevents damage and reduces battery degradation.
Buying low-cost electricity during off-peak hours and discharging it during peak periods to maximize profit margins and improve ROI.
Minimizing short-term peak loads to lower demand charges and enhance revenue while balancing grid consumption patterns.
Voluntarily reducing consumption during shortages to support grid stability and earn economic incentives.
